Isoli ML140 on Ford Ranger

This ultra-compact EWP gets into those tight spaces, with outriggers that only protroude a small amount outside the width of the vehicle providing convenient and safe roadside working. Driven on a class l car license with enough payload for two people plus tools & equipment.

The ML140 EWP is fitted to the Ford Ranger 4x4 Ute with a PTO drive. The high quality steel boom offers both articulating and telescopic functions, 180 degree bucket rotation and 270 degree turret rotation allowing it to extend to a working height of 13.5m and 6m horizontally. As standard it has a 240v electric socket in the GRP bucket.
This ute mounted EWP is ideally suited for vegetation control, LV faults, fibre, streetlighting, sign installation and building maintenance work.

The 2024 Ford Ranger has a 6 speed automatic transmission and is powered by a 2Iitre bi turbo diesel engine. In its 4X4 configuration this powerful ute will easily traverse remote or hilly terrain and allow access across uneven ground to trees, building sites or roadside verges.

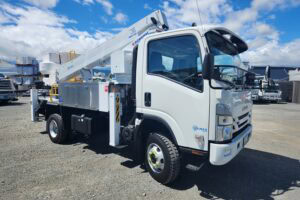

Linelift® DHT120 on Isuzu NPS450 4x4

An agile performer, the Linelift® DHT120 is one of the most compact, insulated telescopic booms available in New Zealand. Ideal for a wide range of urban applications from streetlighting and low level live line work to tree trimming around the lines. The boom provides 14.3m of work height (12.3m bucket floor height) and 7.5m of horizontal reach.

When fitted to the Isuzu NPS450 truck, it offers an extremely agile unit with generous payload and space for on-board storage. Stainless steel toolboxes with drop down doors are standard and additional storage can be provided to suit the application.

Agility on all terrain, and superior performance onsite with this compact unit!

The end mounted full size 2-man bucket has a SWL of 250kg and a 180 degree swivel. Four outriggers go ‘straight down’ rather than the traditional H-type which extend out either side of the truck. This enables the operator to set up within a parking space with no part of the truck or boom intruding into a traffic lane or disrupting the environment surrounding the work site.

The straight telescopic boom has zero tail swing and is programmed to avoid contacting any parts of the truck or handrails. Rear bucket stow means a lower travel height, provides safer bucket access and faster access to the job directly out from the rear.

Linelift® DHT120 on Isuzu NQR500

Compact Performance! The Linelift® DHT120 is one of the most compact straight Insulated telescopic booms available in NZ. Ideal for a wide range of urban applications from streetlighting and low level live line work to tree trimming around the lines.

The boom provides 14.3M work height (12.3m bucket floor) and 7.5m horizontal reach. The end mounted full size 2 man bucket has a SWL of 250kg and a 180 degree swivel. The 4x outriggers go straight down rather than the traditional H Type which extend out either side of the truck. This enables the operator to set up within a parking space with no part of the truck or boom intruding into the traffic lane for example.

The straight telescopic boom has zero tail swing and is programmed to avoid contacting any parts of the truck or handrails. Rear bucket stow means a lower travel height and provides safer bucket access and faster access to the job directly out from the rear. When fitted to the short wheelbase Isuzu NQR500 truck it offers an extremely tight turning circle and plenty of payload and space for on-board storage. Stainless steel toolboxes with drop down doors are standard and additional storage can be provided to suit the application The DHT120 can also be fitted to the NPS450 4x4.

Linelift® DHT120 on Isuzu NQR500 4x2 Truck

Overview

An agile performer, the Linelift® DHT120 is one of the most compact, insulated telescopic booms available in New Zealand. Ideal for a wide range of urban applications from streetlighting and low level live line work to tree trimming around the lines.
The boom provides 14.3m of work height (12.3m bucket floor height) and 7.5m of horizontal reach.

The end mounted full size 2-man bucket has a SWL of 200kg and a 180 degree swivel. Four outriggers go ‘straight down’rather than the traditional H-type which extend out either side of the truck. This enables the operator to set up within a parking space with no part of the truck or boom intruding into a traffic lane or disrupting the environment surrounding the work site.

The straight telescopic boom has zero tail swing and is programmed to avoid contacting any parts of the truck or handrails.

PLEASE NOTE: Information on this page was assumed correct at time of publishing however is subject to change or be updated at any time without notice. Photos shown may be indicative only and may show optional extras. While every effort has been made to ensure information on this website is both true and correct, Waimea Group assumes no responsibility or liability for any errors or omissions in the content of this site.

Linelift® DHT150AS on DHT150AS on FTS800 FD

Combined with its straight telescopic boom and end-mount wrap-around bucket with 600mm bucket lift, this is the ultimate live line unit. Additional features include auto level outriggers, an auto-stow boom and an individually programmed collision protection system to stop boom interference.

Our very popular live line urban unit! The Donghae DHT150AS offers 16.5m of work height and a 300kg bucket capacity on a fully insulated 46kV, category C boom

Wrap around’ boom functionality along with bucket lift for ease of access around tricky pole structures
Hydraulic winch and material handler for lifting up to 500kg
Impressive 11.5m horizontal outreach!

The automatic engine accelerating system improves fuel efficiency. Bucket can be tilted easily to allow cleaning and rescue.

Mounted on an Isuzu FTS800, it offers plenty of storage for linesman equipment, yet compact enough to offer tight turning circle when navigating an urban area.

Linelift® DHT150AS on DHT150AS on Isuzu FRR600 4x2 2004

Our very popular live line unit, the Linelift® DHT150AS offers 16.5m of work height and 300kg bucket capacity on a fully insulated 46kV, category-C boom. Combined with its straight telescopic boom and end-mount wrap around bucket with 600mm bucket lift, this is the ultimate live line unit.

Hydraulic winch and removable jib arm with max. 500kg capacity
Bucket slide up/down function for tight approaches.
Impressive 11.5m horizontal outreach!

Mounted on a 4x2 FRR600, it offers a well-appointed boom, truck and body fitout offering good storage for linesman equipment, ideal unit for lines work in urban and light rural* environments.

Linelift® DHT150S on Isuzu NQR500 4x2 Truck

Overview

The Linelift® DHT150S EWP offers a 16.5m work height and 250kg bucket capacity on a fully insulated 46kV, Cat C boom. Combined with its straight telescopic boom and end-mount bucket with additional 600mm bucket lift, this is the ultimate live line unit.

Additional features include an auto-stow boom and individually programmed collision protection system to stop boom interference.
The automatic engine accelerating system improves fuel efficiency.
Bucket can be tilted easily to allow cleaning and rescue.
Two stainless steel toolboxes are included in the standard build specification for carrying tools and equipment; 1900mm wide x 570mm deep x 522mm high with lockable bottom hinge door and adjustable shelf. Additional storage can be provided if required.
Safety hand rails and grip tread are provided to meet NZ safety standards, LED flood lights can be fitted behind the cab and at the rear along with LED strip lighting inside the toolboxes.

Mounted on an Isuzu NQR500 truck this is a short and compact unit with a very impressive turning circle.

Linelift® DHT160AS on Isuzu FRR600 4x2

Overview

This fully insulated, straight telescopic boom with wrap-around arm and impressive 17.5m of reach  is an excellent unit for live line G&B, or streetlight work in a wide range of applications. 

The Linelift® DHT160AS EWP offers a 17.5m work height and 250kg bucket capacity on a fully insulated 46kV, Cat C boom.
Combined with its straight telescopic boom and end-mount wrap-around bucket with  600mm bucket lift, this is the ultimate live line unit.
Additional features include auto level outriggers, an auto-stow boom and an individually programmed collision protection system to stop boom interference.
The automatic engine accelerating system improves fuel efficiency.
Bucket can be tilted easily to allow cleaning.

Mounted on an Isuzu FRR600 4x2 truck this is a short and compact unit with a very impressive turning circle and a slightly larger engine than the FRR500. 

Versalift LAT38-135H on 2021 Ford Ranger

Overview

The Versalift LAT38-135-H is designed and manufactured by Versalift in Denmark to meet the growing need for a compact 4x4 vehicle with a versatile 2-person bucket on the back. It is fast to set up, easy to operate, and of course safe and efficient to drive both on and off the road.

There is plenty of space on the back to fit storage boxes and it boasts a 500kg payload (including driver and passenger).

Applications include tree trimming, faults, fibre and street lighting, signage and security just to mention a few.

EWP Details

The Versalift LAT38-135H is an articulating telescopic boom with an impressive 13.3m vertical reach and a 5.7m working radius.

This boom offers a very user-friendly working envelope with up an over reach as well as point and shoot with the telescopic boom section.

It features a 2 person, 230kg fibreglass bucket with a LV rating and an easy access side door. The proportional hydraulic boom controls are easy to operate and incorporate a safety deadman button.

Truck Details

This boom has been designed especially to fit to the 4x4 Ford Ranger Utility which can be driven on a class 1 licence. There is enough payload and deck space to accommodate a range of storage and toolboxes.

The Ranger is safe and comfortable to drive on road and has awesome off-road capability. A factory tow ball is a standard option along with work lights and alloy rims and traction tyres. The 2019 model Ford Ranger now includes these features as standard; pre-collision assist, automatic high beam control, speed sign recognition and acoustic laminated glass.

Versalift LAT38-135H on Ford Ranger 4x4

Overview

There is plenty of space on the back to fit storage boxes and it boasts a 500kg payload (including driver and passenger).

Applications include tree trimming, faults, fibre and street lighting, signage and security just to mention a few.

EWP Details

The Versalift LAT38-135H is an articulating telescopic boom with an impressive 13.3m vertical reach and a 5.7m working radius.

This boom offers a very user-friendly working envelope with up an over reach as well as point and shoot with the telescopic boom section.

It features a 2 person, 230kg fibreglass bucket with a LV rating and an easy access side door. The proportional hydraulic boom controls are easy to operate and incorporate a safety deadman button.

Truck Details

Versalift SST40-EIH fitted onto Isuzu NPR450M 4x2

Overview

This is a brilliant unit for street lighting with an impressive vertical and horizontal reach yet is small and nimble with a tight turning circle.

Versalift SST40 on a compact N series Isuzu makes this a street lighting favourite.

EWP details

Working height of 14.3m and horizontal outreach of 8.7m.
Fitted with a 1 man bucket with 180kg capacity.
The 46kV insulated articulating telescopic boom enables the operator to reach up and over objects, along with bucket rotation an added benefit.
With its fitted toolboxes and safety flashing lights, this unit is ready to use.

Truck details

Isuzu NPR series truck with 3365 wheelbase makes this a very nimble unit.

Versalift TEL29 on 2010 Hino 300

Overview

A very tidy, late model, low km truck fitted with a 2012 Versalift Tel29EIH.

This bucket lift will reach to 10.5 mt working height, is fitted with a 120 kg bucket, and will rate to a 22 kva with its liner fitted.

There are a good set of lockers on the left hand side, 2x beacon lights, a liner and bucket cover.

This unit is particularly quick to set up and would be suited to the street lighting and fault industry with its certified use extending to 2022.

PLEASE NOTE: Information on this page was assumed correct at time of publishing however is subject to change at any time without notice. Photos shown may be indicative only and may show optional extras. While every effort has been made to ensure information on this website is both true and correct, Waimea Group assumes no responsibility or liability for any errors or omissions in the content of this site.

Versalift VO255 on FVZ1400 6x4 Arborist Unit

Overview

The Overcentre boom provides an exceptional working envelope which is especially valuable when working on or around live lines. It has the ability to reach up and over obstacles or come up from underneath making it very popular for arborists working in rural applications. The compact 6x4 truck is very stable and easy to drive and has been designed to provide everything an arborist crew would need.

EWP details

Made in Waco, Texas, Versalift is an innovative manufacturer of high quality vehicle-mounted EWP’s since 1965. The Versalift V0255 Overcentre EWP offers 19.3m work height, 160kg SWL bucket on a fully insulated 46kV Cat C boom. The unique TruGuard 2.0 insulation system increases dielectric protection by 44% and eliminates thermal pressure points, while offering the most complete protection to lineman operating at the platform. With only hydraulic and pneumatic lines and no electronics, Versalift booms have a long standing reputation for reliability. Stability is provided by two angled outriggers attached directly to the turret and connected by a safety interlock system. The extended outriggers provide maximum correction when positioned on sloping ground.

Truck details

The Isuzu FVZ1400 6x4 is a popular choice for this build as it has the added benefits of ample payload, low ground pressure and good traction, a tight turning circle and extra horse power. The robust steel chip bin carries over 10m3 of chip, and the rear door offers either a top hinge or side swing option giving you clear access into the rear. Towing options include a ring feeder or combination tow ball with up to 11 ton towing capacity.

Versalift VO255REV3 6x4 on 2018 Isuzu FVZ1400

Well equipped! Massive reach, large chip bin, plenty of tool boxes providing storage for PPE, saws & fuel, kit bags, climbing gear and the option for traffic management and ability to tow a chipper reduces the need for additional vehicles on site.

This unit is a popular option for tree work around live line, typically in rural environments. The robust insulated Versalift VO255 is an over-centre boom offering up & over functionality.

The platform has full single stick pressure hydraulic controls to bucket, as well as hydraulic tool port at bucket for hydraulic saws for efficient cutting. Mounted on a short 6x4, it’s an agile truck with a tight turning circle and plenty of payload. Its quick set up time enables productivity from the moment the unit arrives on site.

Versalift VST40 I on Isuzu FRR500 AMT 4x2 Truck

Overview

Fully insulated articulating telescopic boom on a 4x2 truck for utilities work such as live line, construction, tree maintenance and streetlighting.

EWP details

The Versalift VST40 EWP offers 14.2m work height, 9.5m horizontal reach and 227kg bucket capacity on a fully insulated 46kV, Cat C boom.
It comes with four outriggers with interlock system, 600mm bucket lift and uni-lever control for multi-function with one hand.
The VST40 boom offers point and shoot functionality along with ability to go up and over obstacles.
There's a hydraulic tool port at the bucket and the bucket can easily be tilted for cleaning and rescue. 
Designed to be highly efficient safely, with easy deck access, safety hand rails, and a number of options such as sign holders, vice, cone.
We are able to offer a broad range of tool box and accessory options to suit your application in order to make the task on hand easier. holder and a range for tool boxes to choose from.

Truck details

The entire truck design is focused on highly efficient and safe use of the boom, with easy deck access and safety hand rails all the way up to the bucket.

We are able to a offer a broad range accessory options to suit your requirements, such as sign and cone holders, slide-out vice and a range for toolboxes to choose from. Isuzu FRR500 with a 4410 wheelbase gives a tight turning circle for a nimble unit around town, and a pleasure to drive on the open road.

Option of limited slip diff and manual or automatic transmission.  

Versalift VST40 on Isuzu FRR500 AMT 4x2 Truck

Overview

Fully insulated articulating telescopic boom on a 4x2 truck for utilities work such as live line, construction, tree maintenance and streetlighting.

EWP details

The Versalift VST40 EWP offers 14.2m work height, 9.5m horizontal reach and 227kg bucket capacity on a fully insulated 46kV, Cat C boom.
It comes with four outriggers with interlock system, 600mm bucket lift and uni-lever control for multi-function with one hand.
The VST40 boom offers point and shoot functionality along with ability to go up and over obstacles.
There's a hydraulic tool port at the bucket and the bucket can easily be tilted for cleaning and rescue.

Truck details

The entire truck design is focused on highly efficient and safe use of the boom, with easy deck access and safety hand rails all the way up to the bucket. Isuzu FRR500 AMT with a 4410 wheelbase gives a tight turning circle for a nimble unit around town, and a pleasure to drive on the open road.

Comes with sign holders and several toolboxes to store gear securely.
