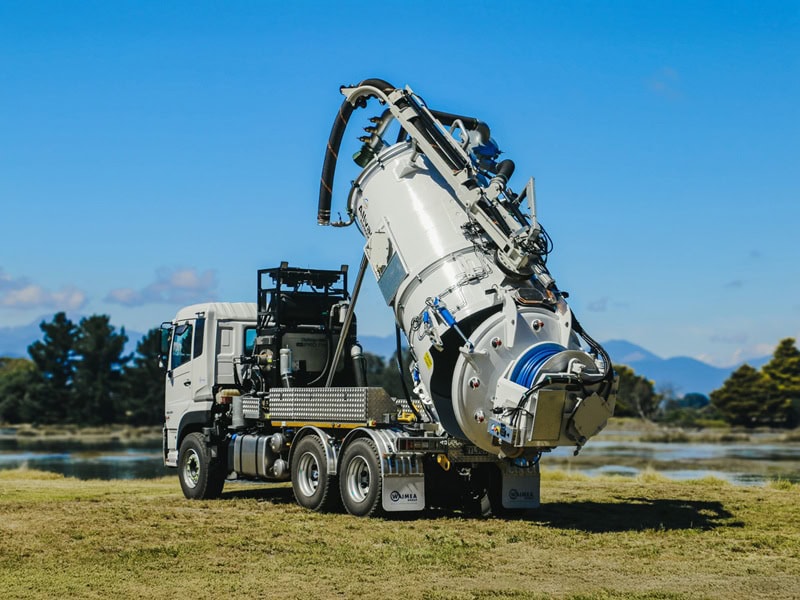

Allvac® AV8000C Combi on Quon
Our Combination unit is designed and manufactured in NZ for NZ conditions. Developed alongside NZ regulations, it takes into consideration axle weight distribution and a compact short wheelbase chassis, all attributing to maximum legal payload.
This unit features 320 degree 6” overhead boom and 150m of 1” drain cleaning hose powered by a high-pressure high-water volume pump. Additionally, it has a separate high pressure low
water volume pump for hydro excavation and smaller diameter line cleaning tasks.
The vacuum pump is a tri lobe helical type with vacuum & pressure capabilities, making this equipment simple, safe & operator friendly.
Hydro excavation & jetting capabilities
The combination of hydro excavation and drain cleaning in a compact NZ designed & built unit.
This unit is hydraulically driven with no auxiliary engine or split driveshaft systems, reducing maintenance, keeping the operating system simple and increasing payload.
Our ingenious design gives you the ability to utilise the complete tank capacity of 8000L as water storage for those larger jetting jobs.
Compact and versatile, this unit can arrive branded to your corporate colours and ready for immediate work.
5000L waste + 3000L water or 8000L water
Let’s Talk
Reach out today to Maska our Specialist Vehicle Consultant for pricing and availability
Additional information
| Tank Material | Steel |
|---|---|
| Rear Tank Door | Full door |
| Discharge | Tipping hoist w/ full opening rear door |
| Class | 6,9 |
| Operating pressure (PSI) | 7 PSI |
| HASNO | N/A |
| Hose standard | 6" |
| Overhead Boom | Full hydraulic radio controlled |
| VACUUM PUMP DETAILS | . |
| Manufacturer | NVE |
| Blower Model | 1600 – Tri Lobe Blower |
| Air flow: m3/hr | 2718 |
| Air flow: L/min | 45300 |
| Air flow: cfm | 1600 CFM Blower |
| Waterblaster | Comet TW 5050 |
| Water capacity | 3000 or Full 8000 litre via Central Valve |
| Water pump/pressure | 5000psi @ 21Lpm AND 2050psi @ 220Lpm |
| Retractable hose reel | 20m 3/8” Water Blaster and 150m 1” Jetter |
| Vehicle Manufacturer | UD Quon |
| Vehicle Model | CW26-400 |
| Specifications | 6×4 |
| HP | 400 |
| Transmission | Escot – AMT 12 Spd |
