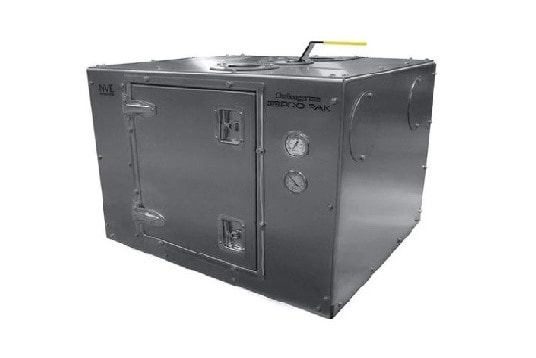

Challenger Series 4310

Description

Frame mount hydraulic drive

The Challenger 4310 high-vacuum, positive displacement blower delivers 940 CFM (1,600 m3/h) and is capable of running at 27″ Hg (0.9 Bar) continuous vacuum. The low-maintenance, environmentally friendly (no oil) unit offers quiet operation with the Pro Pak sound dampening system.

Description

Frame mount hydraulic drive

The Challenger 4310 high-vacuum, positive displacement blower delivers 940 CFM (1,600 m3/h) and is capable of running at 27" Hg (0.9 Bar) continuous vacuum. The low-maintenance, environmentally friendly (no oil) unit offers quiet operation with the Pro Pak sound dampening system.

Key features

  • Powder coat painted frame
  • Stainless steel cabinet
  • Easily accessible service points
  • Blower flush kit
  • Internal ballast silencing
  • Ballast check valve for pressure operation
  • SAE C face hydraulic adapter
  • Available with pneumatic actuator

Specifications

  • Air flow: 940 CFM (1,600 m3/h)
  • Maximum vacuum: 27” Hg (0.9 Bar)
  • Weight: 418 kg
  • Max pressure: 20 PSI (1.4 Bar)
  • Max capacity: 1,600 m3/h
  • Max operating speed: 4,000 – 4,500 RPM

Tanker package

This pump can be included in a tanker package order, click here for more information.



PLEASE NOTE: Photos shown may be indicative only and may show optional extras. While every effort has been made to ensure information on this website is both true and correct, Waimea Group assumes no responsibility or liability for any errors or omissions in the content of this site.

Additional information

Size

1.5", 1", 2", 3", 3/4"
