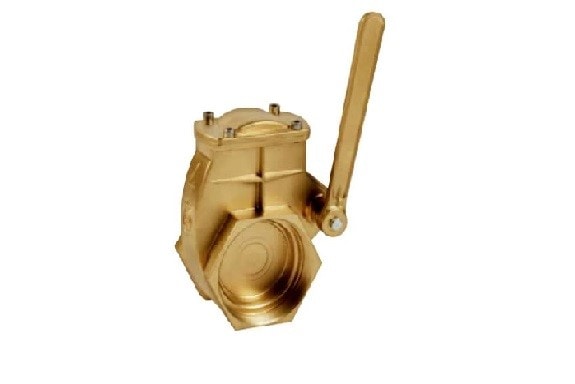

Gate Valve with Lever
Description
Brass with female BSP threads: parallel UNI EN ISP 288/1 (standard).
With flange
Available in 4" and 6" sizes
| Ø” | 4” | 6” |
| Ø | 93 | 145 |
| H | 248 | 323 |
| h | 158 | 233 |
| L | 322 | 468 |
| F | 103 | 106 |
| I | 150 | 150 |
| d | 13 | 13 |
| S | 180 | 180 |
| kg | 7.200 | 11.000 |
