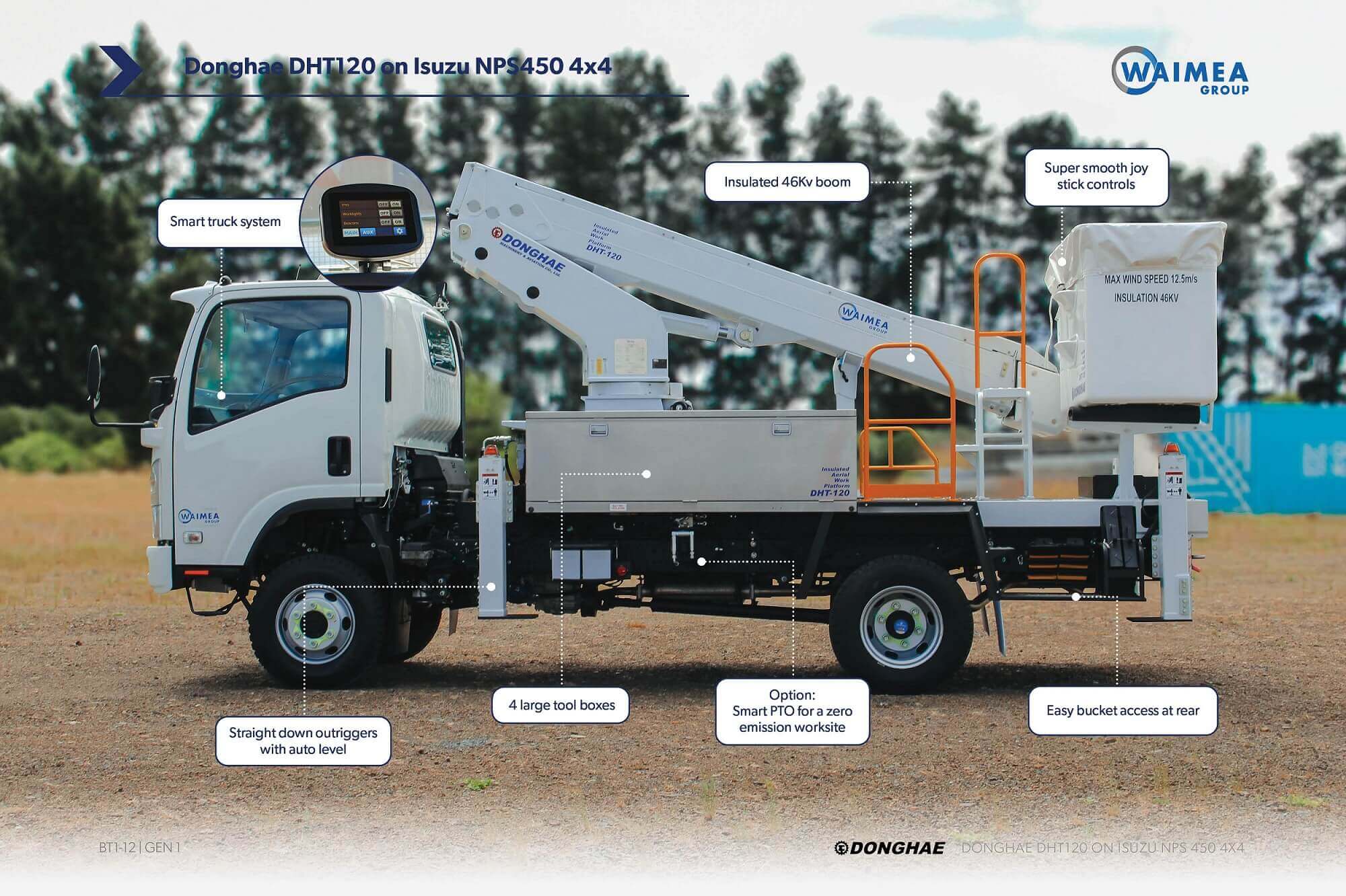

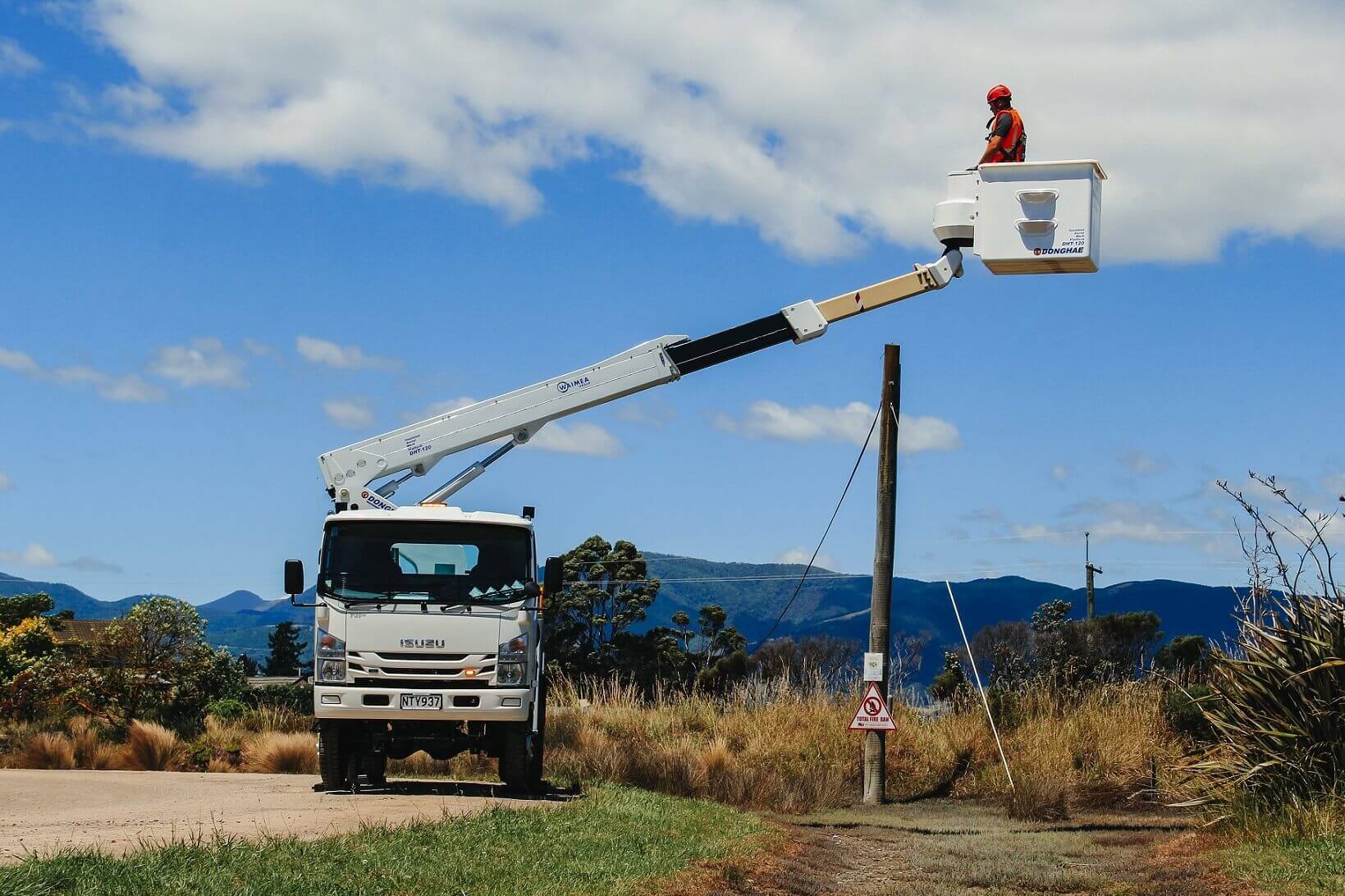

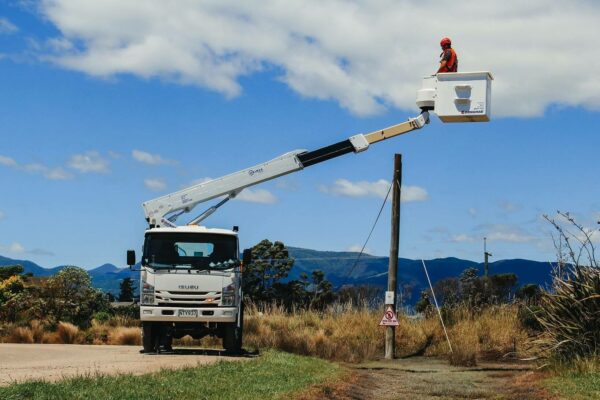

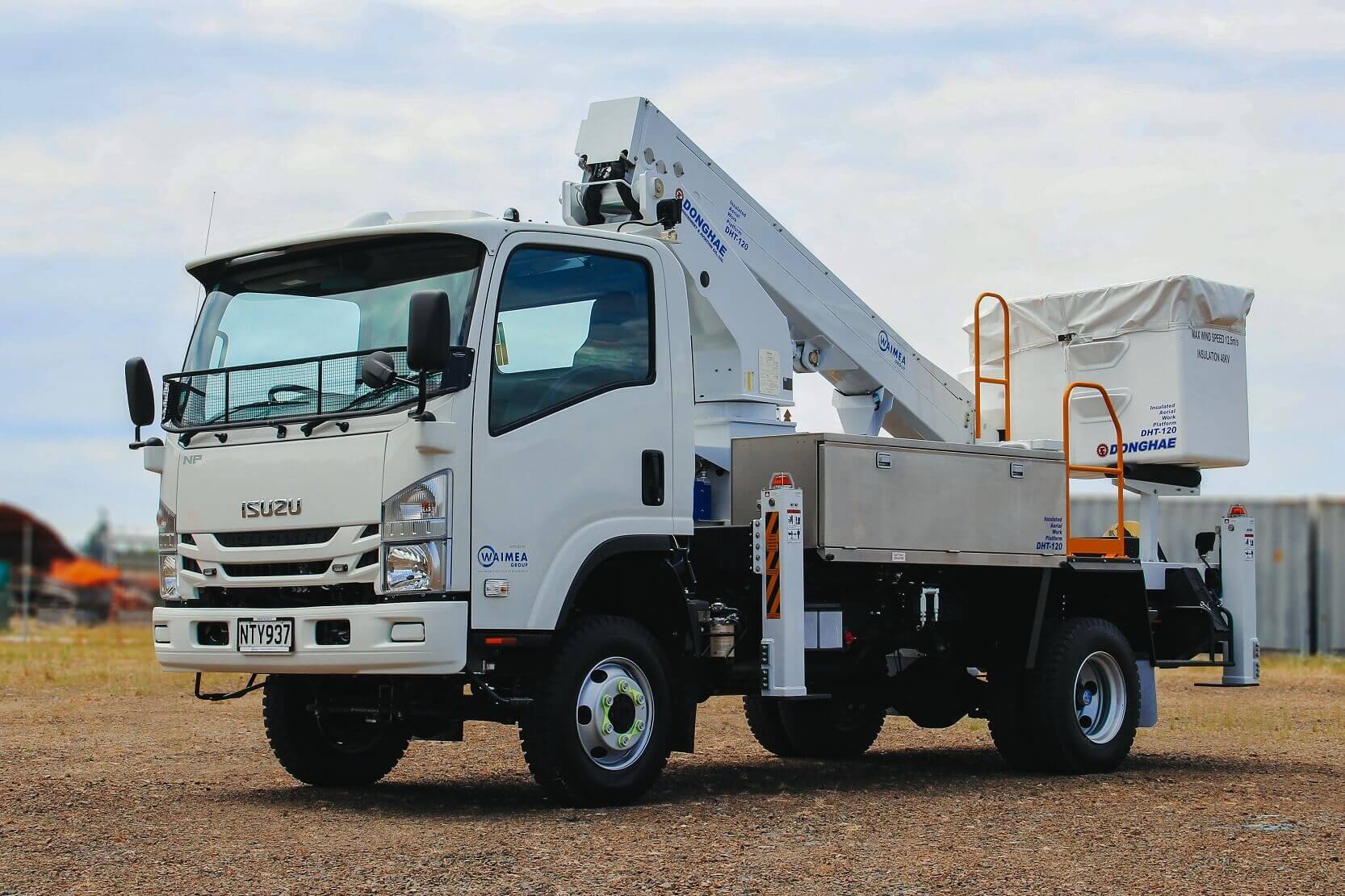

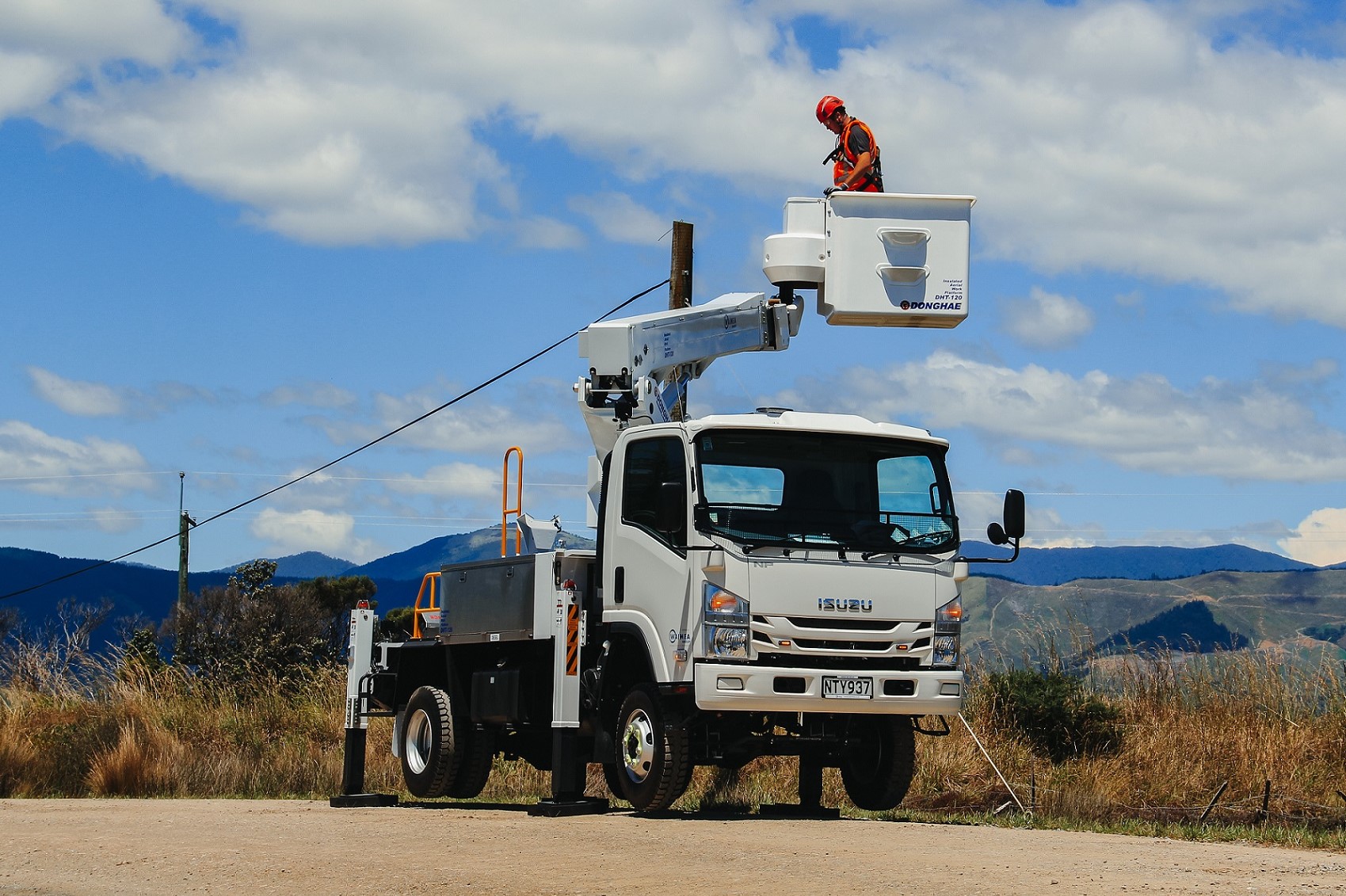

The end mounted full size 2-man bucket has a SWL of 250kg and a 180 degree swivel. Four outriggers go ‘straight down’ rather than the traditional H-type which extend out either side of the truck. This enables the operator to set up within a parking space with no part of the truck or boom intruding into a traffic lane or disrupting the environment surrounding the work site.Agility on all terrain, and superior performance onsite with this compact unit!

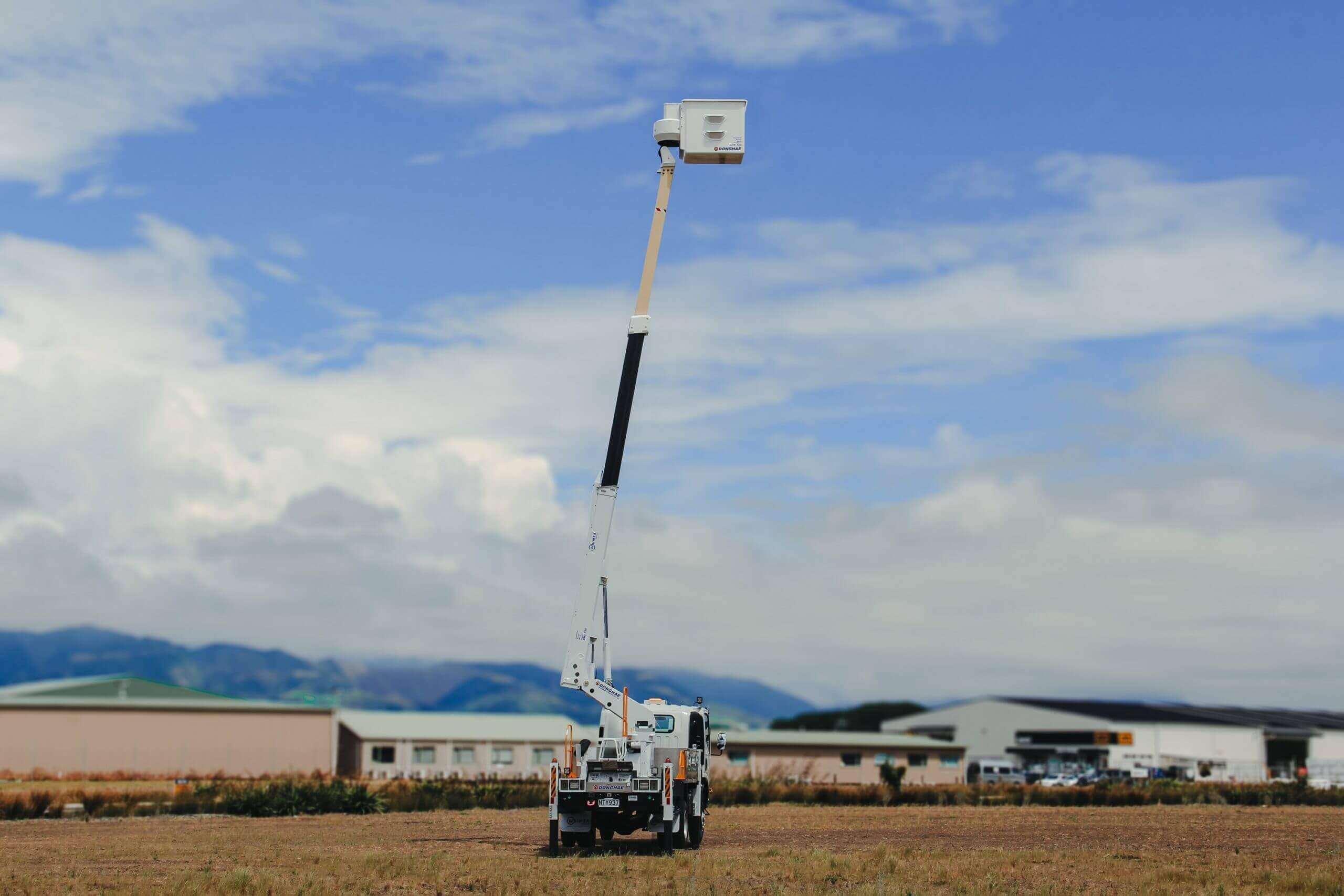

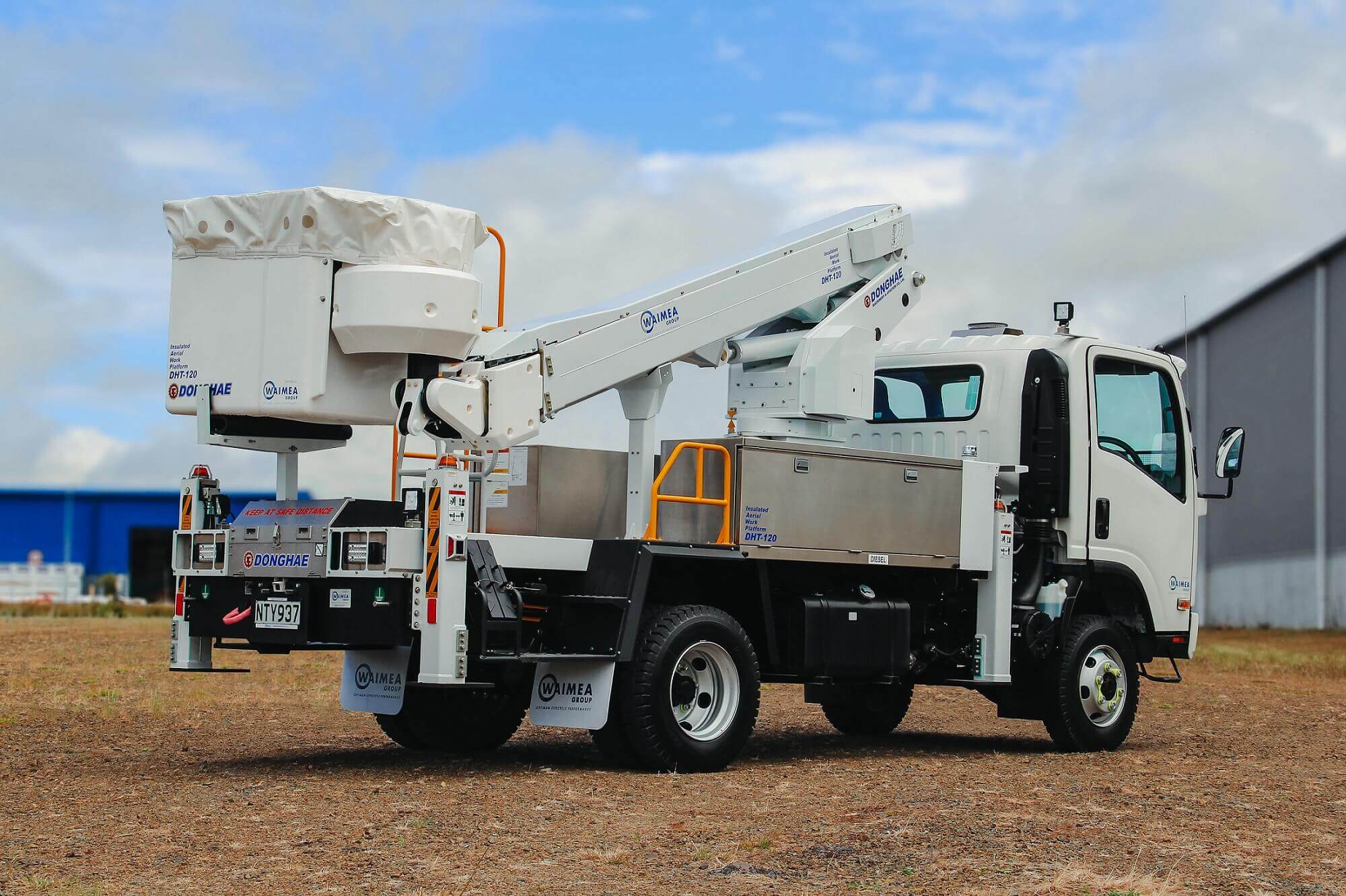

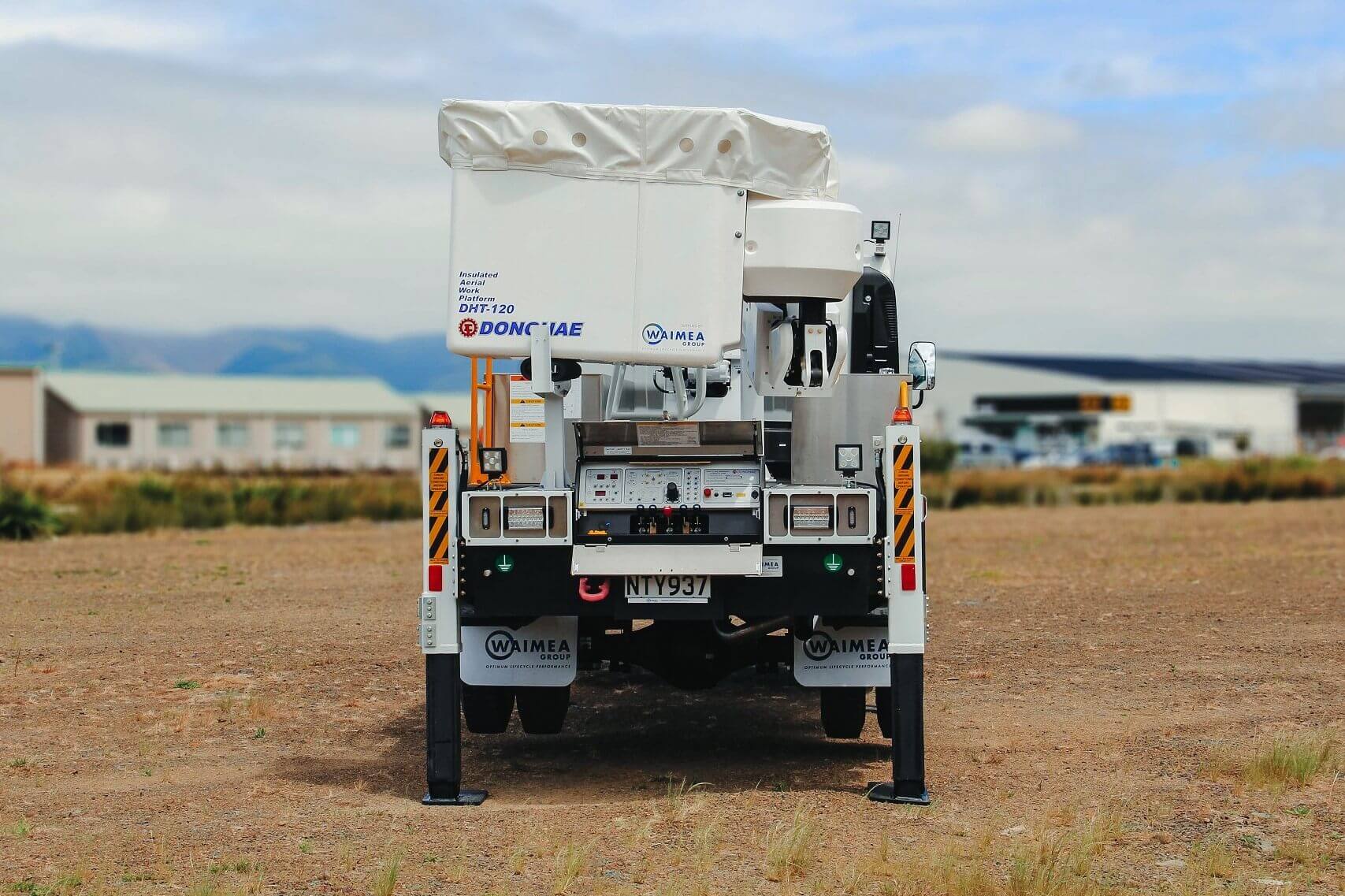

The straight telescopic boom has zero tail swing and is programmed to avoid contacting any parts of the truck or handrails. Rear bucket stow means a lower travel height, provides safer bucket access and faster access to the job directly out from the rear.
| EWP Manufacturer | Donghae (Linelift®) |
|---|---|
| EWP Model | DHT 120 |

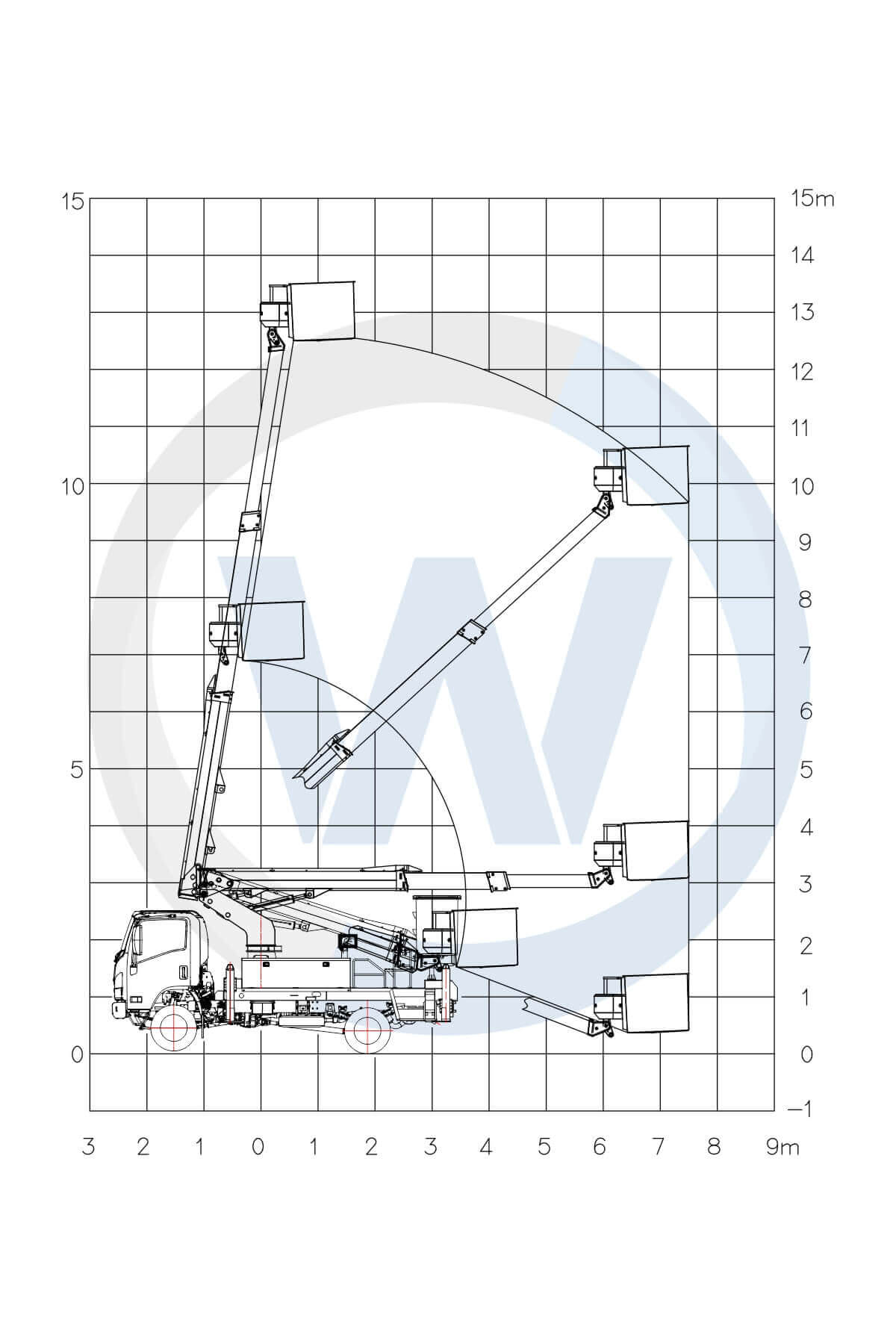

| Working Height | 14.30m |
| Height (ground to Bucket) | 12.3m |
| Working Radius | 7.5m |
| Insulation Rating | Insulated Category C (46kV) |
| Boom Style | Articulating/Telescopic |
| Boom Slew Rotation | Continuous |
| Bucket Rotation | 180° |
| Bucket Rotation Powered | Hydraulic |
| Bucket Capacity SWL | 200kg |
| Bucket Dimensions (mm) | 1100 (L) x 700 (W) x 1000 (H) |

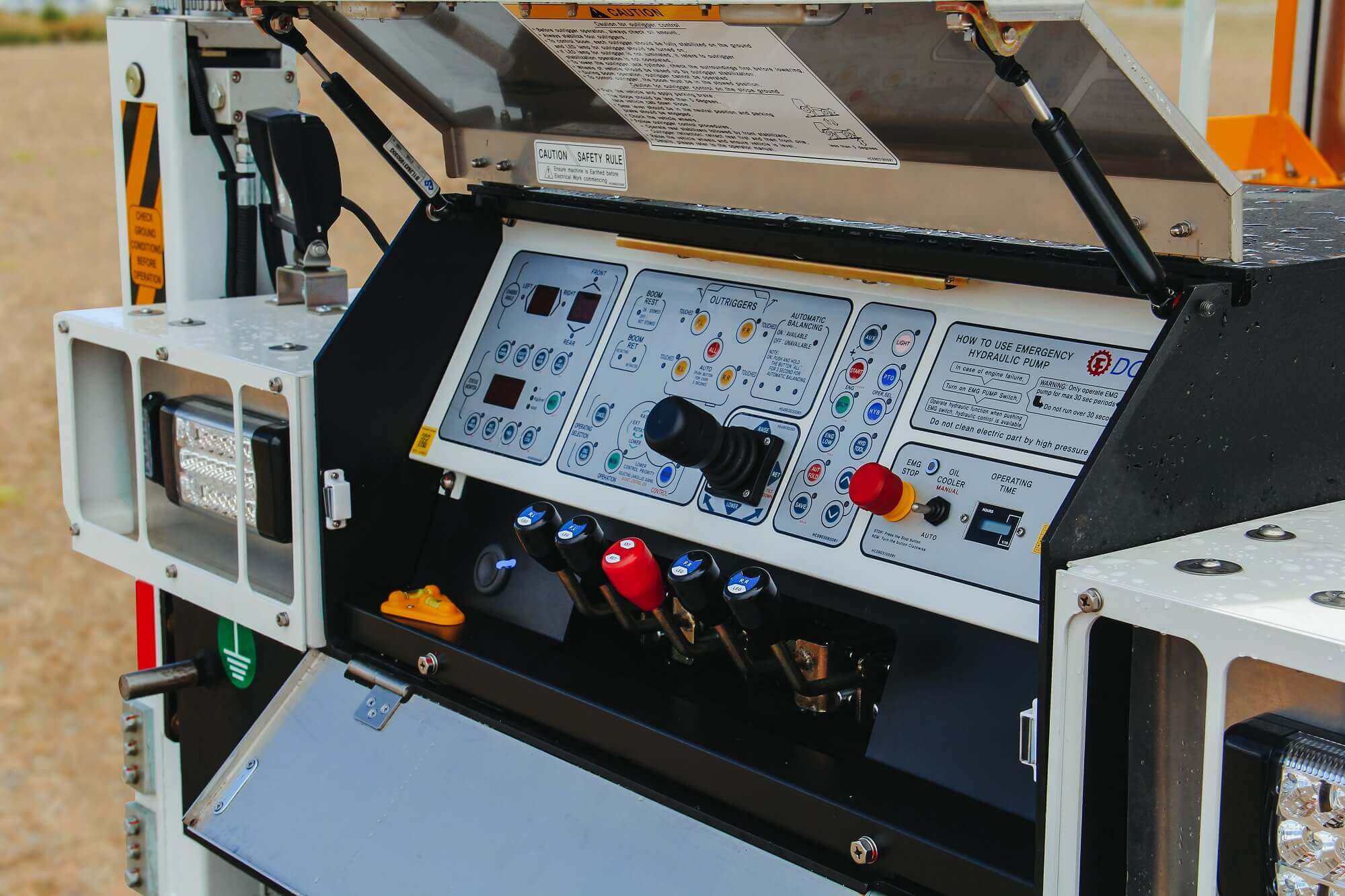

| Control Type | Electric over proportional hydraulic |
| Hydraulic Tool Port @ Bucket | Yes |
| Auto Stow | Yes |
| PTO Flow (LPM) @ 900RPM | 35-40 |
| PTO Pressure (BAR) | 170 |
| Vehicle Manufacturer | Isuzu |
| Vehicle Model | NPS450 |
| Specifications | 4x4 |
| HP | 155 |
| Transmission | Manual |
| Difflocker/Traction Control | Standard |
