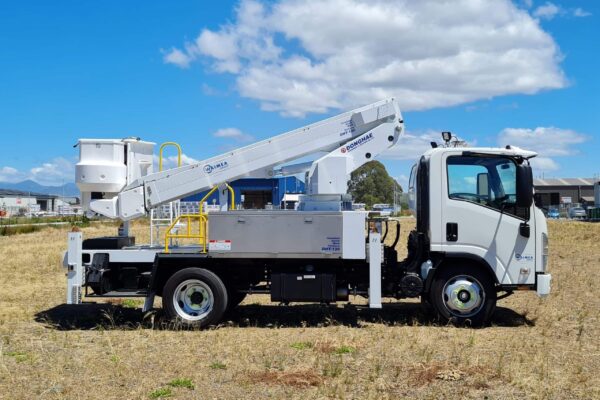

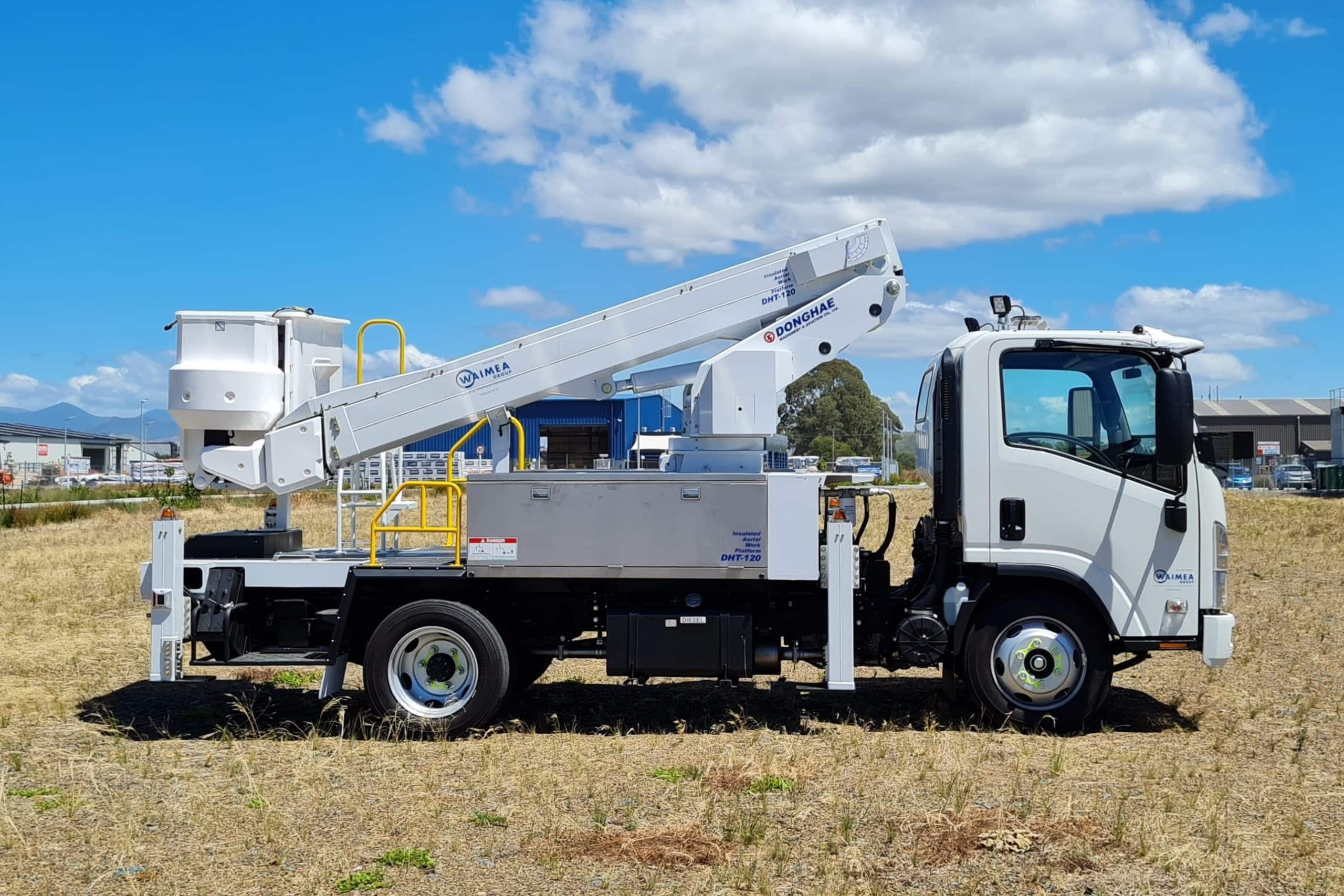

Linelift® DHT120 on Isuzu NQR500 4×2 Truck

An agile performer, the Linelift® DHT120 is one of the most compact, insulated telescopic booms available in New Zealand. Ideal for a wide range of urban applications from streetlighting and low level live line work to tree trimming around the lines.



SKU: 1146 Categories: ,

Overview

An agile performer, the Linelift® DHT120 is one of the most compact, insulated telescopic booms available in New Zealand. Ideal for a wide range of urban applications from streetlighting and low level live line work to tree trimming around the lines.
The boom provides 14.3m of work height (12.3m bucket floor height) and 7.5m of horizontal reach.

The end mounted full size 2-man bucket has a SWL of 200kg and a 180 degree swivel. Four outriggers go ‘straight down’rather than the traditional H-type which extend out either side of the truck. This enables the operator to set up within a parking space with no part of the truck or boom intruding into a traffic lane or disrupting the environment surrounding the work site.

The straight telescopic boom has zero tail swing and is programmed to avoid contacting any parts of the truck or handrails.





PLEASE NOTE: Information on this page was assumed correct at time of publishing however is subject to change or be updated at any time without notice. Photos shown may be indicative only and may show optional extras. While every effort has been made to ensure information on this website is both true and correct, Waimea Group assumes no responsibility or liability for any errors or omissions in the content of this site.

Additional information

Stock Number

1146
