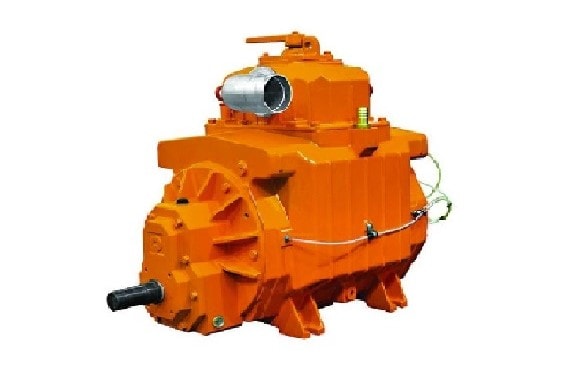

Moro Kaiser PM 110WH

Description

Water cooled rotary vane vacuum pump. Water series with hydraulic drive. Used in a wide spectrum of industrial environments such as mobile and truck mounted vacuum systems.

Description

Water cooled rotary vane vacuum pump. Water series with hydraulic drive. Used in a wide spectrum of industrial environments such as mobile and truck mounted vacuum systems.

Key features

  • Air flow – 16,400 L/min, 984 m3/hr, 579 CFM
  • Power for maximum vacuum – 19kw
  • Cast iron body guarantees reliability
  • Oil pump ensures forced lubrication
  • Kevlar vanes for high temperature resistance
  • Improved vane angle for:
    • Low noise
    • Decreased heat
    • Decreased oil consumption
    • Increased vane surface area
    • Minimal cylinder washboarding
  • Low maintenance costs
  • Reliability
  • Vacuum / pressure valve
  • Made in Italy

The WATER Series liquid cooled vacuum pumps represent the highest standard in vacuum technology. They have been built to provide reliable performance in the agricultural, septic and industrial fields. The WATER Series is comprised of three popular sizes and available in several drive configurations. All jacketed for liquid cooling circulation and built with the highest quality cast iron and Viton seals for maximum cooling efficiency and performance. The open port manifold design reduces heat and noise. These pumps come complete with a coolant circulation pump, direct feed positive displacement oiling system, non-return valve and changeover manifold.

Technical data

Weight: 282kg

Cont. Duty Vacuum: 80%

Max. Vacuum: 95%

Oil Consumption: 210gr/hr

Oil Tank Capacity: 4.8L

Rotation Speed: 1,000 – 1,200 RPM

Max. Speed: 1,400 RPM

Noise Level: 80dBA



PLEASE NOTE: Photos shown may be indicative only and may show optional extras. While every effort has been made to ensure information on this website is both true and correct, Waimea Group assumes no responsibility or liability for any errors or omissions in the content of this site.

Additional information

Size

1.5", 1", 2", 3", 3/4"
