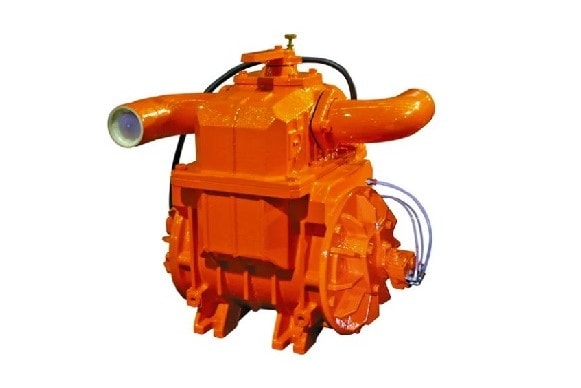

Moro Kaiser PM 60AP

Description

The AIR series (for direct transmission or pulley) radiant cooled vacuum pumps represent the most elevated standard in vacuum technology.  They have been built to provide reliable performance in the industrial sector.

Description

The AIR series (for direct transmission or pulley) radiant cooled vacuum pumps represent the most elevated standard in vacuum technology.  They have been built to provide reliable performance in the industrial sector.  Thanks to their own technical characteristics, the AIR vacuum pumps can also be employed in small industrial applications mounted on trucks.  The applied technology is the way the radial rotary vanes operate.  The AIR flow range is currently comprised of 3 base pump models with different air courses that are available in various versions in accordance to the capacity required.  The body of the pumps are cast iron that has been projected to guarantee maximum reliability and to favour the heat exchange.  Their air entry and exit ports have been optimised for minimal noise and maximum heat reduction.  The correct operation of the pump is insured by the forced lubrication oil pump.  The oil tank is also incorporated.

Used in a wide spectrum of industrial environments such as mobile and truck mounted vacuum systems.

  •  Cast iron body, guarantees reliability
  •  Oil pump ensures forced lubrication
  •  Kevlar vanes for high temperature resistance
  •  Improved vane angle for
    •  low noise
    •  decreased heat
    •  decreased oil consumption
    •  increased vane surface area
    •  minimal cylinder washboarding
  •  Low Maintenance costs
  •  Reliability
  •  Vacuum / Pressure valve

Technical data

Weight: 120kg

Cont. duty vacuum: 80%

Max vacuum: 95%

Oil consumption: 180gr/hr

Oil tank capacity: 1.7L

Rotation speed: 1000-1100rpm

Max speed: 1200rpm

Noise level: 75dBA



PLEASE NOTE: Photos shown may be indicative only and may show optional extras. While every effort has been made to ensure information on this website is both true and correct, Waimea Group assumes no responsibility or liability for any errors or omissions in the content of this site.

Additional information

Size

1.5", 1", 2", 3", 3/4"
