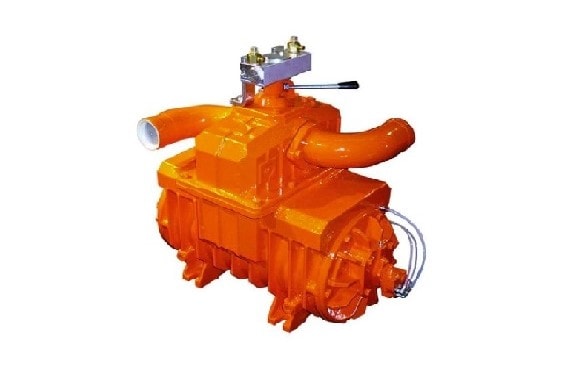

Moro Kaiser PM 80AP

Description

Rotary vane vacuum pump. Air Series (for direct transmission or pulley). Dimensions in images are all mm. Used in a wide spectrum of industrial environments such as mobile and truck mounted vacuum systems.

Key features

  • Air flow – 12,000 L/min, 720 m3/hr, 424 CFM
  • Power for maximum vacuum – 14kw
  • Cast iron body guarantees reliability
  • Oil pump ensures forced lubrication
  • Kevlar vanes for high temperature resistance
  • Improved vane angle for:
    • Low noise
    • Decreased heat
    • Decreased oil consumption
    • Increased vane surface area
    • Minimal cylinder washboarding
  • Low maintenance costs
  • Reliability
  • Vacuum / pressure valve
  • Made in Italy

The AIR Series radiant cooled vacuum pumps represent the most elevated standard in vacuum technology. They have been built to provide reliable performance in the industrial sector. Thanks to their own technical characteristics, the AIR vacuum pumps can also be employed in small industrial applications mounted on trucks. The applied technology is the way the radial rotary vanes operate.

The AIR flow range is currently comprised of 3 base pump models with different air courses that are available in various versions in accordance to the capacity required. The body of the pumps are cast iron that has been projected to guarantee maximum reliability and to favour the heat exchange. The air entry and exit ports have been optimised for minimal noise and maximum heat reduction. The correct operation of the pump is insured by the forced lubrication oil pump. The oil tank is also incorporated.

The vanes supplied are for standard applications. A special inspection hole in the body of the pump allows a visual check to be carried out with ease. The non-return valve and the 4 way valve are integrated into the pump. The entry and exit elbows are flange coupling and can be directed in accordance to the final requirements of use. The new AIR Series models have been upgraded with an in-jet system to improve the heat exchange of the pump in heavy duty use. The industrialisation of the product has seen the new AIR range of vacuum pumps share almost all components.

Technical Data

Weight: 162kg

Cont. duty vacuum: 80%

Maximum vacuum: 95%

Oil consumption: 220gr/hr

Oil tank capacity: 3.7L

Rotation speed: 1,000 – 1,200 RPM

Maximum speed: 1,400 RPM

Noise level: 76dBA
