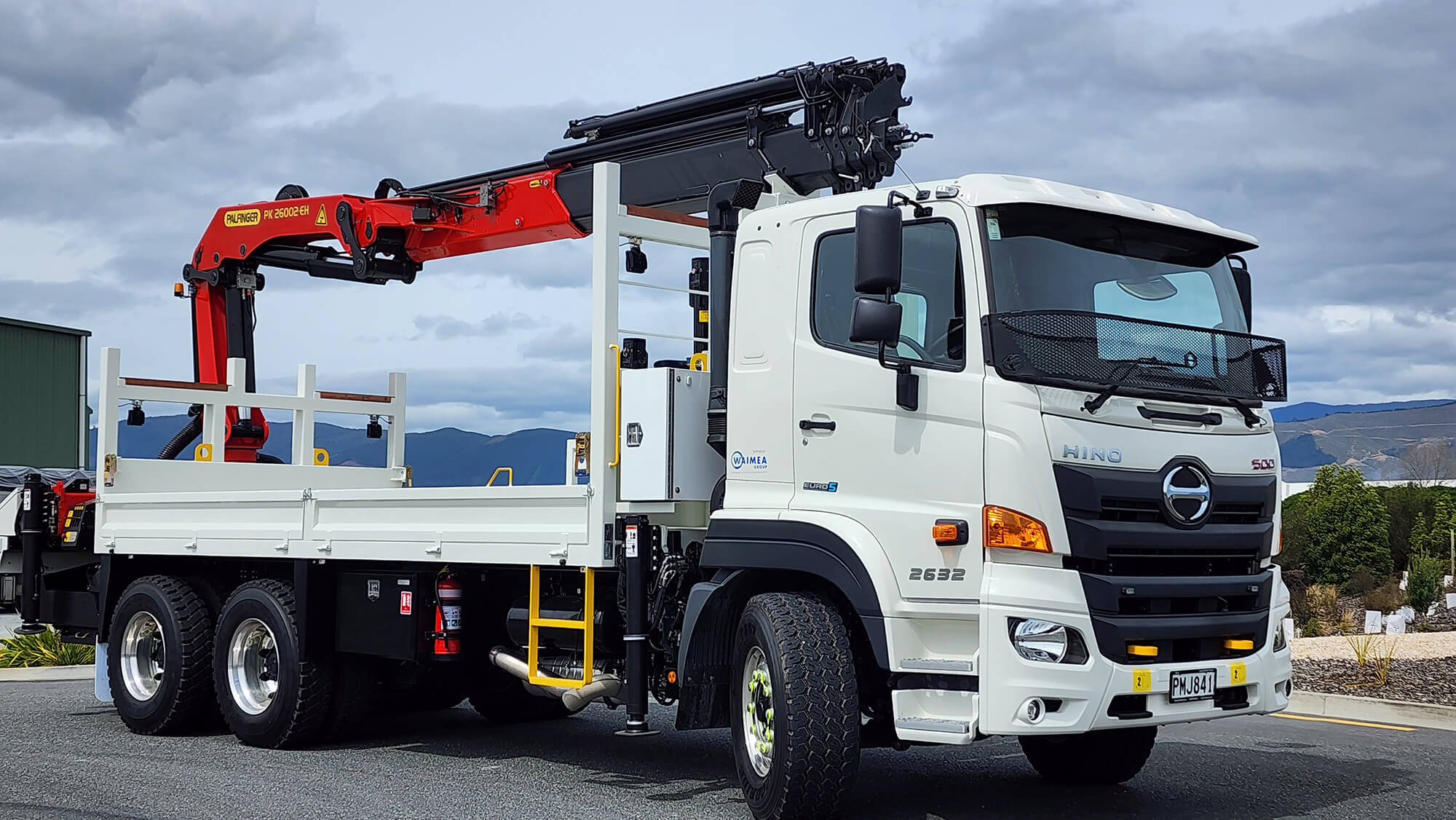

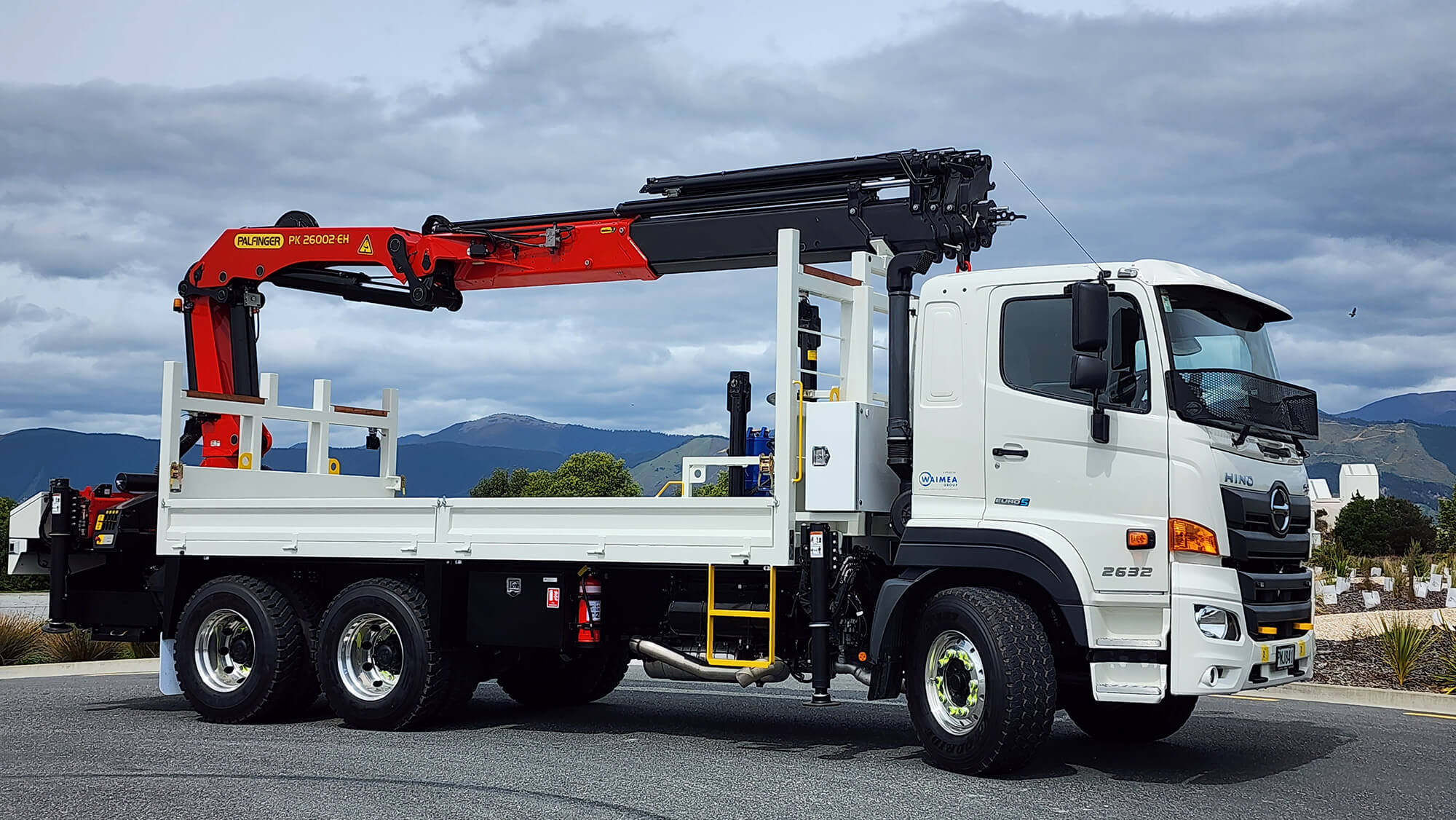

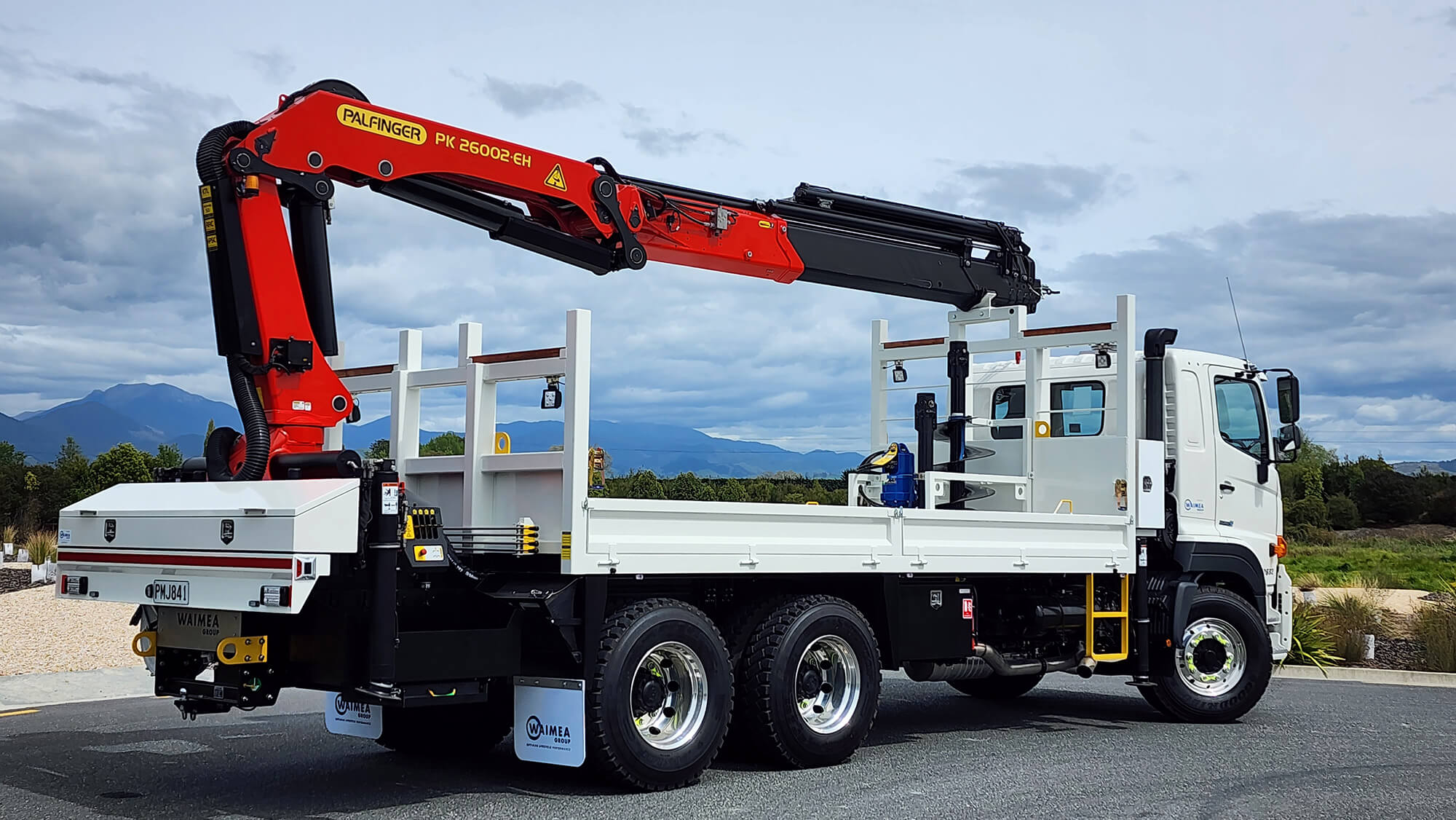

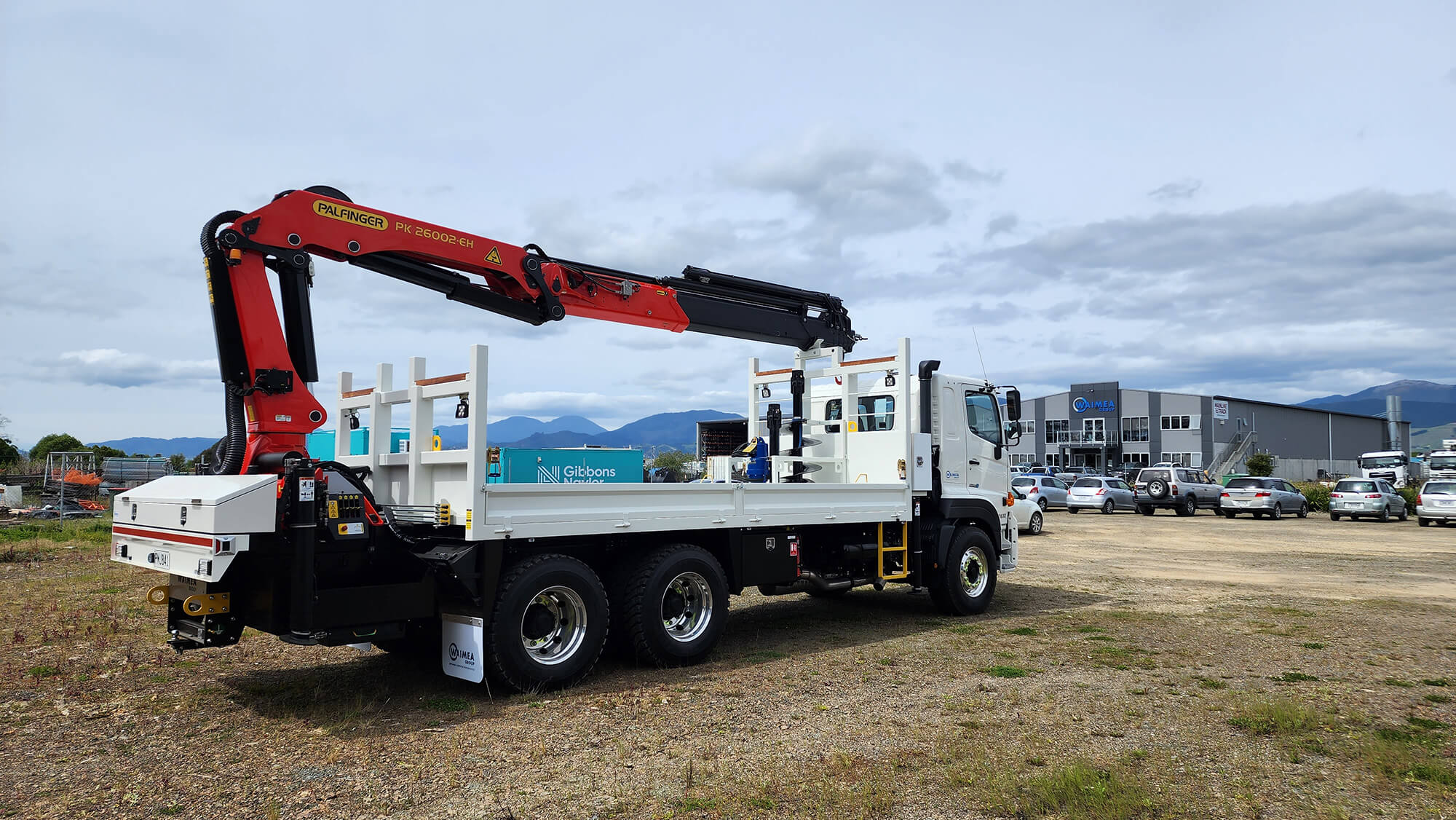

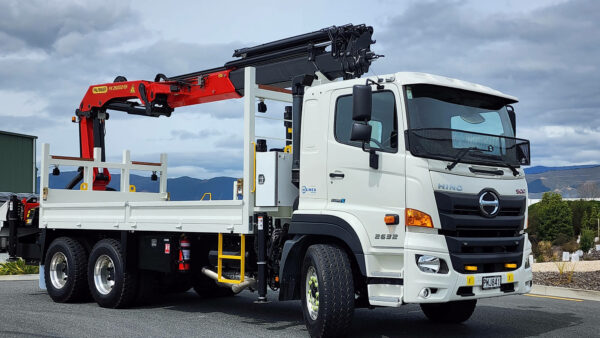

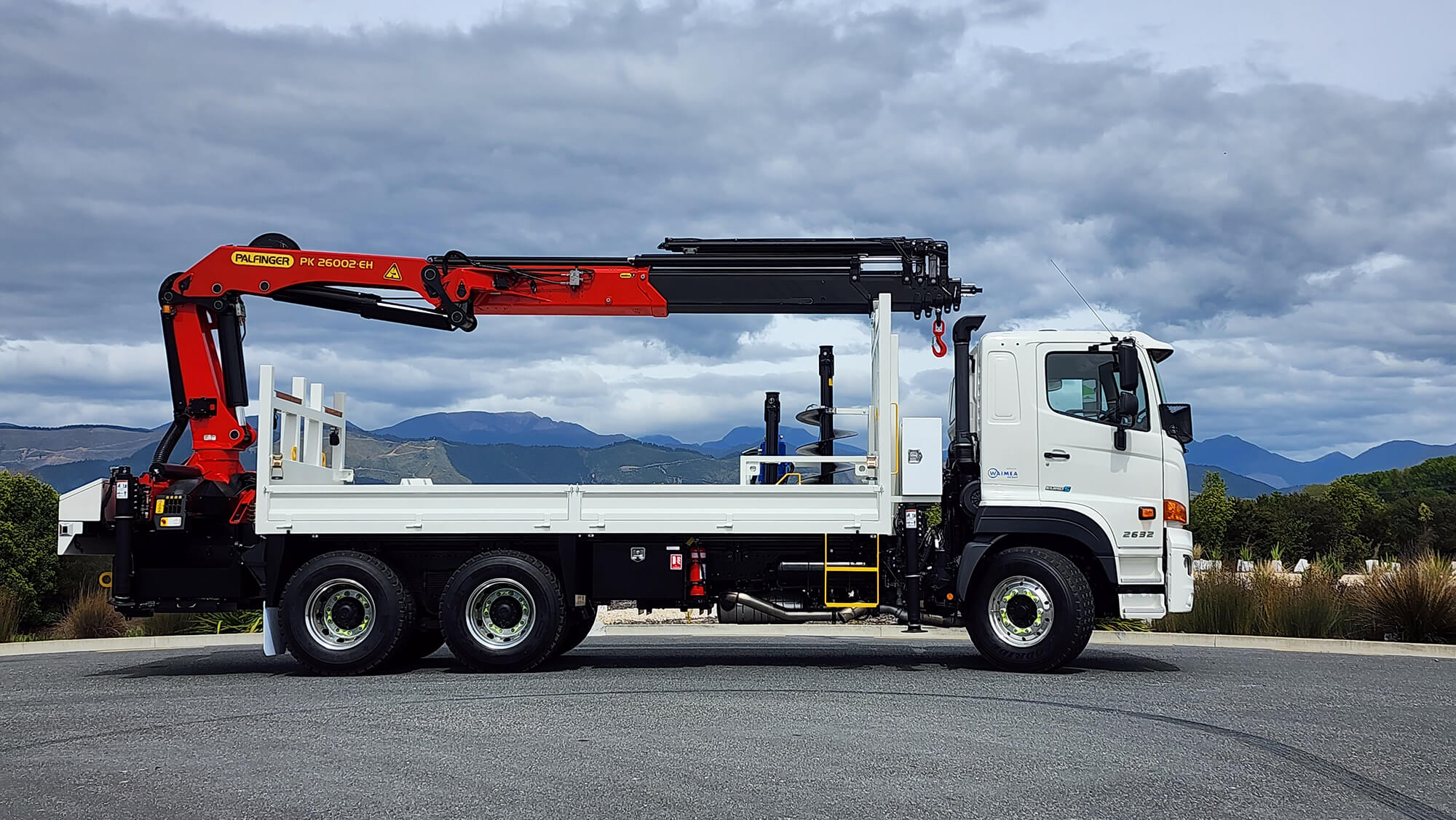

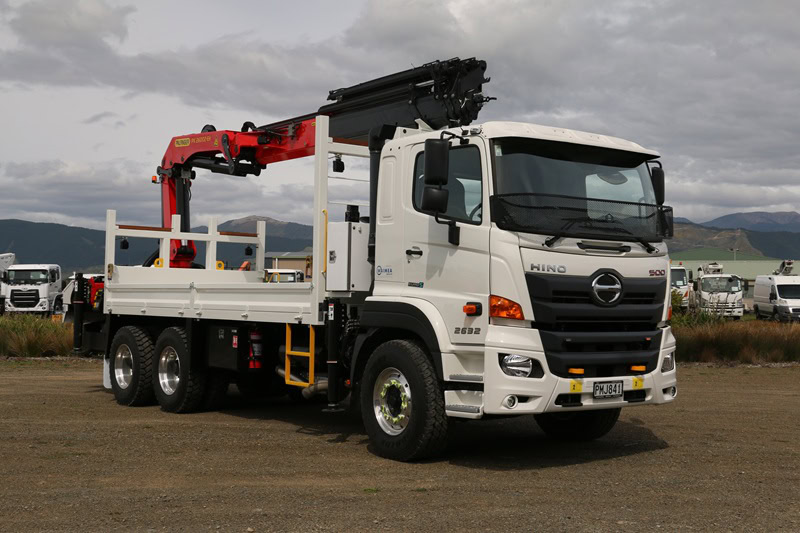

Palfinger PK26 on Hino 500 2632 6×4 Alison LCT

This unit is a popular unit for Linesman work typically in a open urban and rural environment. The robust Palfinger PK26 crane offers a generous lift, ideal for lifting and transporting distribution power poles, cable drums and transformers.

it’s still agile, with tight turning circle, great traction and over 300% more payload than a 4x4! Note: Turning circle of 18.6m vs 17.8m on a 4x4 The crane is radio controlled and is equipped specifically for the lines application with manual extension so pole lifting can be don’t without damaging hydraulic cylinders, internally routed hydraulic ports to boom tip, and aux functions for pole puller and tamper operation.

The build is designed with a linesman in mind: Clear deck with side and internal tie points and good access large tool boxes, Outrigger pads, wheel chocks. Out rigger pad holders each side Wheel chock holder each side Deck painted white with safety yellow on handles and steps. Storage provided for PPE & First Aid, tools and full width box for earth sticks and tampers, Lighting& Electrical: LED Flashing beacon light Front and rear amber flashers 4x LED work lights mounted front and rear.
