Quicklift® QL150-3 Compact Crane

The big lifter for utes, the QL150 range is designed to get maximum lift from a ute or trailer mounted unit. The crane’s powerful, smooth operation allows you to get the job done safely and efficiently.

Overview

The big lifter for utes, the QL150 range is designed to get maximum lift from a ute or trailer mounted unit. The crane's powerful, smooth operation allows you to get the job done safely and efficiently.

Quicklift cranes have a compact foot print and the ultra compact stowing position and optional base frame (designed to be hidden under the deck) enable you to optimize space use around the crane. This makes Quicklift a great add-on for light trucks, utes, agricultural equipment trailers, plus much more.

Quicklift cranes have a modular installation system and extensive accessory options, such as radio control, winch options, marine paint finish, pallet forks and the option of horizontal reach up to 4.3m with theQL150-3+1.

The crane can be powered by your choice of power pack, choose 12 or 24 Volt battery, petrol power pack or PTO/ Pump.

Crane Details

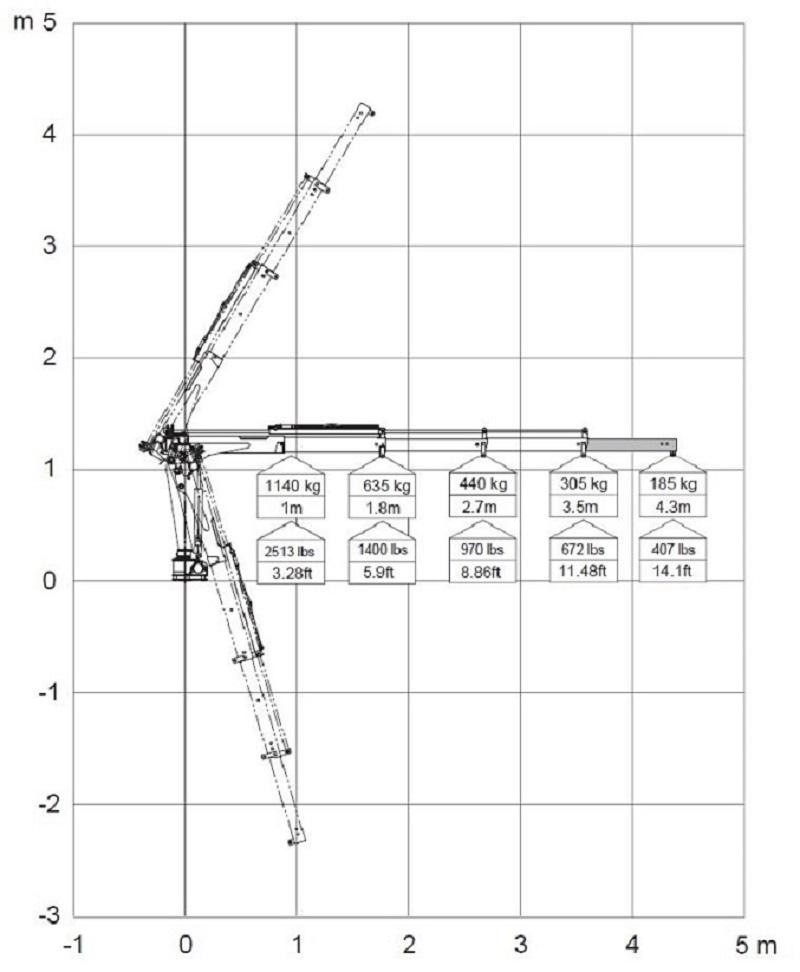

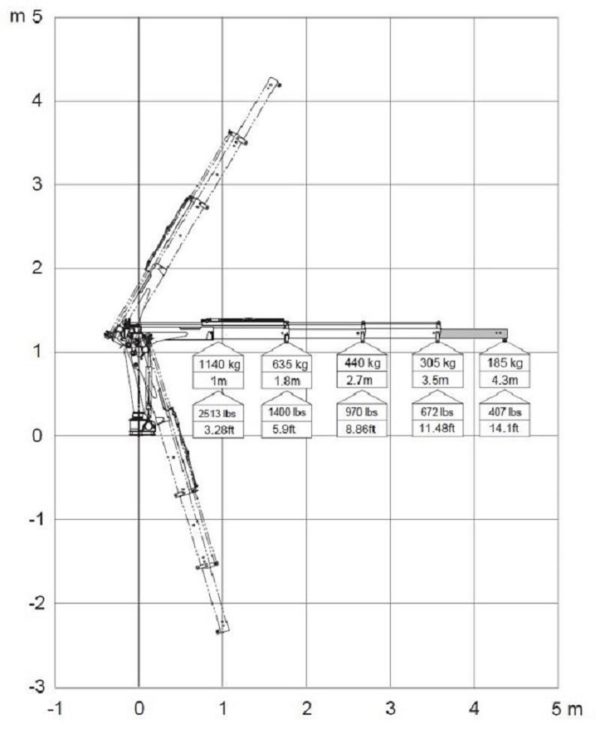

The QL150-3 lifts 1140kg and comes with 3 extensions giving you a max hydraulic reach of 3.5m and lift of 305kg.

This is the ideal model for applications where reach is critical to lift out or over objects, like loading or unloading a trailer.

With an impressive model line-up, and a number of installation options you can customize your package to suit your specific lifting and vehicle.

This crane is available ex-stock.

Warranty

3 year warranty for structural parts (base column and boom) and 12 months for all other components

Included

Price listed includes crane, valve bank and cover. We have various valve bank upgrade options available, please contact us to discuss your requirements so we can provide a detailed quote.

Not Included

If you require a marine paint finish or a winch these can be supplied as part of your package at additional cost.

PLEASE NOTE: Photos shown may be indicative only and may show optional extras. While every effort has been made to ensure information on this website is both true and correct, Waimea Group assumes no responsibility or liability for any errors or omissions in the content of this site.

Additional information

Build Type

BT20-4

Crane Manufacturer

Quicklift

Crane Model

QL150-3

Size T/M

1.2

Specification/Type

Compact

Max Lift

1140kg

Distance at Max Lift

1.0m

Max Reach

3.50m

Weight at Max Reach

305kg

Standard Crane Weight

187kg

Base Frame Weight

80kg

Stowed Crane Height

1.24m

Stowed Crane Length

0.66m

Stowed Crane Width

0.31m

Mounting Spaces

0.31m

Price

POA
