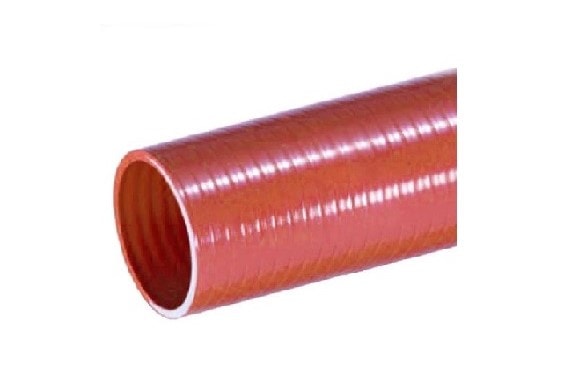

Tigerflex ORV Hose
Description
All hose sizes are inside diameter measurements except where otherwise stated. Priced per metre.
Special orange PVC formulation – Meets the requirements of controlled collection, recovery and transfer of hydrocarbon emissions. Smooth PVC cover allows for ease of coupling. Smooth bore construction allows unrestricted flow. Service temperature range – 20°C to 65°C.
All hose sizes are inside diameter measurements except where otherwise stated. Priced per metre.
Special orange PVC formulation – Meets the requirements of controlled collection, recovery and transfer of hydrocarbon emissions. Smooth PVC cover allows for ease of coupling. Smooth bore construction allows unrestricted flow. Service temperature range – 20°C to 65°C.
Ideal for:
- Light duty oil suction
- Oil slurry handling
- Recovery and transfer of hydrocarbon emissions
| ID (in) |
ID (mm) |
OD (in) |
OD (mm) |
Working pressure (PSI) |
Vacuum rating (in Hg) |
Approx bending radius (mm 20°C) |
Standard lengths (m) |
Weight (kg/m) |
||
| 20°C | 40°C | 20°C | 40°C | |||||||
| ¾ | 19.0 | 1.01 | 25.6 | 100 | 60 | 28 | 26 | 76 | 30 | 0.3 |
| 1 | 25.4 | 1.26 | 32.0 | 80 | 50 | 28 | 26 | 76 | 30 | 0.4 |
| 1½ | 38.1 | 1.76 | 44.6 | 60 | 40 | 28 | 24 | 127 | 30 | 0.5 |
| 2 | 50.8 | 2.32 | 59.0 | 60 | 40 | 28 | 24 | 178 | 30 | 0.8 |
| 3 | 76.2 | 3.41 | 86.7 | 65 | 40 | 28 | 22 | 254 | 30 | 1.6 |
PLEASE NOTE: Photos shown may be indicative only and may show optional extras. While every effort has been made to ensure information on this website is both true and correct, Waimea Group assumes no responsibility or liability for any errors or omissions in the content of this site.
Additional information
| Size | 1.5", 1", 2", 3", 3/4" |
|---|
