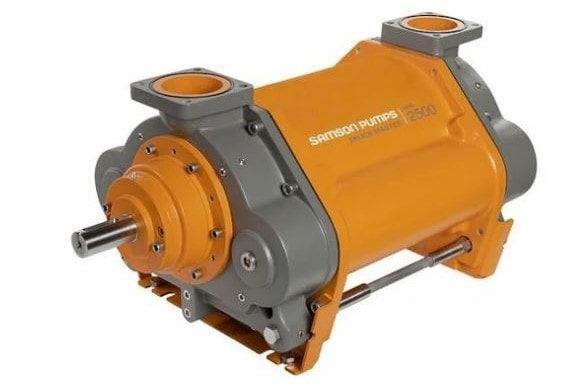

Truck Master 2500

Description

A high-efficient liquid ring pump made for large vacuum trucks and sewer cleaners, collects massive quantities of sewage waste.

Description

A high-efficient liquid ring pump made for large vacuum trucks and sewer cleaners, collects massive quantities of sewage waste.

Samson's Truck Master 2500 is suitable for large city vacuum trucks, high-volume combination sewer cleaners, and large recycling vacuum trucks.

Handling high-volume and heavy duty jobs? Mount the Truck Master 2500 for high efficiency. It can quickly vacuum up wet waste from deep roadside gullies or other deep suction depths. More work will be done in less time with minimum effort.

When it's operating, the pump has very low noise and minimises any risk of noise pollution, making it nice for your vacuum truck operator as well as people in the area where you are working.

It operates with a max vacuum of 85%, max. pressure of 1,0 bar(g) and max. capacity of 2500 m3/h.

Key features

  • Optimum HPR rotor, full welded, stainless steel, and specially designed by Samson for pumps mounted on vacuum trucks
  • High efficiency pump
  • Low noise
  • Requires little maintenance
  • Easy to install close to tanks, where space is limited
  • Oil resistant gasket

Applications

  • Heavy sewer cleaning services like drill muds, thick sludge and slurries from commercial, residential and city areas
  • Collecting large quantities of industrial waste

Specifications

  • Bearing cover: Cast iron EN-GJL-250, EN 1561
  • Radical shaft seal: Rubber, NBR, DIN 3760A
  • Paper gasket: Paper
  • Bearing housing: Cast iron EN-GJL-250, EN 1561
  • Mechanical shaft seal: NBR / AISI 316 / Carbon
  • Pump housing: Cast iron EN-GJL-250, EN 1561
  • Flow plate: Cast iron EN-GJL-250, EN 1561
  • Flow plate (ex model): Bronze CC480K, EN 1982
  • Rubber gasket: Rubber, NBR
  • Shell: Cast iron EN-GJL-250, EN 1561
  • Rotor: Stainless Steel

Vacuum

m3/h kW Nm
1500 RPM 2465 64 407
1400 RPM 2205 56 382
1300 RPM 1980 48 353
1200 RPM 1860 45 358

Pressure

m3/h kW Nm
1500 RPM 1390 85 541
1400 RPM 1271 75 512
1300 RPM 1097 68 500
1200 RPM 993 60 478
