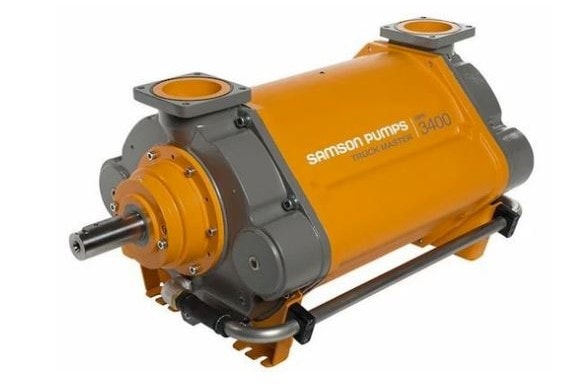

Truck Master 3400

A powerful liquid ring pump designed to handle the most difficult industrial and sewage services.

Samson's Truck Master 3400 is suitable for industrial vacuum trucks, industrial combination sewer cleaners, super-sucker vacuum trucks, and industrial recycling vacuum trucks.

For trucks designed to carry out a wide variety of duties required by large cities and industrial needs, like huge sewage services, sewer sanitation line cleaning, storm drains, cleaning of contaminant pits and hydro-excavation services, we recommend fitting your truck with the powerful Truck Master 3400 pump.

It operates with a max. vacuum of 85%, max. pressure of 0,75 bar(g) and a max capacity of 3400 m3/h.

Key features

• Optimum HPR rotor, full welded, stainless steel, and specially designed by Samson for pumps mounted on vacuum trucks
• High capacity, can lift huge quantities of waste
• Gets into hard-to-reach areas
• Oil resistant gasket

Applications

• Industrial sewage services
• Collecting wet waste from very deep suction depths
• Handling contaminated or hazardous substances

Specifications

• Bearing cover: Cast iron EN-GJL-250, EN 1561
• Radical shaft seal: Rubber, NBR, DIN 3760A
• Paper gasket: Paper
• Bearing housing: Cast iron EN-GJL-250, EN 1561
• Mechanical shaft seal: NBR / AISI 316 / Carbon
• Pump housing: Cast iron EN-GJL-250, EN 1561
• Flow plate: Cast iron EN-GJL-250, EN 1561
• Flow plate (ex model): Bronze CC480K, EN 1982
• Rubber gasket: Rubber, NBR
• Shell: Cast iron EN-GJL-250, EN 1561
• Rotor: Stainless Steel

Vacuum

Pressure
