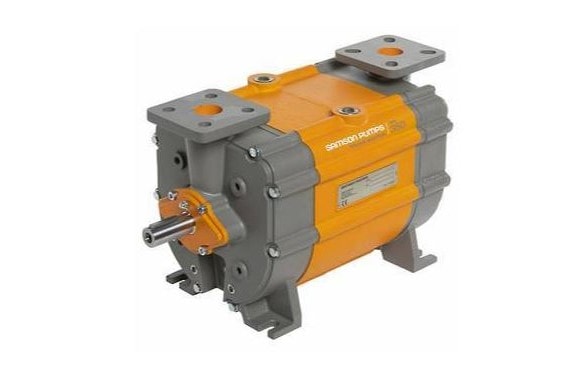

Truck Master 350

Description

A sturdy liquid ring pump suitable for smaller jobs and quick sewage interventions in city areas.

Description

A sturdy liquid ring pump suitable for smaller jobs and quick sewage interventions in city areas.

Samson's Truck Master 350 is ideally suited for small jobs like portable restroom vacuum, small vacuum units or trailers, mini-combination tankers, and small jetting units.

It operates with minimal noise while collecting waste. The pump chamber contains only water, no lubricants. This means the exhaust is a clean stream, which is helpful in populated areas.

It has a max. vacuum of 85%, max. pressure of 1,0 bar(g) and a max capacity of 350 m3/h.

Key features

  • Optimum HPR rotor, full welded, stainless steel, and specially designed by Samson for pumps mounted on vacuum trucks
  • Compact design
  • Meets all the demands for continuous operation in rough areas and wet processes
  • Oil resistant gasket

Applications

  • Slurry services
  • Pit cleaning services
  • Emergency plumbing services (e.g. flooded basements or areas, burst pipelines)

Specifications

  • Bearing cover: Cast iron EN-GJL-250, EN 1561
  • Radical shaft seal: Rubber, NBR, DIN 3760A
  • Paper gasket: Paper
  • Bearing housing: Cast iron EN-GJL-250, EN 1561
  • Mechanical shaft seal: NBR / AISI 316 / Carbon
  • Pump housing: Cast iron EN-GJL-250, EN 1561
  • Flow plate: Cast iron EN-GJL-250, EN 1561
  • Flow plate (ex model): Stainless steel AISI 316
  • Rubber gasket: Rubber, NBR
  • Shell: Cast iron EN-GJL-250, EN 1561
  • Rotor: Stainless Steel

Vacuum

m3/h kW Nm
1800 RPM 359 9 48
1650 RPM 334 8 43
1500 RPM 307 7 41
1200 RPM 242 6 44

Pressure

m3/h kW Nm
1800 RPM 266 15 80
1650 RPM 239 13.5 78
1500 RPM 151 12 76
1200 RPM 83 8.5 68
