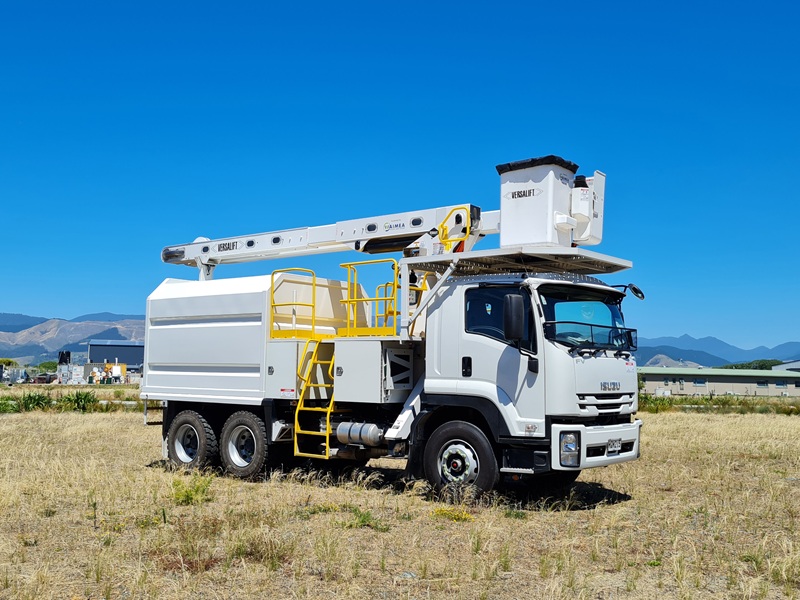

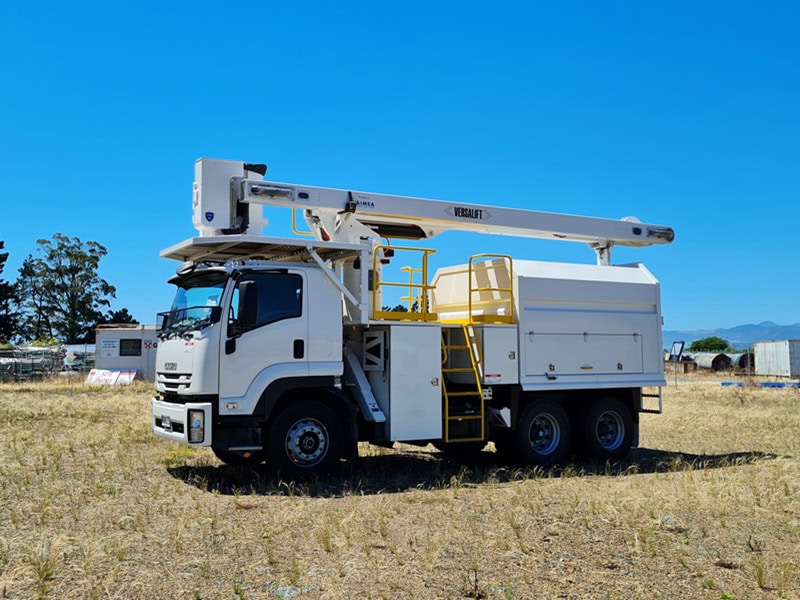

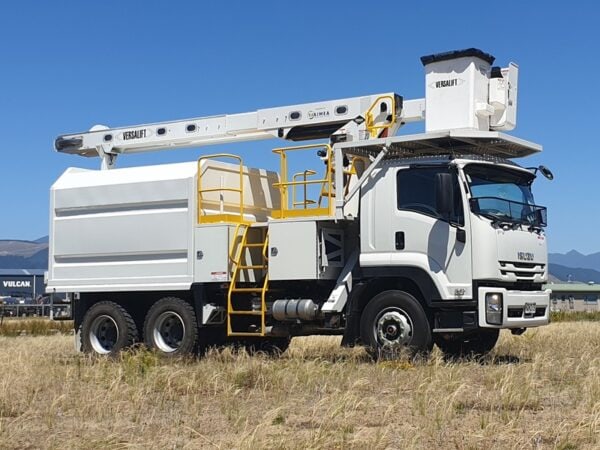

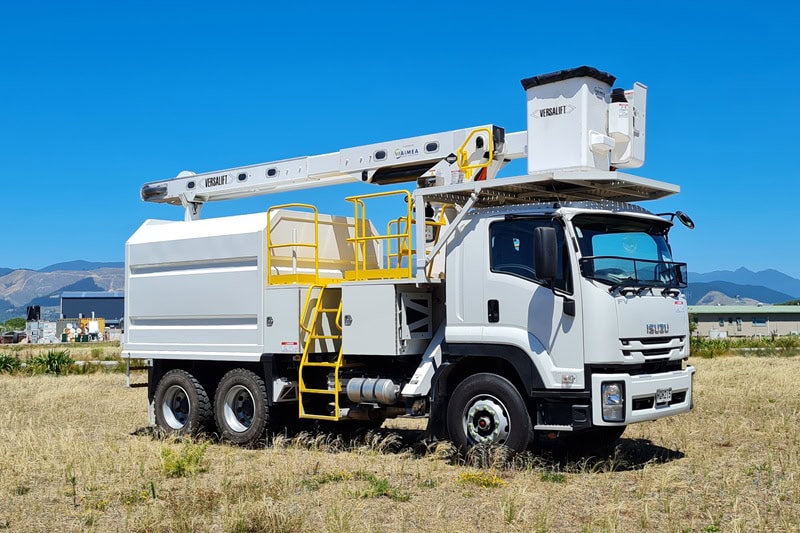

Versalift VO255 on FVZ1400 6×4 Arborist Unit
This compact truck is very stable and designed to provide everything an arborist crew would need. The Versalift V0255 Overcentre EWP offers 19.3m work height, 160kg SWL bucket on a fully insulated 46kV Cat C boom.
Overview

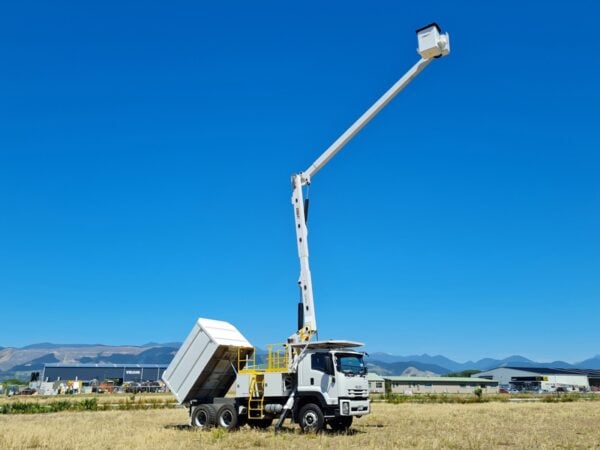

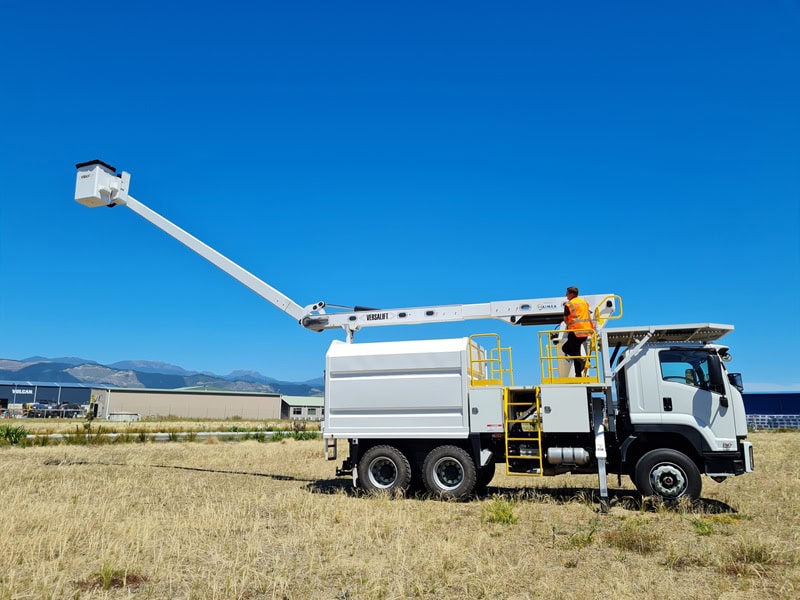

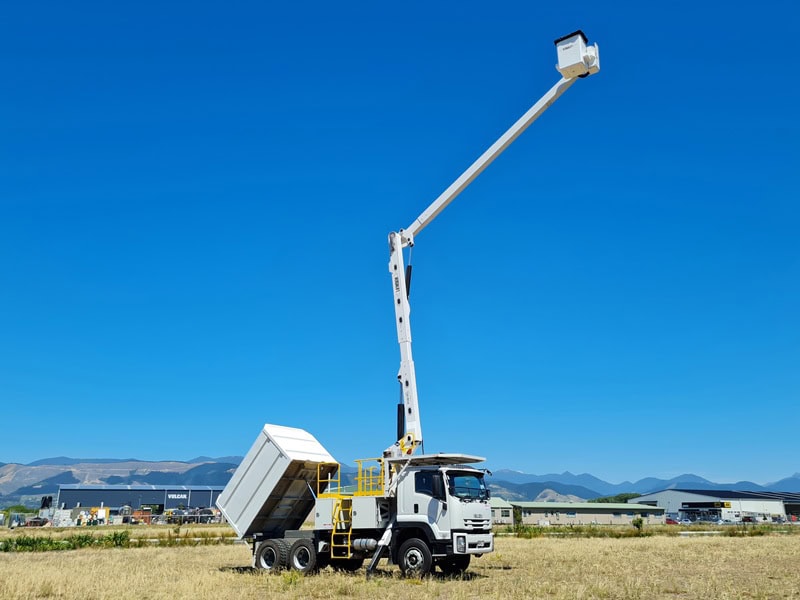

The overcentre boom provides an exceptional working envelope which is especially valuable when working on or around live lines. It has the ability to reach up and over obstacles or come up from underneath making it very popular for arborists working in rural applications.
The compact 6x4 truck is very stable and easy to drive and has been designed to provide everything an arborist crew would need.
EWP Details
Made in Waco, Texas, Versalift is an innovative manufacturer of high quality vehicle-mounted EWP’s since 1965.
The Versalift V0255 Overcentre EWP offers 19.3m work height, 160kg SWL bucket on a fully insulated 46kV Cat C boom.
The unique TruGuard 2.0 insulation system increases dielectric protection by 44% and eliminates thermal pressure points, while offering the most complete protection to lineman operating at the platform.
With only hydraulic and pneumatic lines and no electronics, Versalift booms have a long standing reputation for reliability.
Stability is provided by two angled outriggers attached directly to the turret and connected by a safety interlock system. The extended outriggers provide maximum correction when positioned on sloping ground.
Truck Details

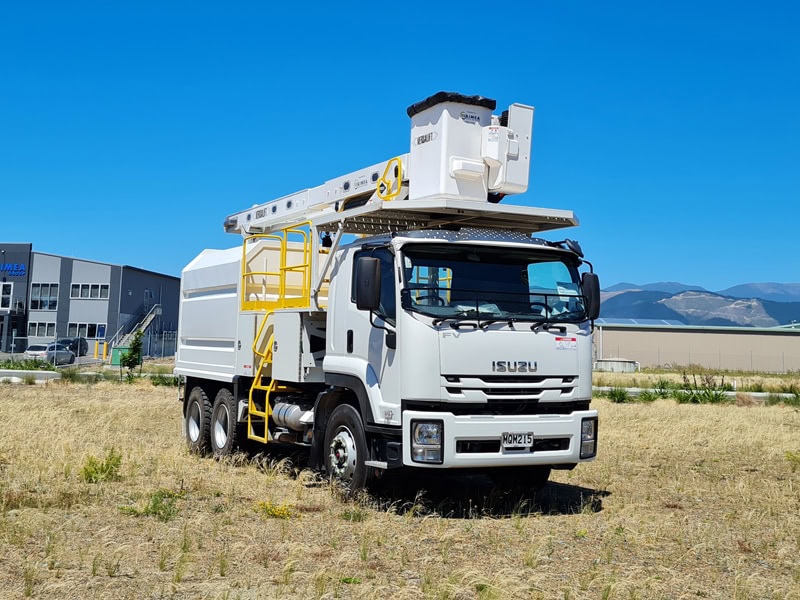

The Isuzu FVZ1400 6x4 is a popular choice for this build as it has the added benefits of ample payload, low ground pressure and good traction, a tight turning circle and extra horse power.

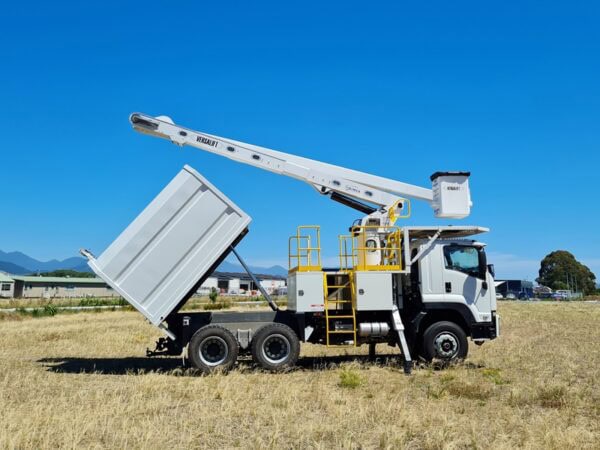

The robust steel chip bin carries over 10m3 of chip, and the rear door offers either a top hinge or side swing option giving you clear access into the rear.
Towing options include a ring feeder or combination tow ball with up to 11 ton towing capacity.
PLEASE NOTE: Information on this page was assumed correct at time of publishing however is subject to change or be updated at any time without notice. Photos shown may be indicative only and may show optional extras. While every effort has been made to ensure information on this website is both true and correct, Waimea Group assumes no responsibility or liability for any errors or omissions in the content of this site.
Additional information
| Stock Number | 1075 |
|---|
