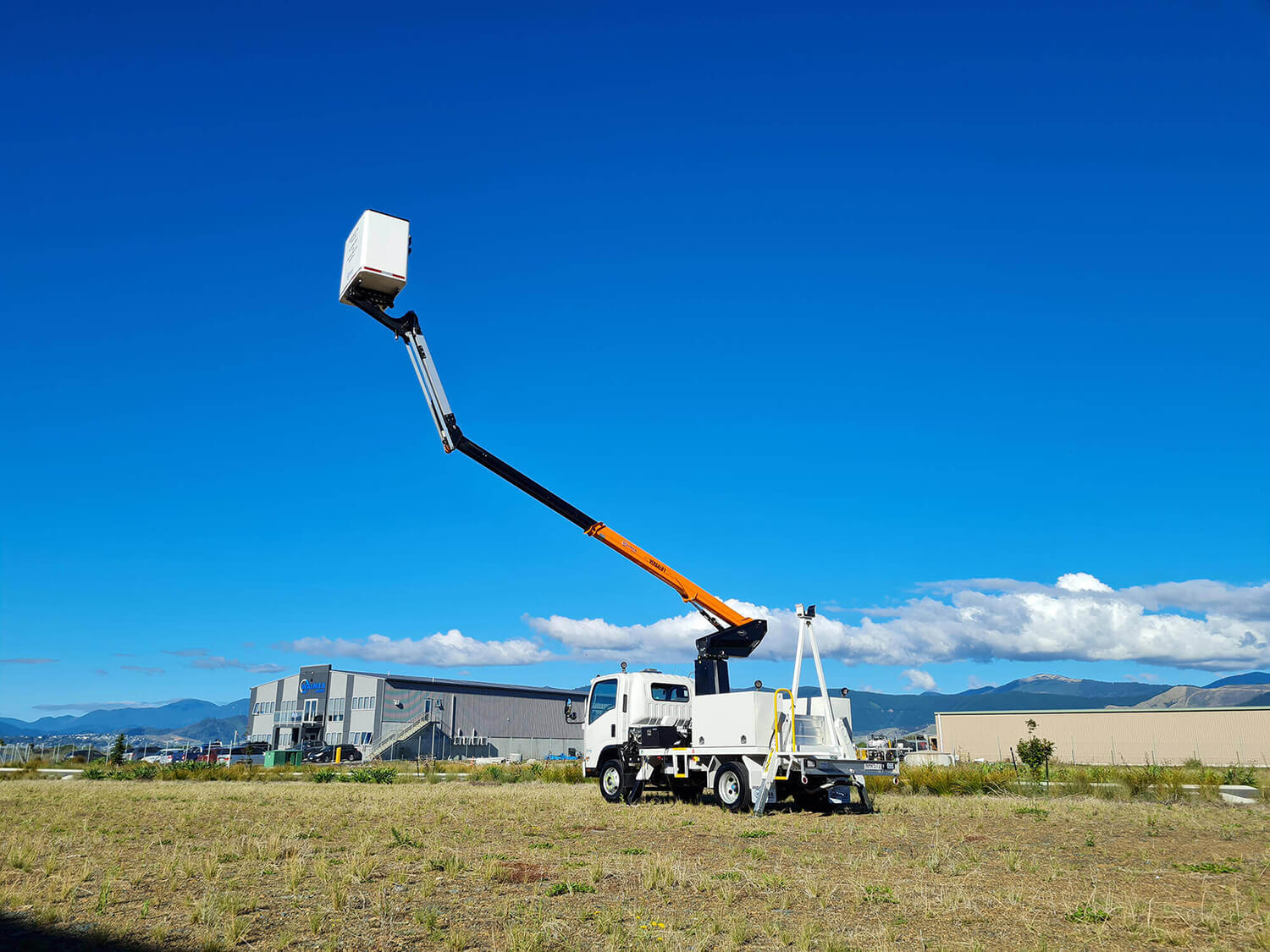

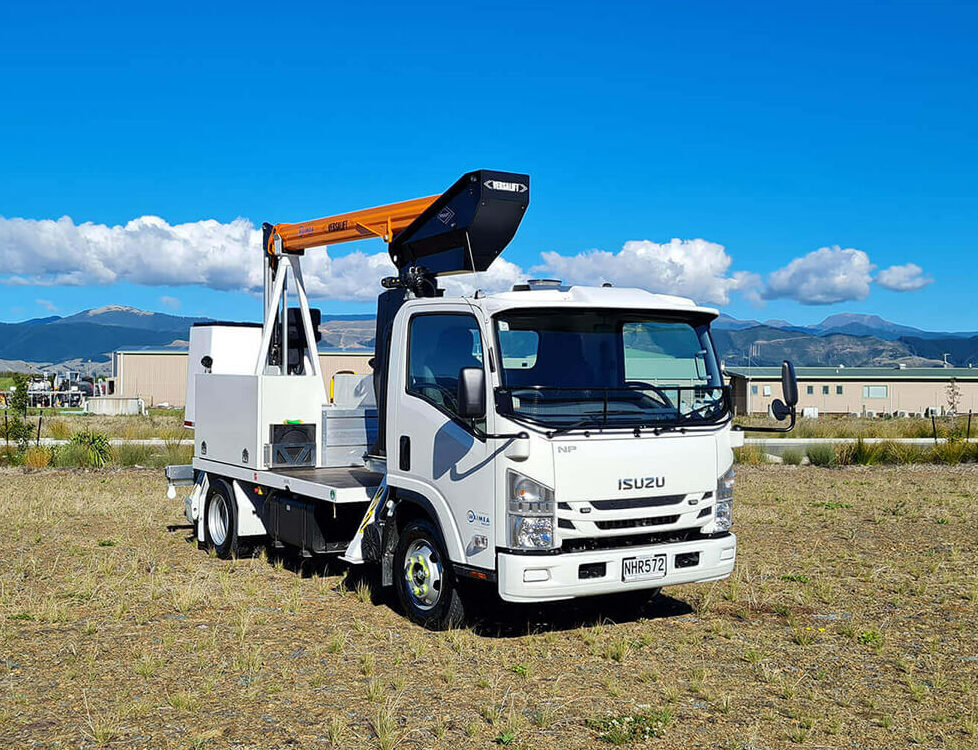

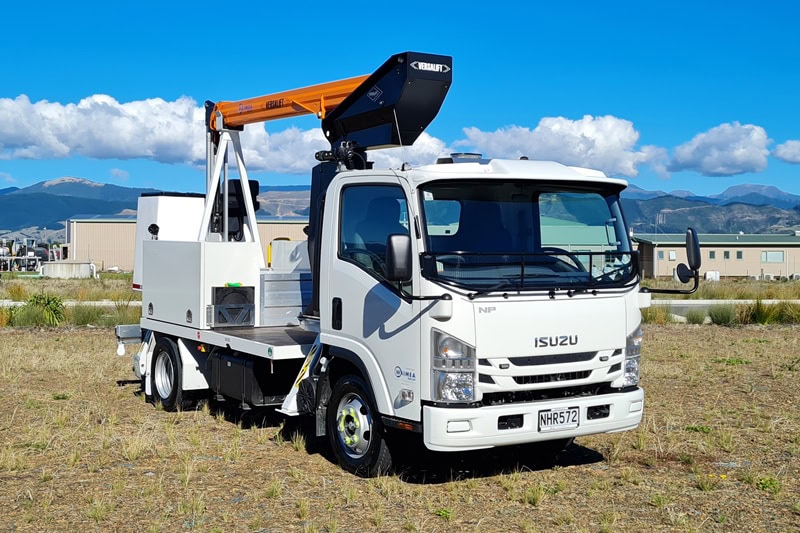

The new VTL series from Versalift provides an exceptionally good working envelope and the compact Isuzu truck the boom is mounted on is very manoeuvrable and cheap to run.

High tensile steel booms designed using the latest technology provide exceptional reach and are easy to operate.

The LV rated 2-person bucket plus deck space and payload means this new design is ideally suited to anyone working on or around the LV network in urban areas.

The 4 outriggers only protrude a small amount from the side of the truck and provide excellent correction and stability when working on inclines or uneven surfaces, plus they can be controlled from either inside the cab or from the bucket controls.

The VTL41 is the perfect solution for a wide range of applications including streetlights, fibre, faults and telecommunication.

EWP Details

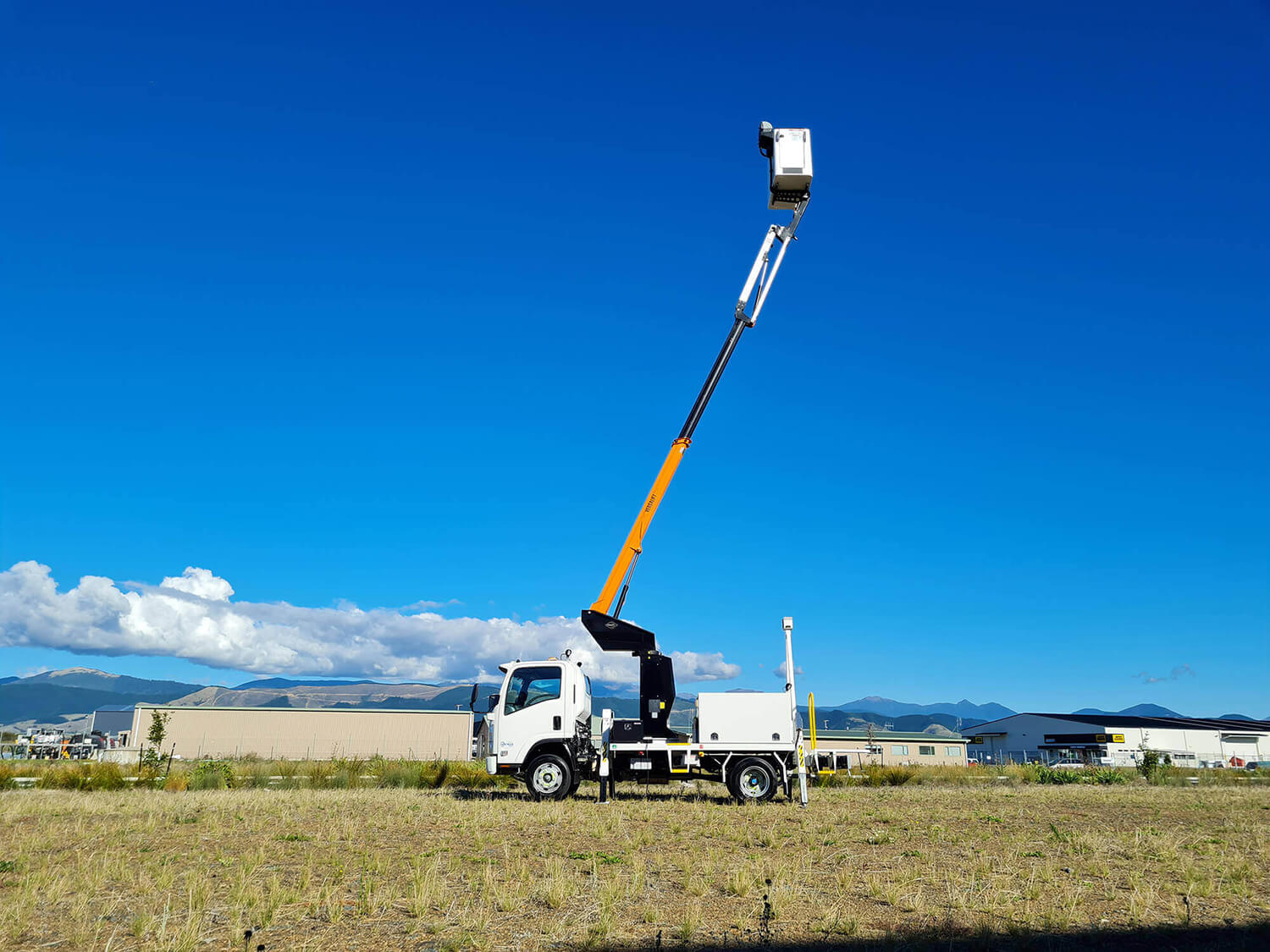

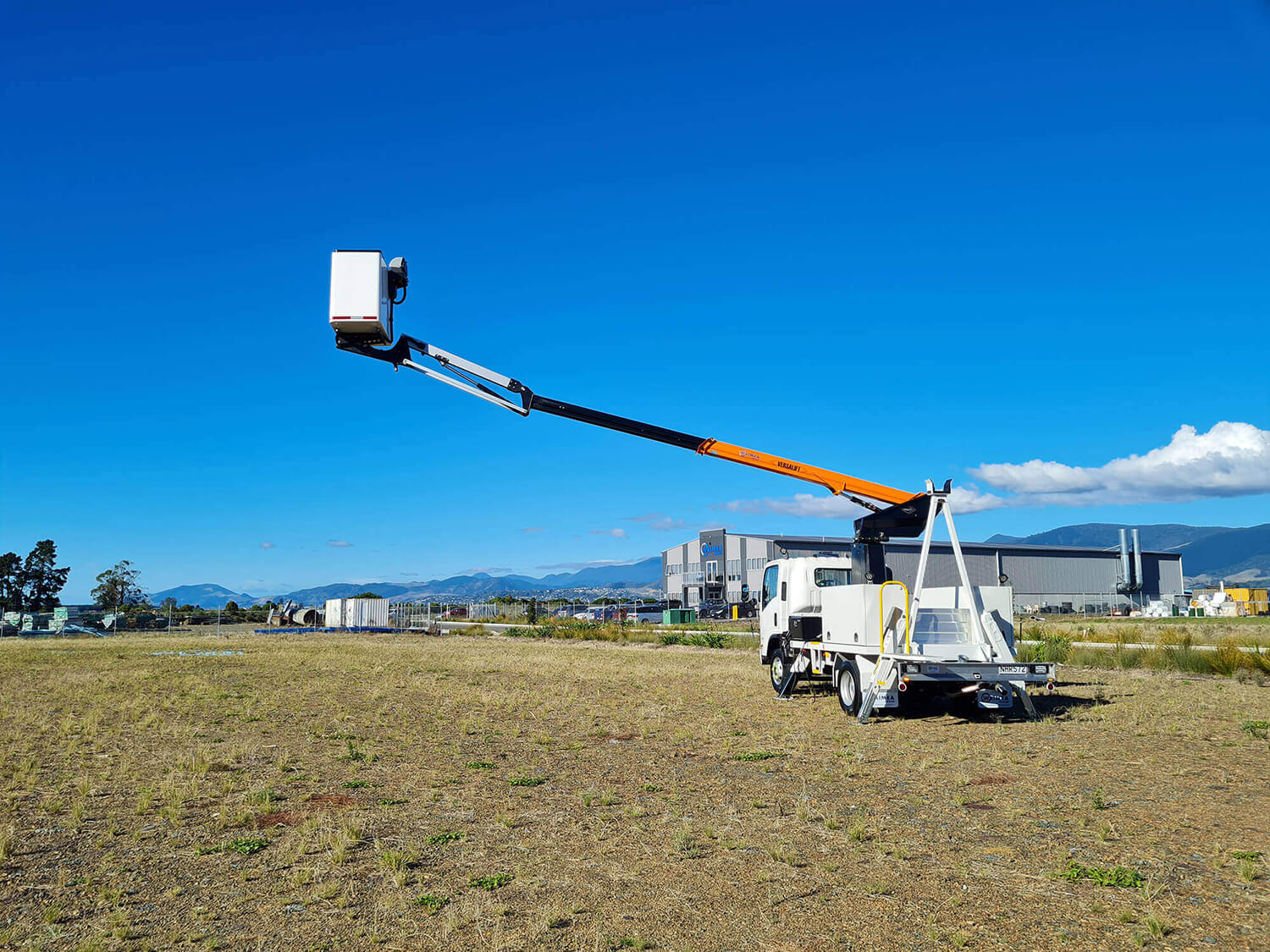

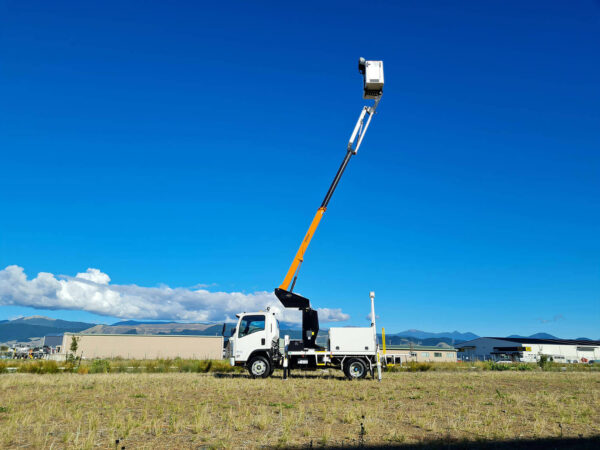

• The LV insulated Versalift VTL41FZ has a vertical reach of 14.5m and horizontal outreach 6.7m.

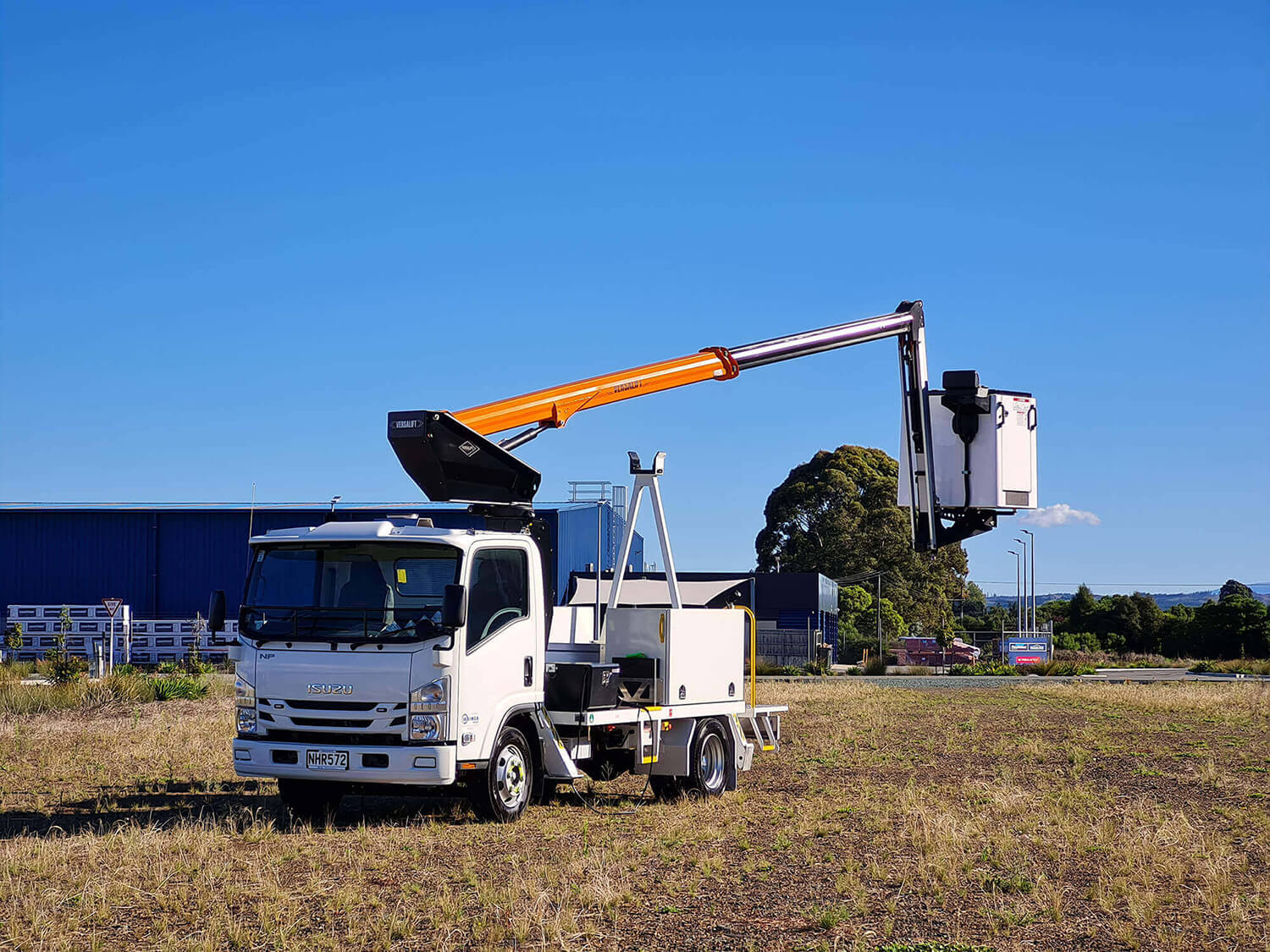

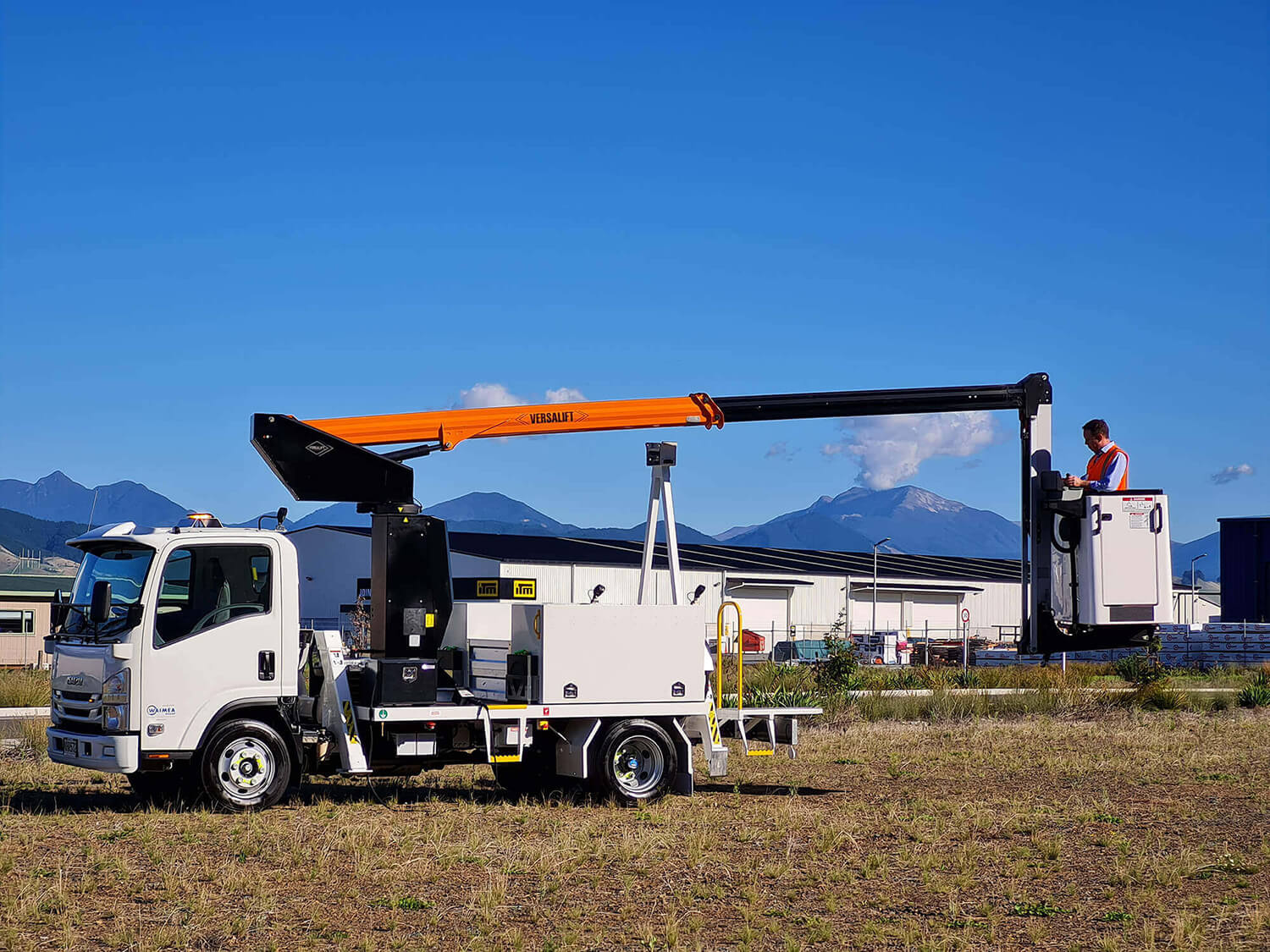

• High strength steel outer and aluminium inner boom with the articulation going from 8° below horizontal to 115° above horizontal plus the additional fly jib.
• The boom can be operated up to full height and within 5 degrees from centre without deploying the outriggers, which means set up can be especially fast when working directly overhead.

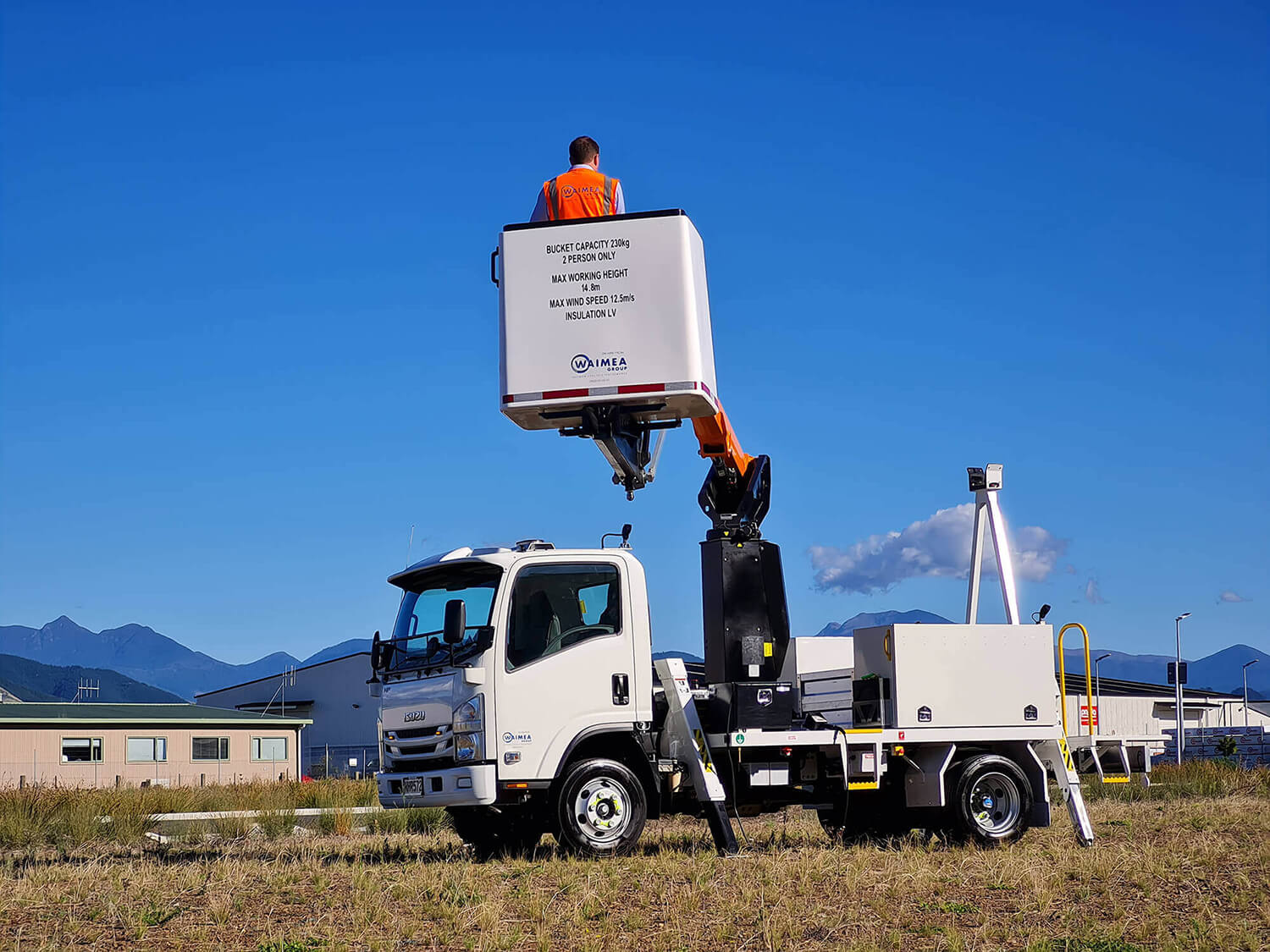

• The fibreglass bucket has a SWL of 230kg and is large enough to fit 2 people plus equipment.

The bucket stows low down at the rear and has a side entry door which is easy for operators to access the bucket.
