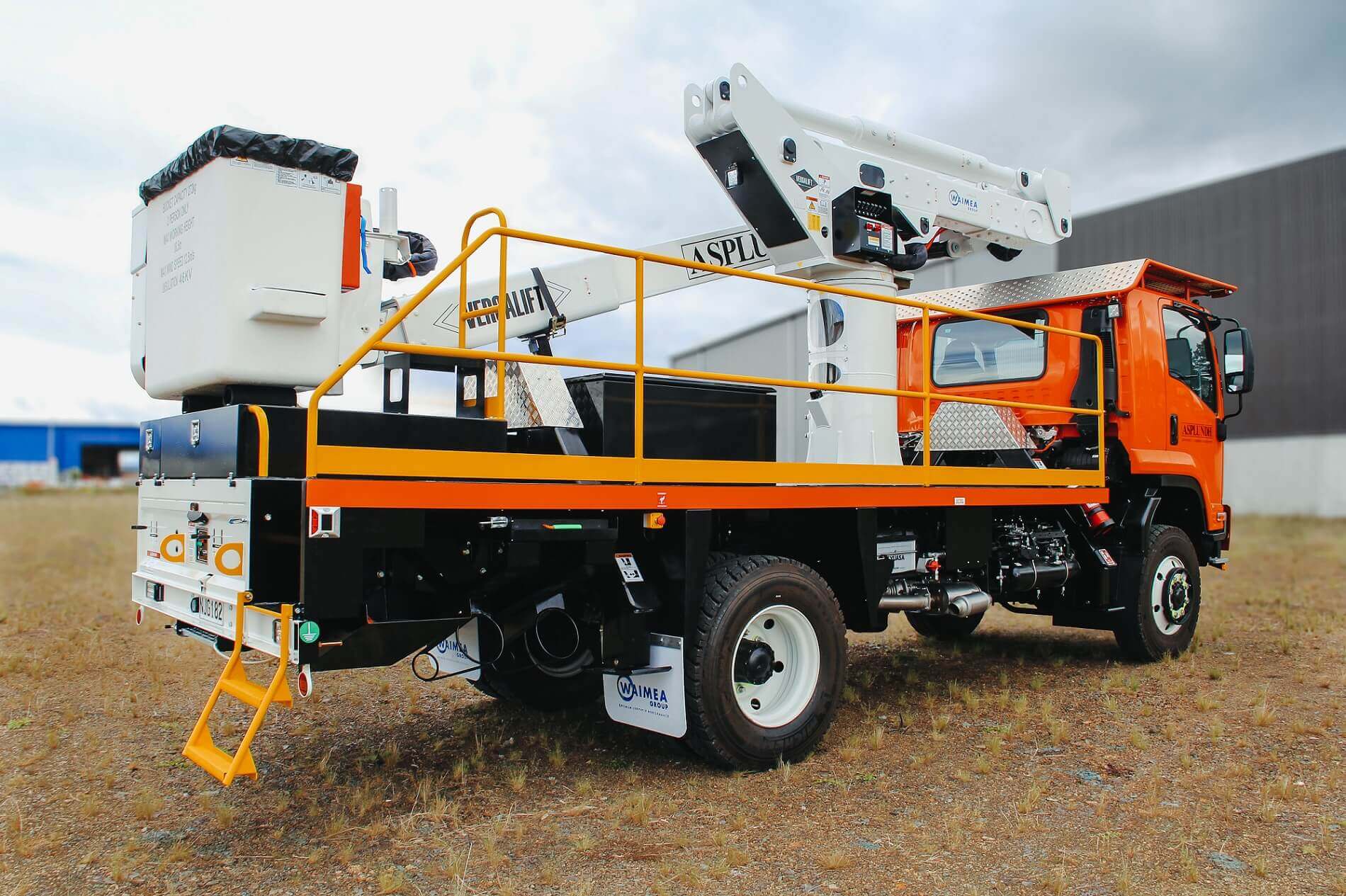

Versalift VST5000 on Isuzu FTS800 Truck
The Versalift VST5000 on an Isuzu FTS800 is an ultra versatile unit, suitable for live-line, line construction and arborist work – making it a popular choice for many lines companies. Robust. Versatile. Reliable

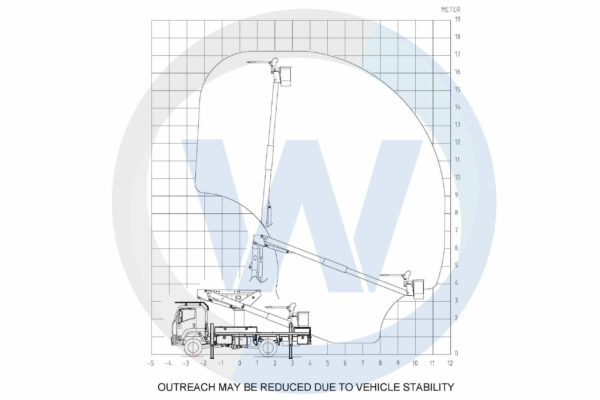

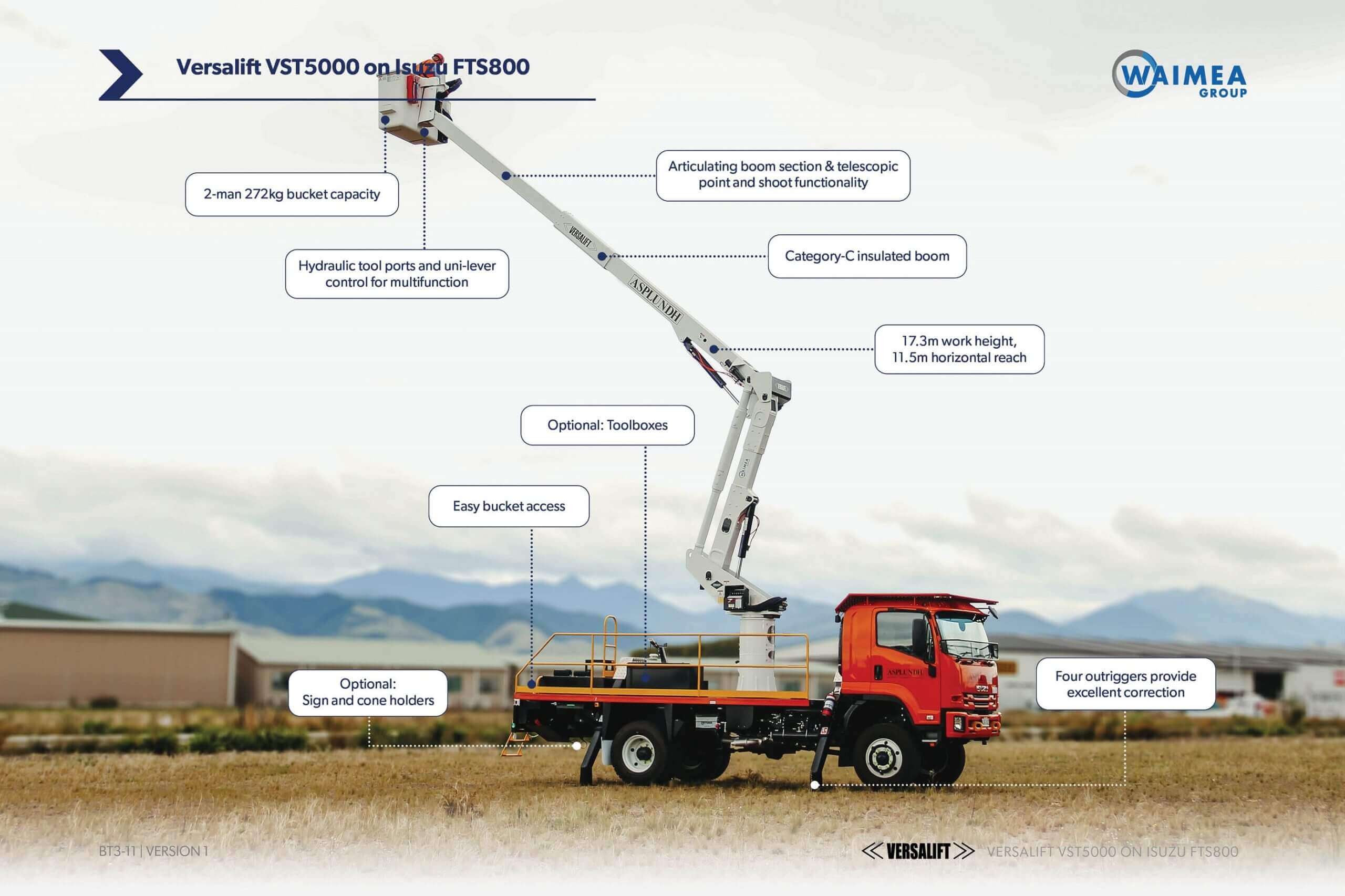

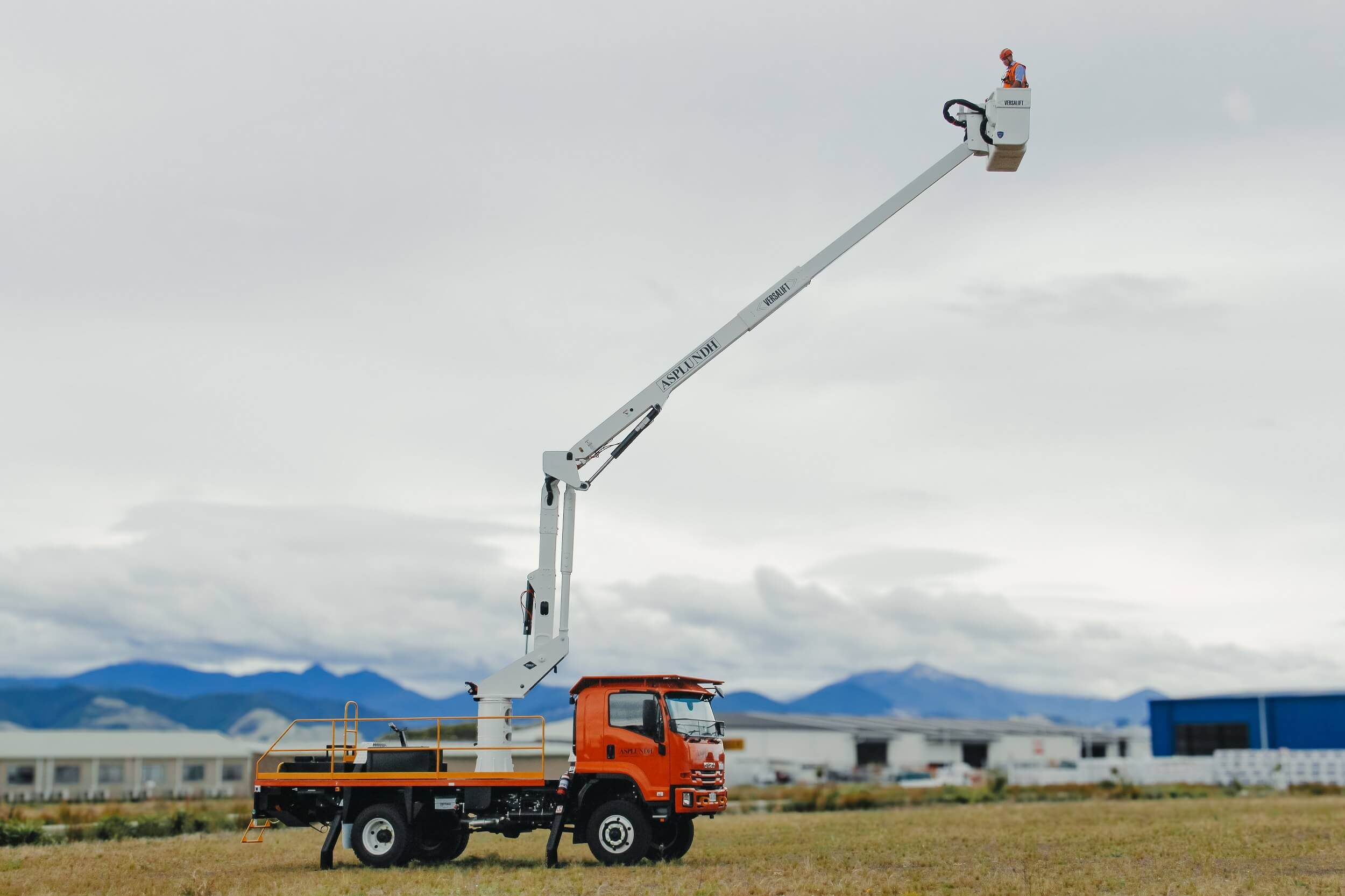

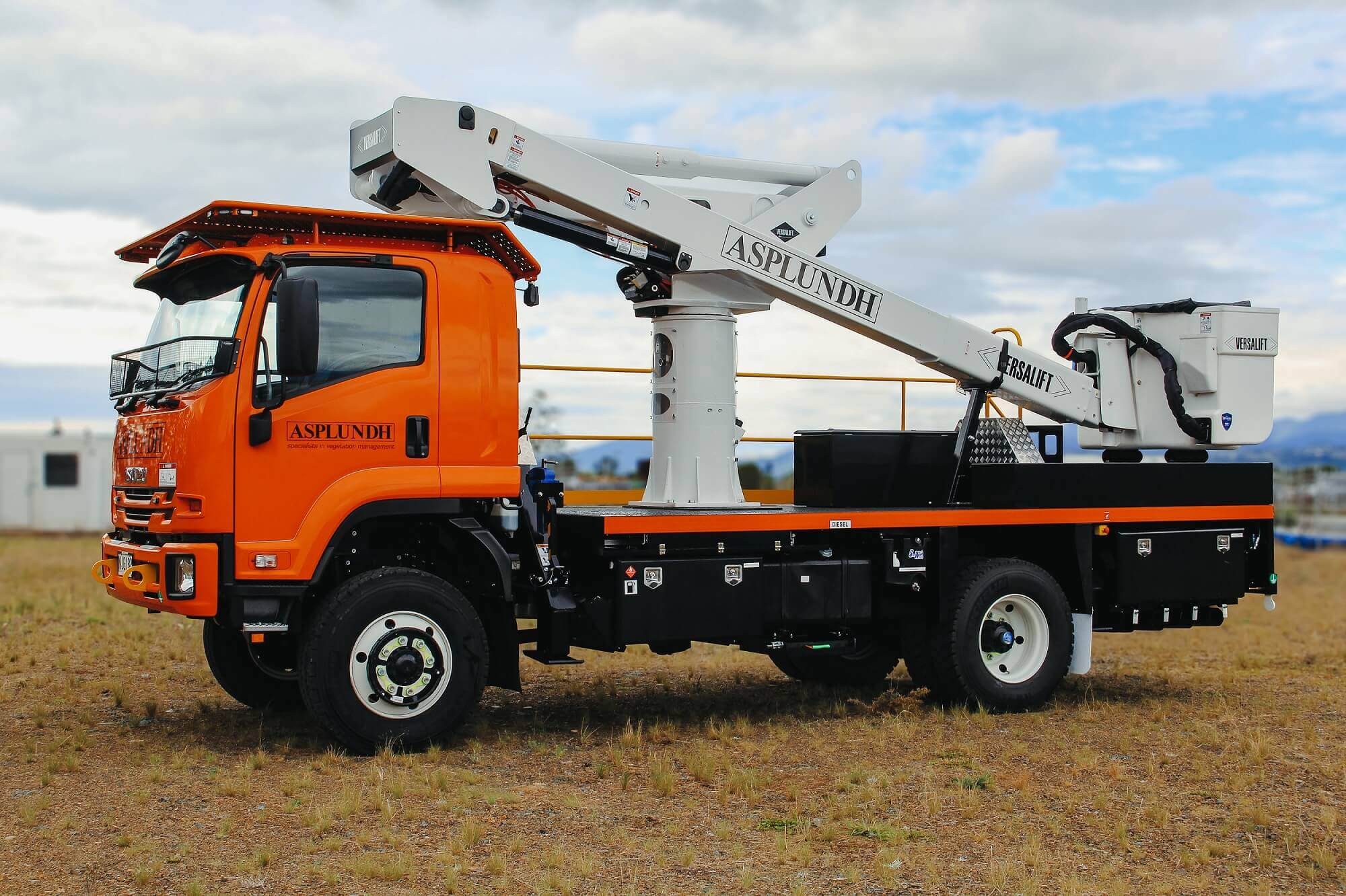

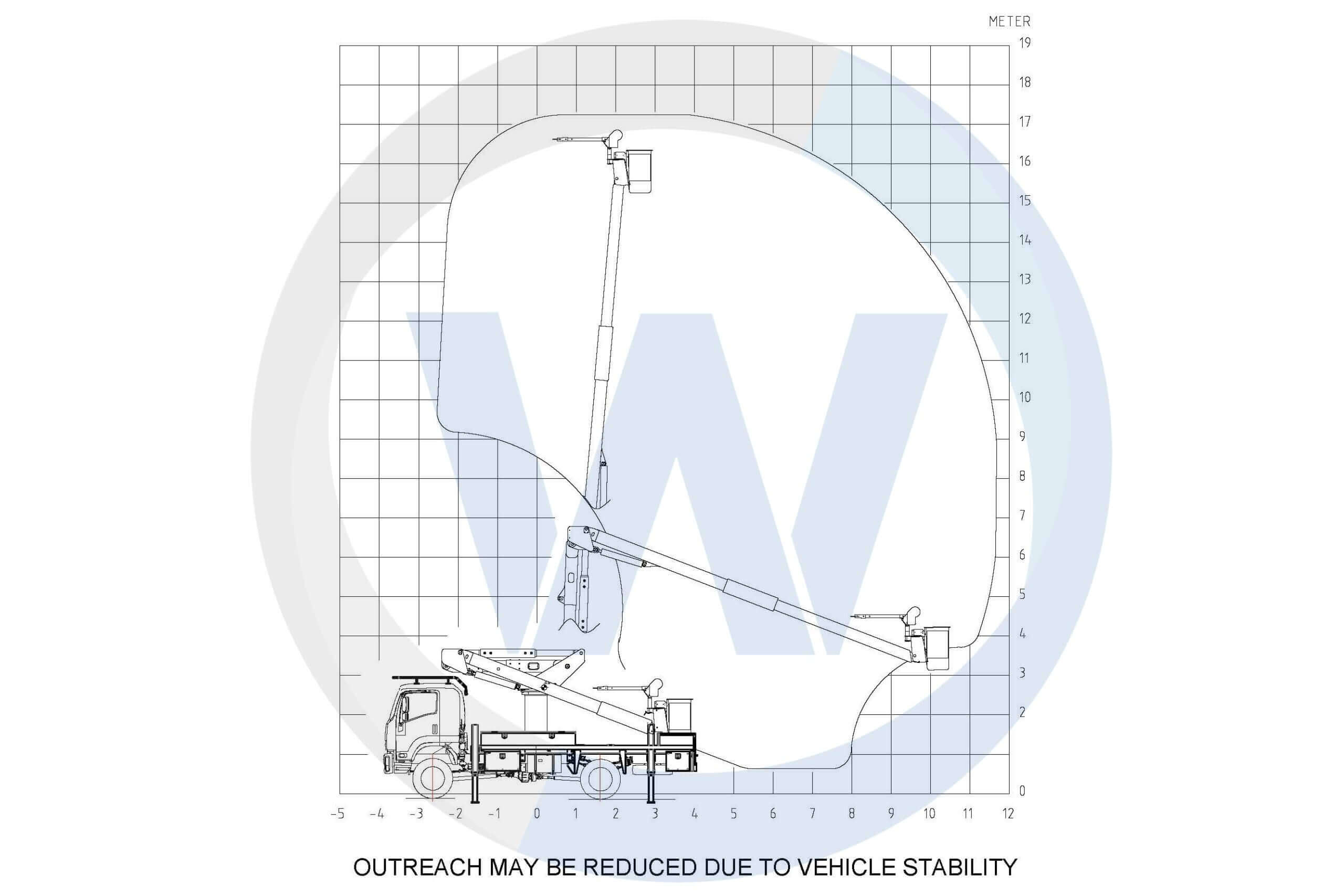

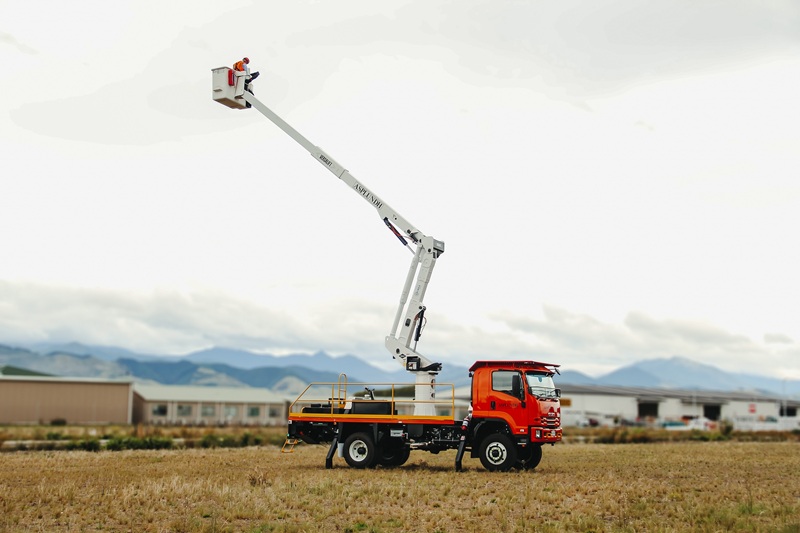

The Versalift VST5000 E.W.P offers 17.3m of work height and an impressive 11.5m horizontal reach. This insulated category-c boom has an articulating boom section and telescopic point and shoot functionality, enabling the ability to go up and over obstacles. Four outriggers provide excellent correction. Two-man, 272kg bucket capacity, hydraulic tool ports and uni-lever control for multi-function with one hand makes it a well appointed build for live line, construction and arborist applications. Build options include sign and cone holders, slide out vice and a range for toolboxes to chose from.

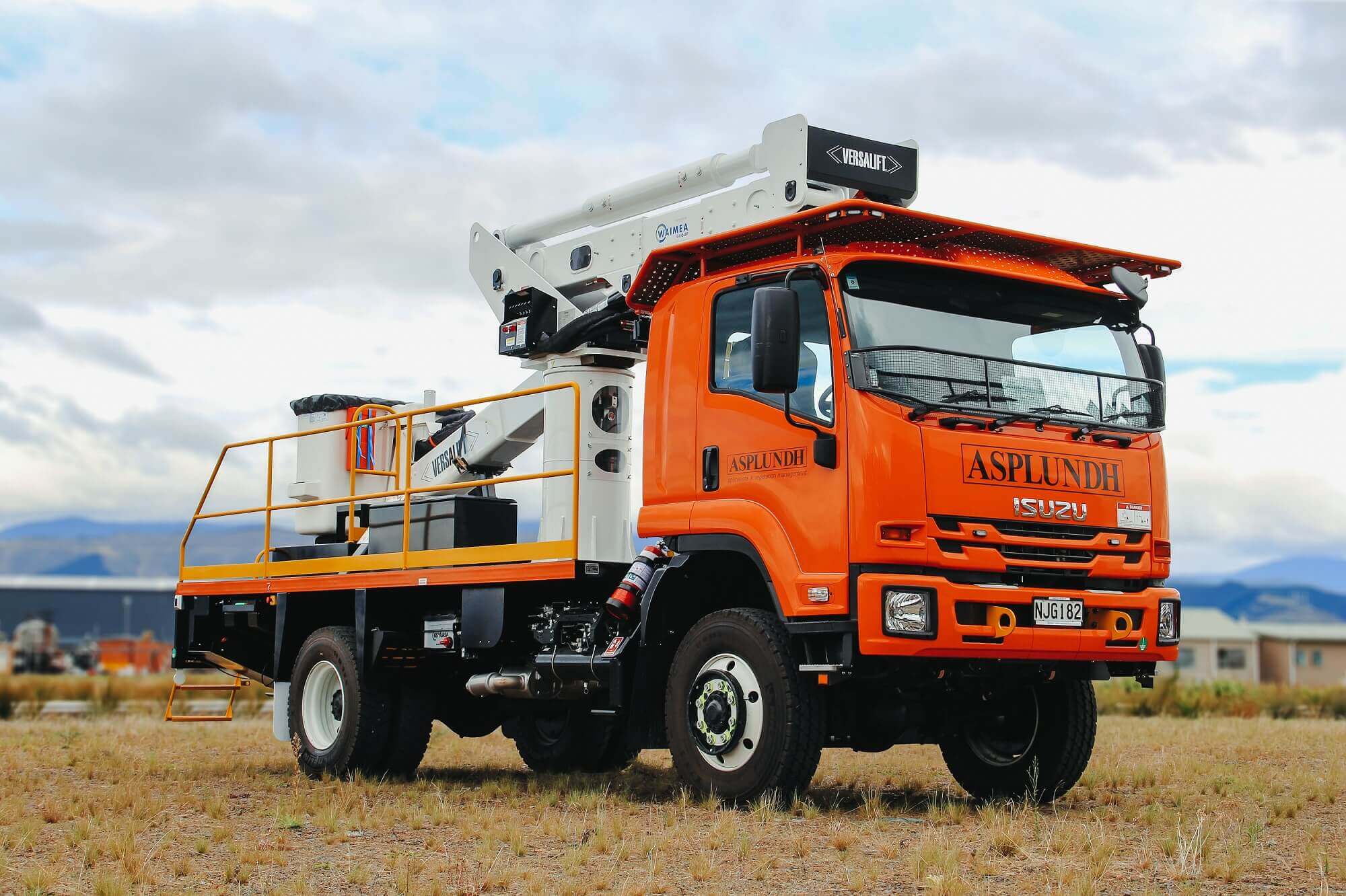

The Isuzu FTS800 4×4 truck is driven with ease with the automatic transmission. This well appointed unit can be used in a wide range of urban or rural applications.

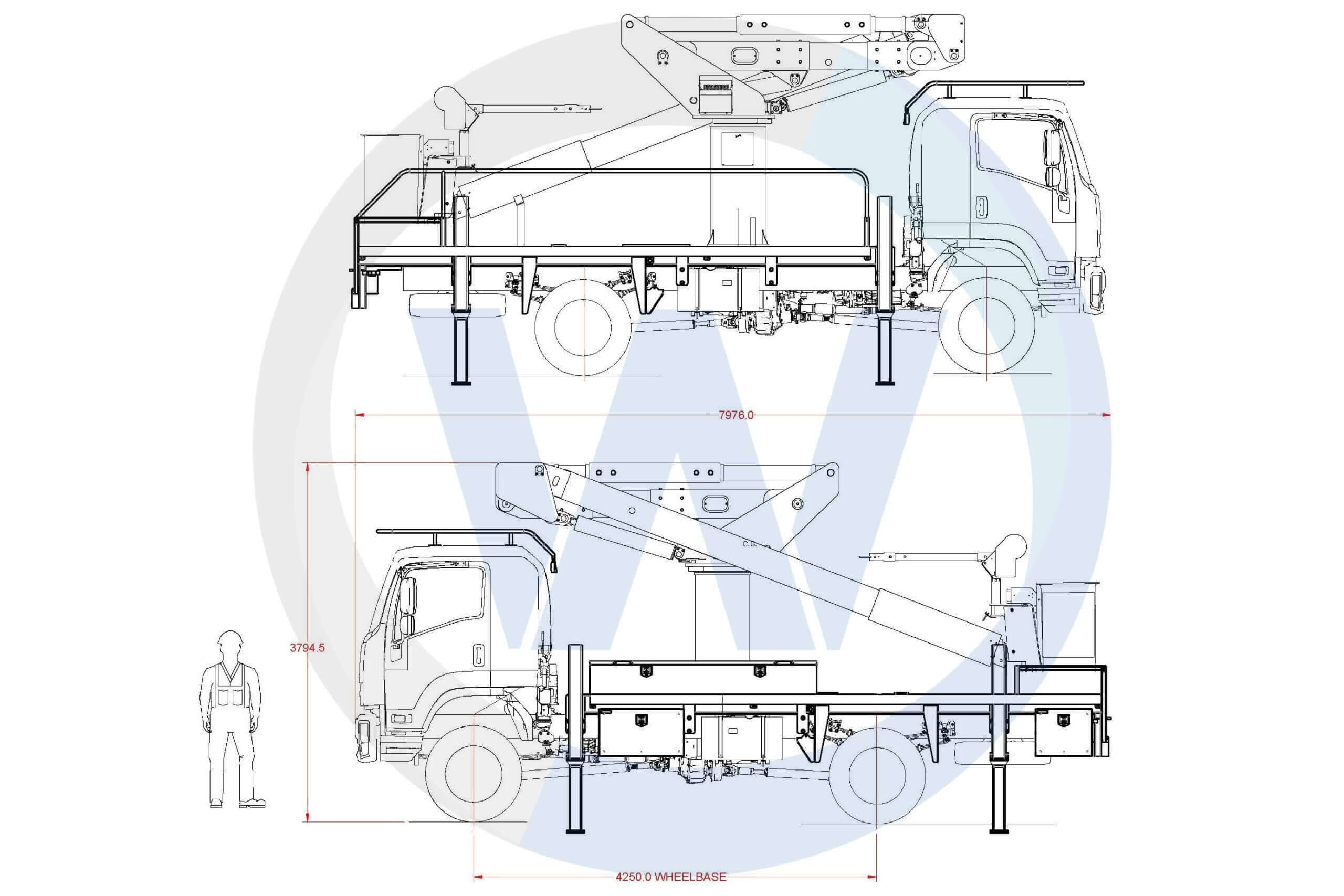

The entire build design is focused on highly efficient and safe use of the boom with easy deck access and safety handrails all the way up to the bucket.
Let’s Talk
Reach out today to Gareth our Specialist Vehicle Consultant for pricing and availability
Additional information
| EWP Manufacturer | Versalift |
|---|---|
| EWP Model | VST 5000 |
| Working Height | 17.3m |
| Height | 15.30m |
| Working Radius | 11.5m |
| Insulation Rating | Insulated Category C (46kV) |
| Boom Style | Articulating/Telescopic |
| Boom Slew Rotation | Continuous |
| Bucket Rotation | Yes |
| Bucket Rotation Powered | Hydraulic |

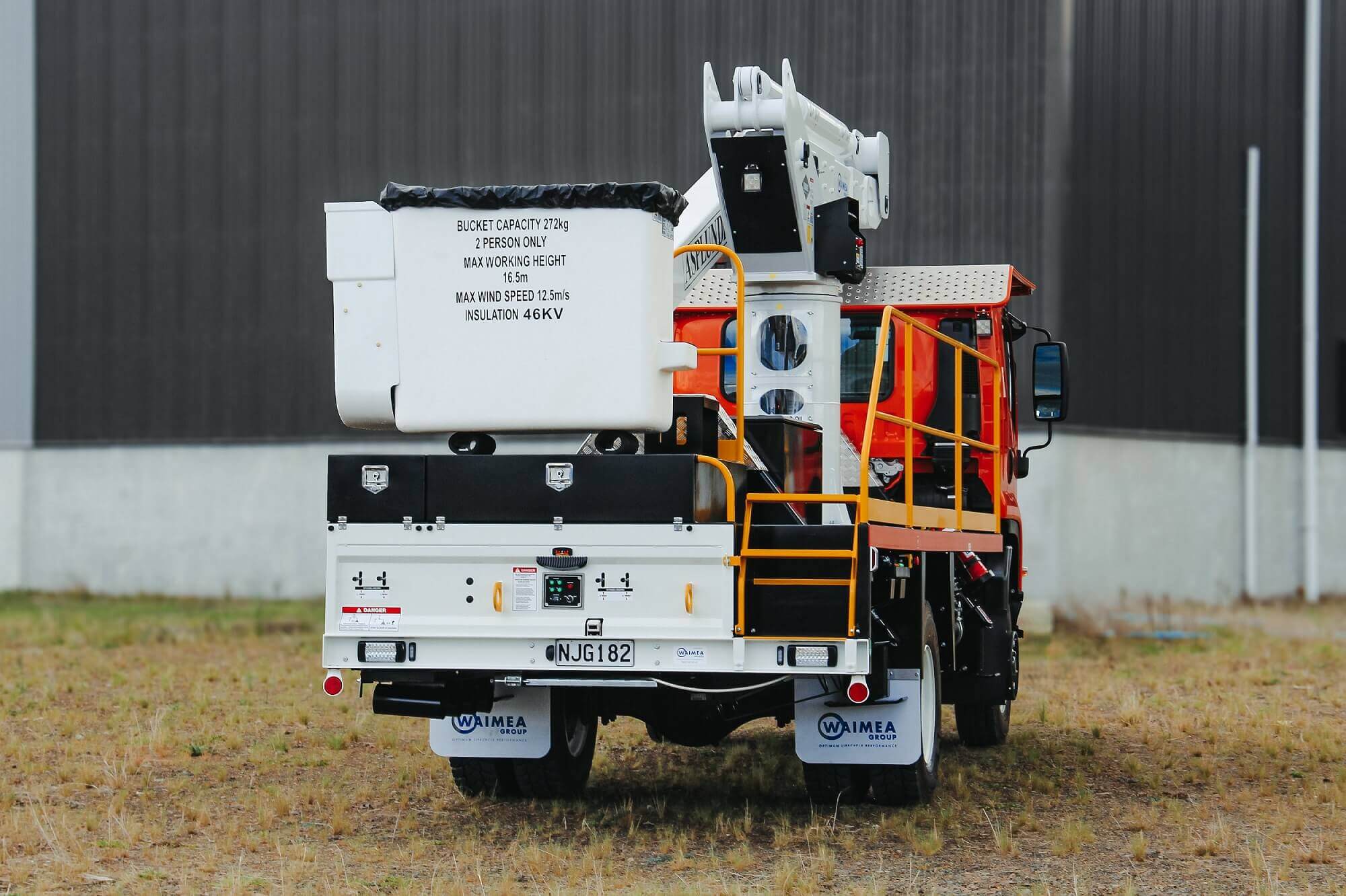

| Bucket Capacity SWL | 272kg |
| Bucket Dimensions (mm) | 1070 (L) x 610 (W) x 1100 (H) |
| Control Type | Hydraulic |
| Hydraulic Tool Port @ Bucket | Yes |
| Vehicle Manufacturer | Isuzu |
| Vehicle Model | FTS800 |
| Specifications | 4×4 |
| HP | 260 |
| Transmission | Allison Auto |
| Difflocker/Traction Control | Standard |
