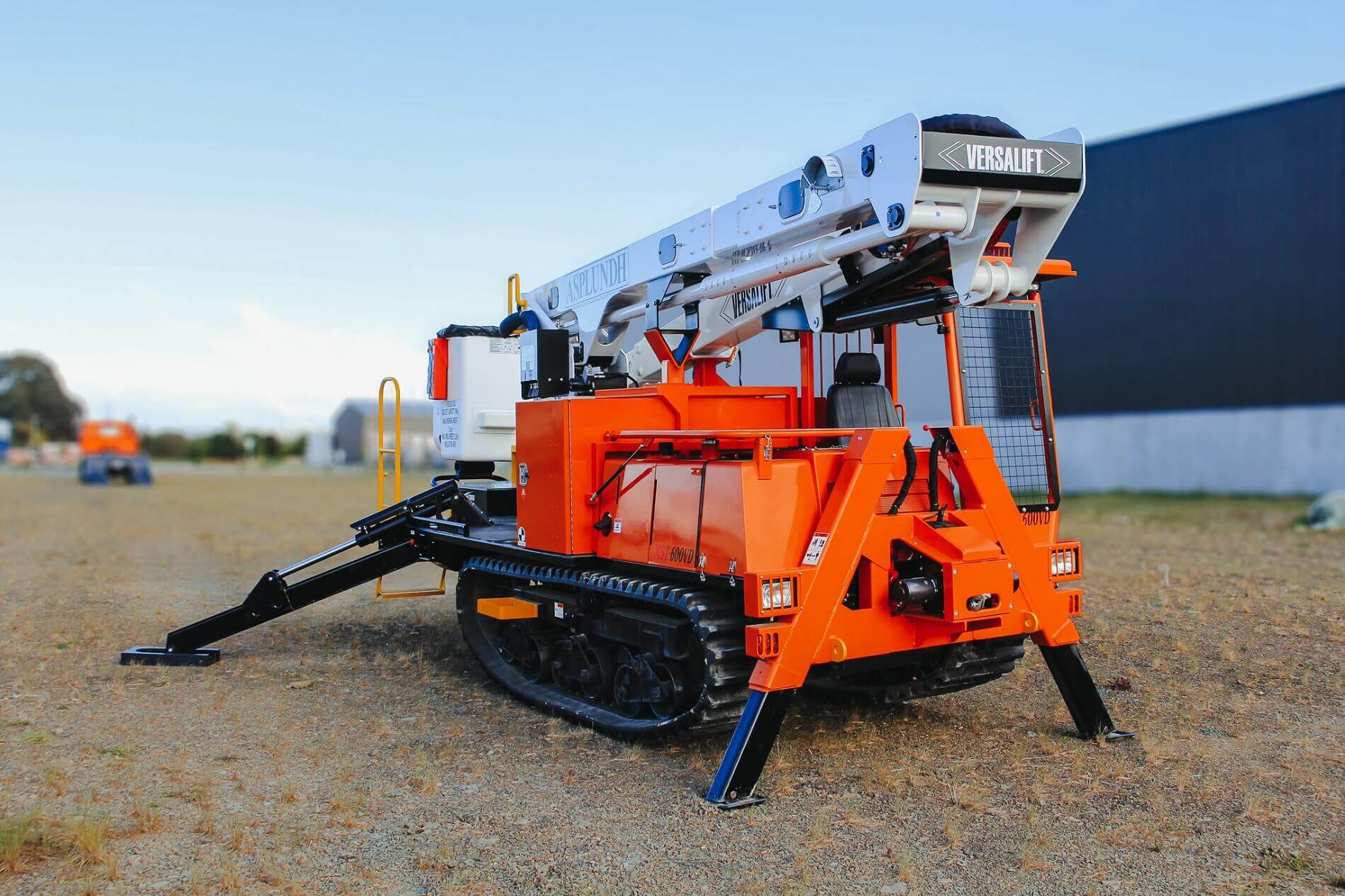

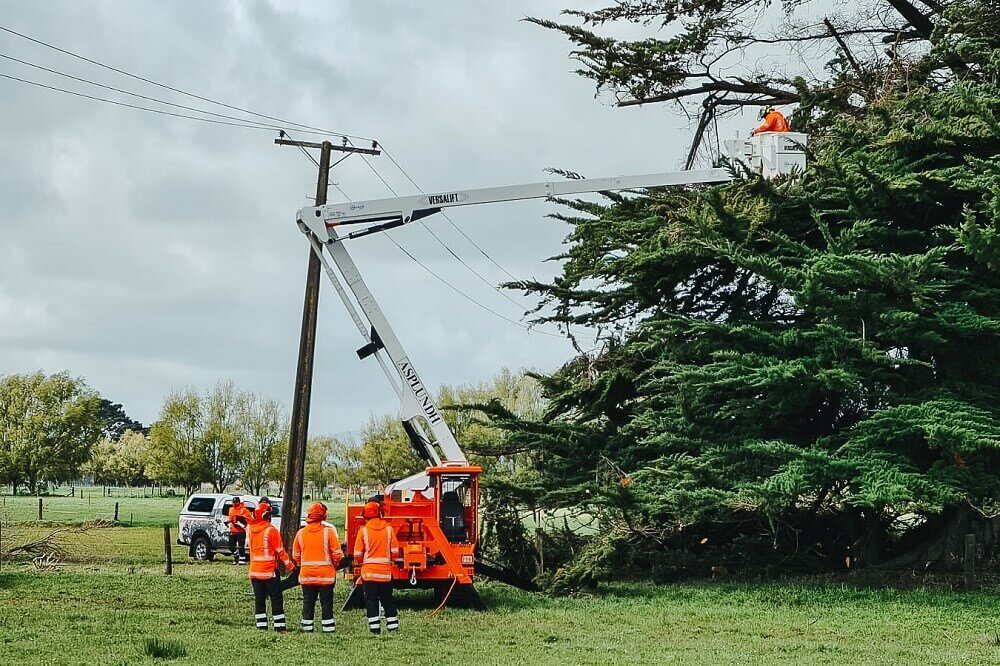

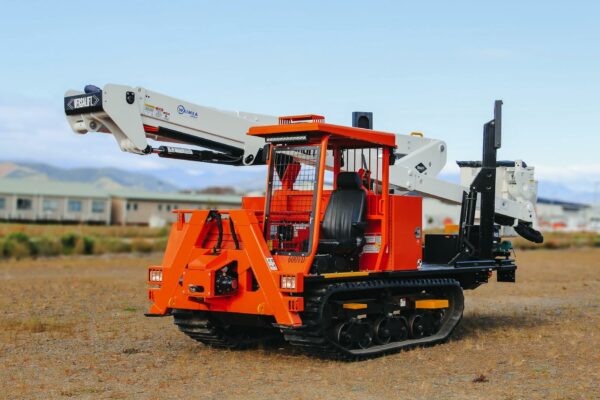

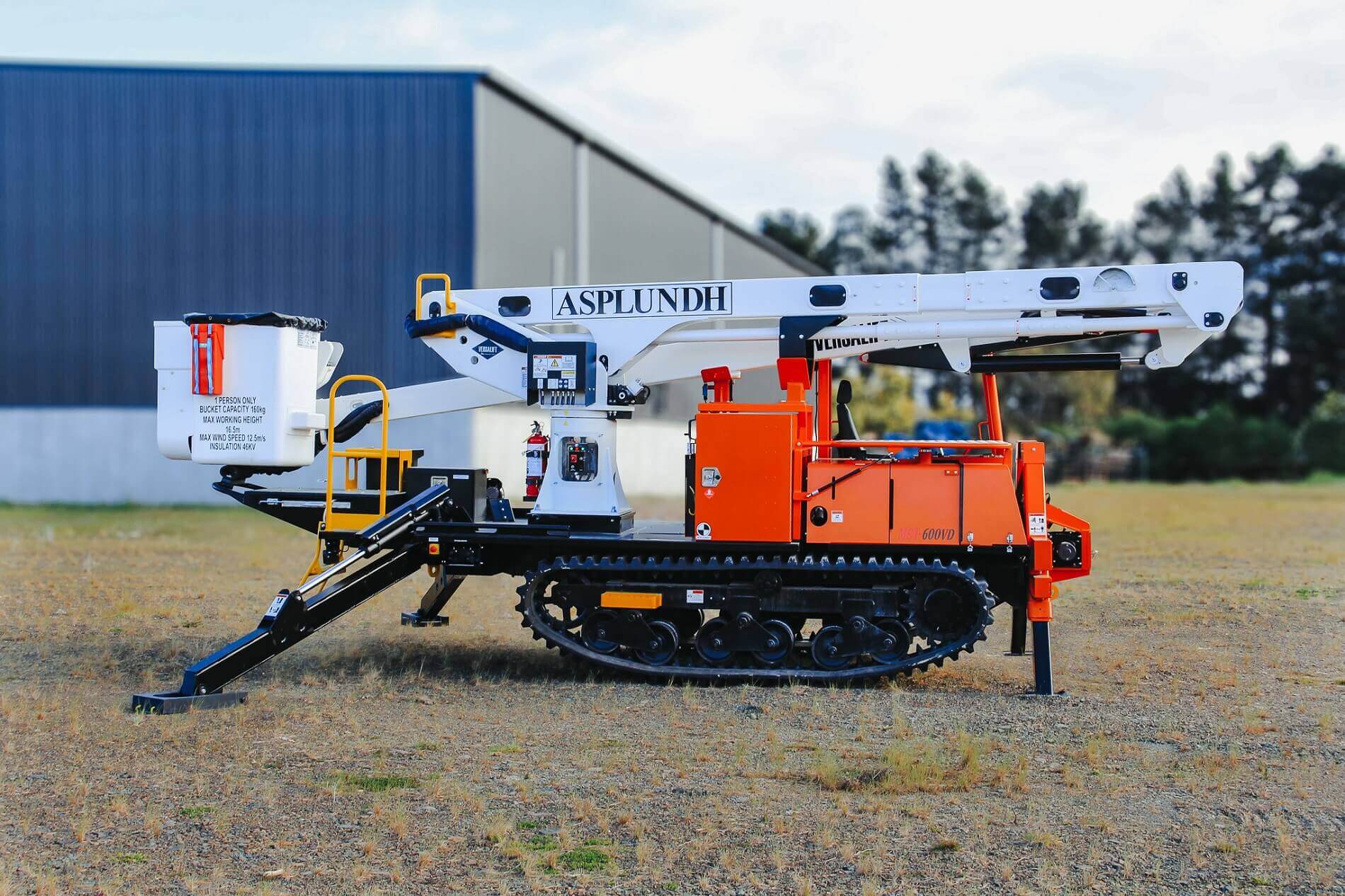

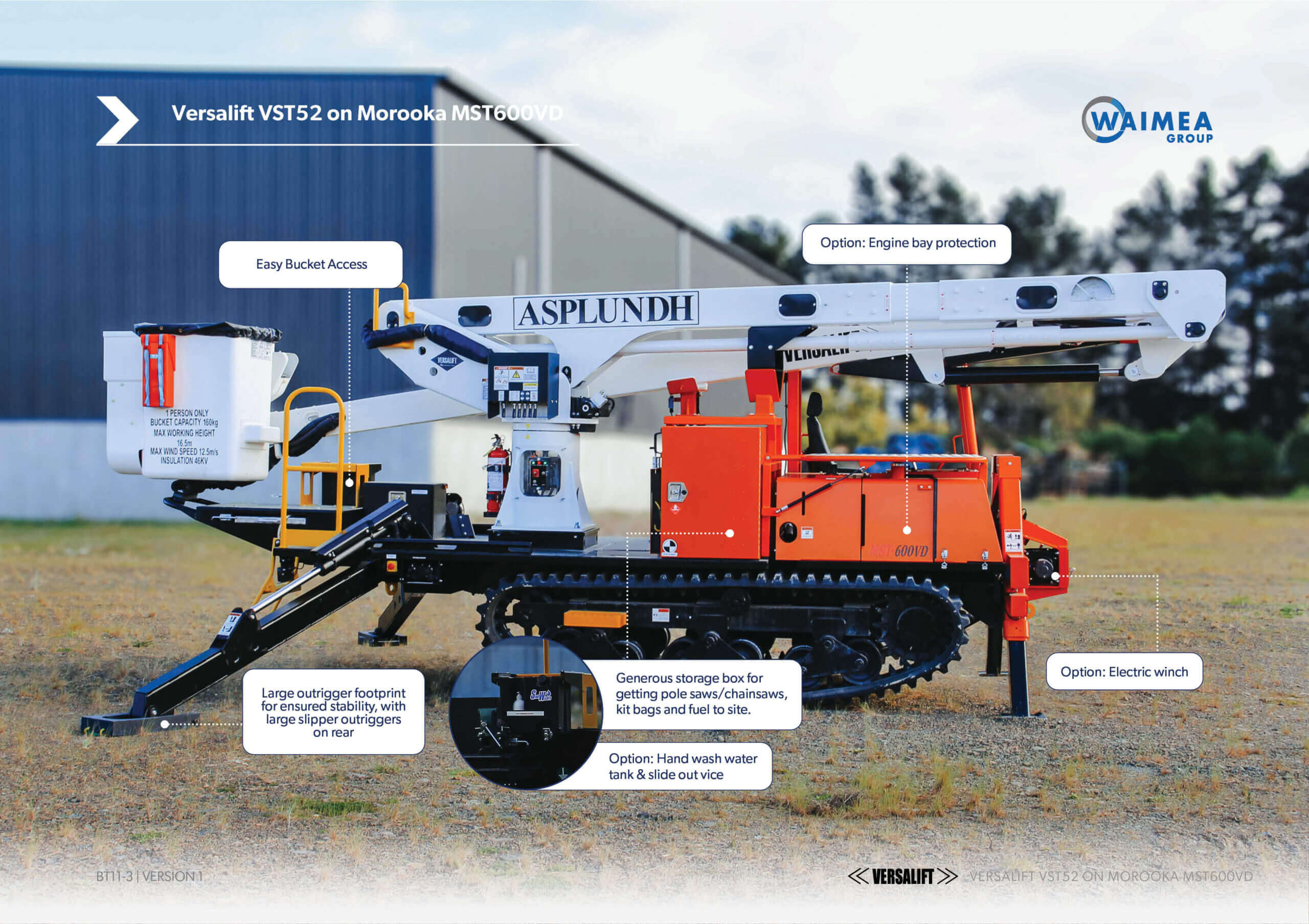

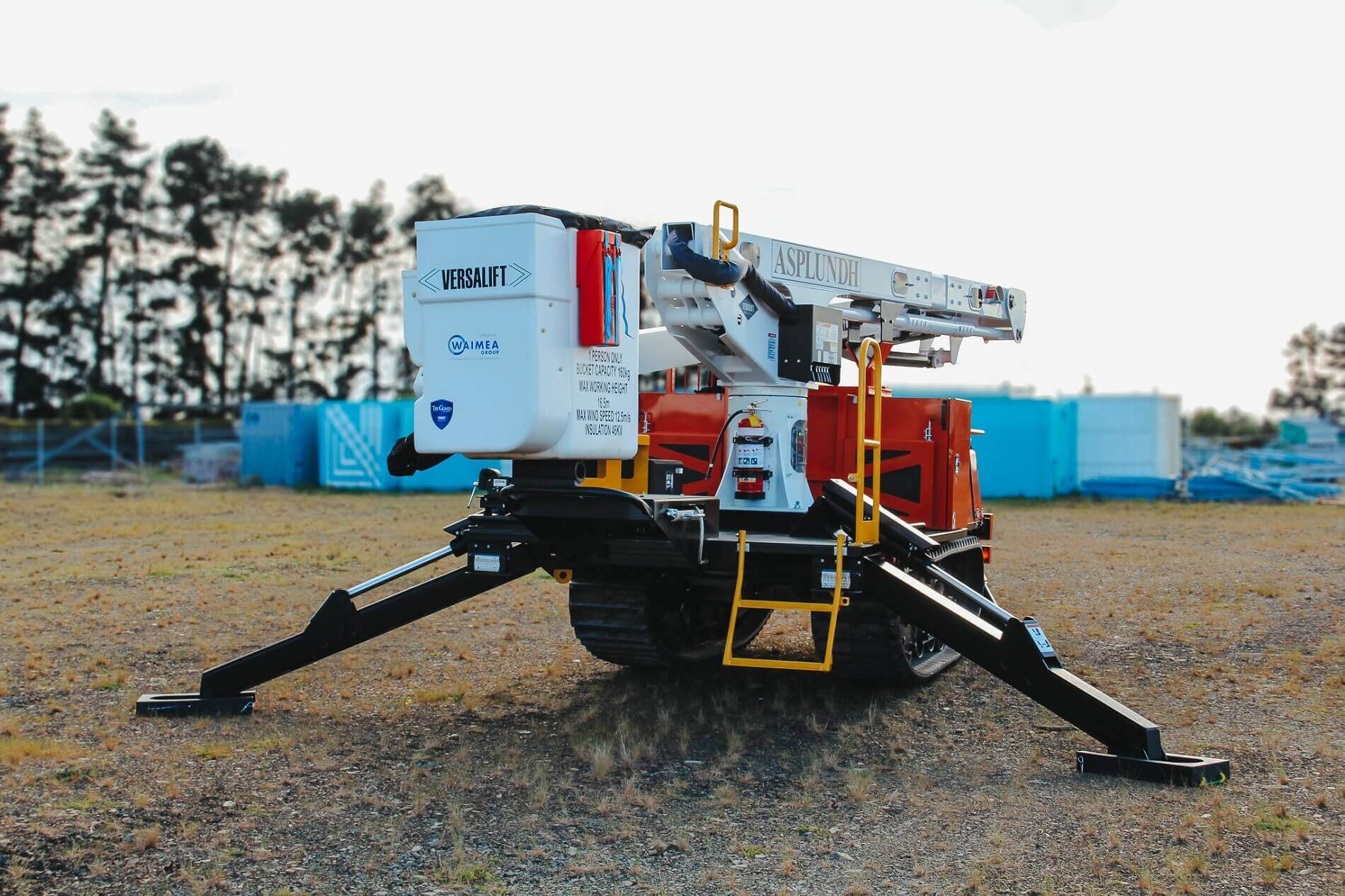

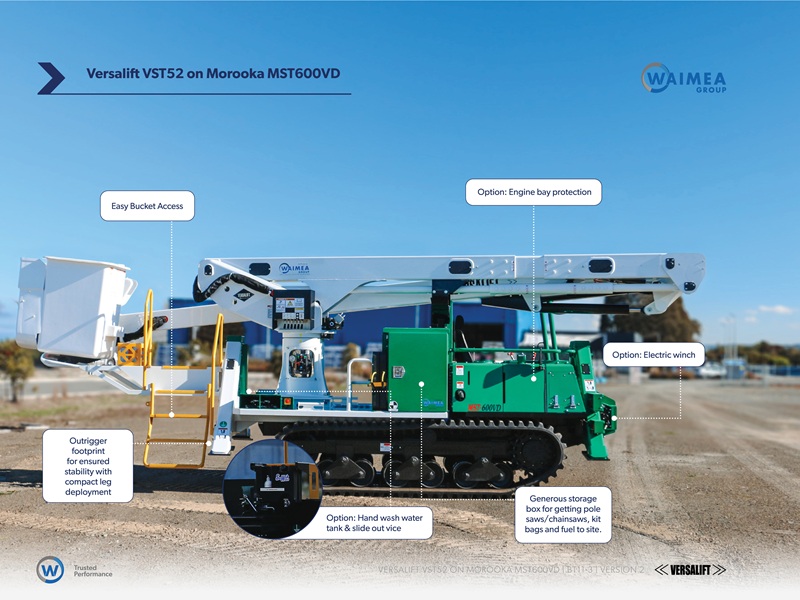

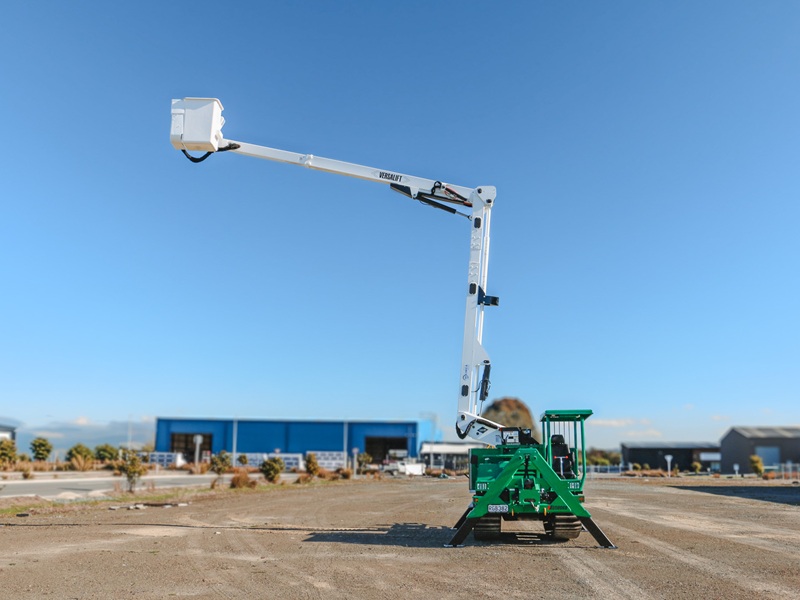

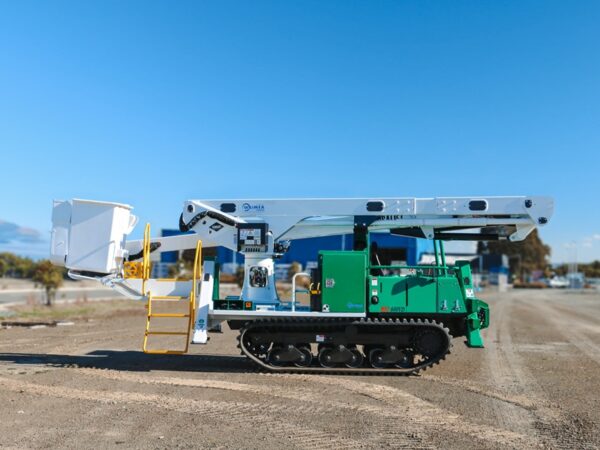

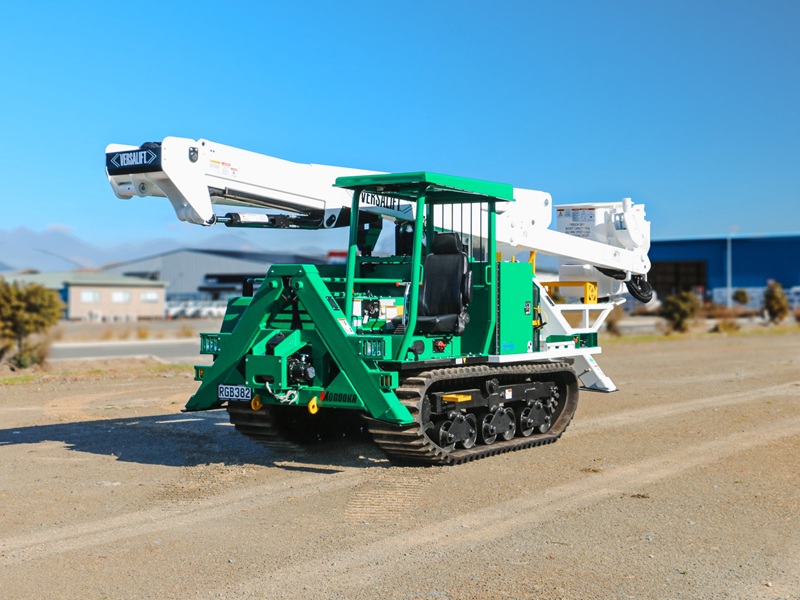

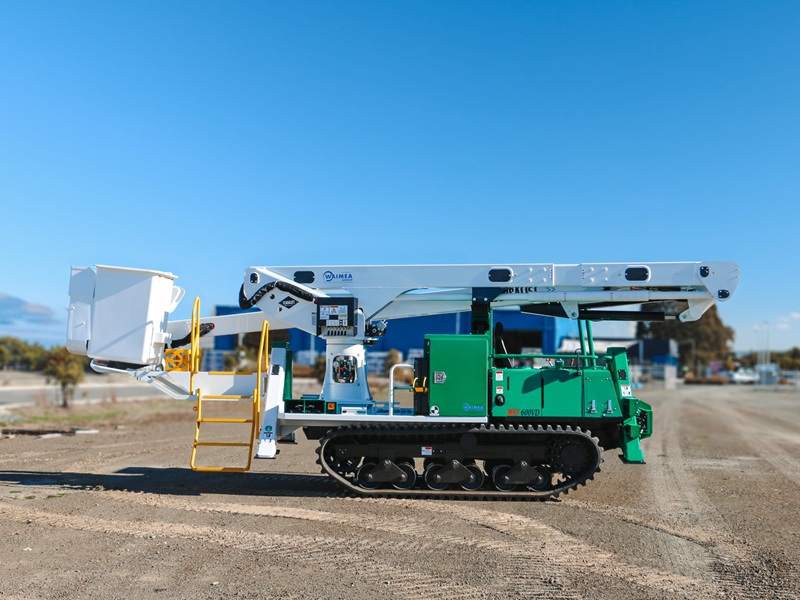

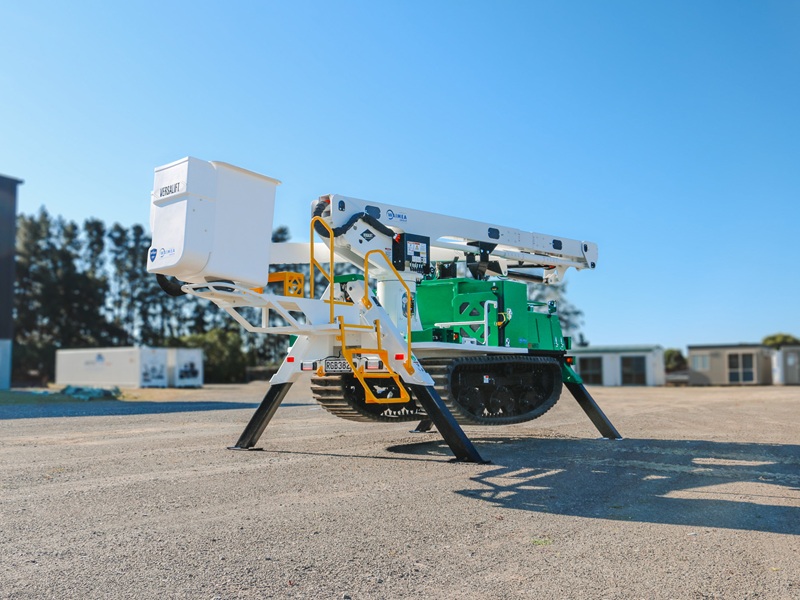

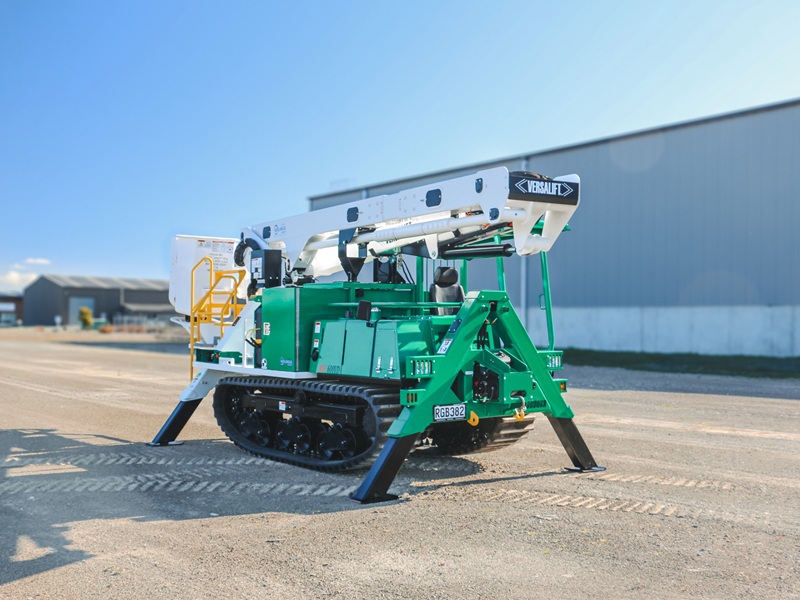

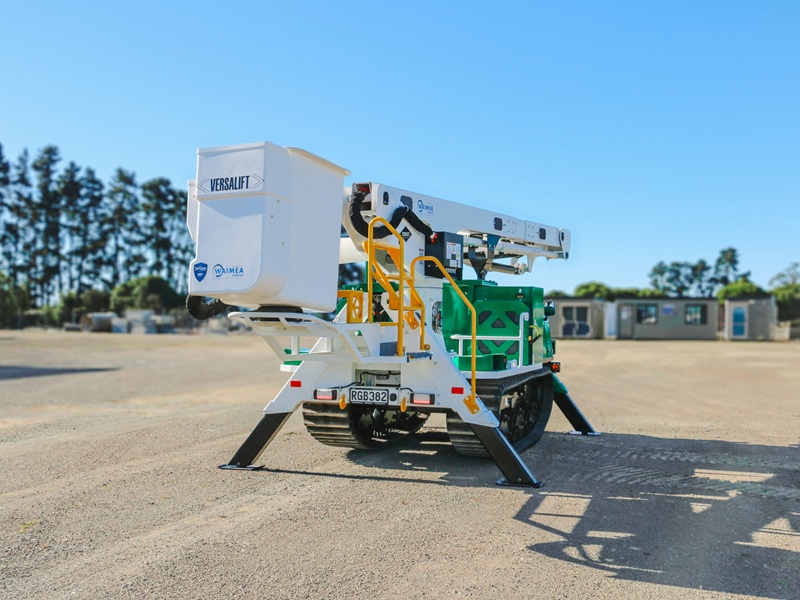

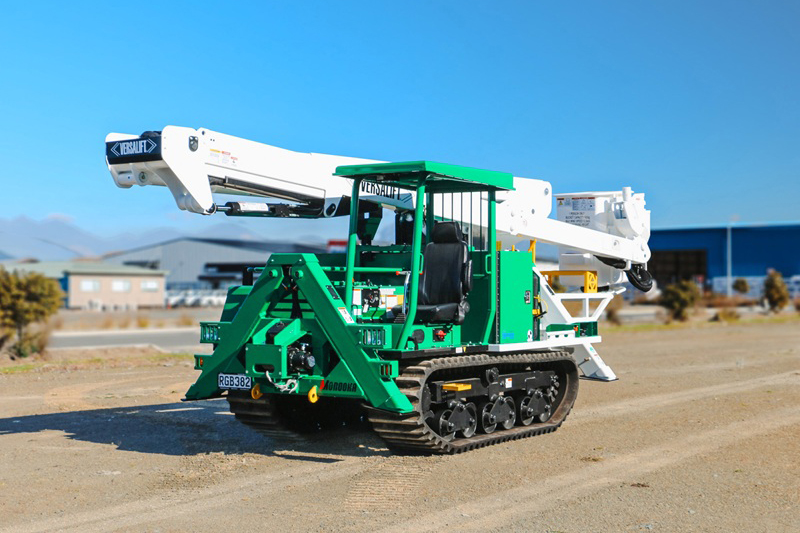

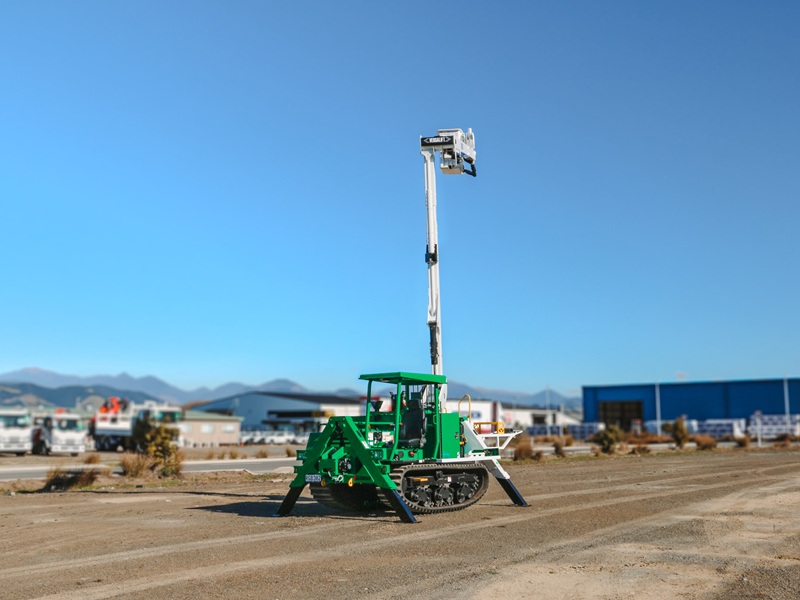

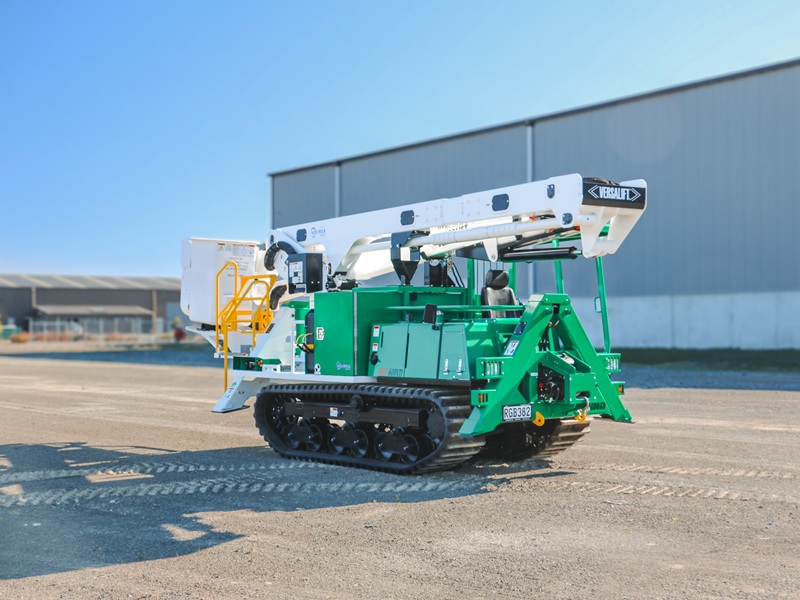

This build is designed to go where others can’t by providing access to tree work locations around live line in the most rural environments, especially where low ground pressure is needed across peaty bogs. The platform has full single stick pressure hydraulic controls to the bucket. In addition to this, it has a hydraulic tool port at the bucket for hydraulic saws for efficient cutting. Four outriggers for good correction and stability, two radial outriggers at rear, and two a-frame outriggers on the front. The build is designed to help get the gear to site with a large tool box and tie down points on the deck.The Versalift VST52 boom is great for clearing around lines with impressive up and over functionality.
Safety handrails assist when accessing bucket area. The unit is also easily transportable on a rigid truck.
| EWP Manufacturer | Versalift |
|---|---|
| EWP Model | VST52 |

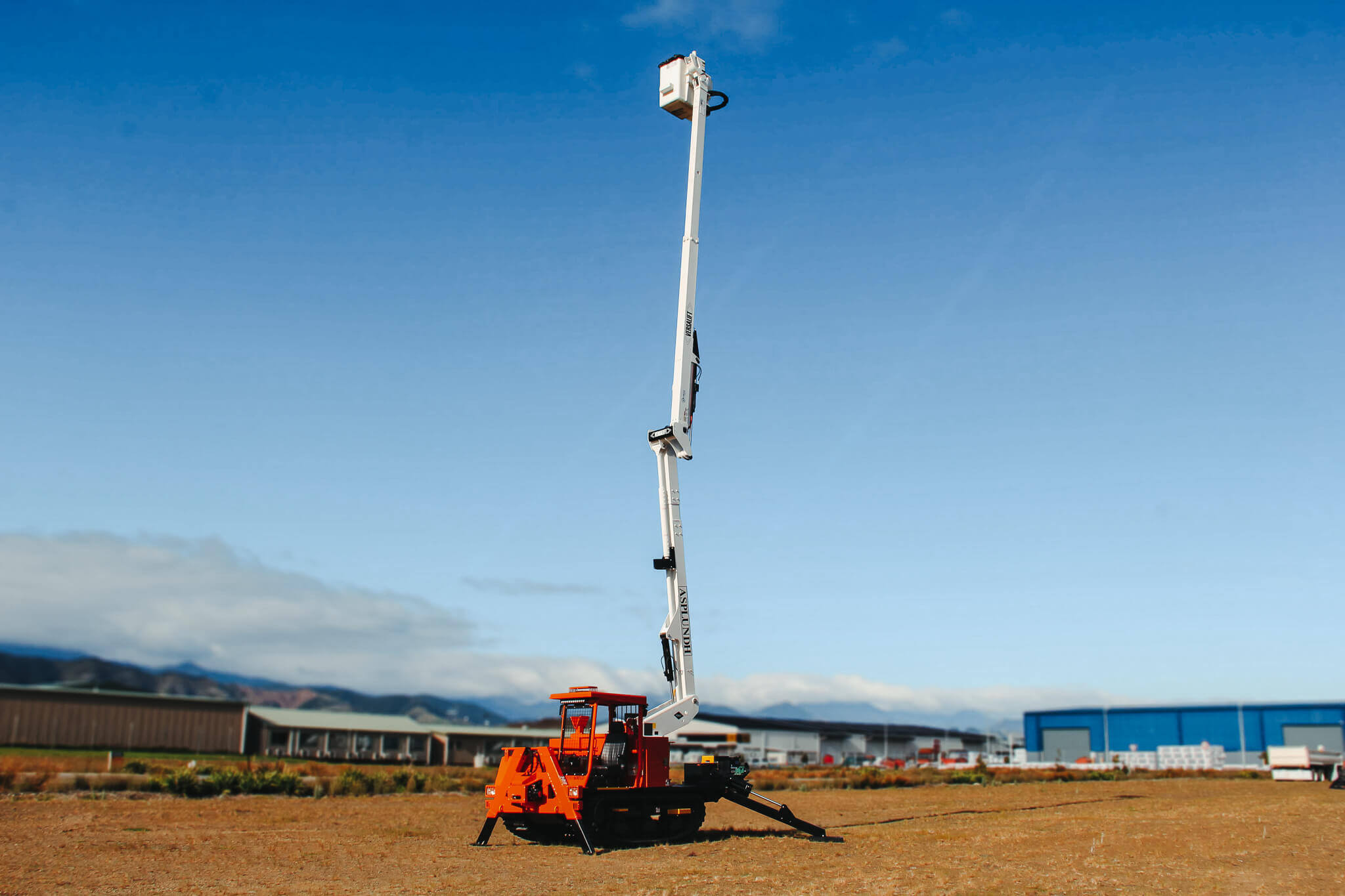

| Working Height | 16.50m |
| Height (ground to Bucket) | 14.5m |

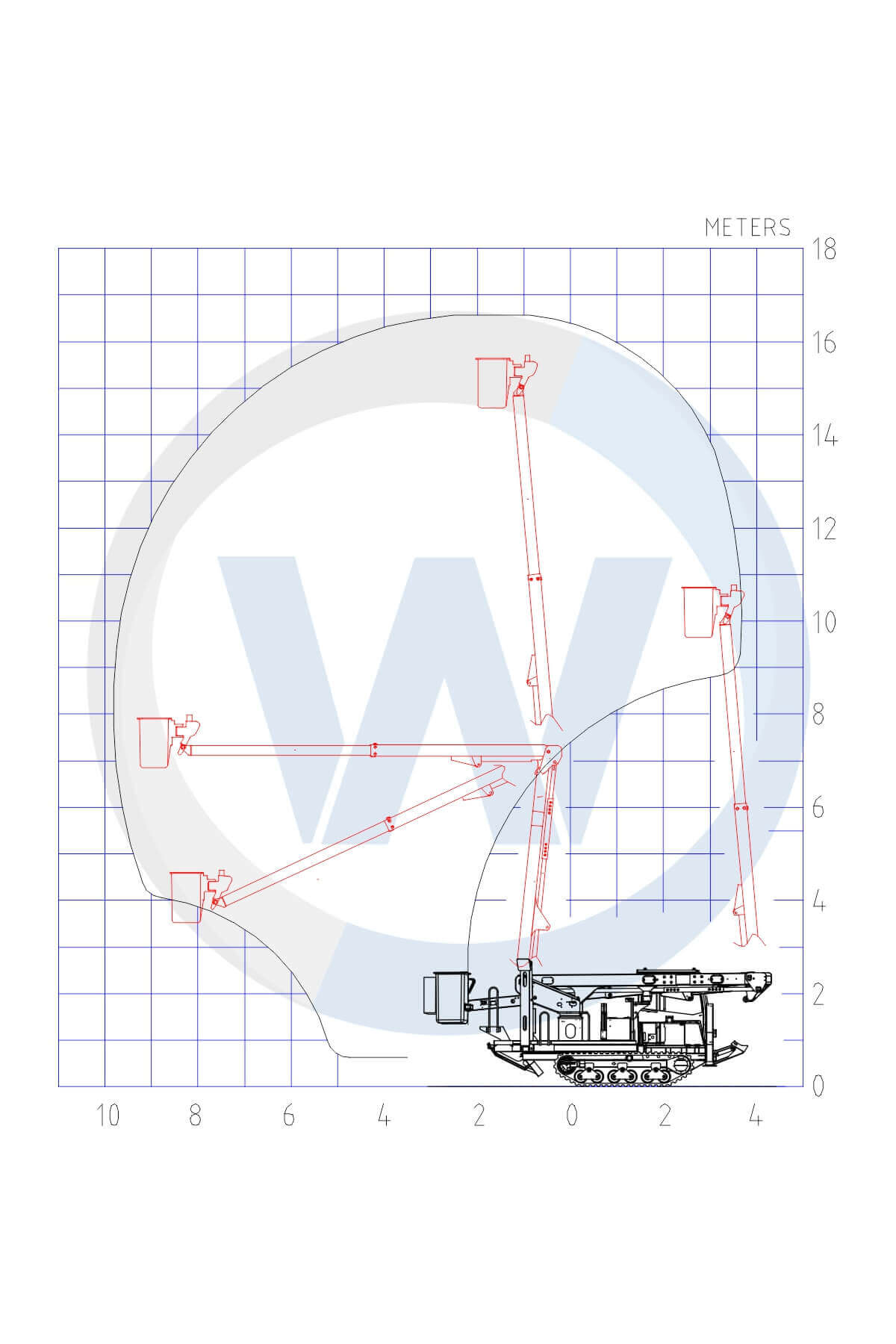

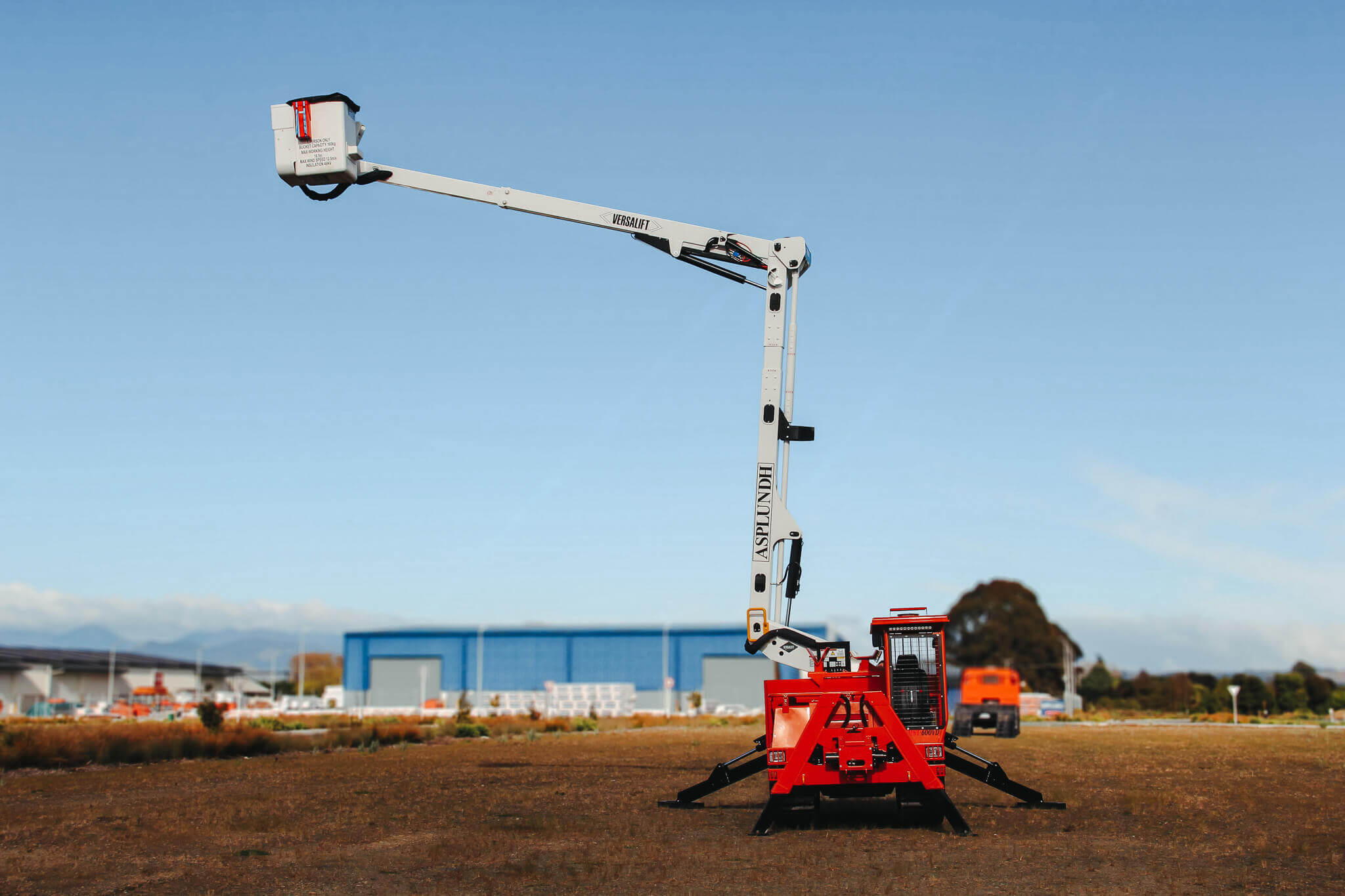

| Working Radius | 9.5m |
| Insulation Rating | Insulated Category C (46kV) |
| Boom Style | Articulating/Telescopic |
| Boom Slew Rotation | Continuous |
| Bucket Rotation | Yes |
| Bucket Capacity SWL | 162kg |
| Bucket Dimensions (mm) | 1070 (L) x 610 (W) x 1100 (H) |
| Control Type | Hydraulic |
| Hydraulic Tool Port @ Bucket | Yes |
| PTO Flow (LPM) @ 900RPM | 23 |
| PTO Pressure (BAR) | 210 |
| Vehicle Manufacturer | Morooka |
| Vehicle Model | MST 600 VDL |
| Specifications | Tracked Carrier |
