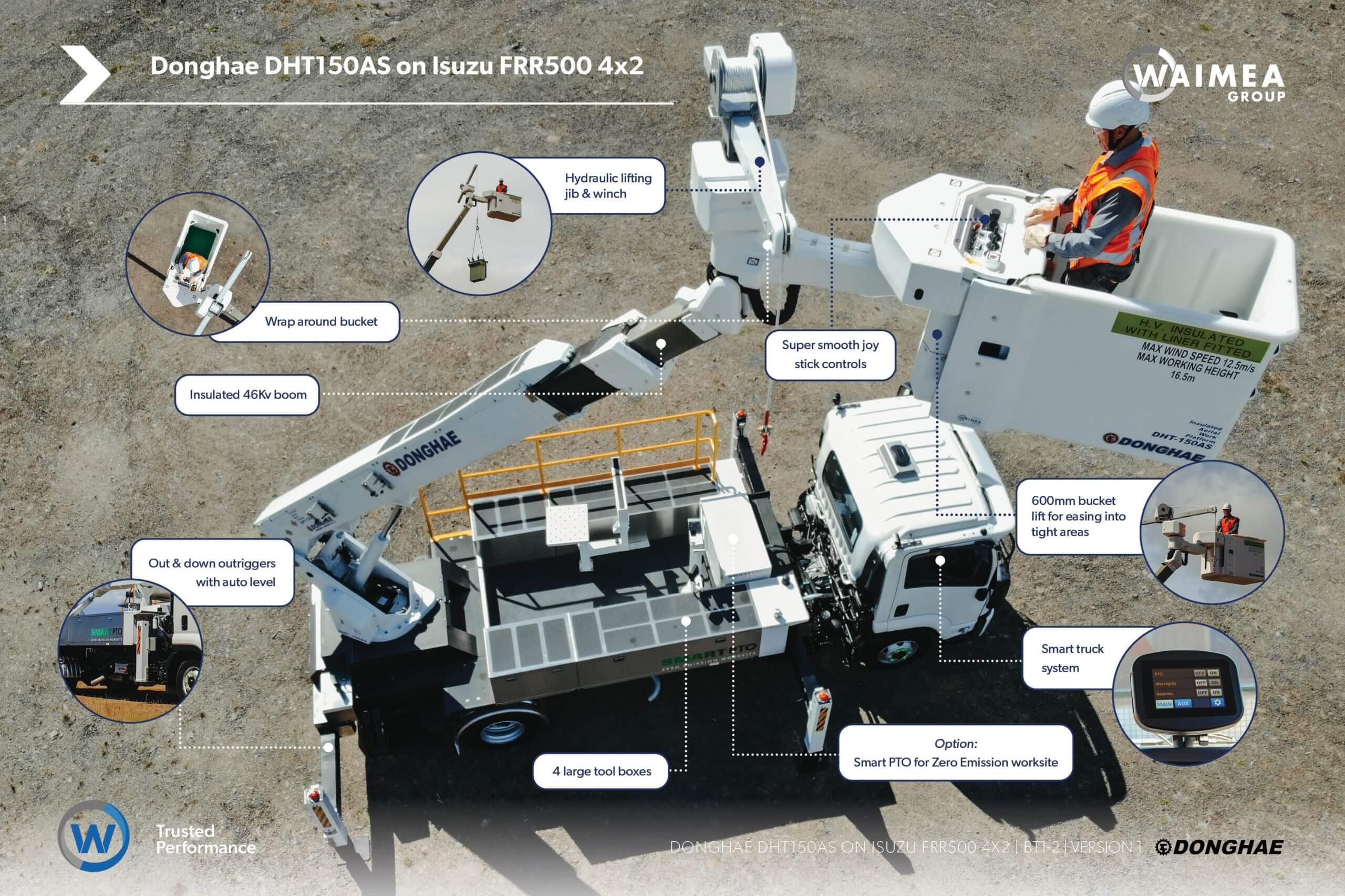

Combined with its straight telescopic boom and end-mount wrap-around bucket with 600mm bucket lift, this is the ultimate live line unit. Additional features include auto level outriggers, an auto-stow boom and an individually programmed collision protection system to stop boom interference. The automatic engine accelerating system improves fuel efficiency. Bucket can be tilted easily to allow cleaning and rescue. Mounted on an Isuzu FRR500, it offers plenty of storage for linesman equipment, yet compact enough to offer tight turning circle when navigating an urban area. Standard equipment includes:‘Wrap around’ boom functionality along with bucket lift for ease of access around tricky pole structures
Hydraulic winch and material handler for lifting up to 500kg
| EWP Manufacturer | Donghae (Linelift®) |
|---|---|
| EWP Model | DHT 150AS |

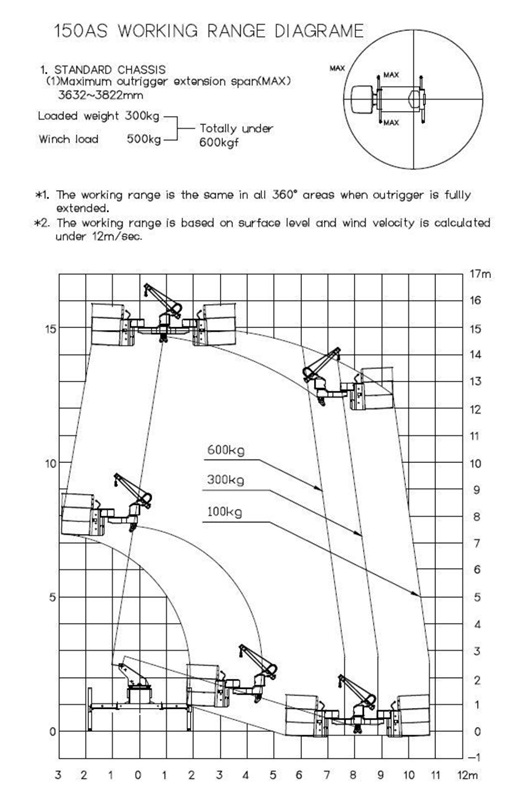

| Working Height | 16.50m |
| Height (ground to Bucket) | 14.5m |

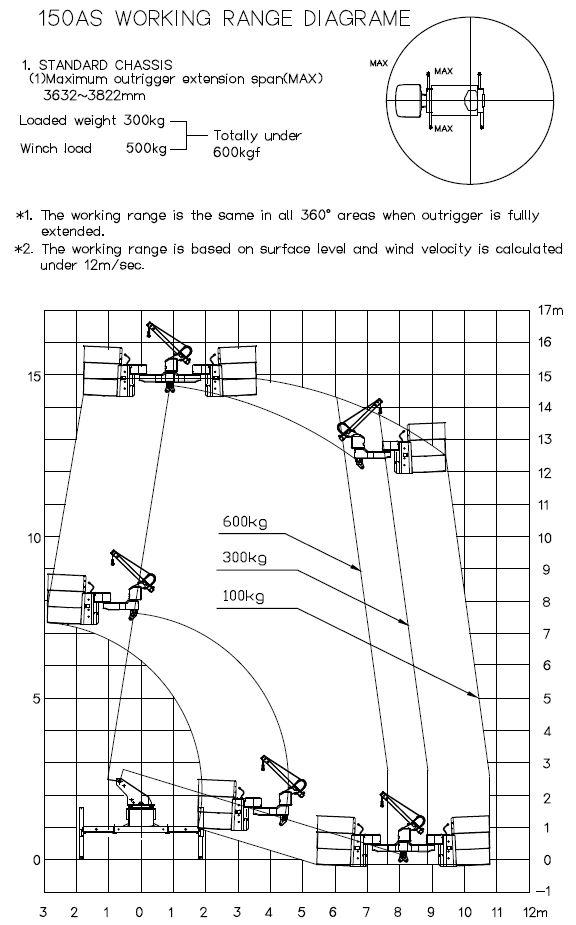

| Working Radius | 11m |
| Insulation Rating | Insulated Category C (46kV) |

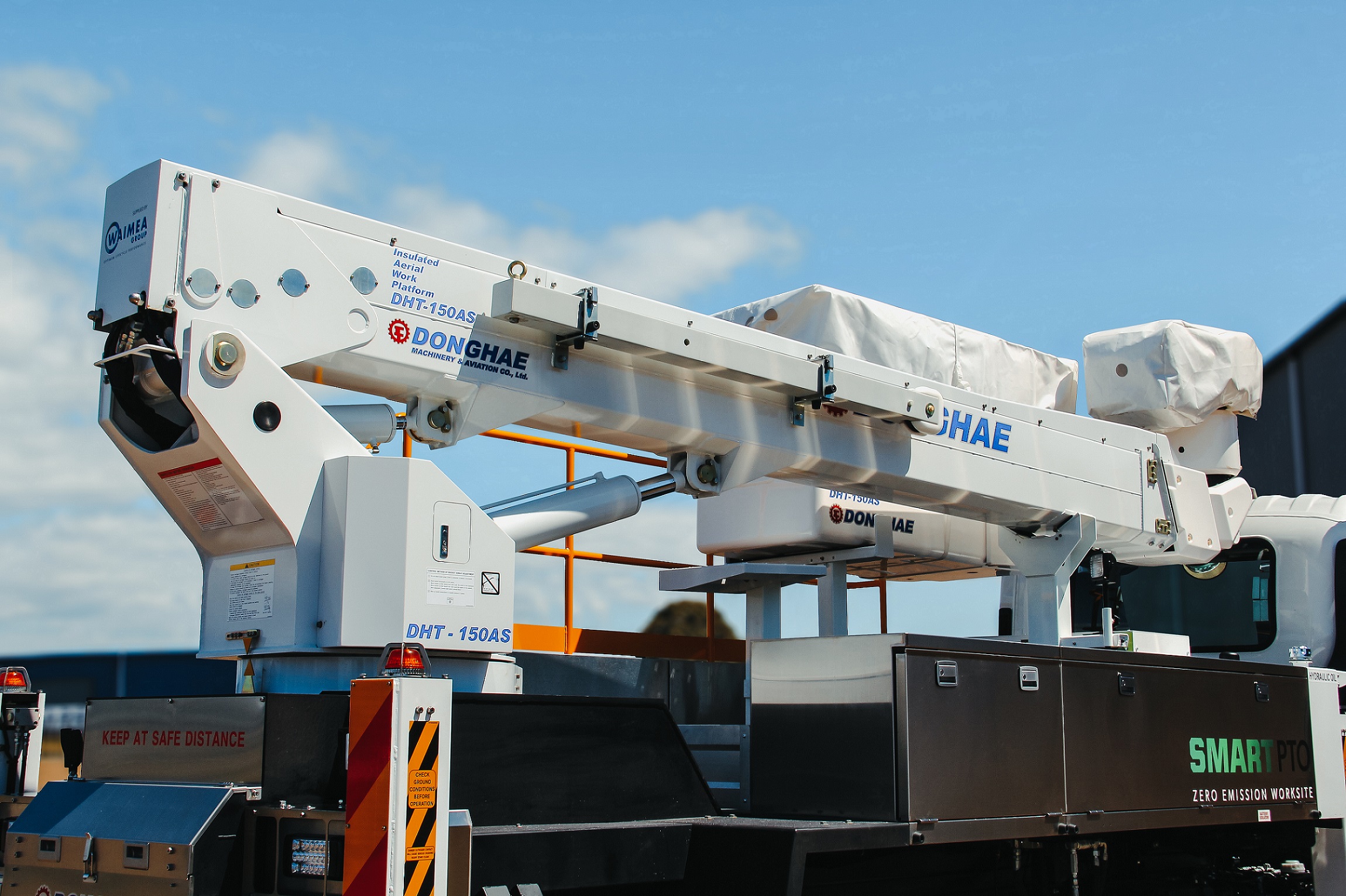

| Boom Style | Telescopic with wrap around arm |
| Boom Slew Rotation | Continuous |
| Bucket Rotation | 180° |
| Bucket Capacity SWL | 300kg |
| Bucket Dimensions (mm) | 1100 (L) x 700 (W) x 1000 (H) |

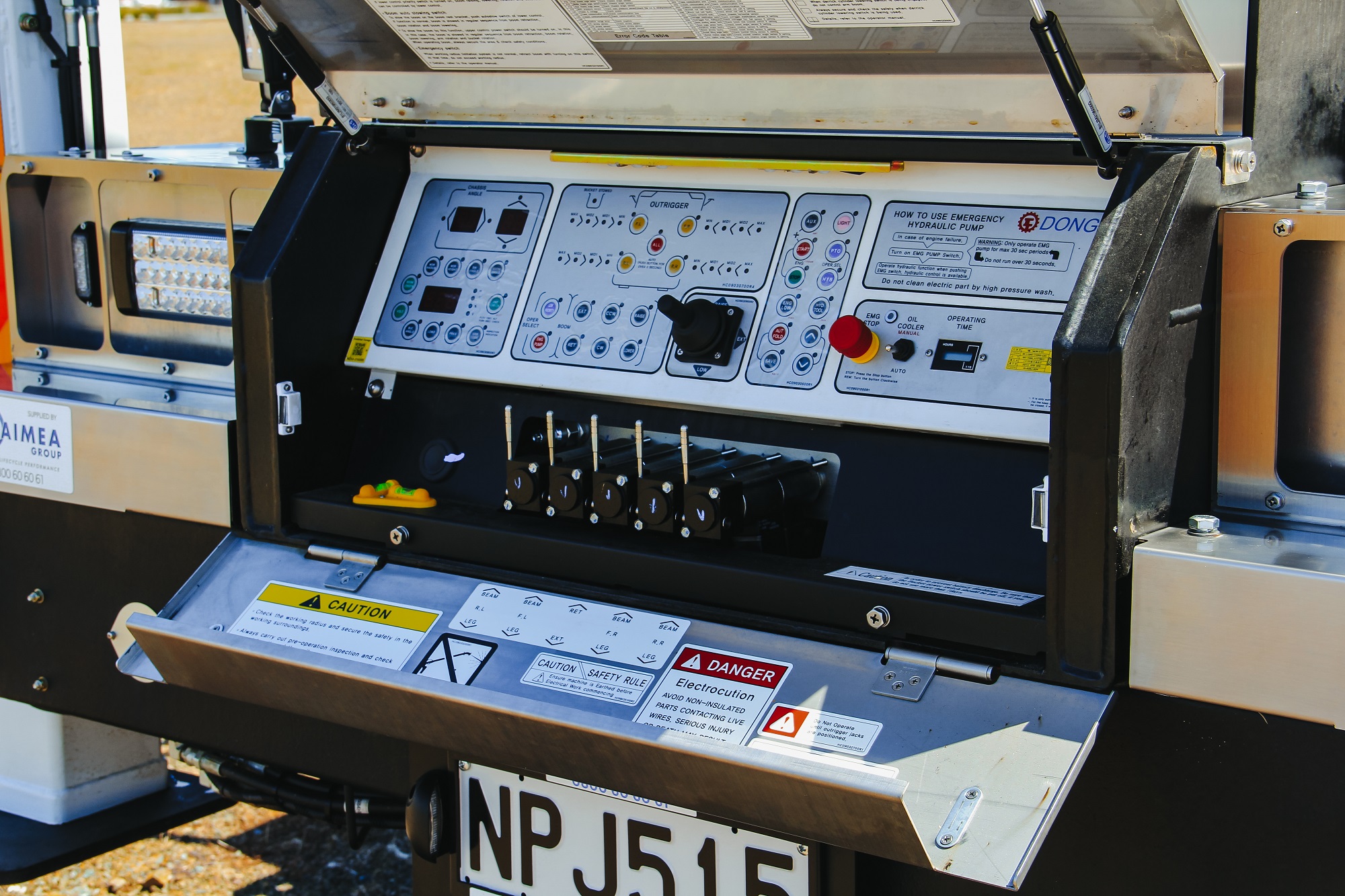

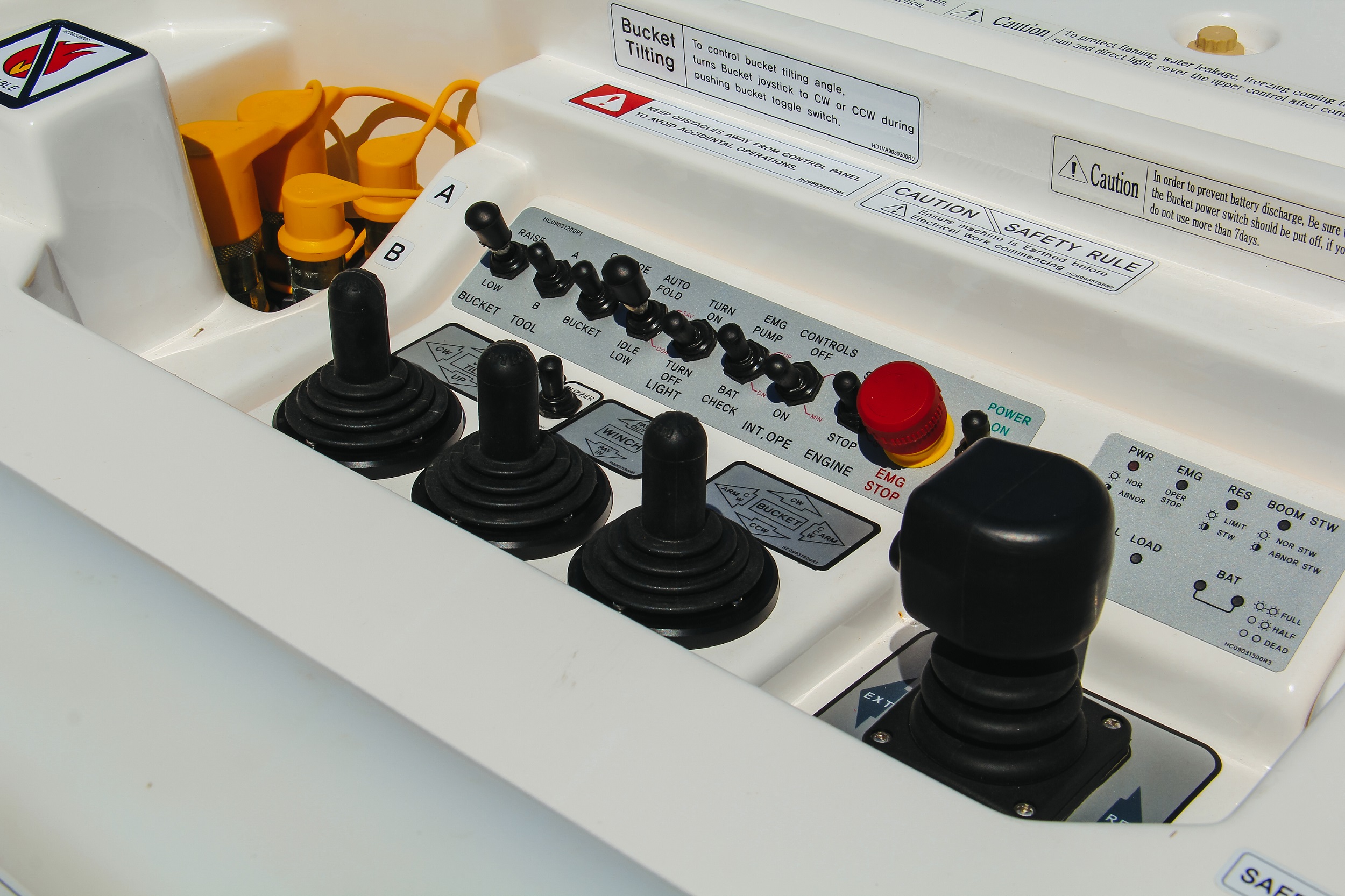

| Control Type | Electric over proportional hydraulic |
| Bucket Lift Slide | 600mm |
| Wrap Around Bucket | Yes |
| Hydraulic Tool Port @ Bucket | Yes |
| Auto Stow | Yes |
| Auto Outrigger Levelling | Yes |
| Jib (material handler) | Hydraulic with winch |
| Lifting Winch | Max 500kg |
| PTO Flow (LPM) @ 900RPM | 35-40 |
| PTO Pressure (BAR) | 170 |
| Vehicle Manufacturer | Isuzu |
| Vehicle Model | FRR500 |
| Specifications | 4x2 |
| HP | 205 |
| Transmission | AMT Auto |
| Difflocker/Traction Control | Standard |
