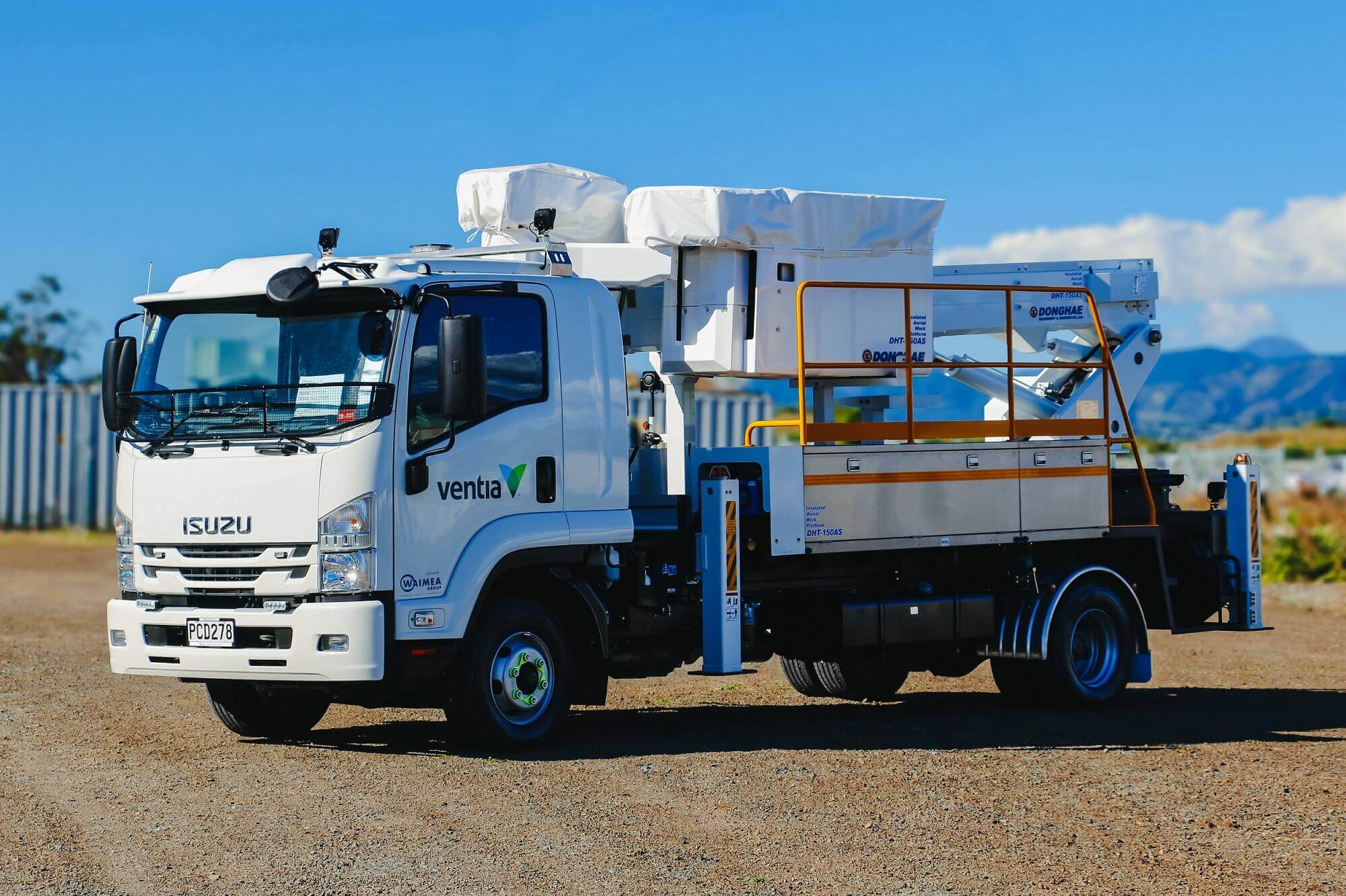

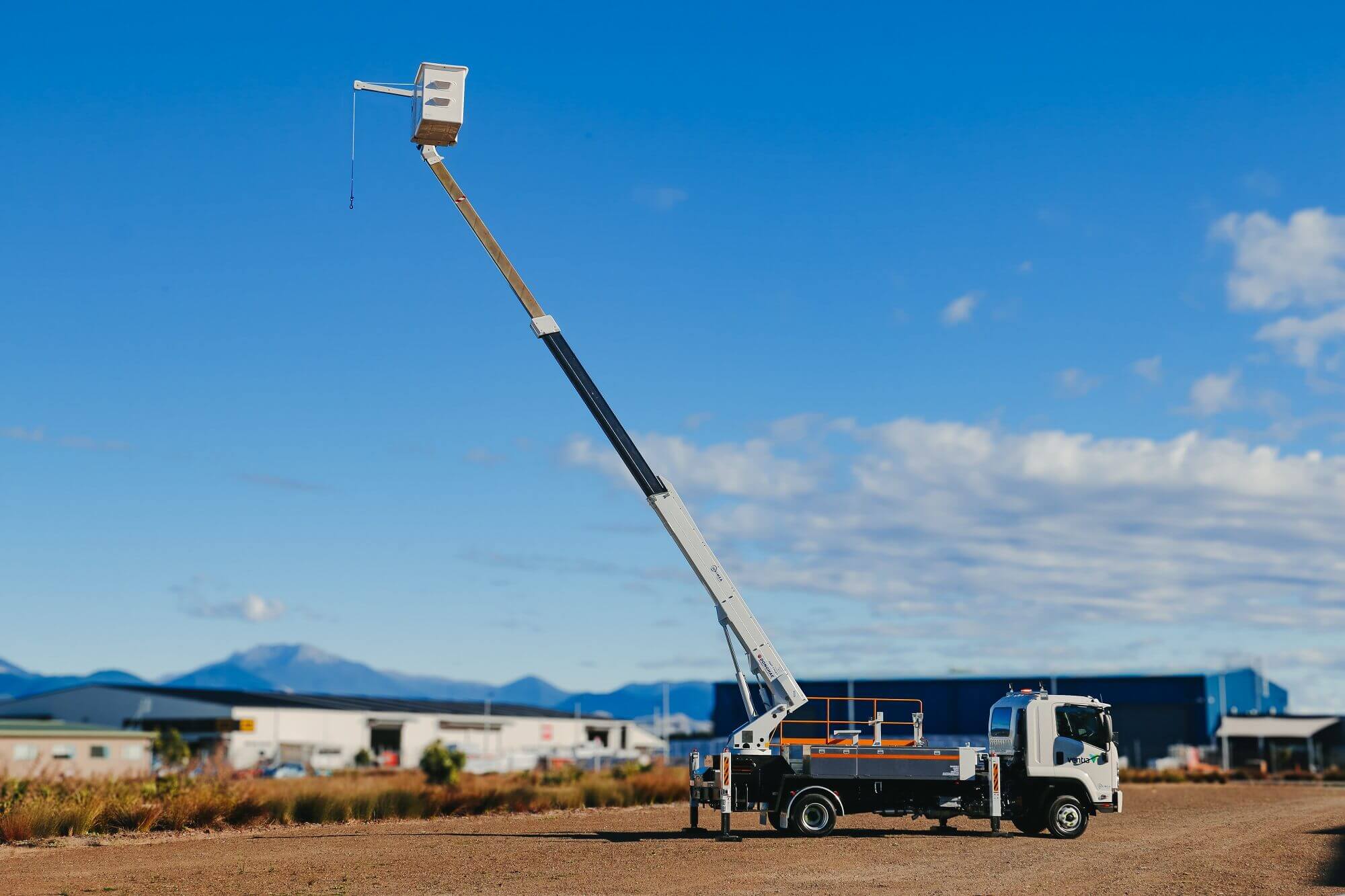

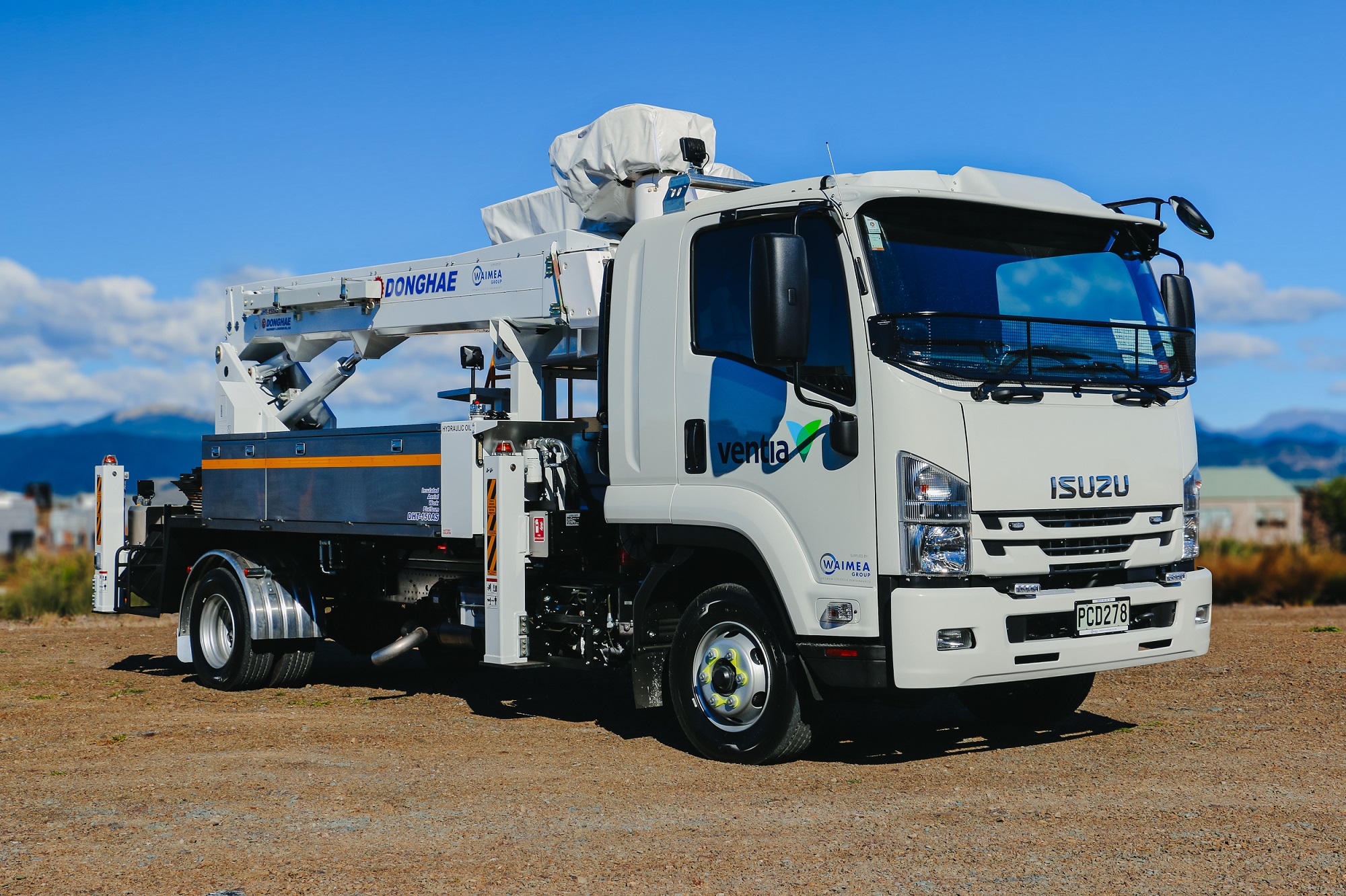

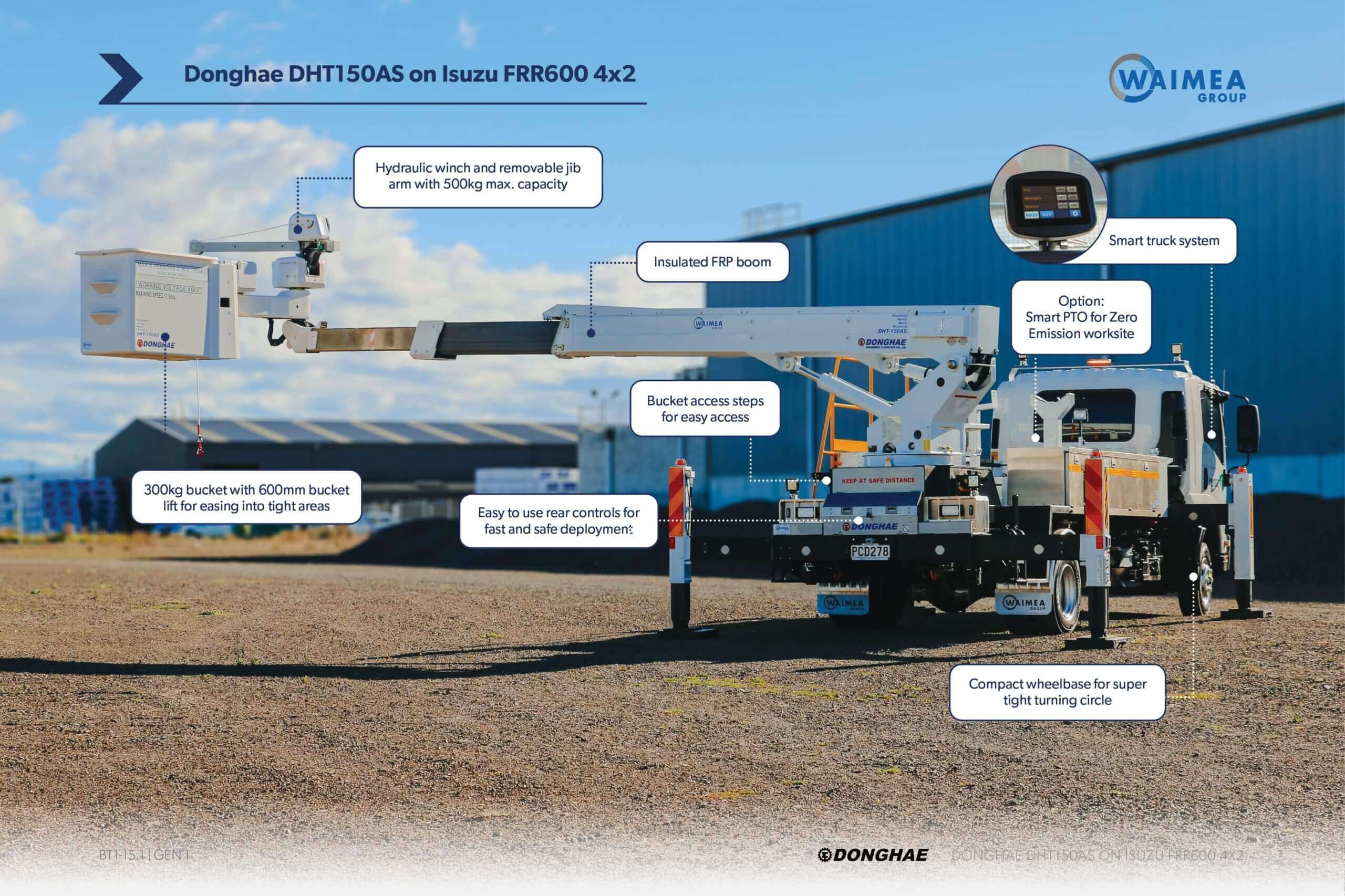

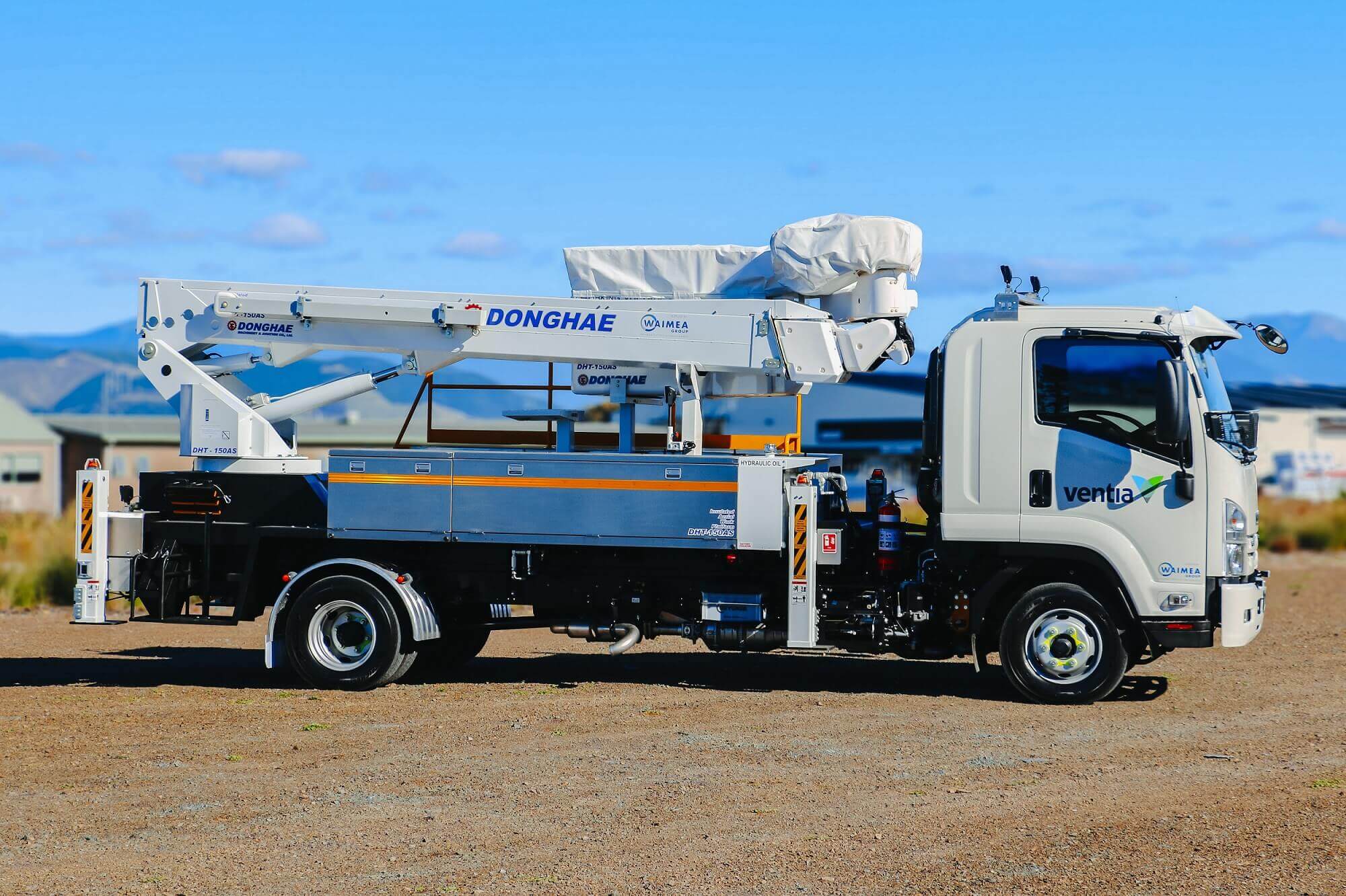

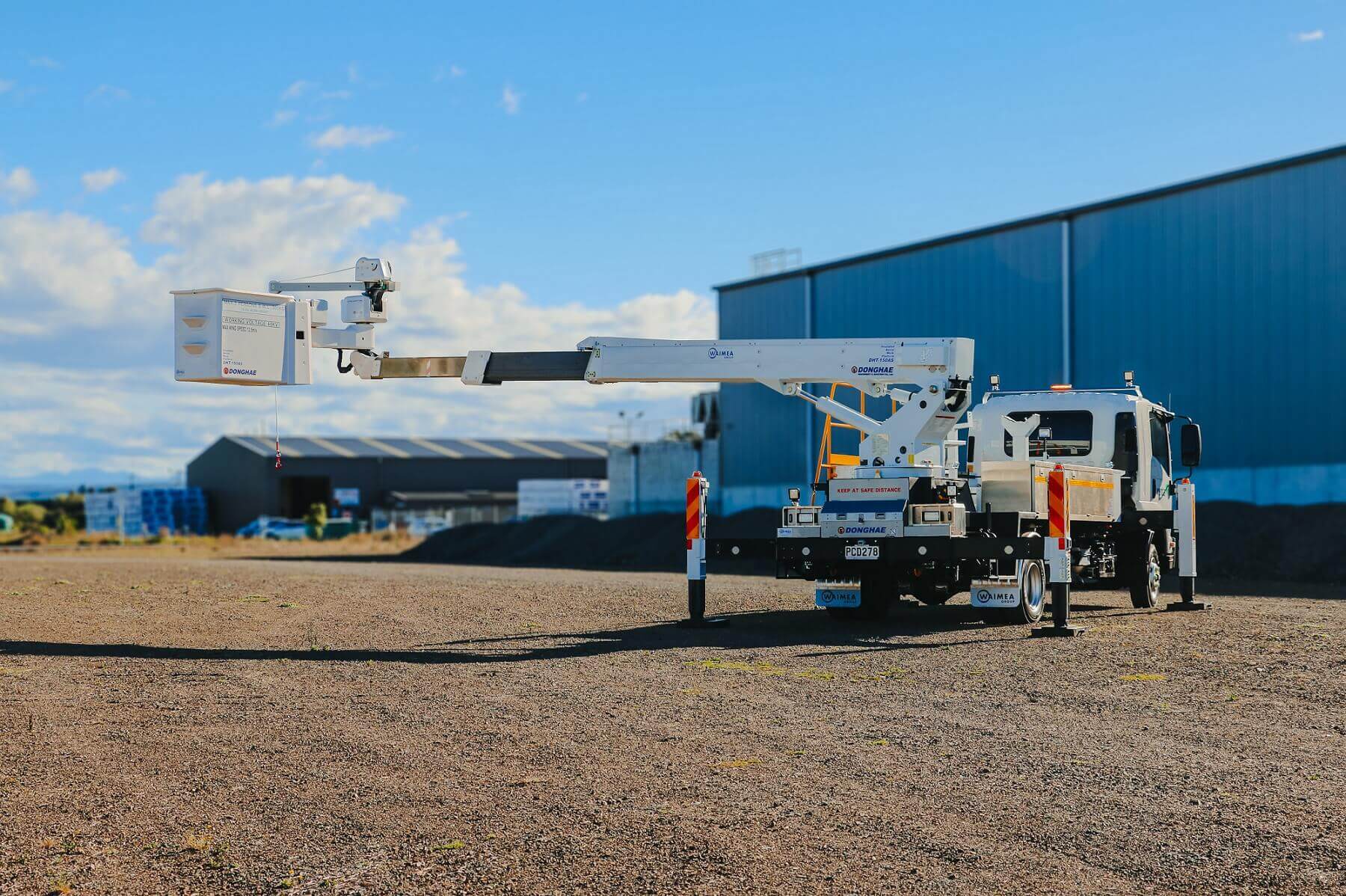

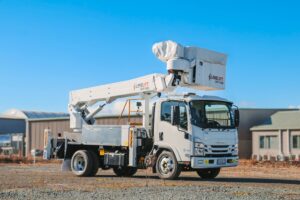

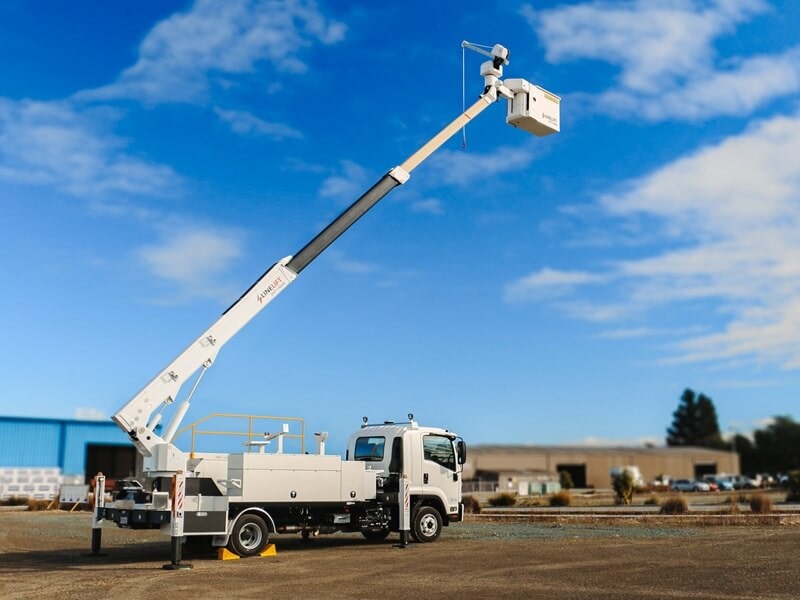

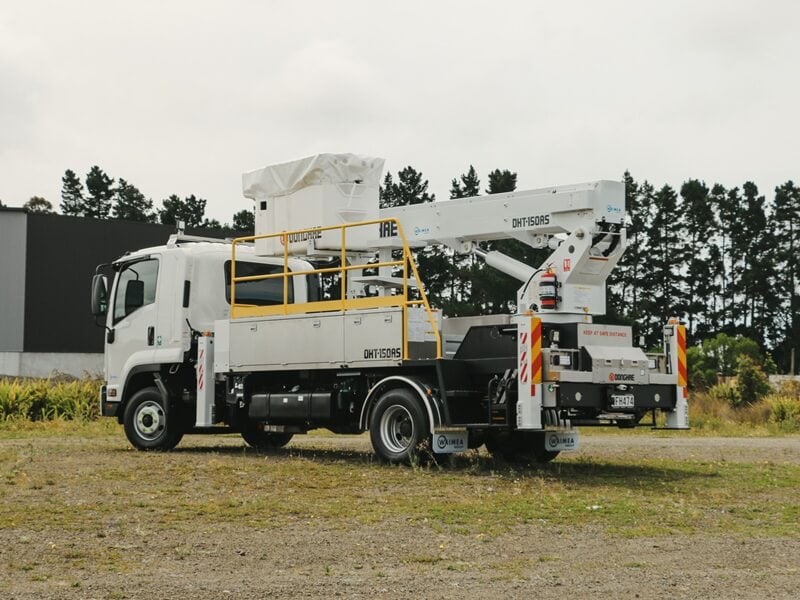

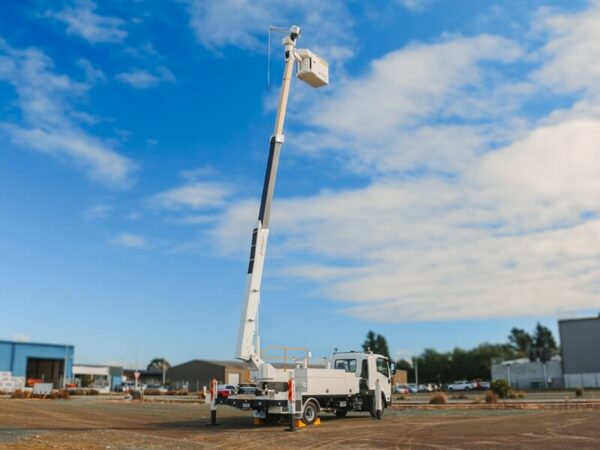

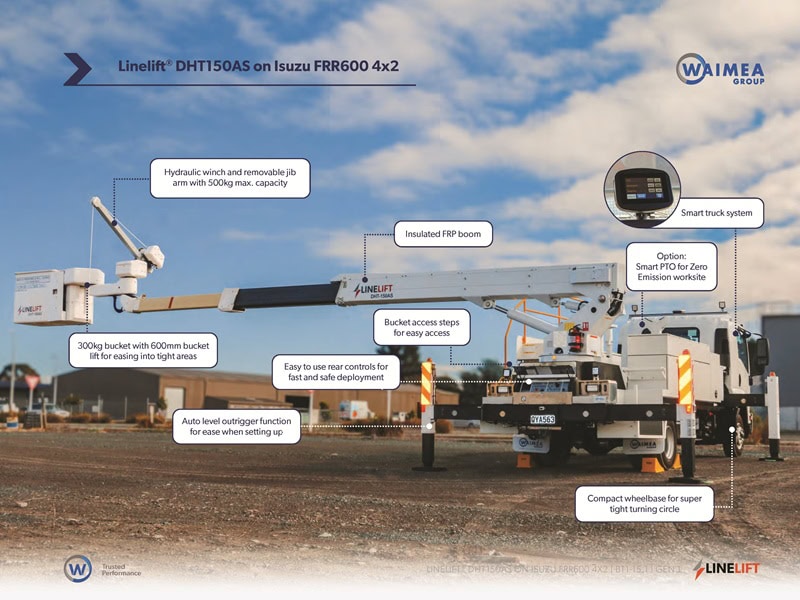

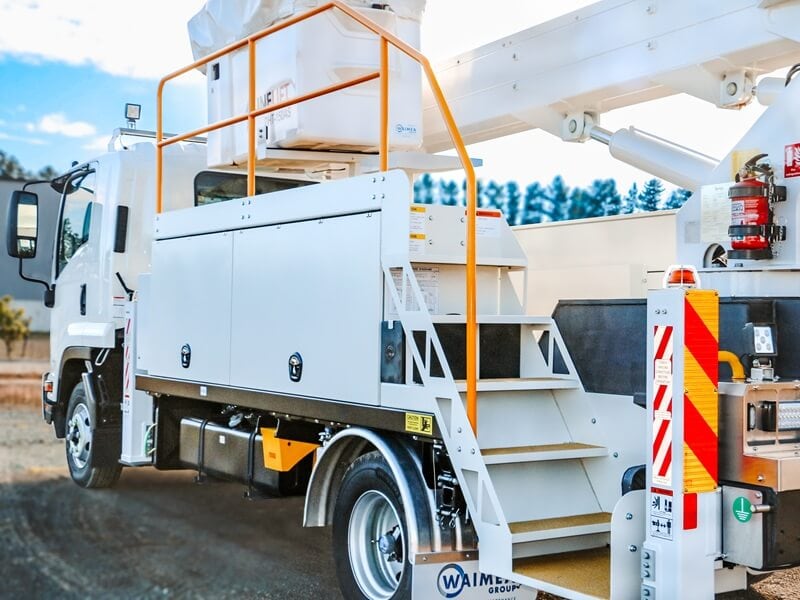

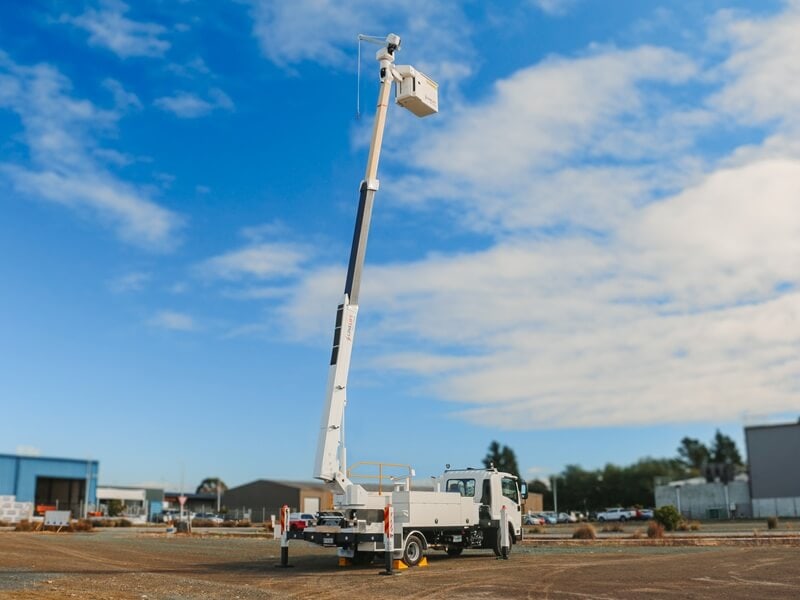

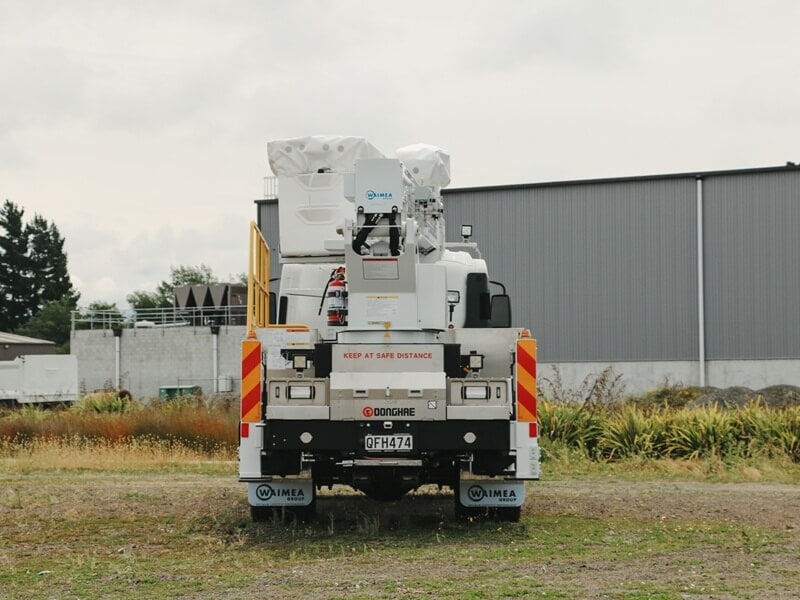

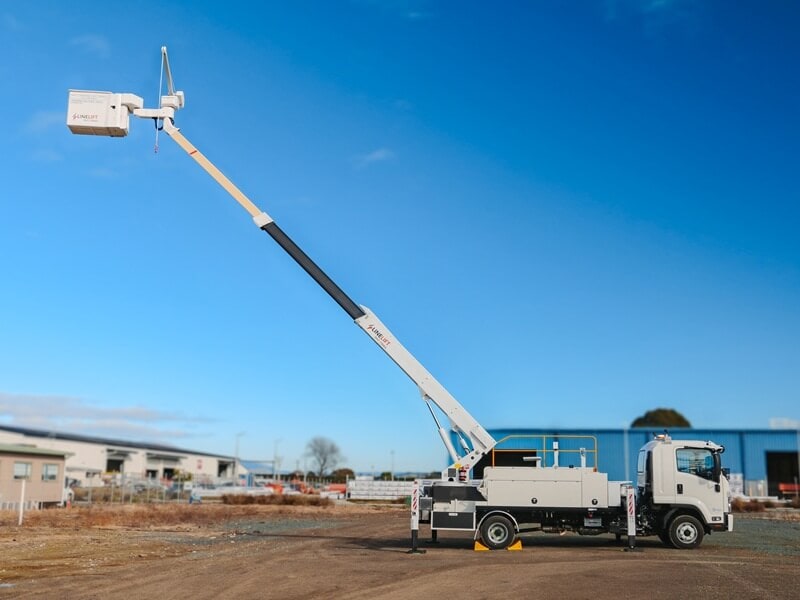

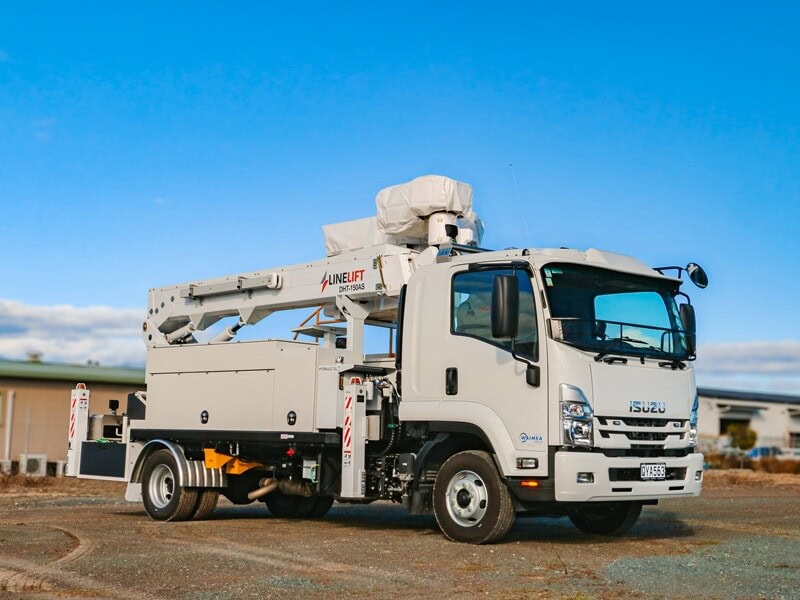

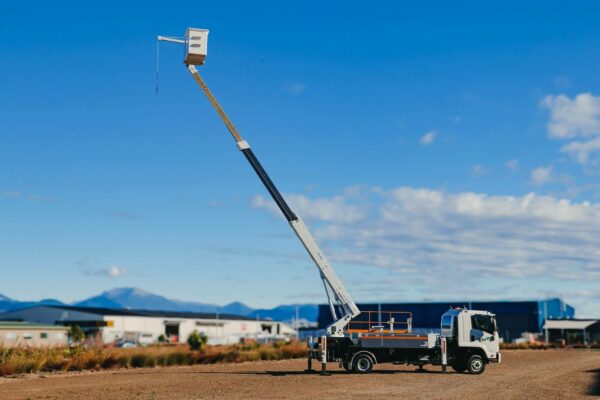

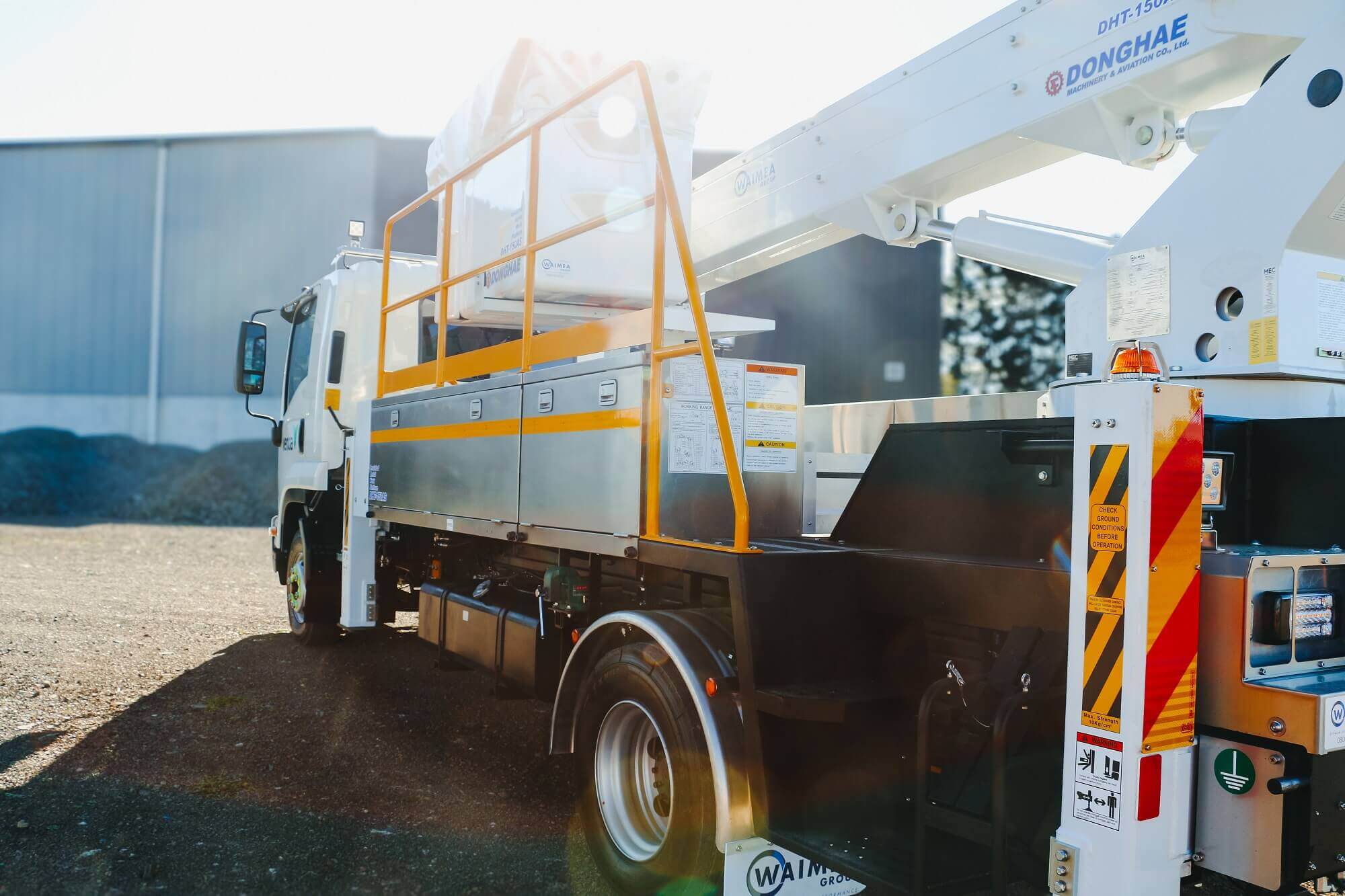

Our very popular live line unit, the Linelift® DHT150AS offers 16.5m of work height and 300kg bucket capacity on a fully insulated 46kV, category-C boom. Combined with its straight telescopic boom and end-mount wrap around bucket with 600mm bucket lift, this is the ultimate live line unit. Mounted on a 4x2 FRR600, it offers a well-appointed boom, truck and body fitout offering good storage for linesman equipment, ideal unit for lines work in urban and light rural* environments.“Wrap around“ boom functionality along with bucket lift for ease of access around tricky pole structures
*Recommended fitted with our traction kit of traction tyres and no spin differential
| EWP Manufacturer | Donghae (Linelift®) |
|---|---|
| EWP Model | DHT 150AS |
| Working Height | 16.50m |
| Height | 14.50m |
| Height (ground to Bucket) | 14.5m |

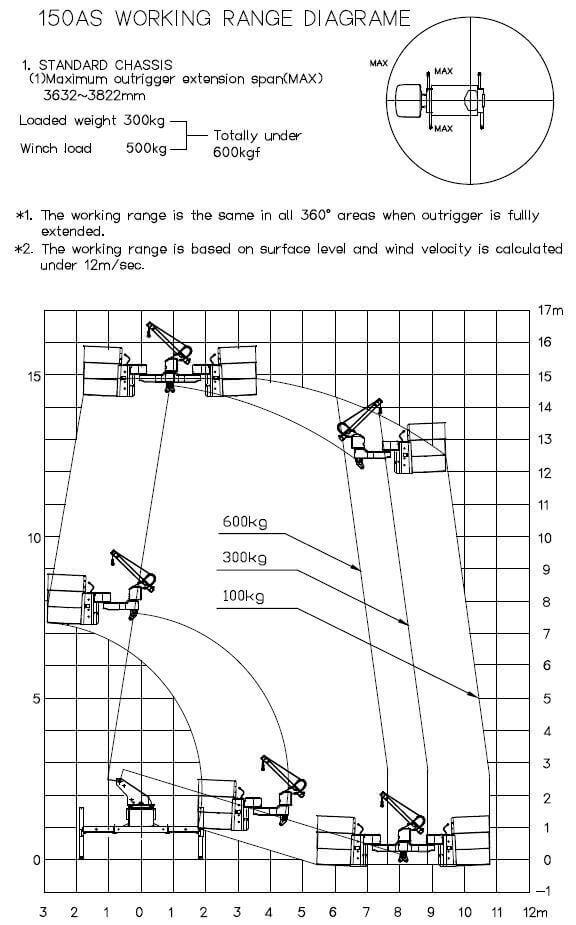

| Working Radius | 11m |
| Insulation Rating | Insulated Category C (46kV) |
| Boom Slew Rotation | Continuous |
| Bucket Rotation | 180° |
| Bucket Rotation Powered | Hydraulic |
| Bucket Capacity SWL | 300kg |
| Bucket Dimensions (mm) | 1100 (L) x 700 (W) x 1000 (H) |

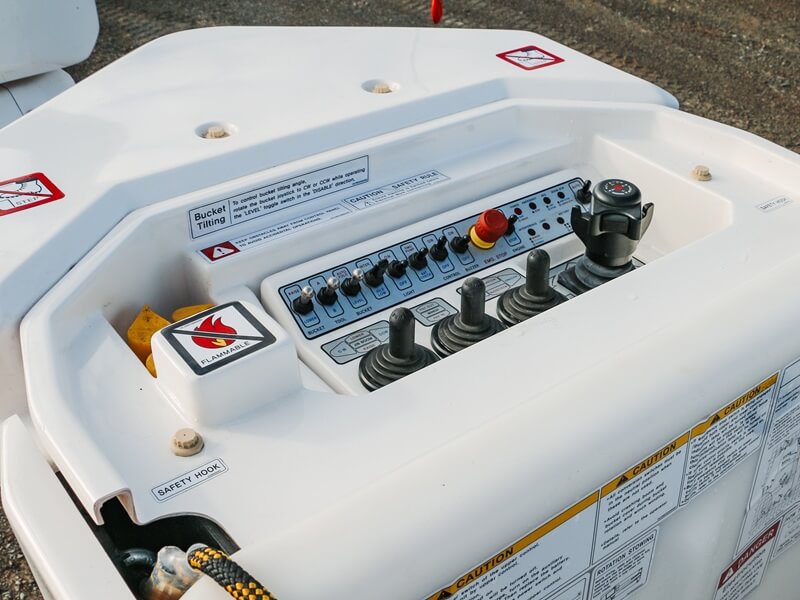

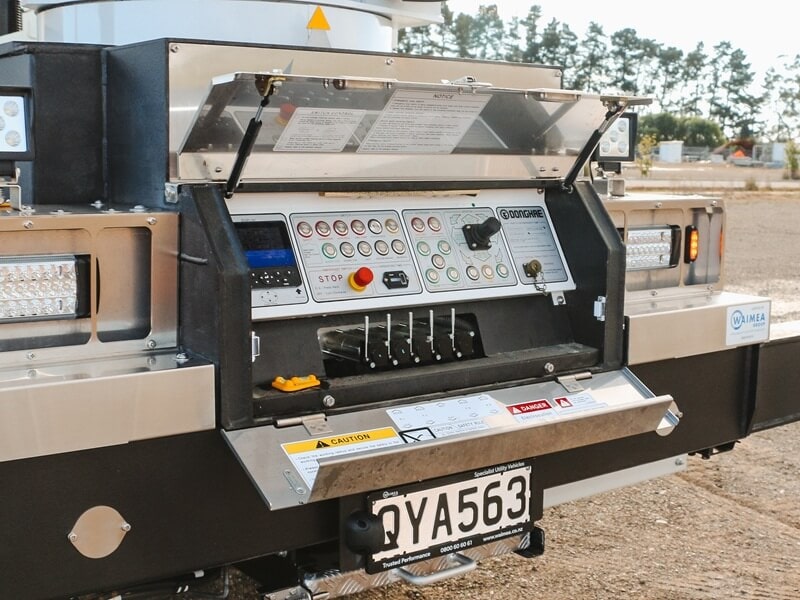

| Control Type | Electric over proportional hydraulic |
| Bucket Lift Slide | 600mm |

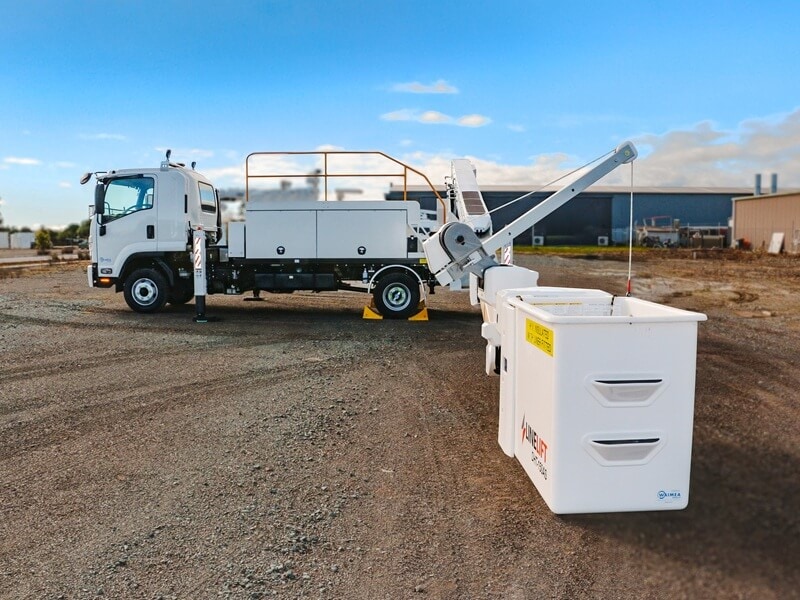

| Wrap Around Bucket | Yes |
| Hydraulic Tool Port @ Bucket | Yes |
| Auto Stow | Yes |
| Auto Outrigger Levelling | Yes |
| Jib (material handler) | Hydraulic with winch |
| Lifting Winch | Max 500kg |
| PTO Flow (LPM) @ 900RPM | 35-40 |
| PTO Pressure (BAR) | 170 |
| Vehicle Manufacturer | Isuzu |
| Vehicle Model | FRR600 |
| Specifications | 4x2 |
| HP | 256 |
| Transmission | Allison Auto |
| Difflocker/Traction Control | Standard |
