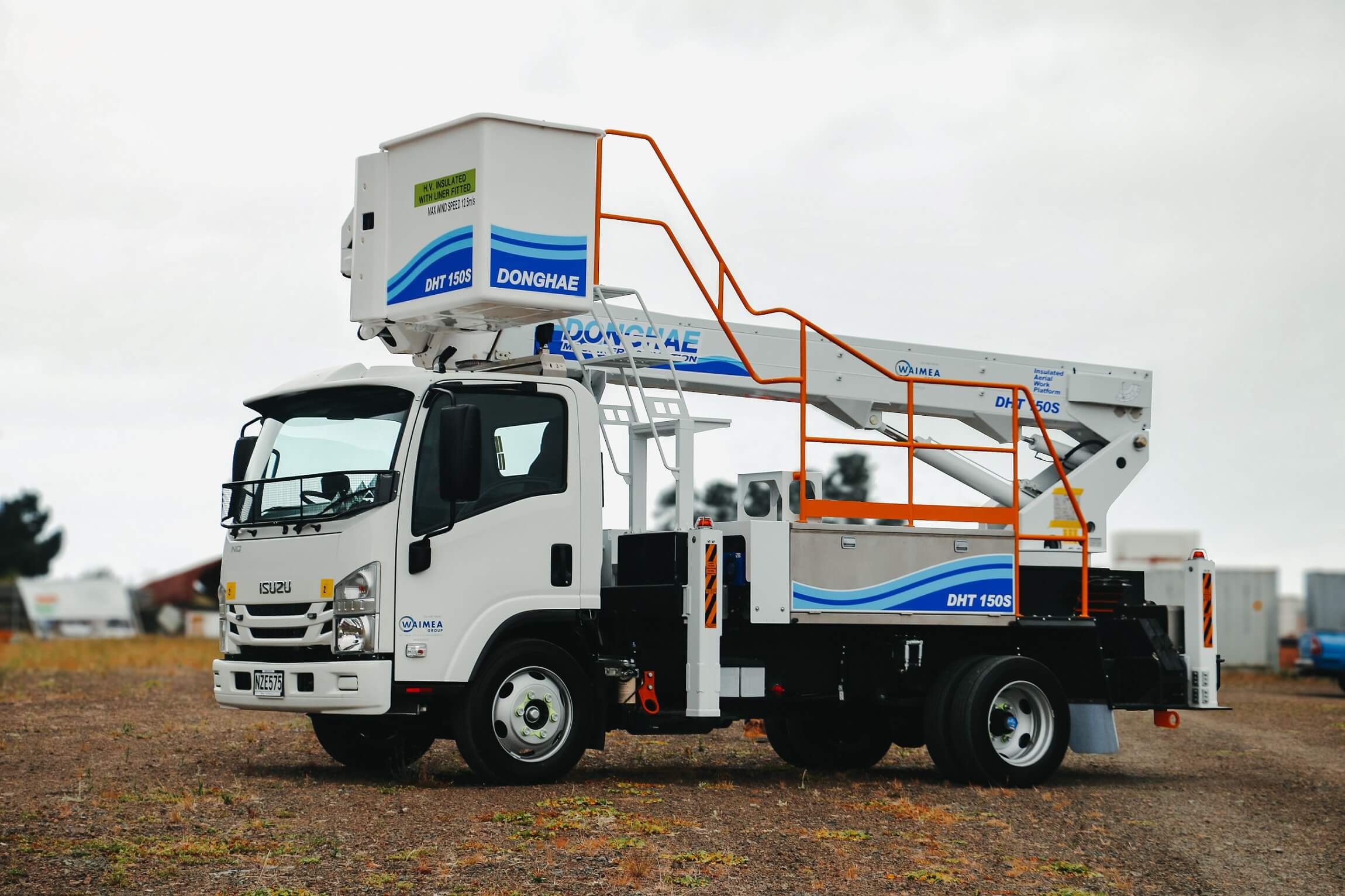

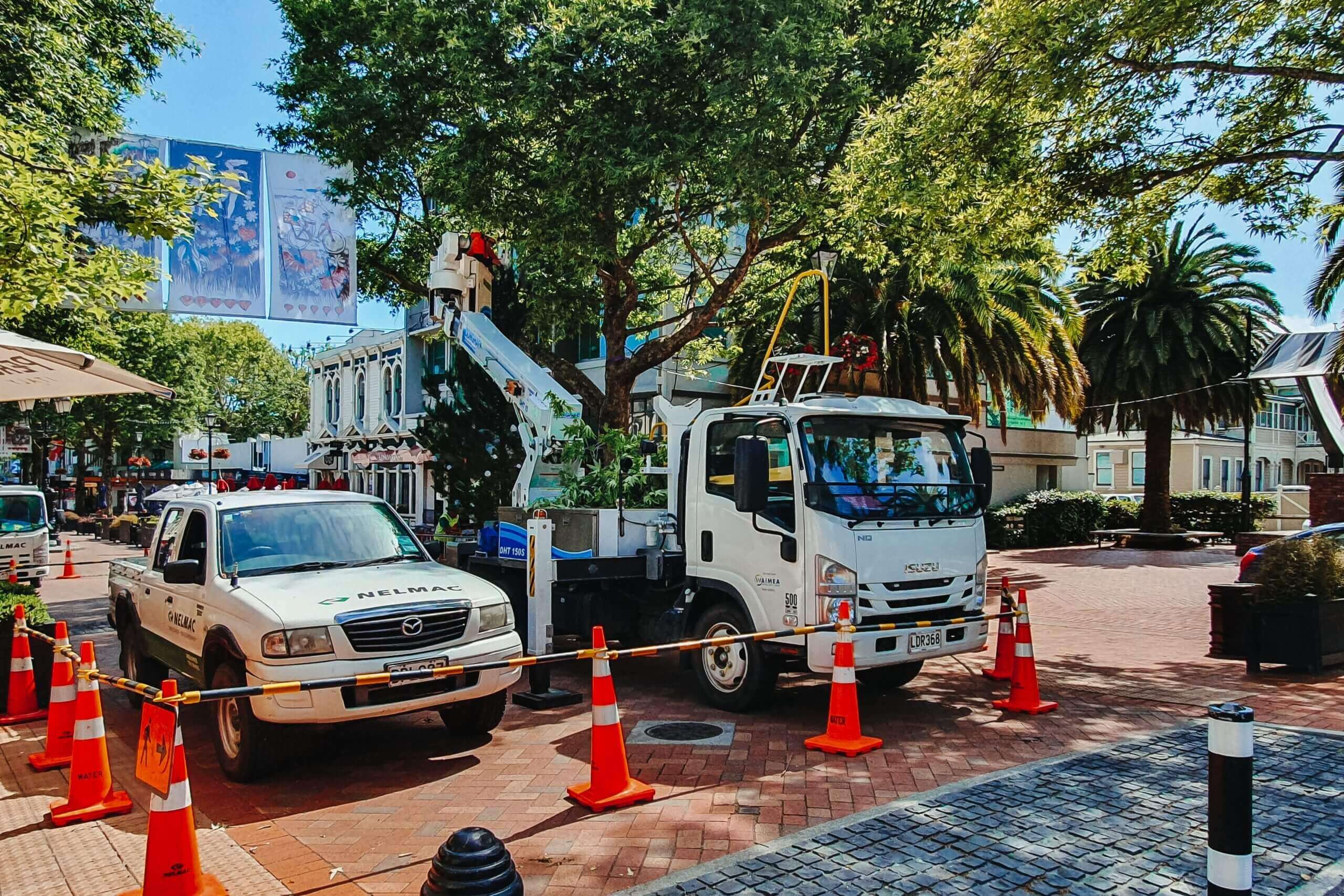

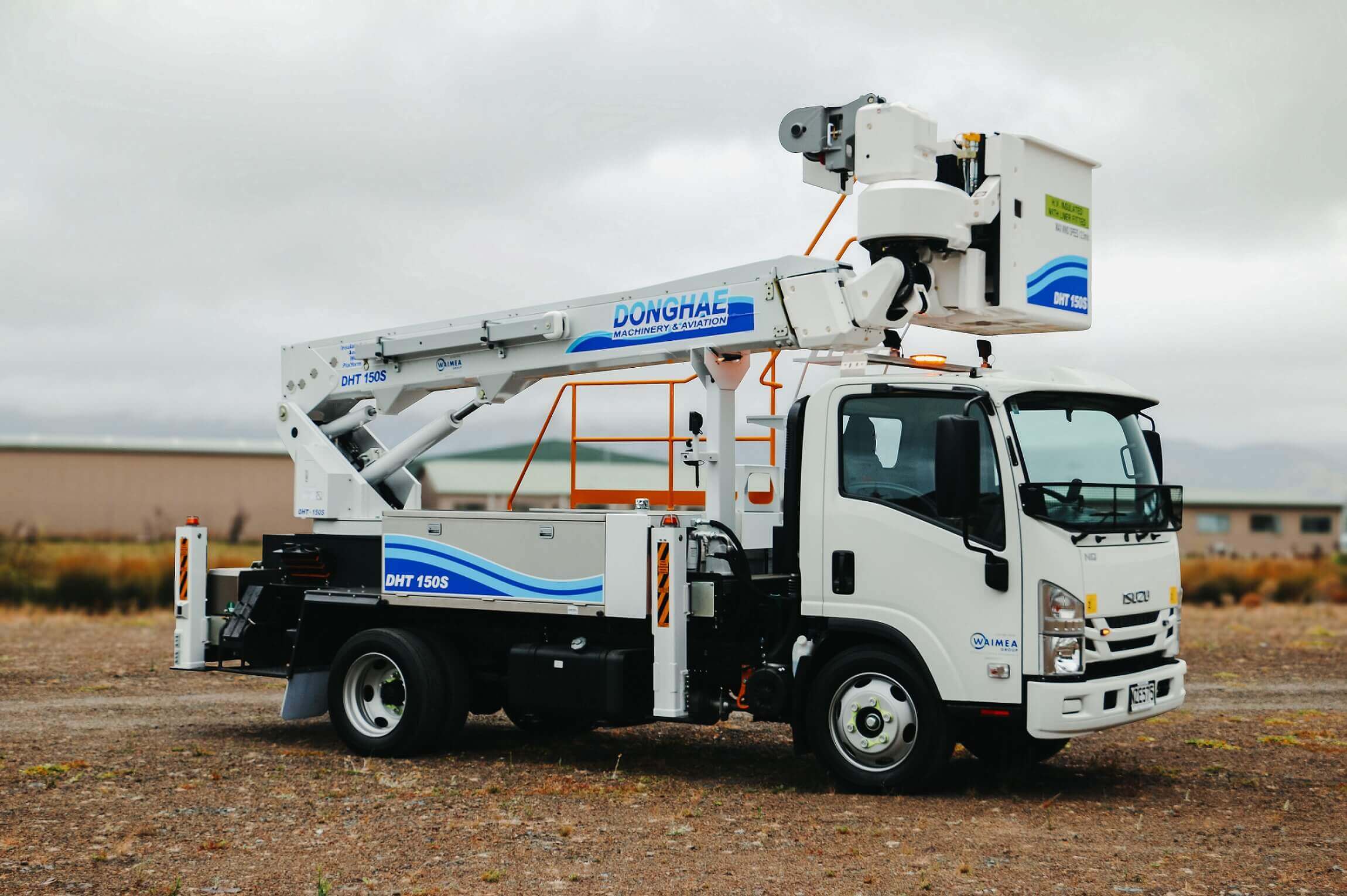

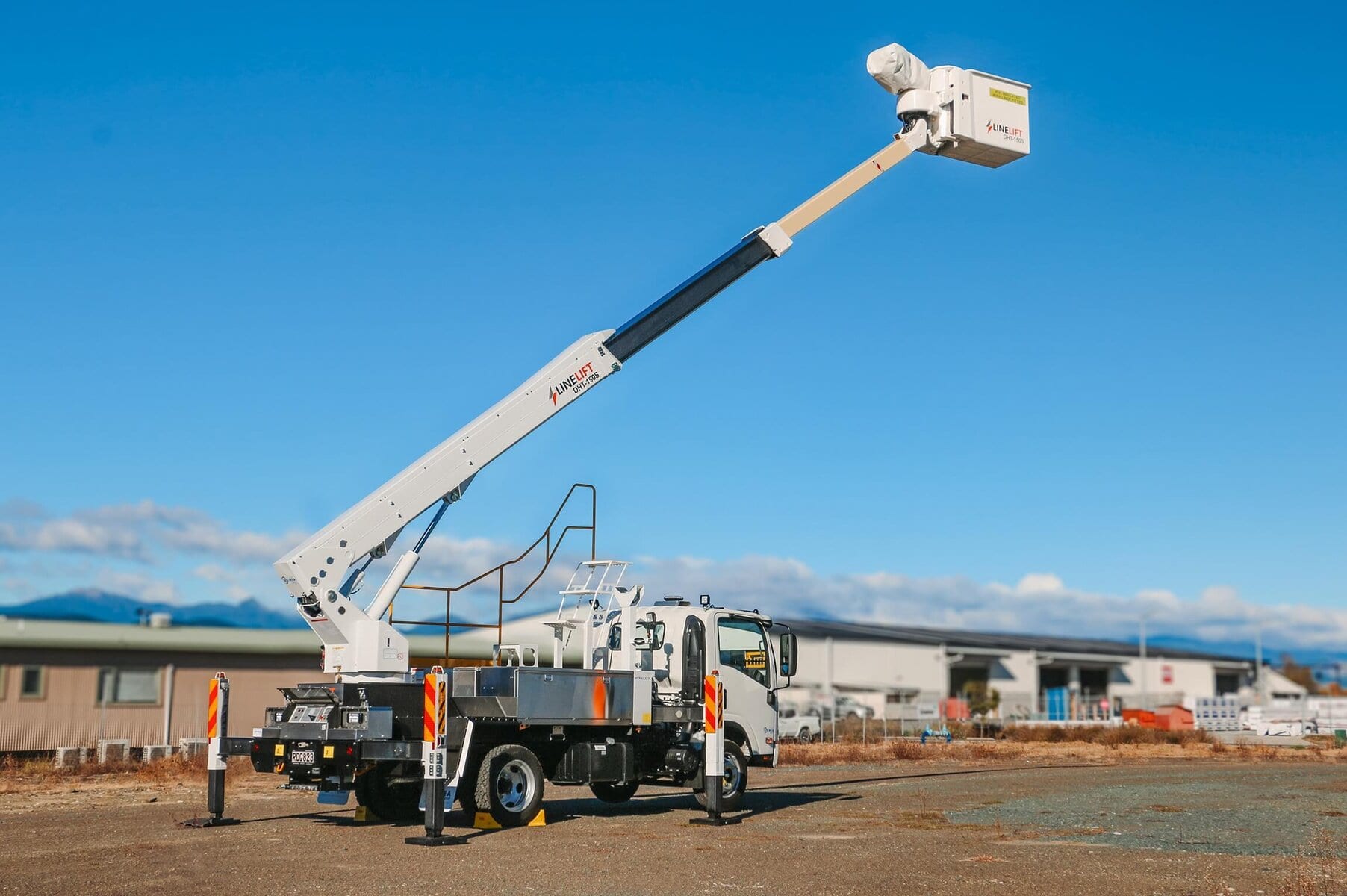

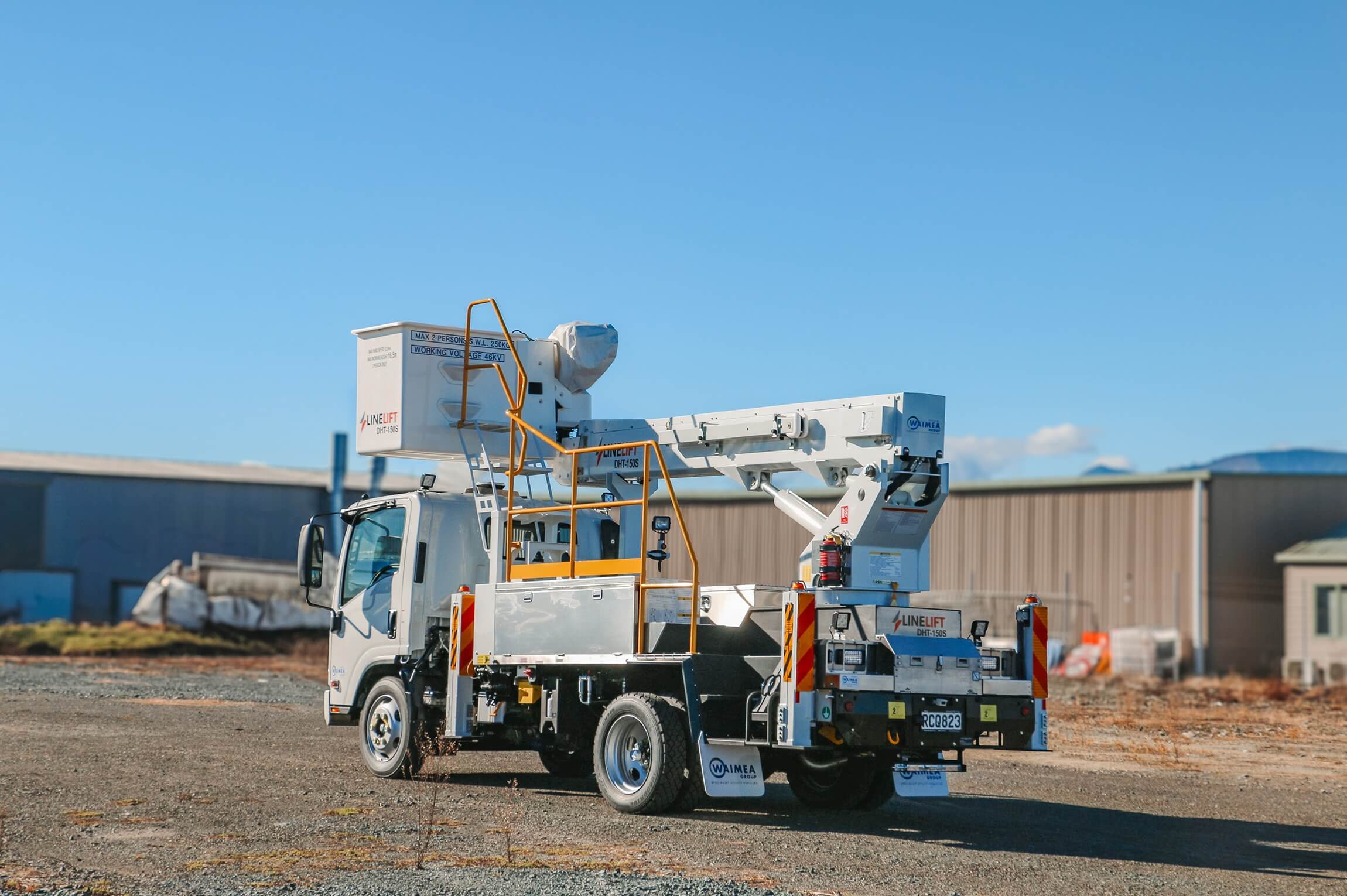

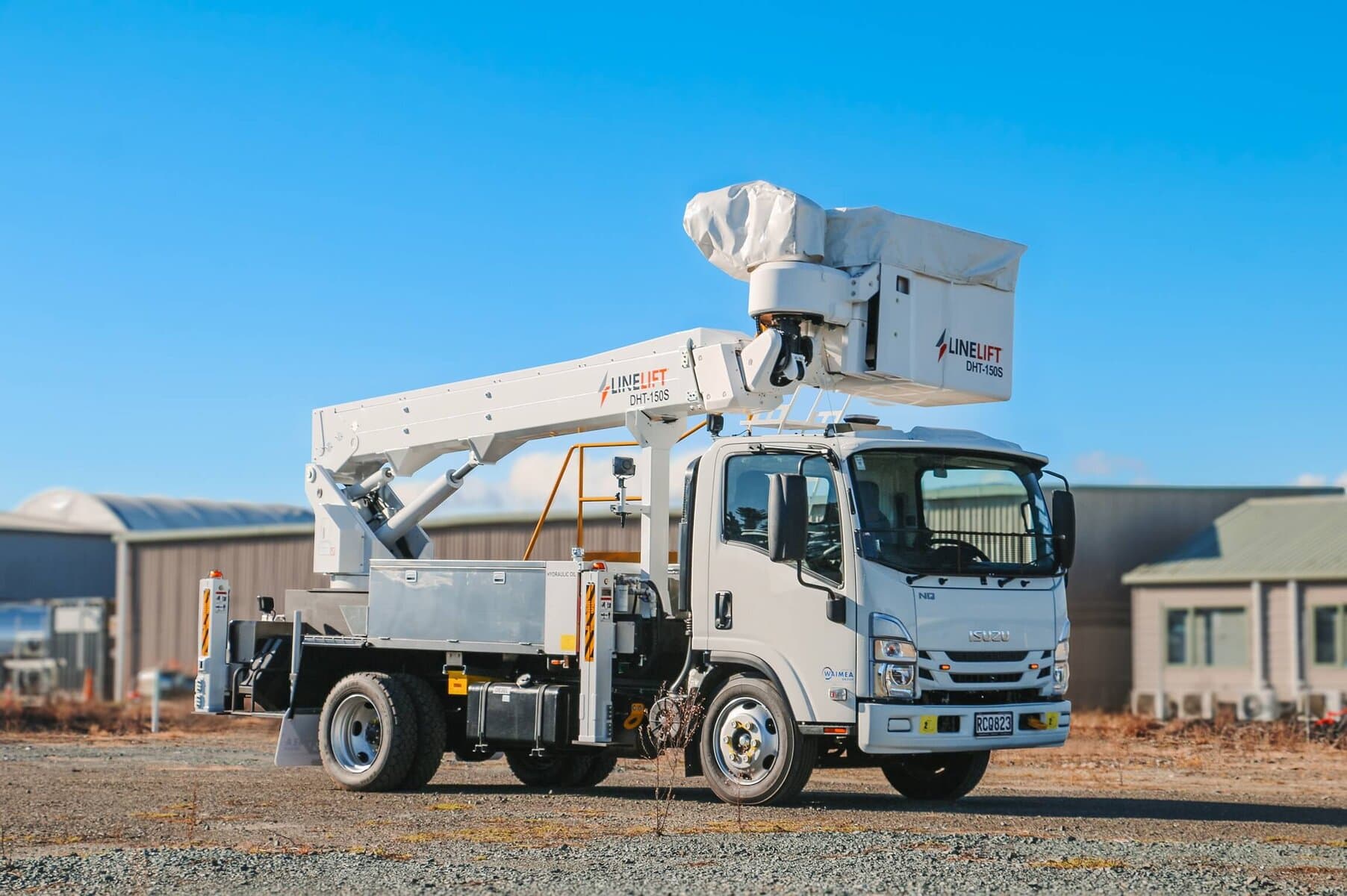

The Isuzu NQR500 is a super compact truck, ideal for navigating around tight urban areas, and outstanding 11.5m outreach with the Donghae DHT150S. The NQR500 is equipped for navigating the tight urban neighborhoods while the automatic engine accelerating system improves fuel efficiency. No spin diff is fitted as standard to give traction assistance when working in areas with soft grass verges.Super compact truck, ideal for navigating around tight urban areas, and outstanding 11.5m outreach

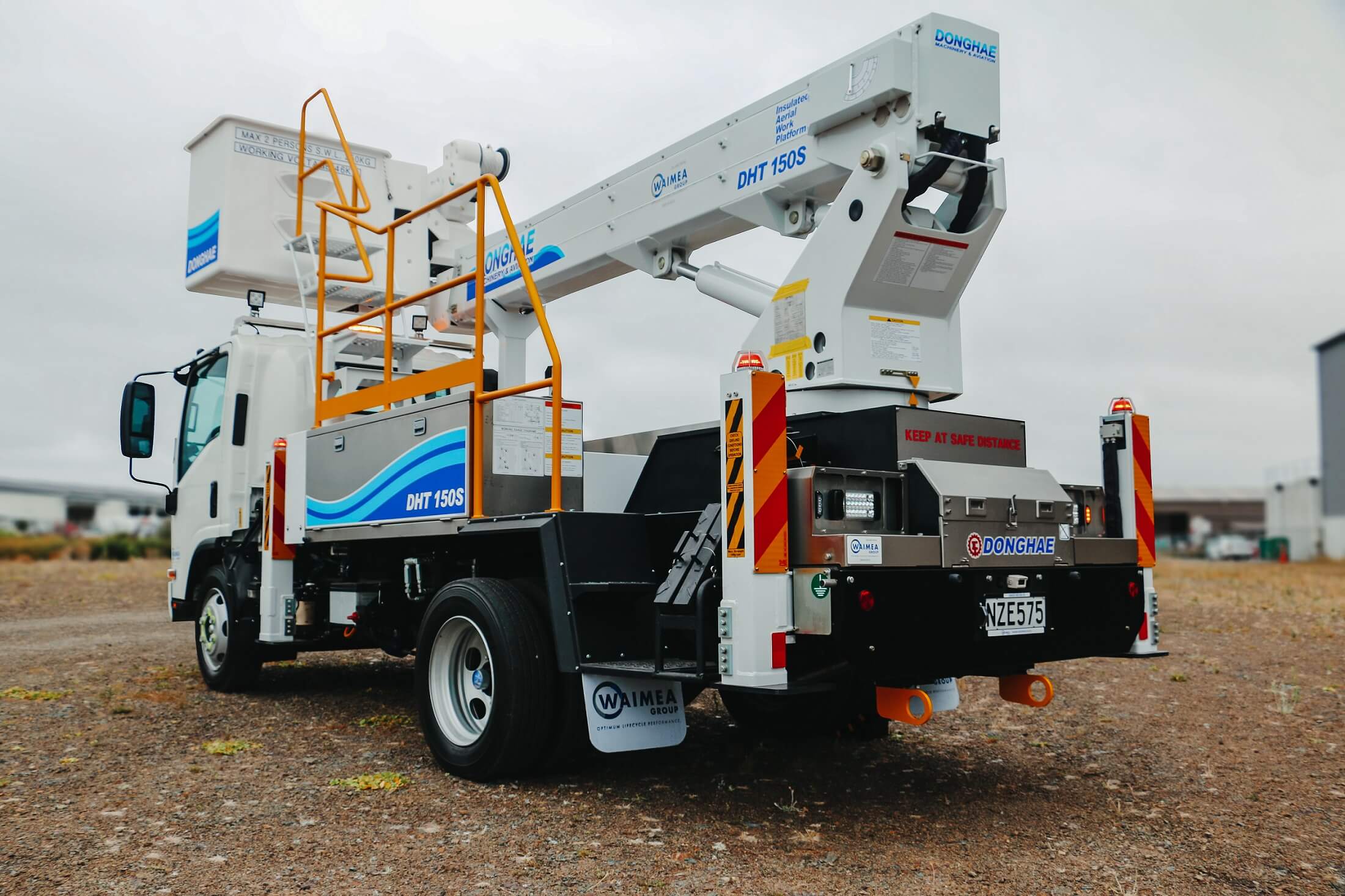

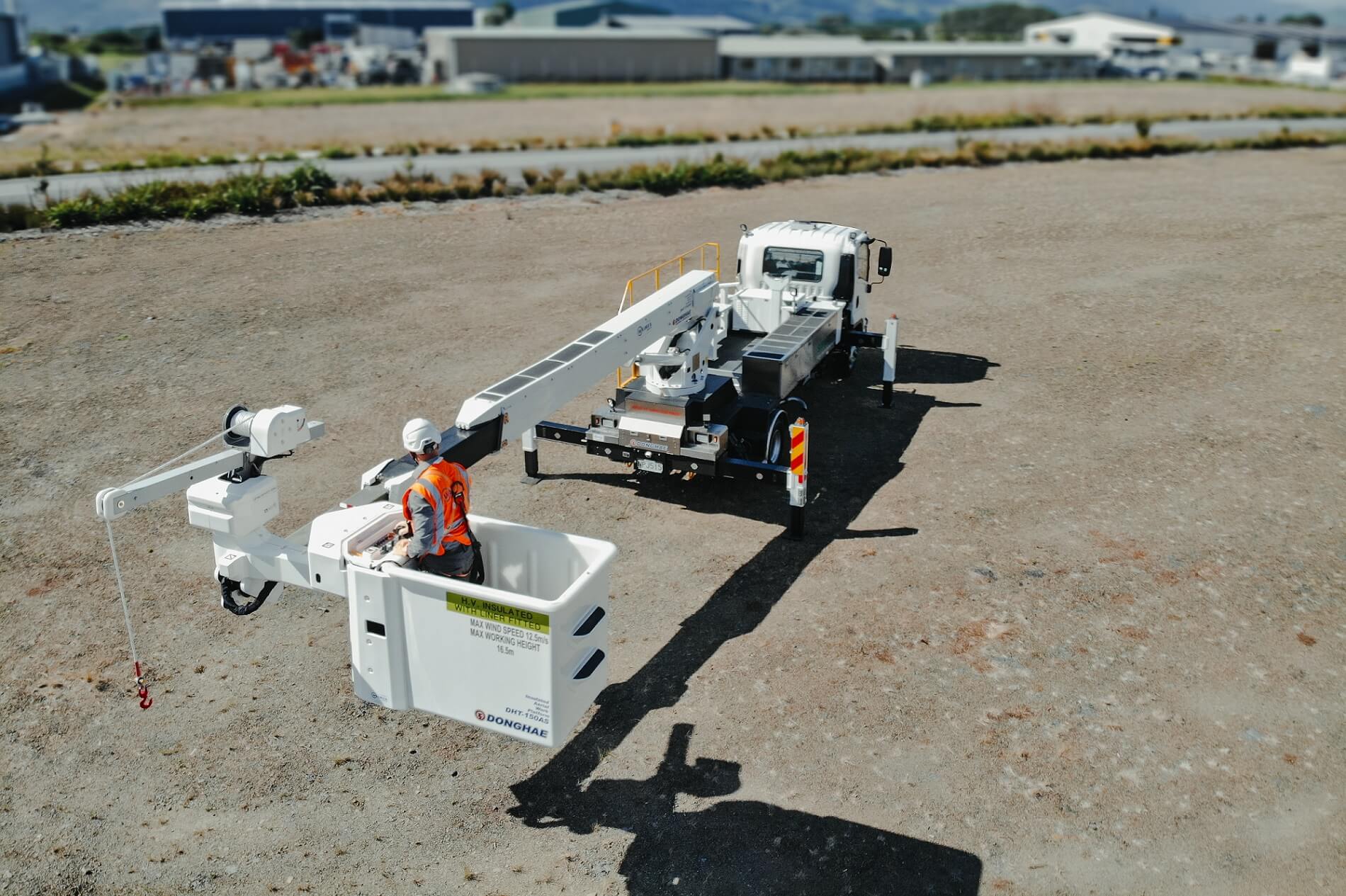

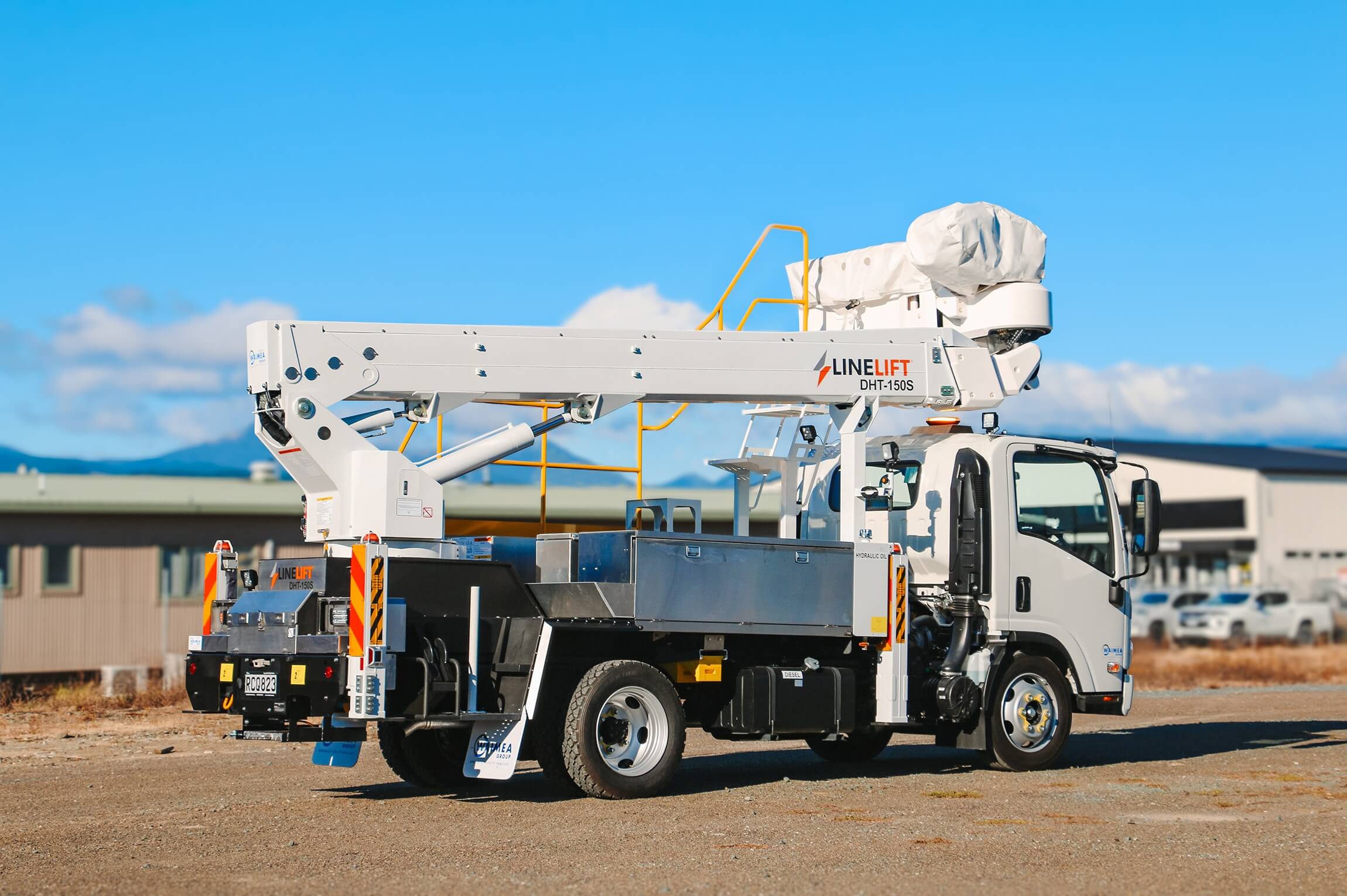

Two large toolboxes ensure generous storage space, and the bucket can be tilted easily to allow cleaning and rescue.
| EWP Manufacturer | Donghae (Linelift®) |
|---|---|
| EWP Model | DHT150S |

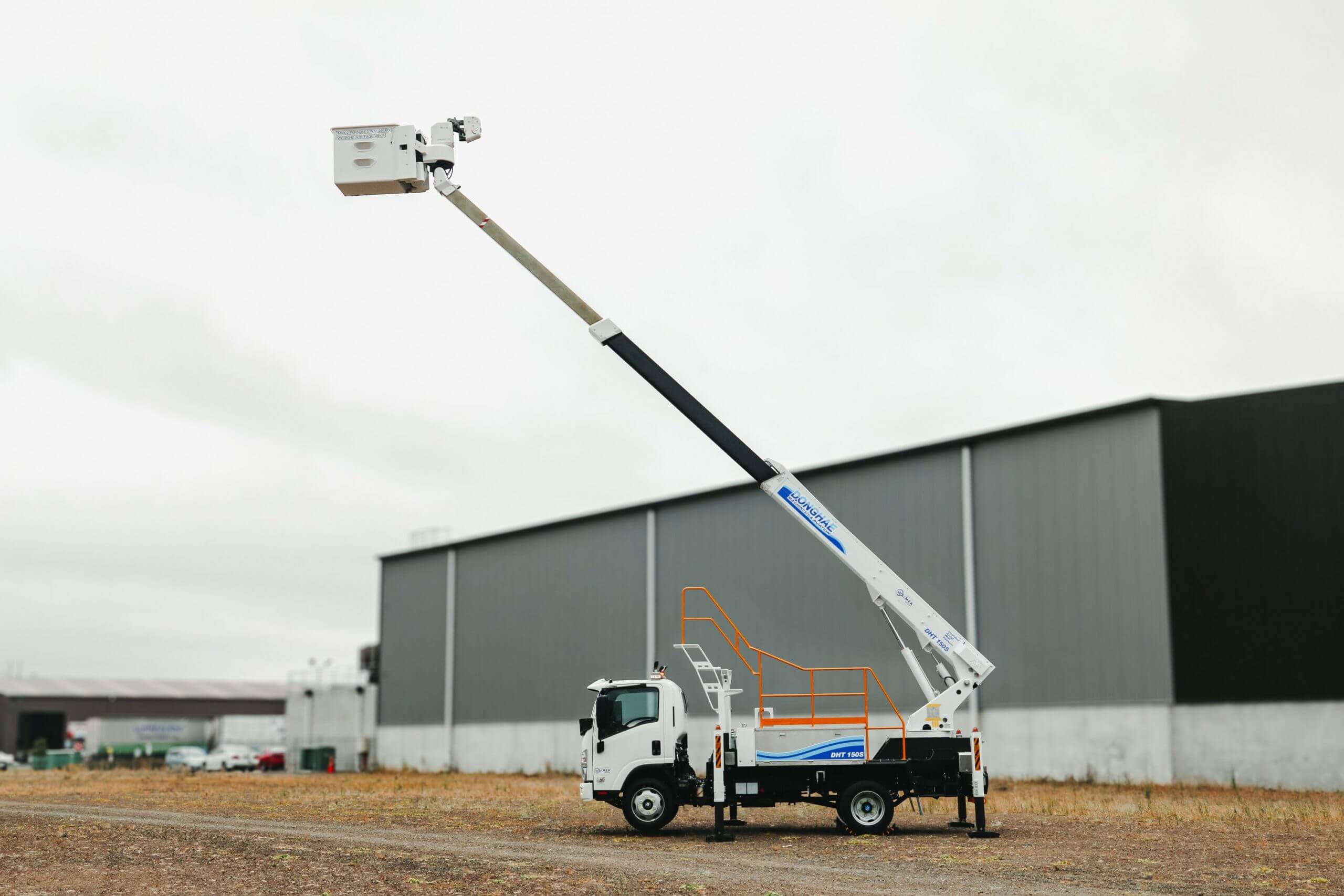

| Working Height | 16.50m |
| Height (ground to Bucket) | 14.5m |

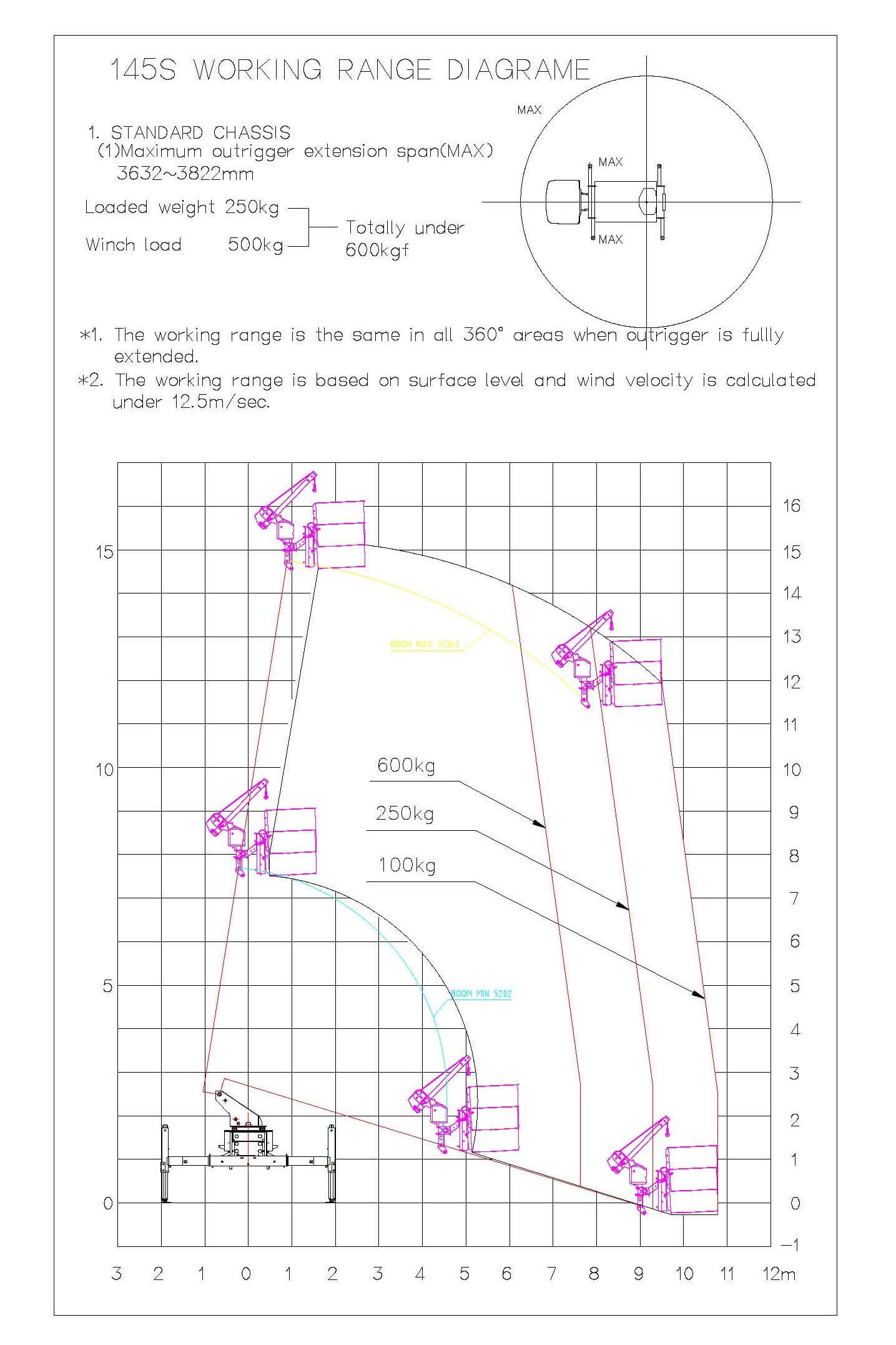

| Working Radius | 11m |
| Insulation Rating | Insulated Category C (46kV) |
| Boom Style | Articulating/Telescopic |
| Boom Slew Rotation | Continuous |
| Bucket Rotation | 180° |

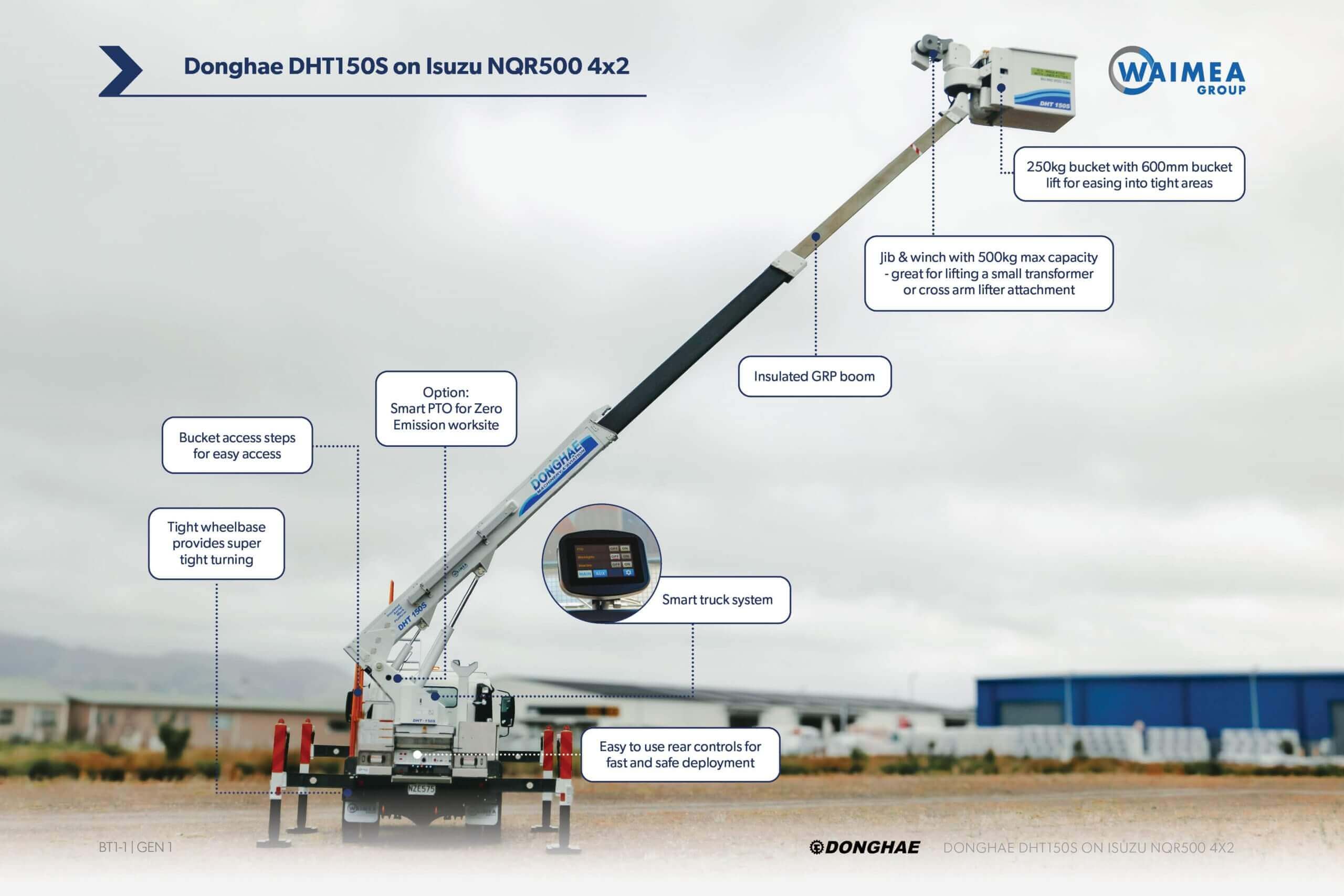

| Maximum Bucket Capacity | 250kg |

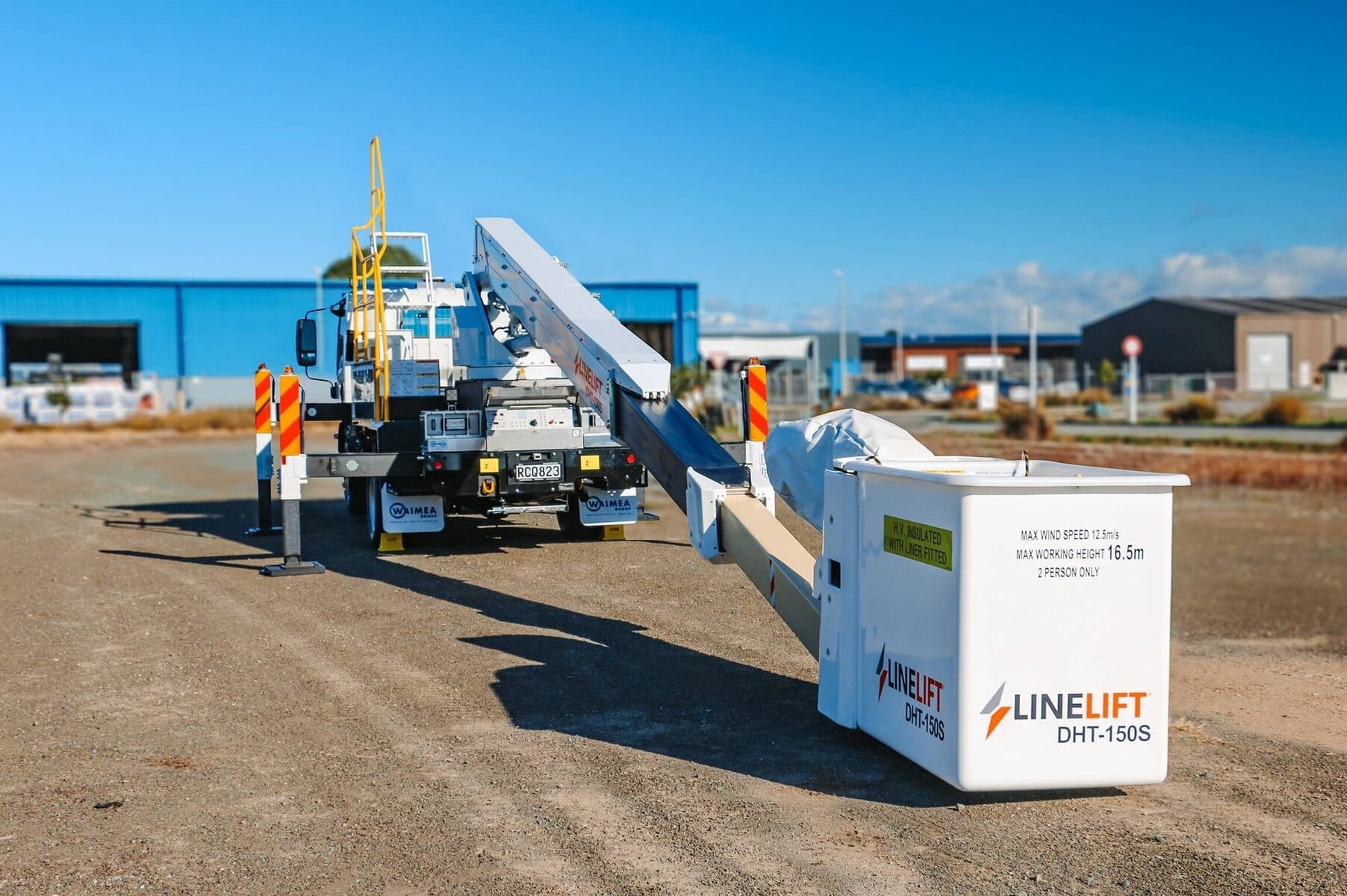

| Bucket Dimensions (mm) | 1100 (L) x 700 (W) x 1000 (H) |

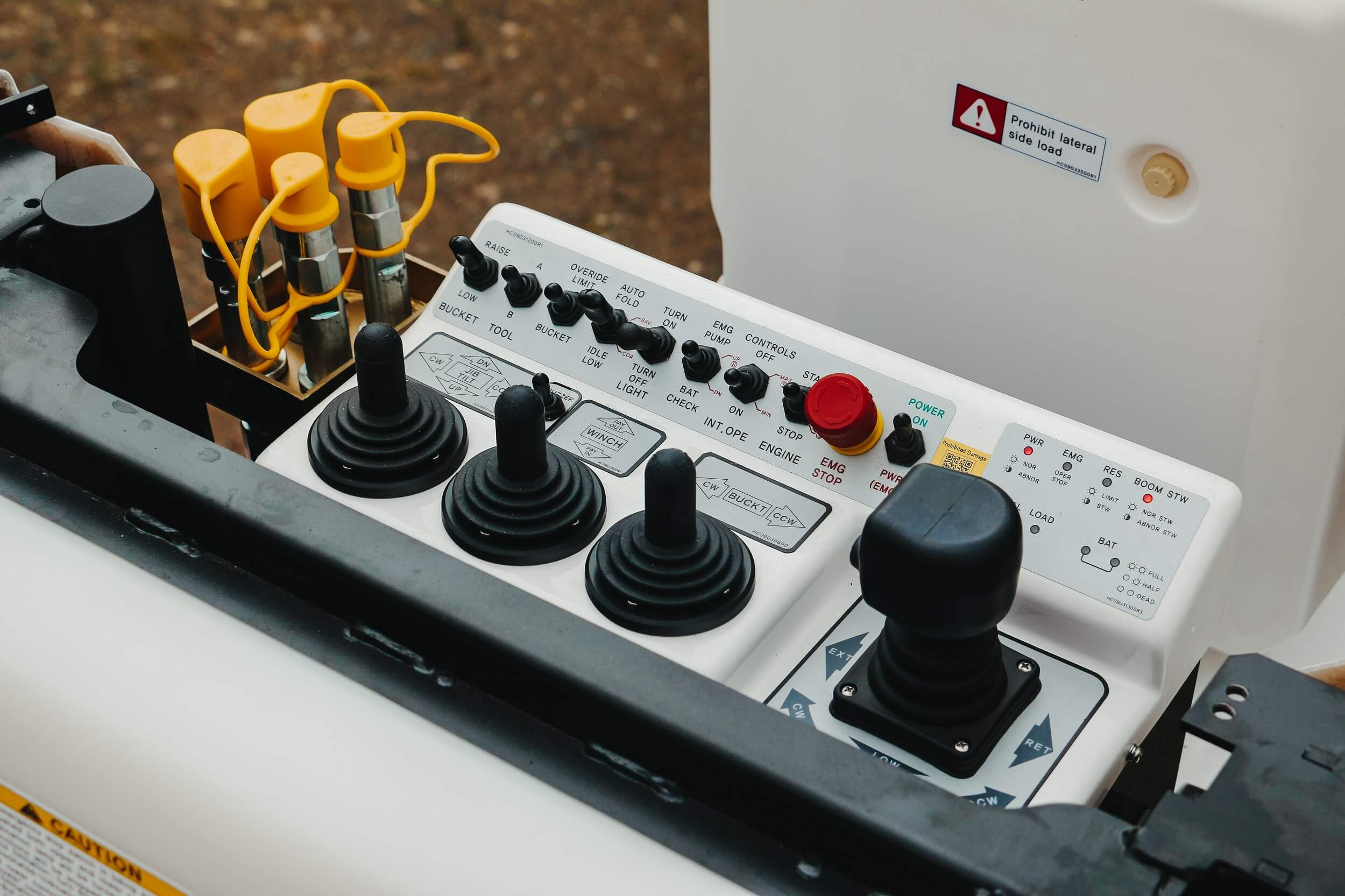

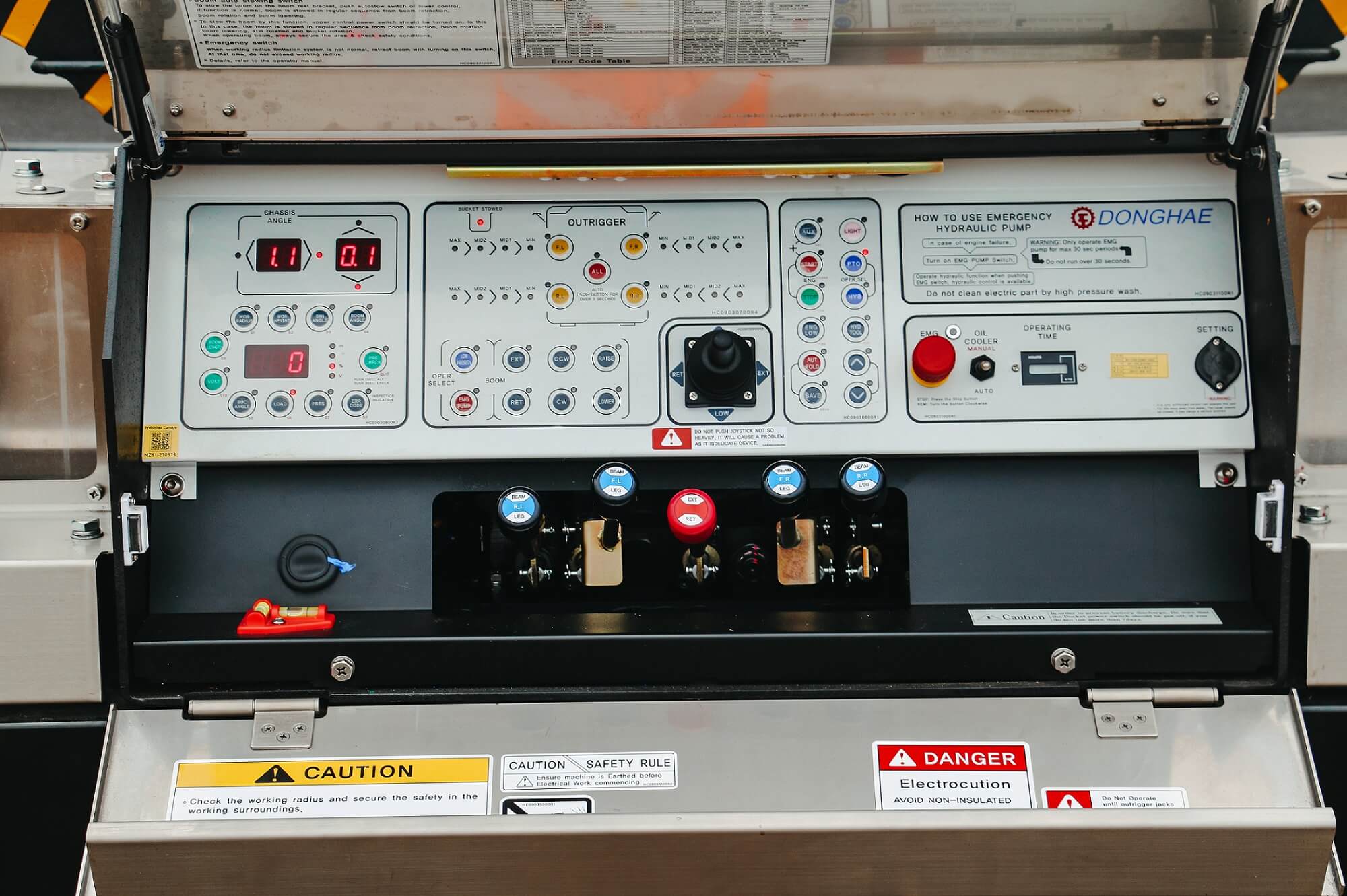

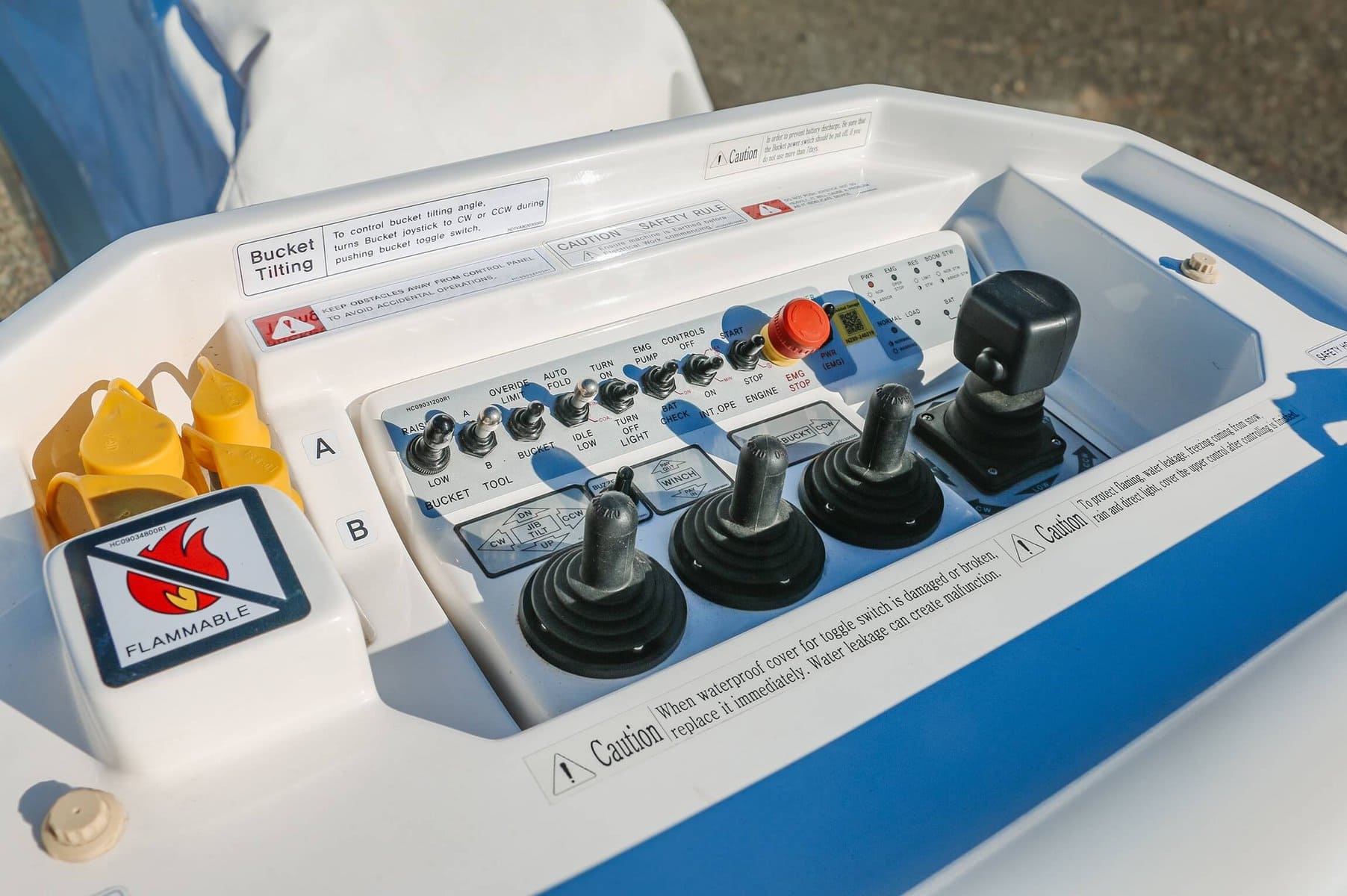

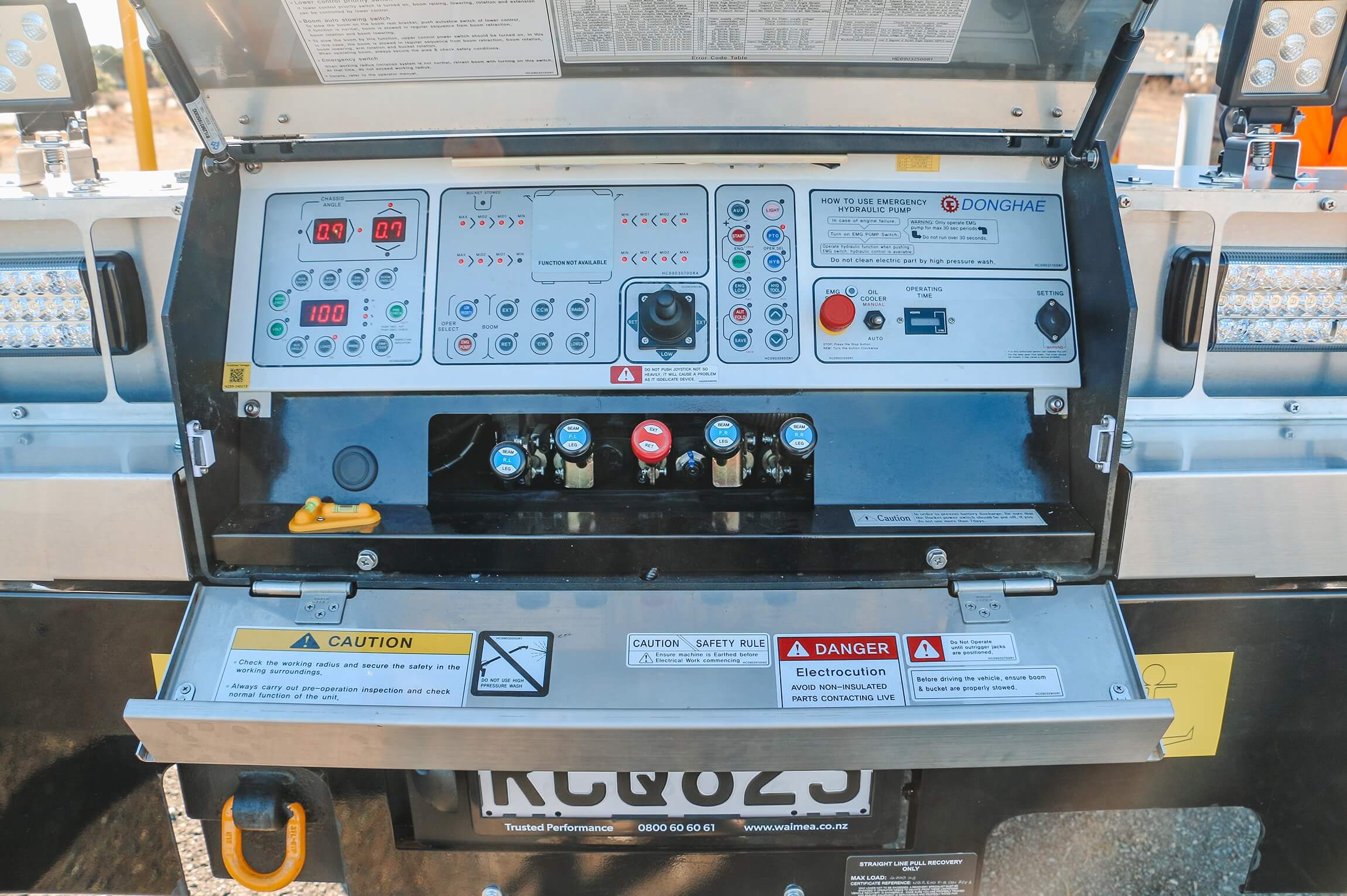

| Control Type | Electric over proportional hydraulic |
| Bucket Lift Slide | 600mm |
| Bucket Hydraulic Tool Port | Yes |
| Auto Stow | Yes |
| Auto Outrigger Levelling | No |
| Jib (material handler) | Hydraulic with winch |
| Lifting Winch | Max 500kg |
| PTO Flow (LPM) @ 900RPM | 35-40 |
| PTO Pressure (BAR) | 170 |
| Vehicle Manufacturer | Isuzu |
| Vehicle Model | NQR 500M |
| Specifications | 4x2 |
| HP | 188 |
| Transmission | AMT Auto |
| Difflocker/Traction Control | Standard |
