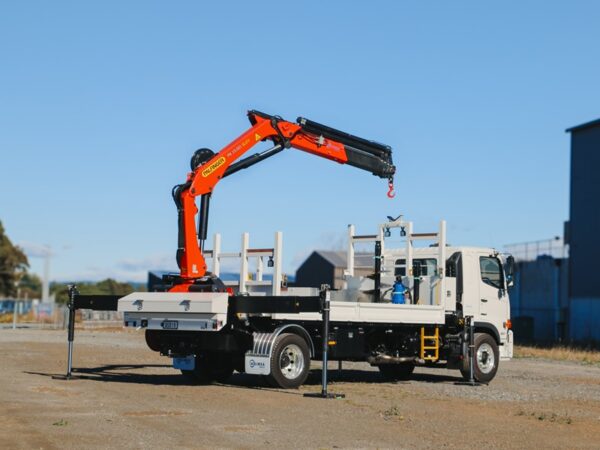

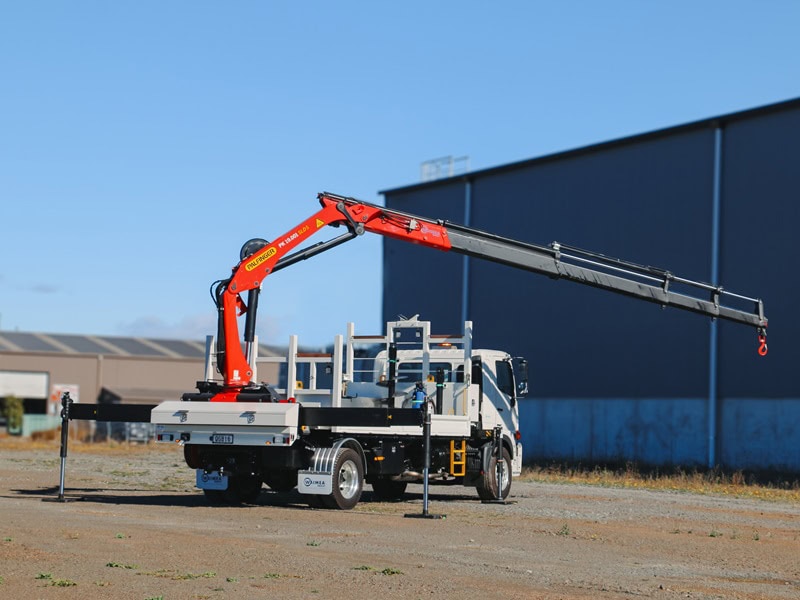

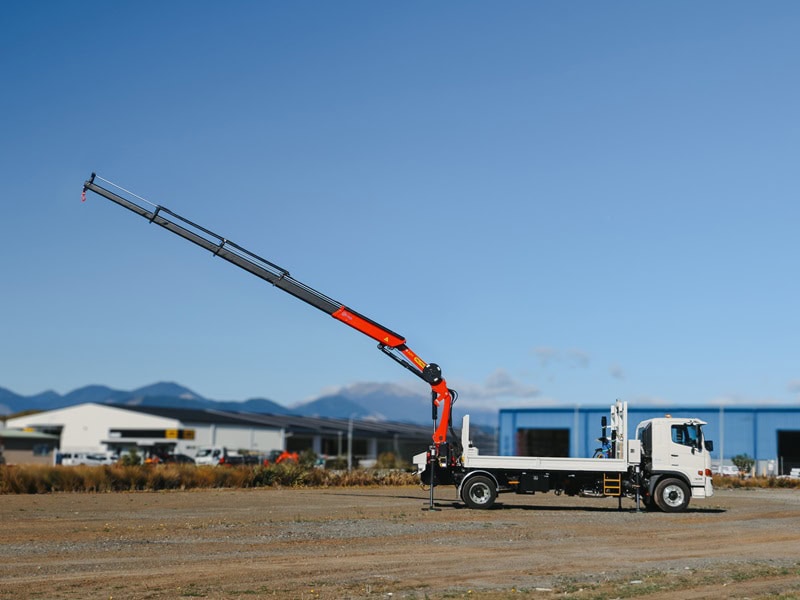

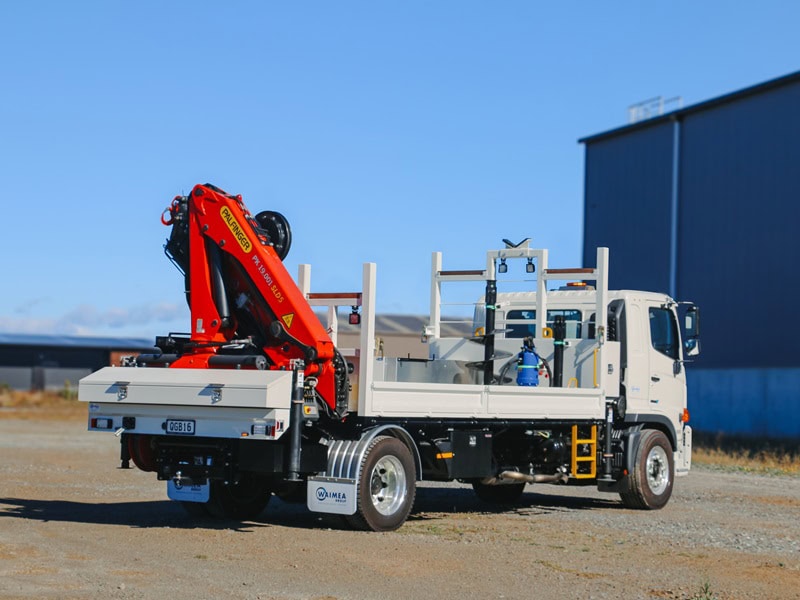

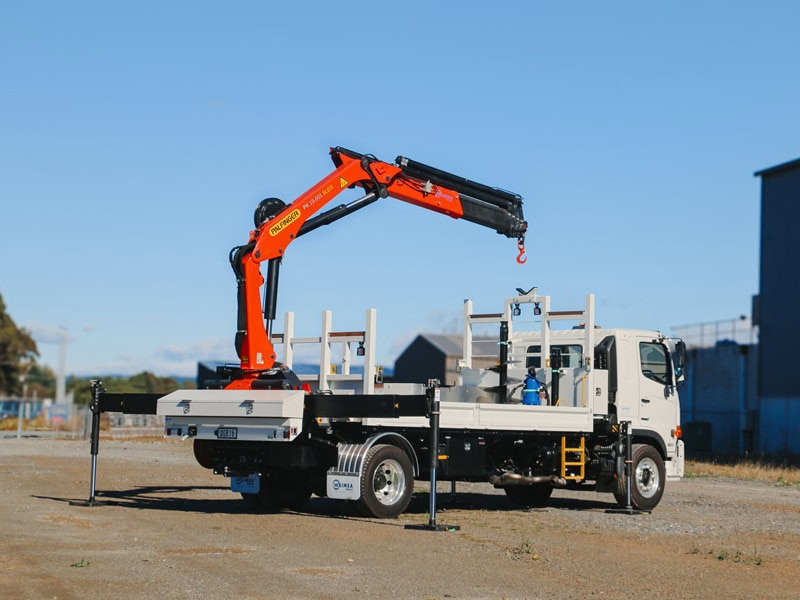

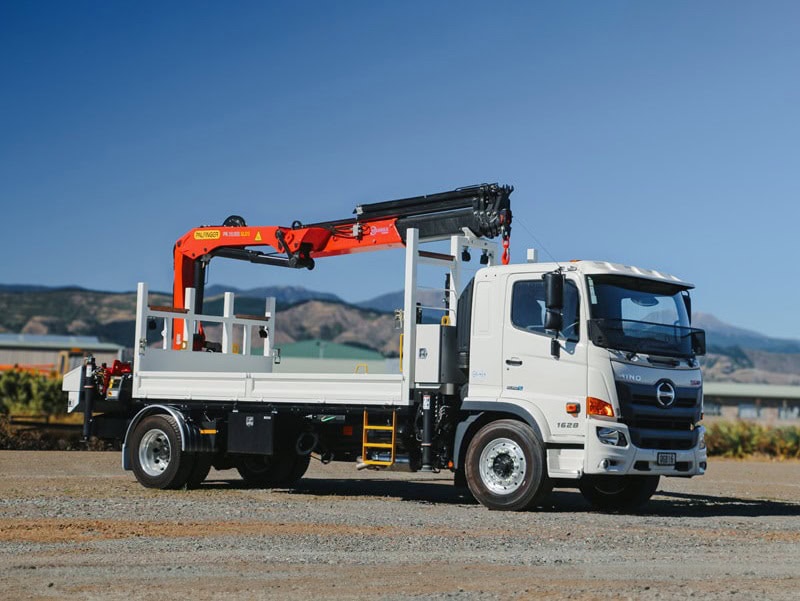

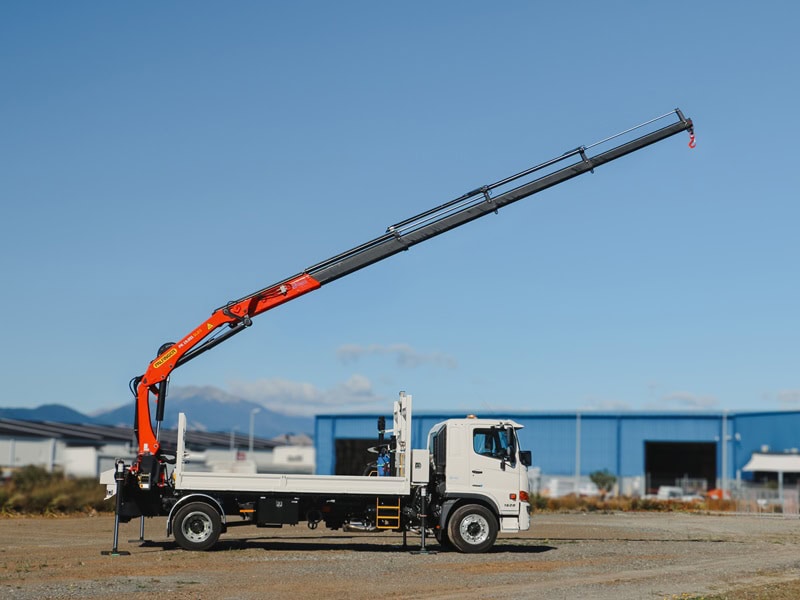

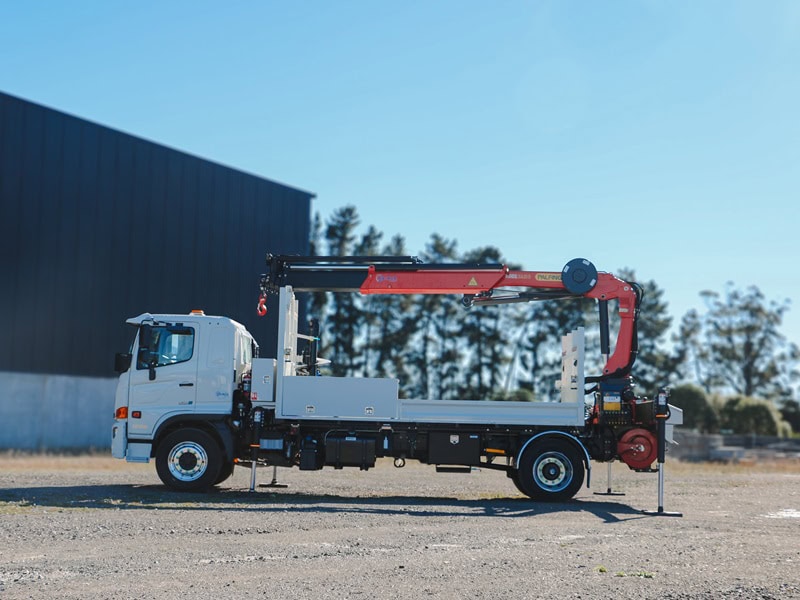

Palfinger PK19 on Hino FG1628 4×2 Lines Crane Truck
The Urban linesman’s go to truck
The robust Palfinger PK19 crane offers a lift and carrying capacity for most small to medium distribution power poles, cable drums and transformers. Mounted on a 4×2, means it can be driven on a class 2 license. We specify all our trucks with diff locker to provide traction to assist with getting off the grass verge with roadside work. The crane is radio controlled and is equipped specifically for the lines application with manual extension so pole lifting can be don’t without damaging hydraulic cylinders, internally routed hydraulic ports to boom tip, and aux functions for pole puller and tamper operation.
This unit is a popular unit for Linesman work typically in a urban environment.
The build is designed with a linesman in mind: Clear deck with side and internal tie points and good access large tool boxes, Outrigger pads, wheel chocks. Out rigger pad holders each side Wheel chock holder each side Deck painted white with safety yellow on handles and steps. Storage provided for PPE & First Aid, tools and full width box for earth sticks and tampers, Lighting& Electrical: LED Flashing beacon light Front and rear amber flashers 4x LED work lights mounted front and rear.
- Clear deck with side and internal tie points
- Good access large toolboxes
- Outrigger pads
- Wheel chocks
- Out rigger pad holders each side
- Wheel chock holder each side
- Deck painted white with safety yellow on handles and steps.
- Storage is provided for PPE & First Aid
- Tools and full width box for earth sticks and tampers
- Lighting& Electrical: LED Flashing beacon light Front and rear amber flashers 4x LED work lights mounted front and rear.
Let’s Talk
Reach out today to Gareth our Specialist Vehicle Consultant for pricing and availability
Additional information
Manufacturer | Palfinger |
---|---|
Crane Model | PK19.001 SLD5 C |
Size T/M | 16.8 |
Specification/Type | Knuckle boom |
Max Lift | 4150kg |
Distance at Max Lift | 4.10m |
Maximum Hydraulic Reach | 12.5m |
Weight at Max Reach | 1220kg |
Max Reach | 14.7m |
Manual Extension | S |
HPSC Outrigger Mgt. System | S |
Stabiliser Spread | 6,600 |
Radio Controlled | S |
Auger Function | S |
Pole Lifter Port | S |
Tamper Port | S |
Operating pressure (PSI) | 360 |
Operating Flow (LPM) | 45-65 |
Vehicle Manufacturer | Hino |
Vehicle Model | 500 FG1628 |
Specifications | 4×2 |
HP | 280 |
Transmission | Allison Auto |
Difflocker/Traction Control | Standard |
