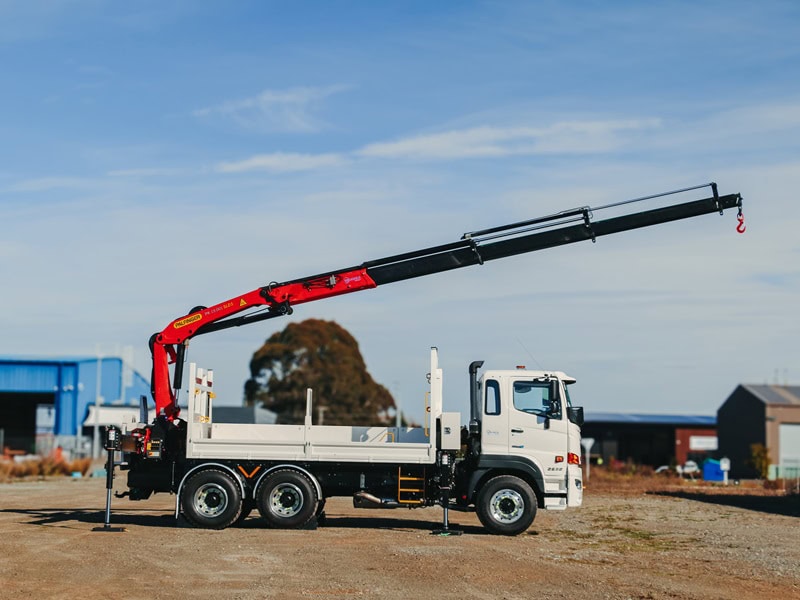

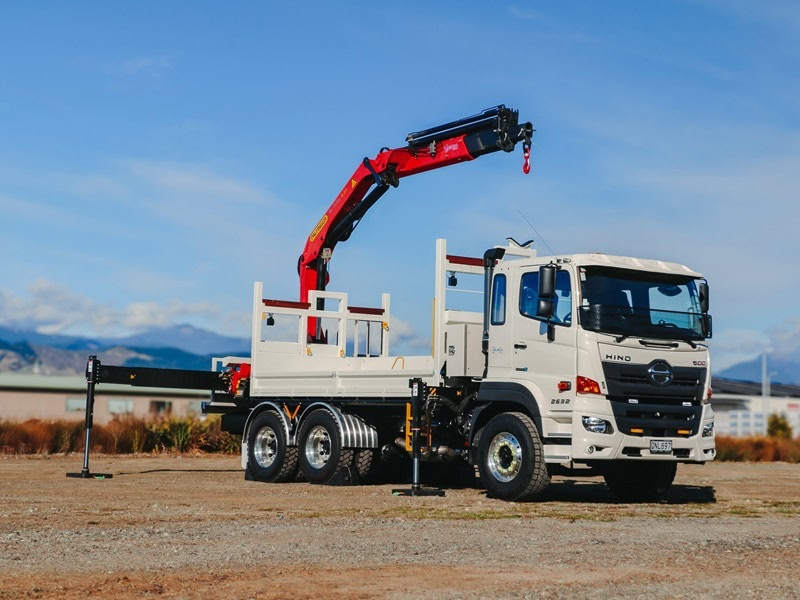

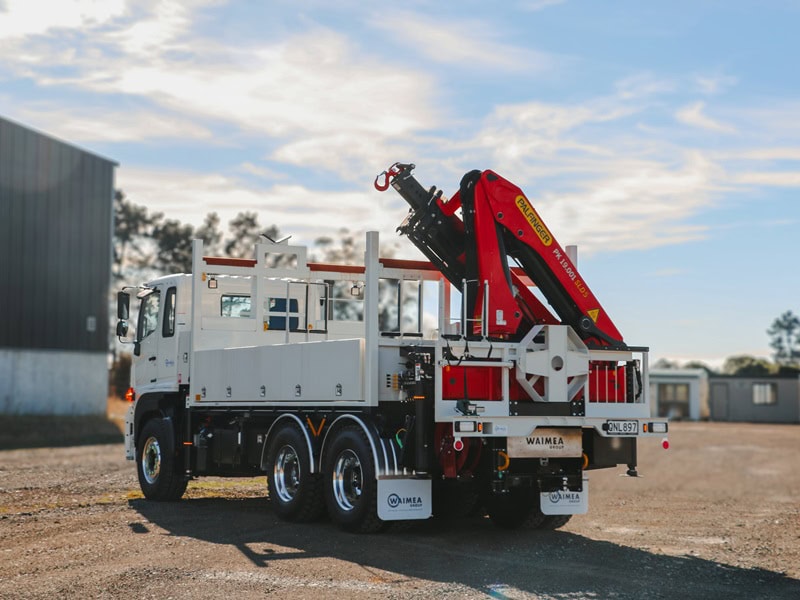

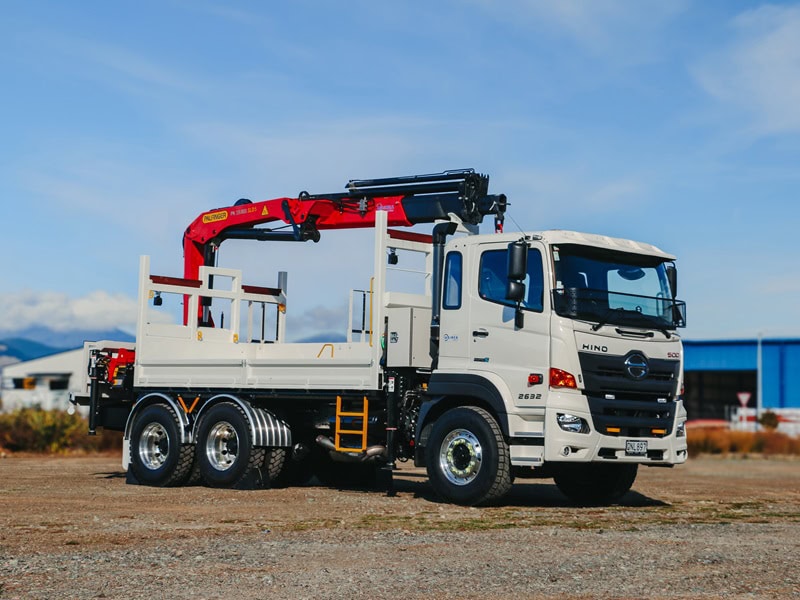

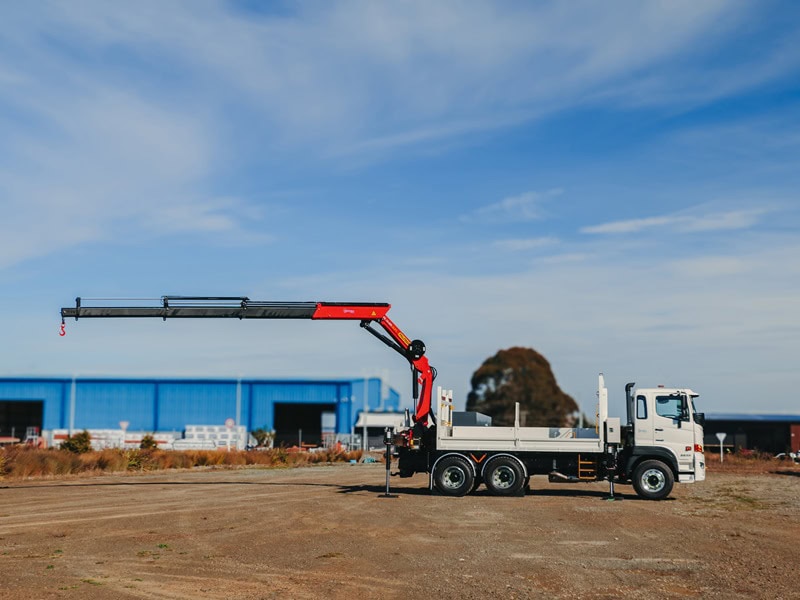

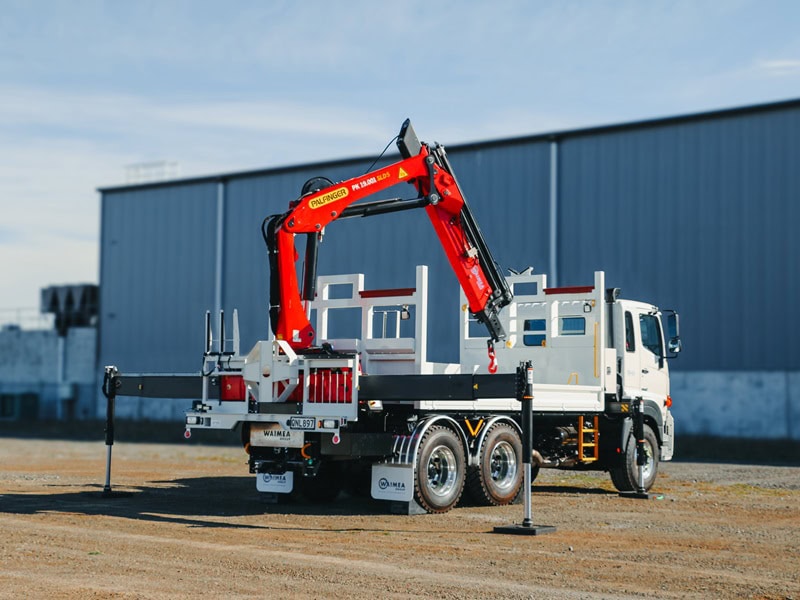

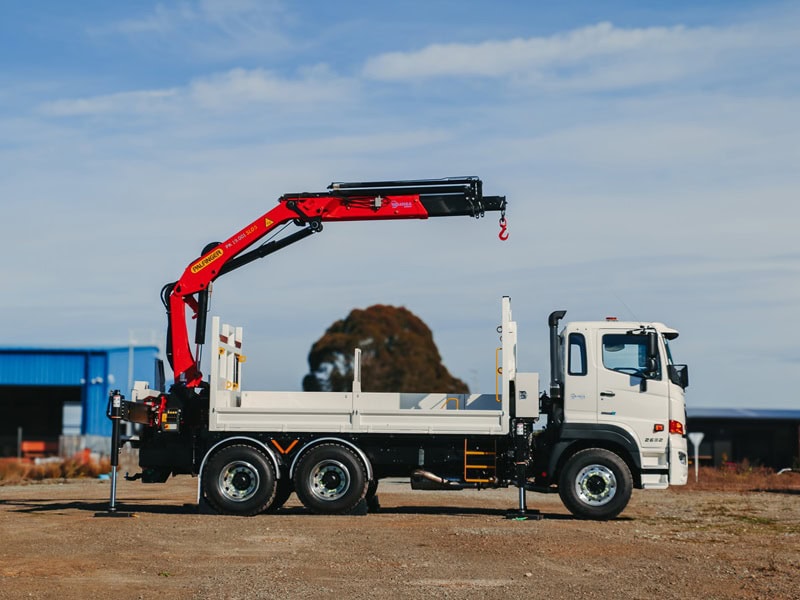

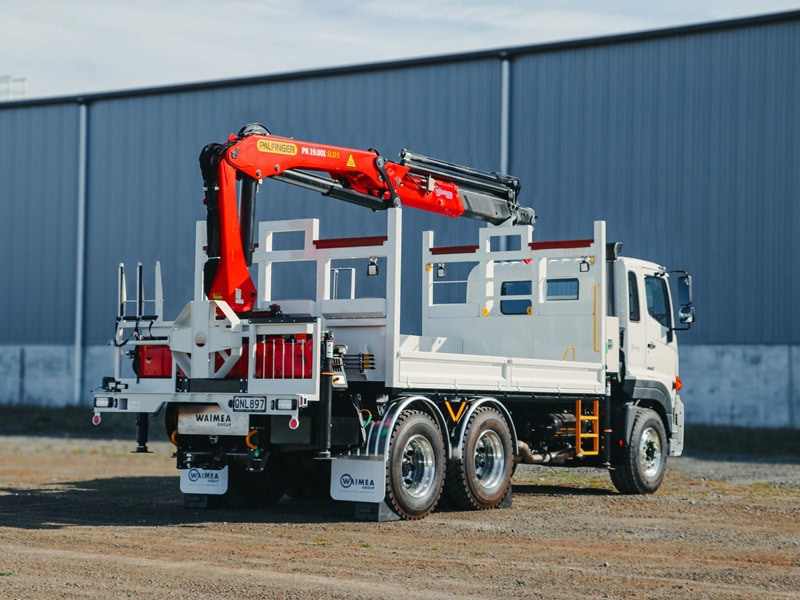

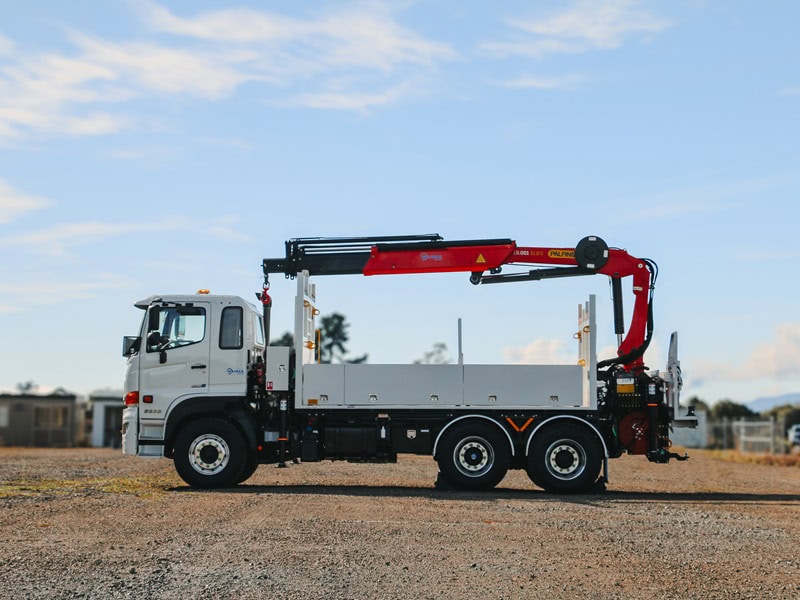

Palfinger PK19 on Hino FM2632 6x4 Lines Truck

This lines crane truck is designed to perform in a wide range of applications ranging from busy urban streets to off road tracks. The powerful 320 HP Hino has two driving axles with traction control and super single front wheels to support the maximum load requirements, with the driver friendly Alison push button transmission. The medium wheelbase has a tight turning circle and excellent maneuverability.

Generous payload + traction + functional build = Productivity & Utilisation

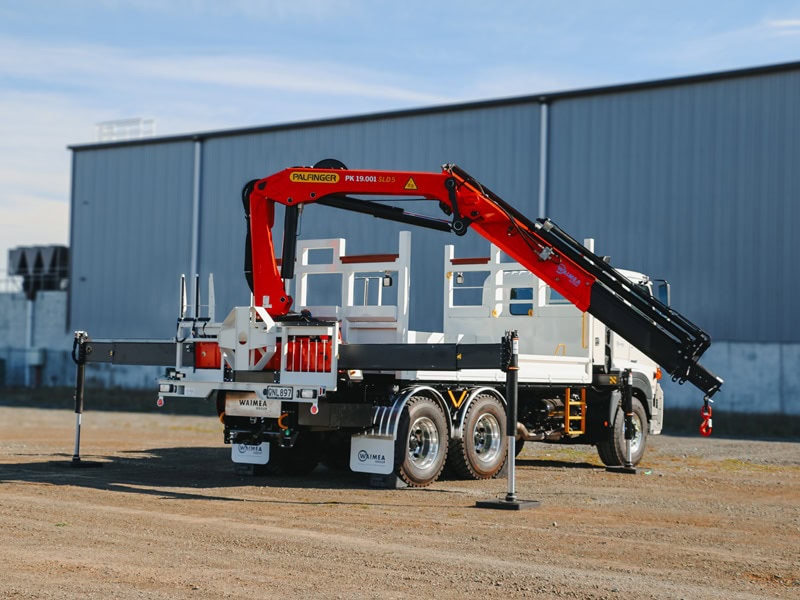

The Palfinger PK19 crane will easily handle distribution power poles, cable drums and transformers up to 5.2 tonne. HPSC is fitted for operator safety, as it automatically limits the lift zone depending on how much the stabilisers have been extended. The remote radio controller is designed specifically for the lines application providing auger and tamper controls. The hydraulic hoses are internally routed to the boom tip, and the truck is set up with auxiliary functions for pole puller and tamper via a retractable hose reel at the rear.

DESIGNED for the Kiwi linesman...

Clear deck with certified pop-up tie points and easy access steps
Double opening toolbox behind cab for storing long items
Outrigger pads and wheel chocks in dedicated compartments on each side
Safety grip tread on deck
Safety yellow on handles and steps
Full width storage container at the rear for hydraulic tamper
Retractable twin hose reel at rear for tamper or pole puller
LED flashing beacon lights front and rear
LED work lights mounted front and rear
Optional removable auger holder on deck

Enquire Now Download Brochure

SKU: BT7-11 Categories: Downloadable Brochure, Line Crane Trucks, Power Utilities

Specifications

Description

Additional information

Crane Manufacturer	Palfinger
Crane Model	PK19.001 SLD5 C
Size T/M	16.8
Specification/Type	Knuckle boom
Distance at Max Lift	4.10m
Maximum Hydraulic Reach	12.5m
Weight at Max Reach	1220kg
Max Reach	14.7m
Manual Extension	S
HPSC Outrigger Mgt. System	S
Stabiliser Spread	6,600
Radio Controlled	S
Auger Function	S
Pole Lifter Port	S
Tamper Port	S
Operating pressure (PSI)	360
Operating Flow (LPM)	45-65
Vehicle Manufacturer	Hino
Vehicle Model	500 FM2632
Specifications	6x4
HP	320
Transmission	6pd Allison
Difflocker/Traction Control	Standard
