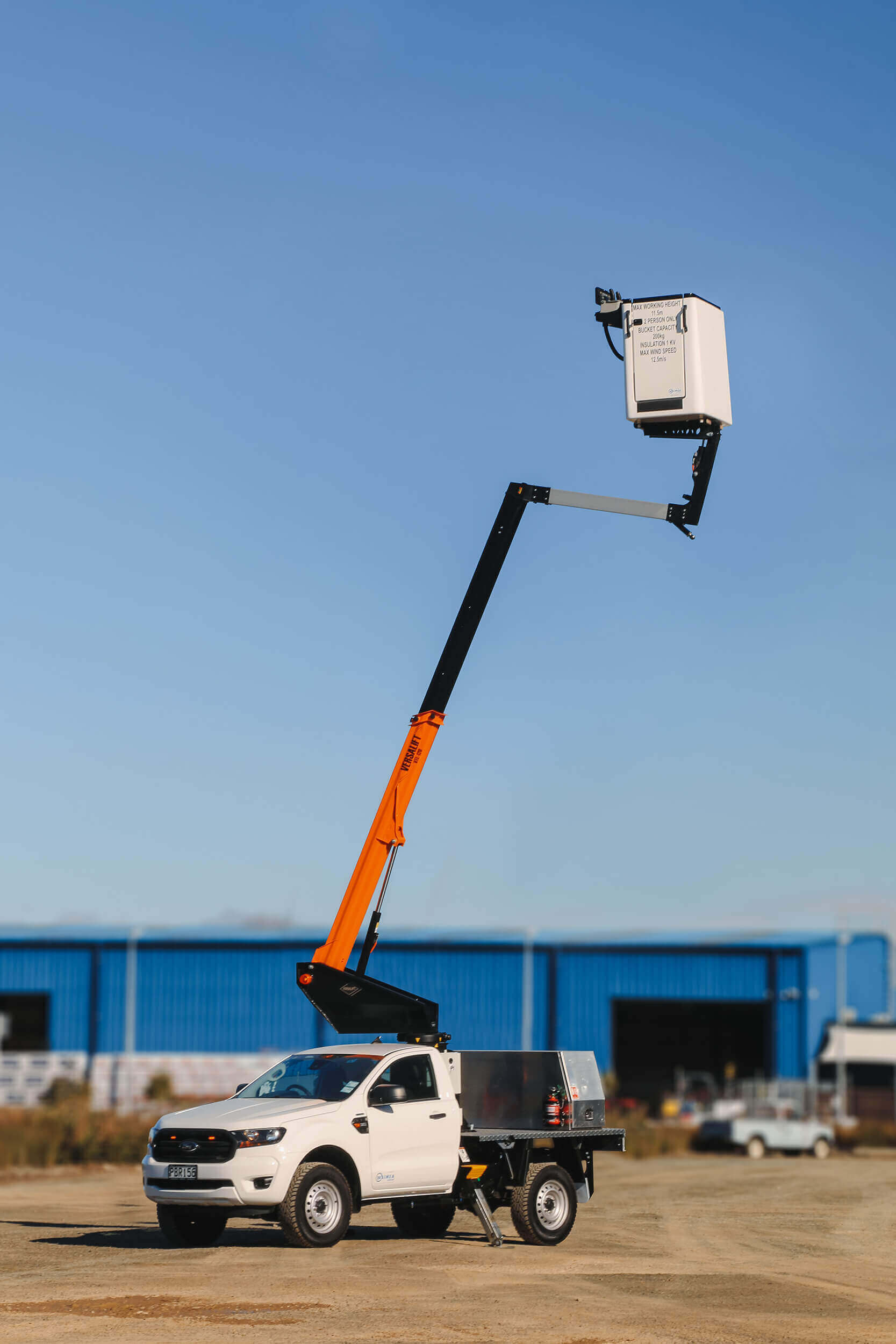

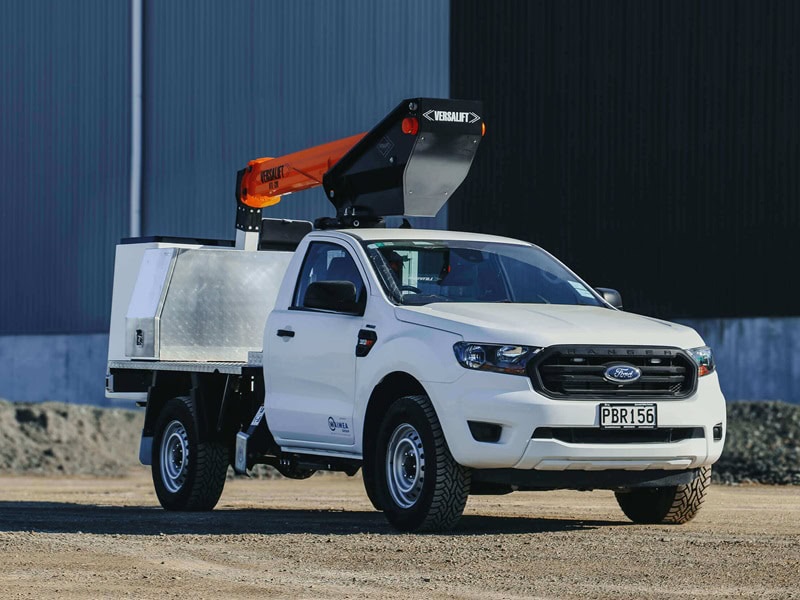

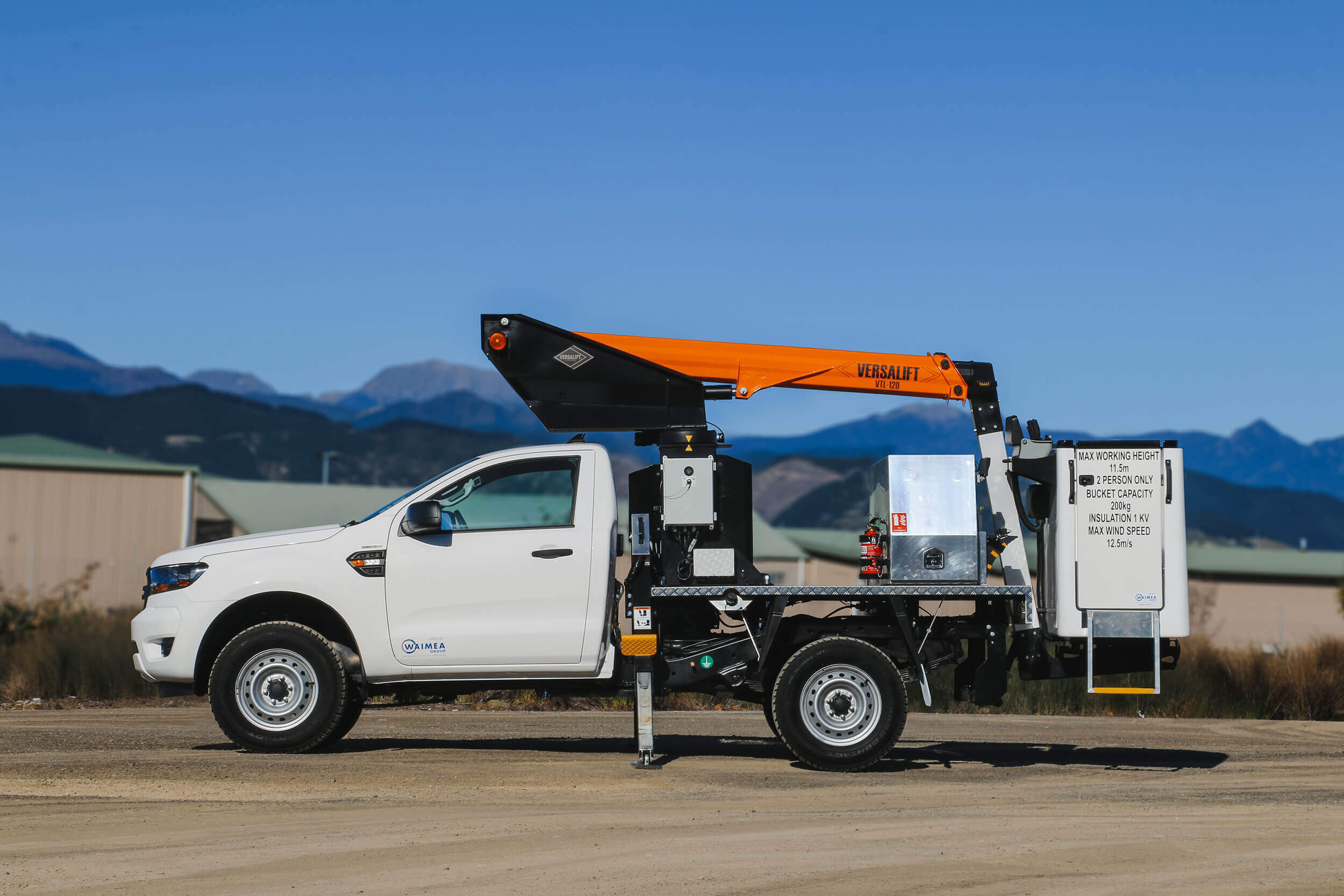

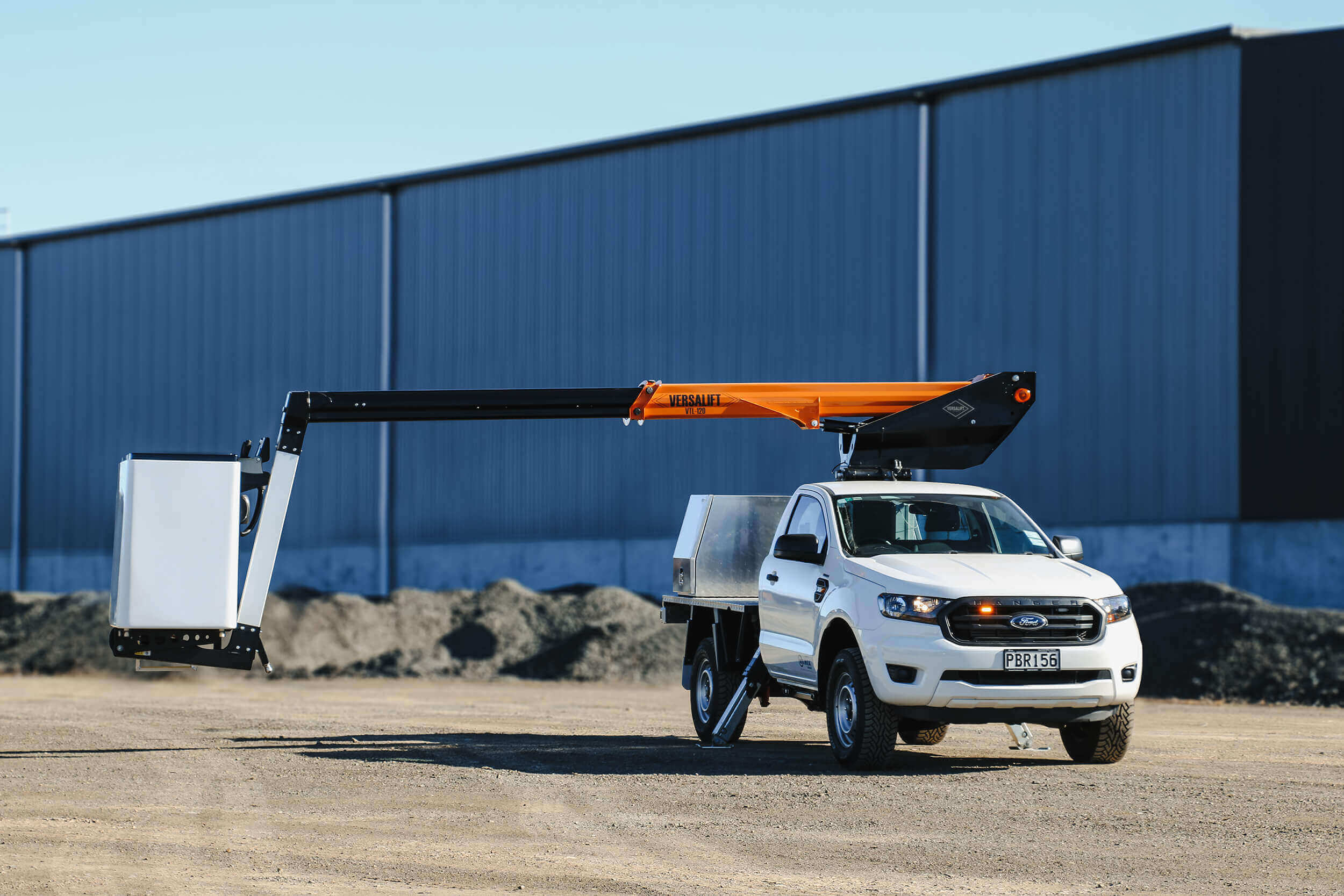

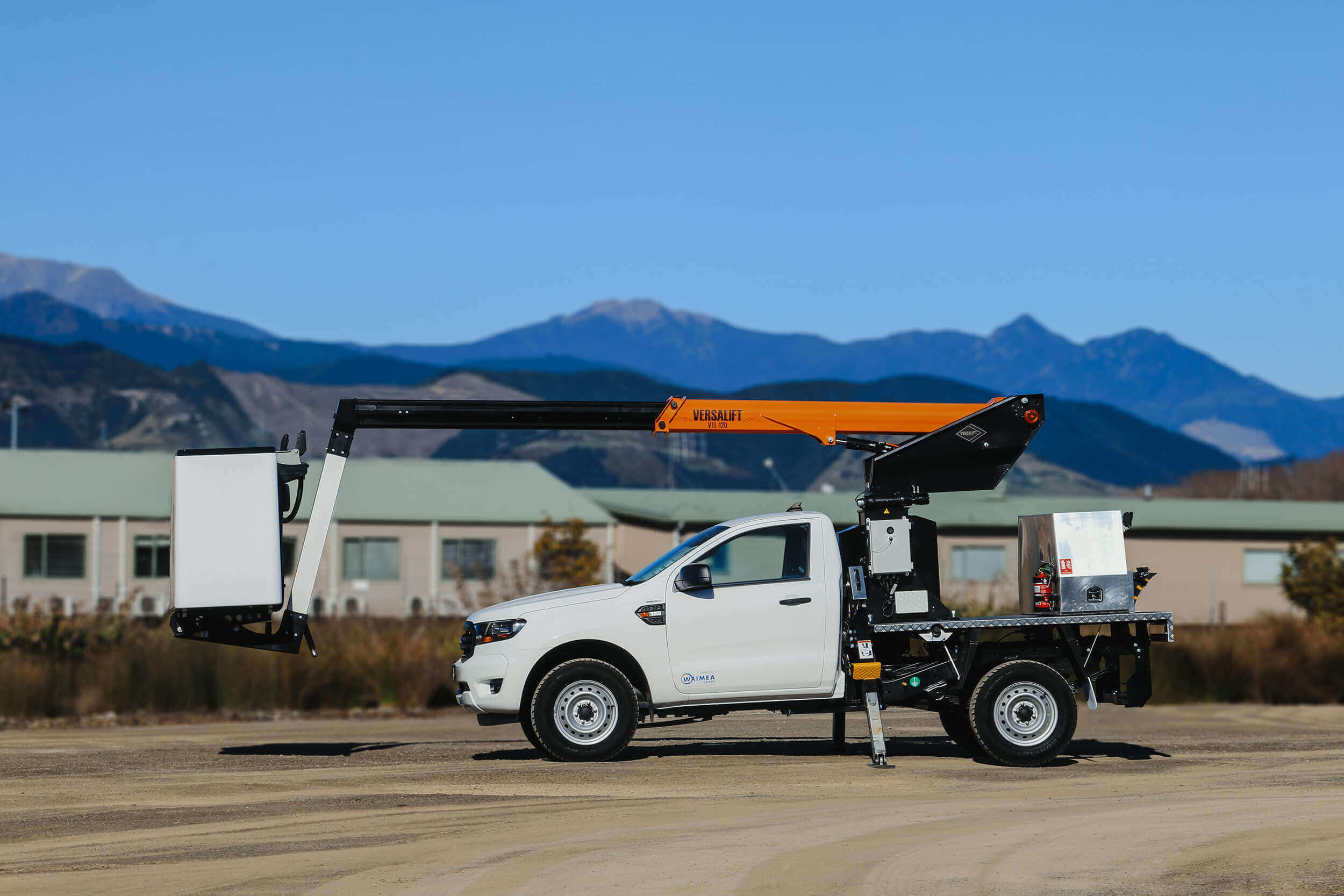

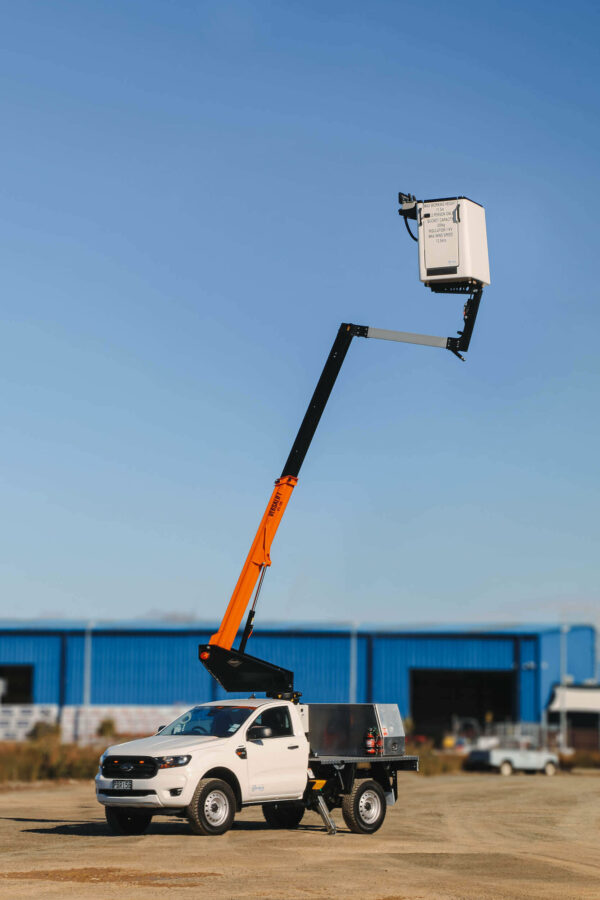

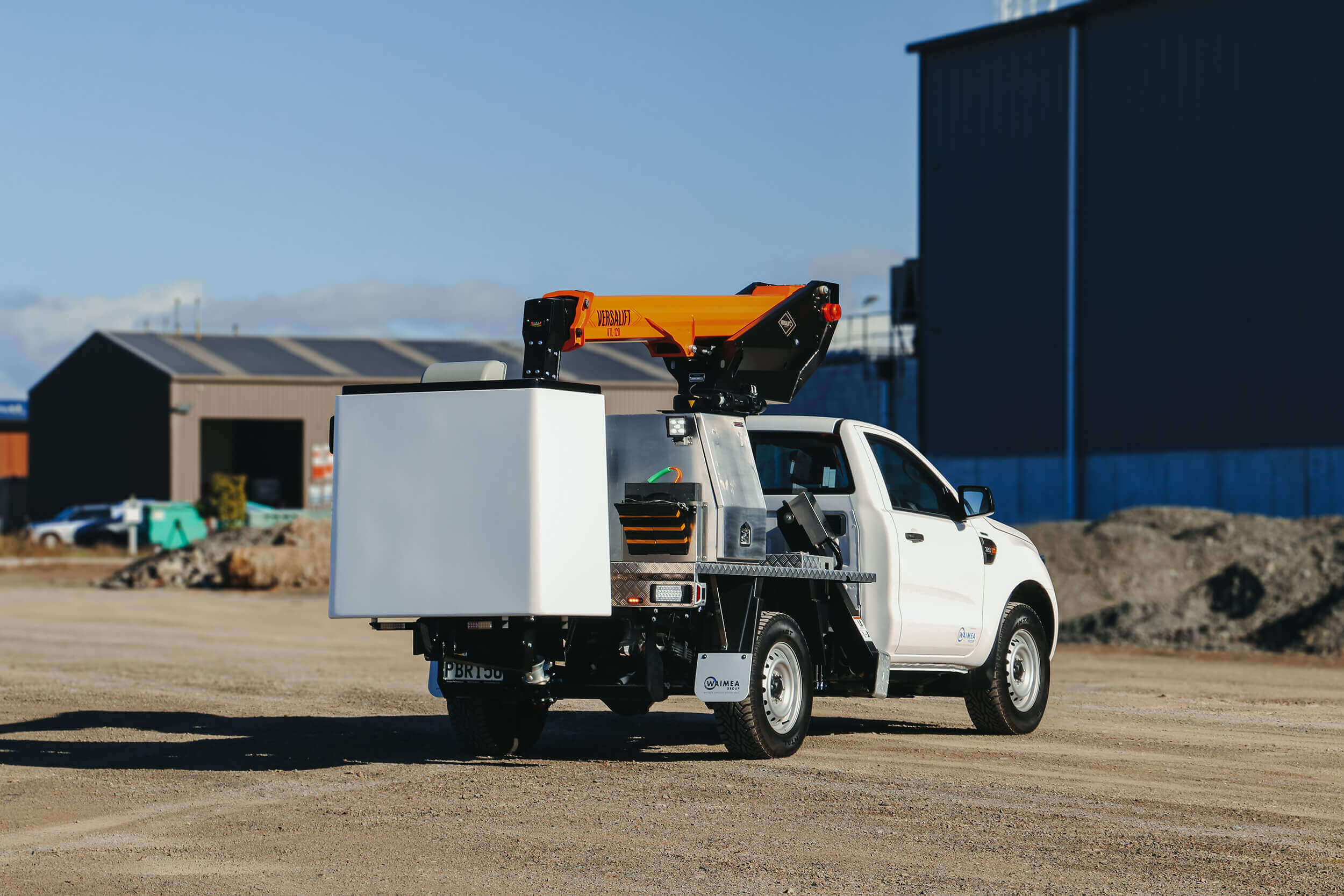

Versalift VTL31 on Ford Ranger 4×4
Designed for the Kiwi linesman…
- Supersmooth operating with LMC control system
- 2x outriggers operated from the bucket for quick set up
- 250kg payload for driver, tools and equipment

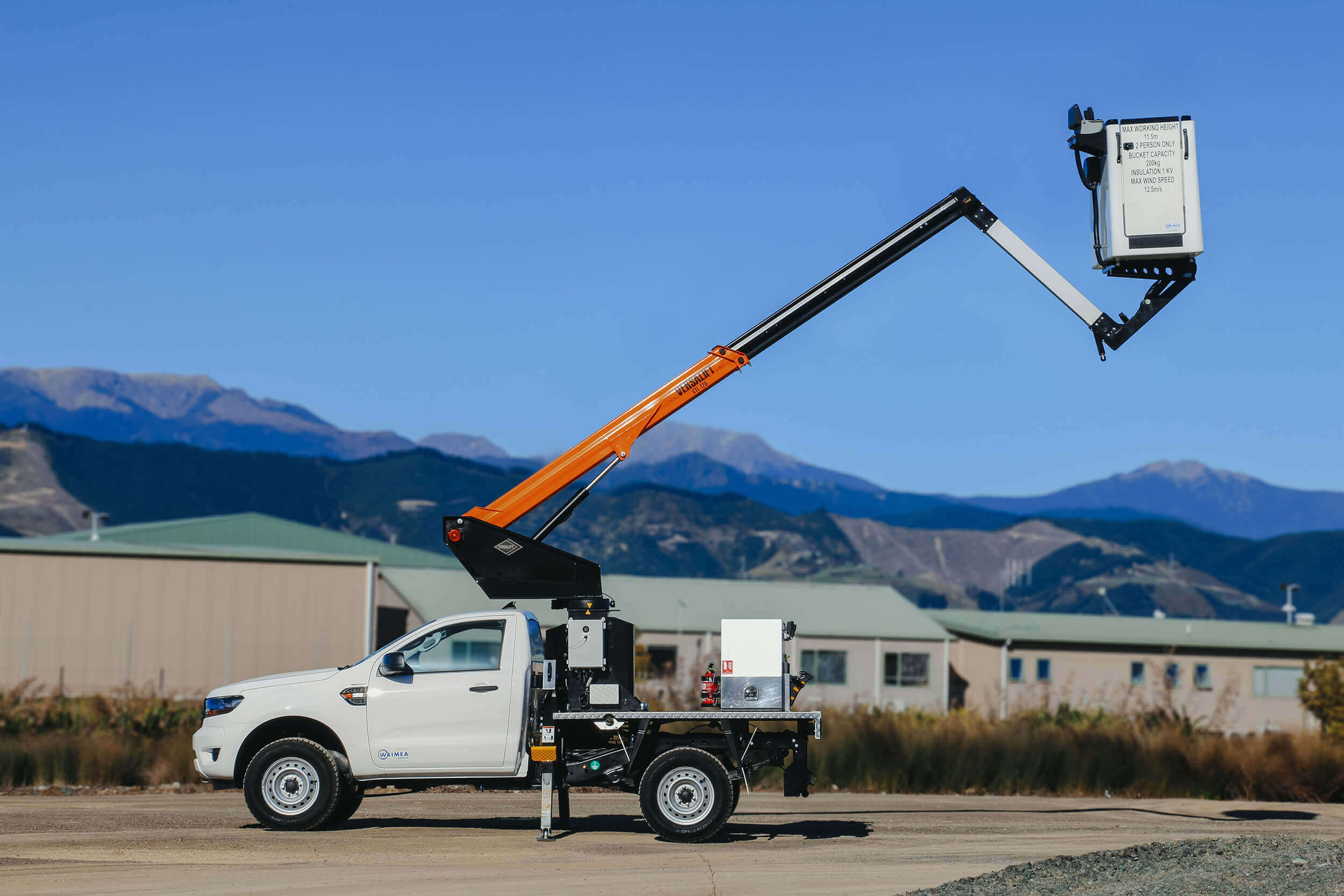

- Impressive 5.7m horizontal outreach.
- Super compact with Zero tail swing to minimize traffic disruption.
- Drives on a class 1 license
- Side entry door for easy access to bucket.
Compact ute mount offering 2 man bucket to 12m work height with LV rating and no tail swing. Ideal for faults and streetlighting.
Pole access challenges?…
This unit is opening up access to where historically it has been ladders only.
This super nimble all terrain unit is catching the attention of contractors challenged with accessing their network operating due to tight urban environments with shared drives and right of ways, or rural operators negotiating tight tracks and headlands.

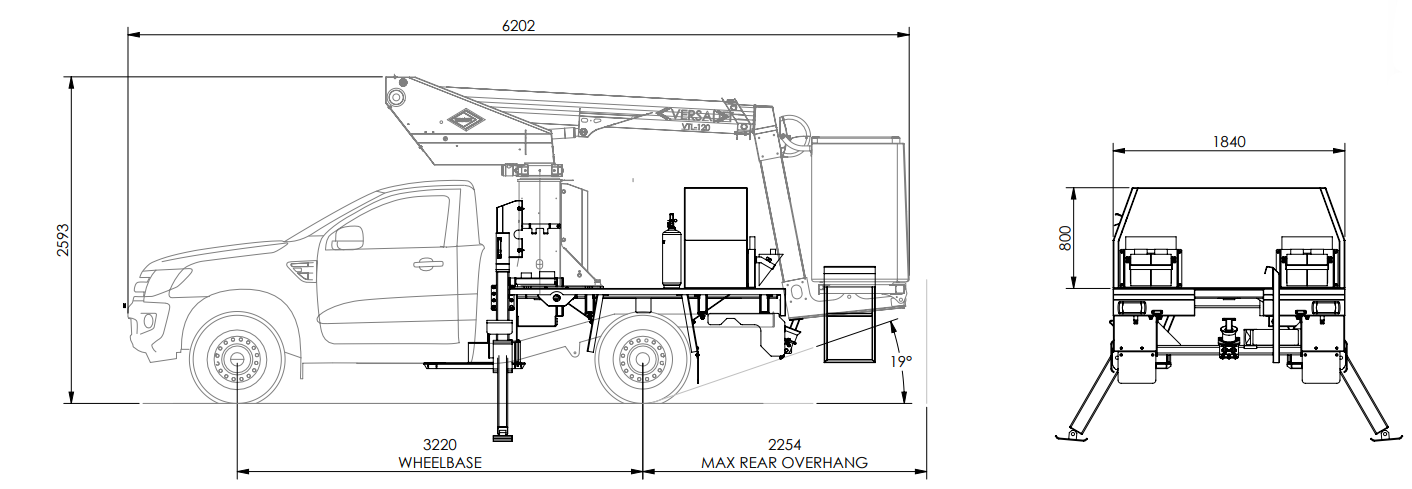

Only 1.8m wide and no tail swing or outriggers in traffic lane.
Let’s Talk
Reach out today to Gareth our Specialist Vehicle Consultant for pricing and availability
Additional information
EWP Manufacturer | Versalift |
---|---|
EWP Model | VTL31 |

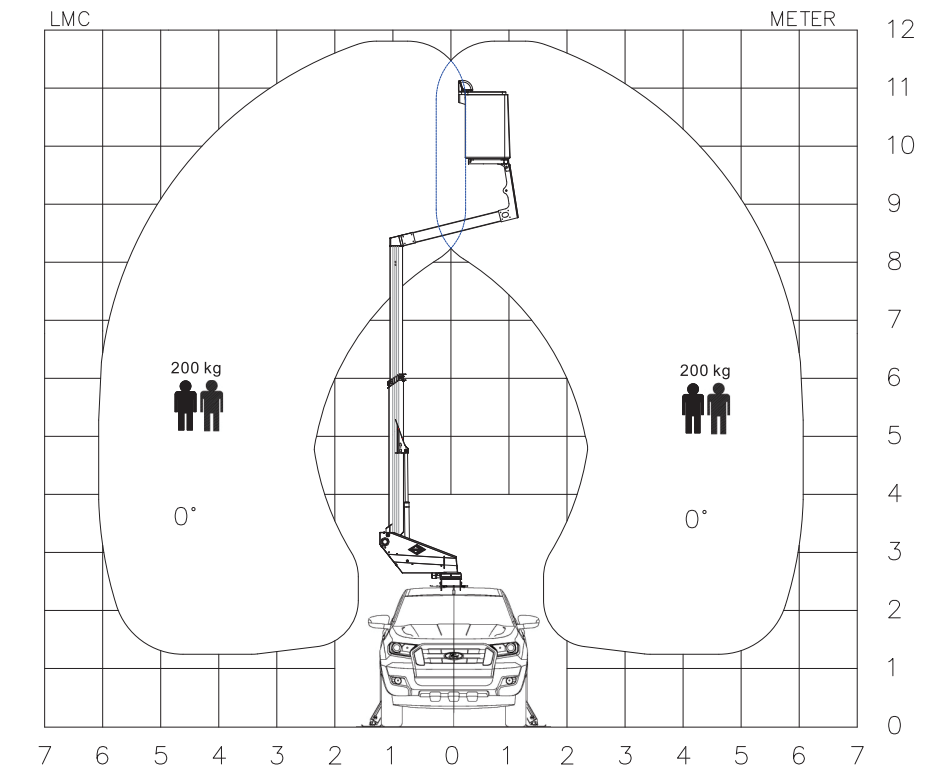

Working Height | 11.5m |
Height (ground to Bucket) | 9m |
Working Radius | 5.7m |
Insulation Rating | LV |
Boom Style | Telescopic with Jib |
Boom Slew Rotation | 360 |
Bucket Rotation | No |
Bucket Rotation Powered | No |
Bucket Capacity SWL | 200kg |
Bucket Dimensions (mm) | 610(L) x 1070(W) x 1070(H) |
Control Type | Electric over proportional hydraulic |
Flyboom | Fixed 90 |
PTO Flow (LPM) @ 900RPM | 12 |
PTO Pressure (BAR) | 185 |
Vehicle Manufacturer | Ford |
Vehicle Model | Ranger |
Specifications | 4×4 |
HP | NA |
Transmission | Auto |
Difflocker/Traction Control | NA |
