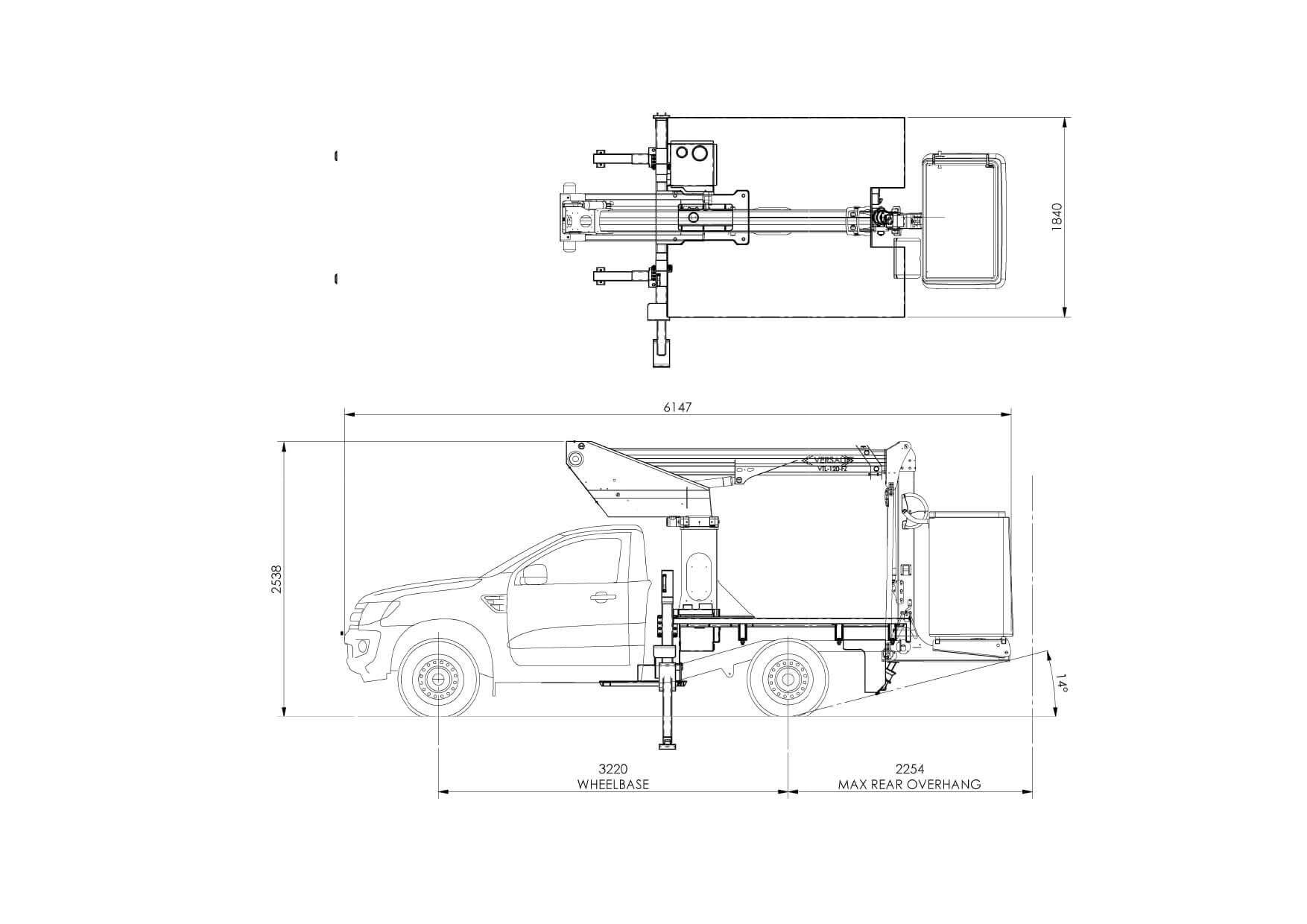

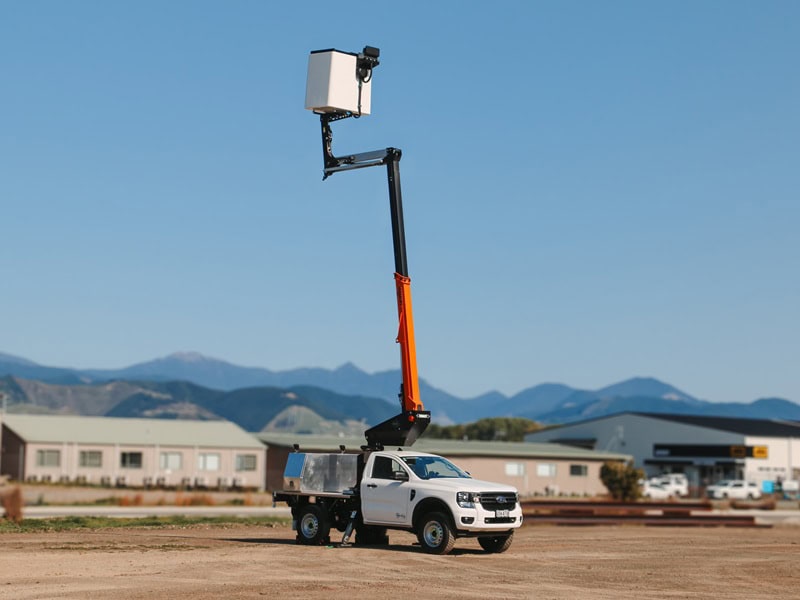

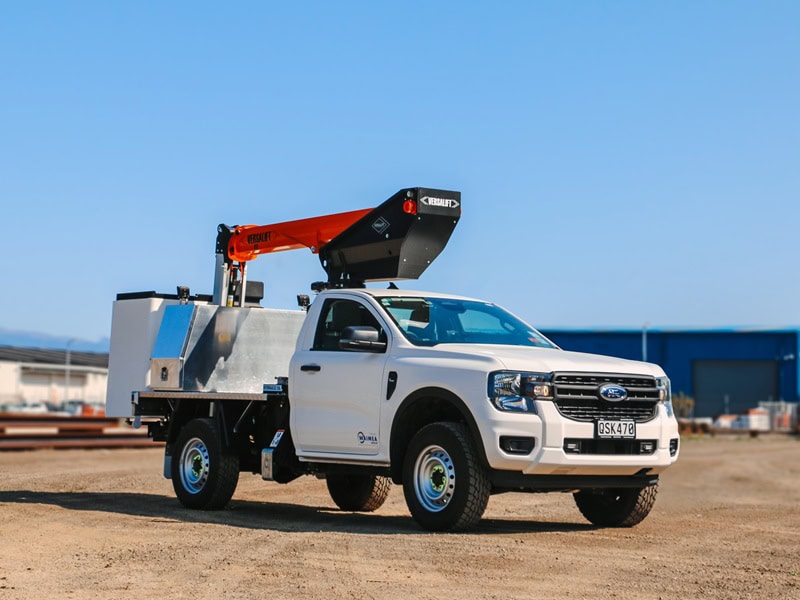

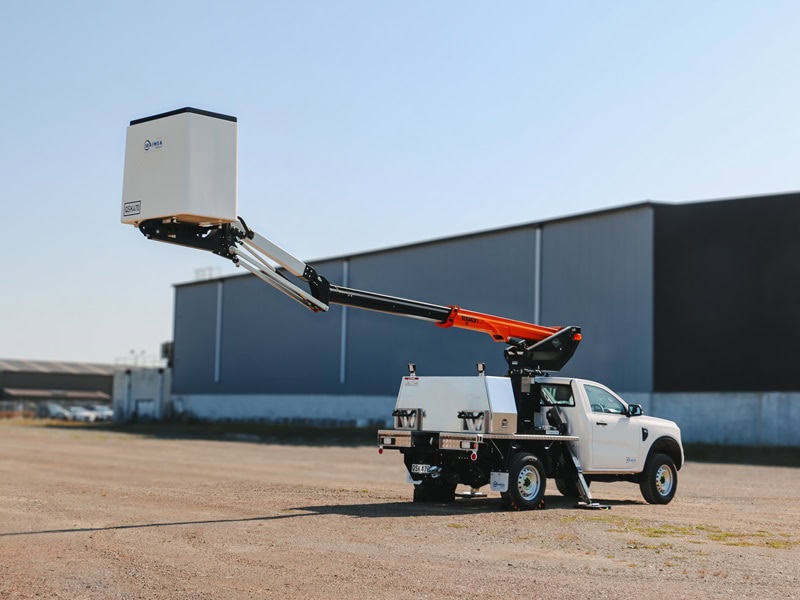

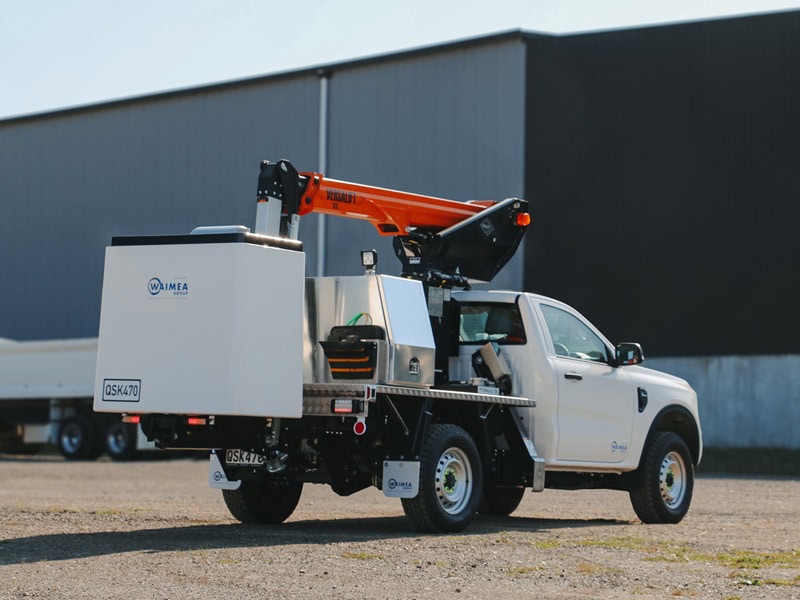

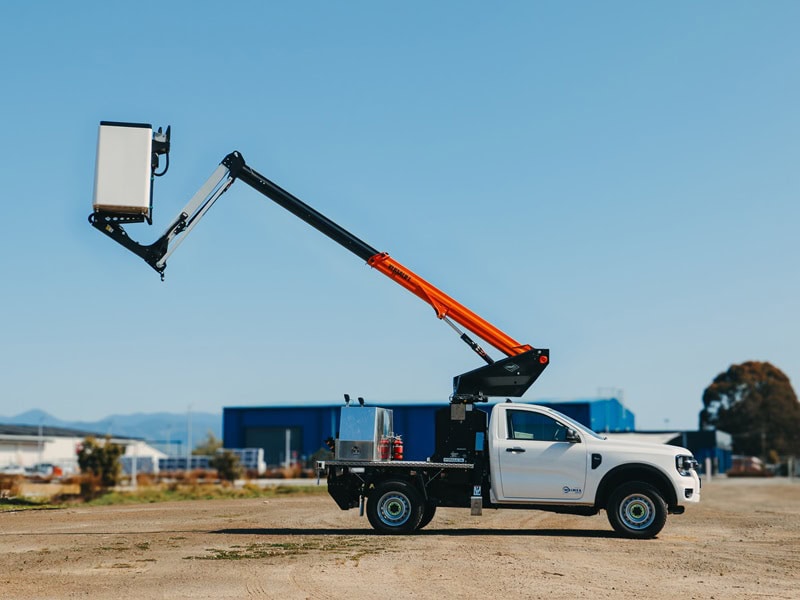

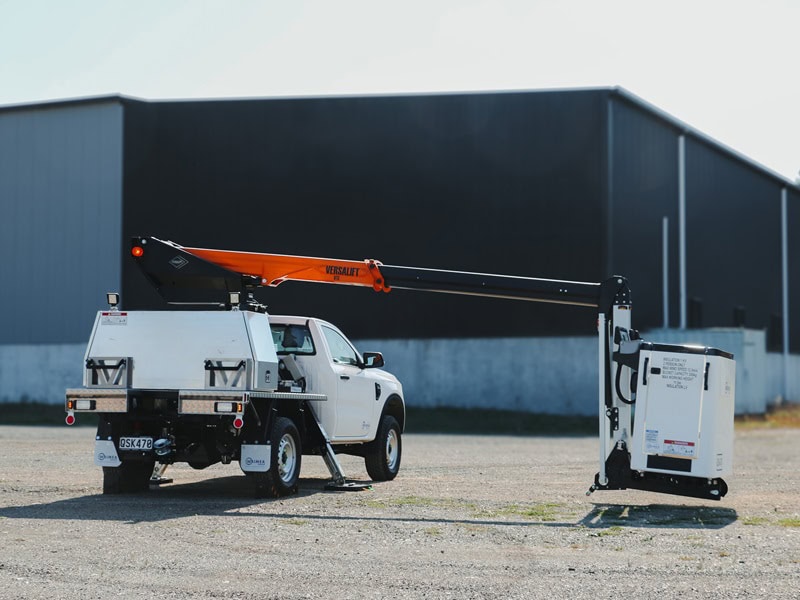

Versalift VTL35 on Ford Ranger Compact Truck
12m Reach+250kg* Payload+Class 1 License =
The safer alternative to climbing ladders….
Designed for the Kiwi linesman…

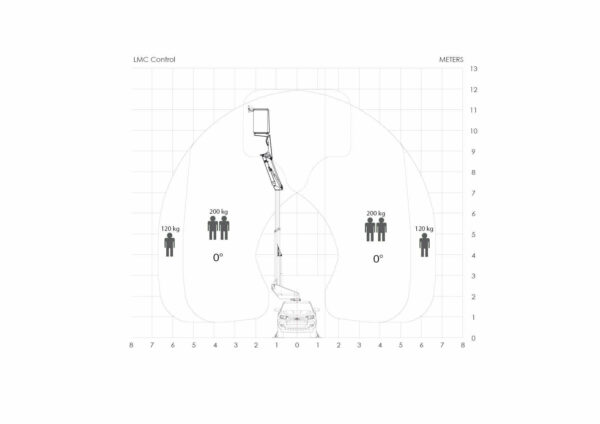

- Supersmooth operating with LMC control system

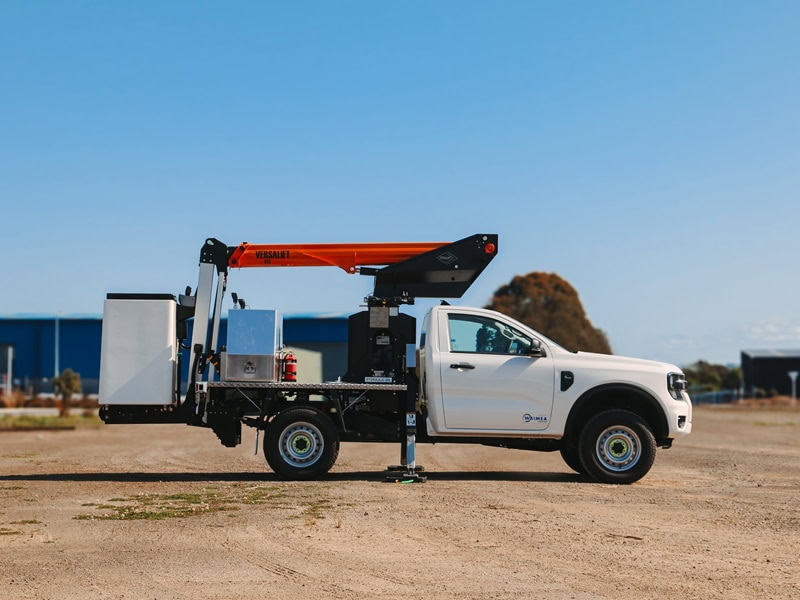

- 2x outrigger and rear axle lock to provide a solid stable operating base
- 250kg payload for people, tools and equipment
- Impressive 7.0m horizontal outreach.
- Super compact with Zero tail swing boom enabling minimal traffic disruption.
- Class 1 license
- Side entry door for easy access to bucket.
Pole access challenges?…
There are even less reasons to use ladders to climb poles now.

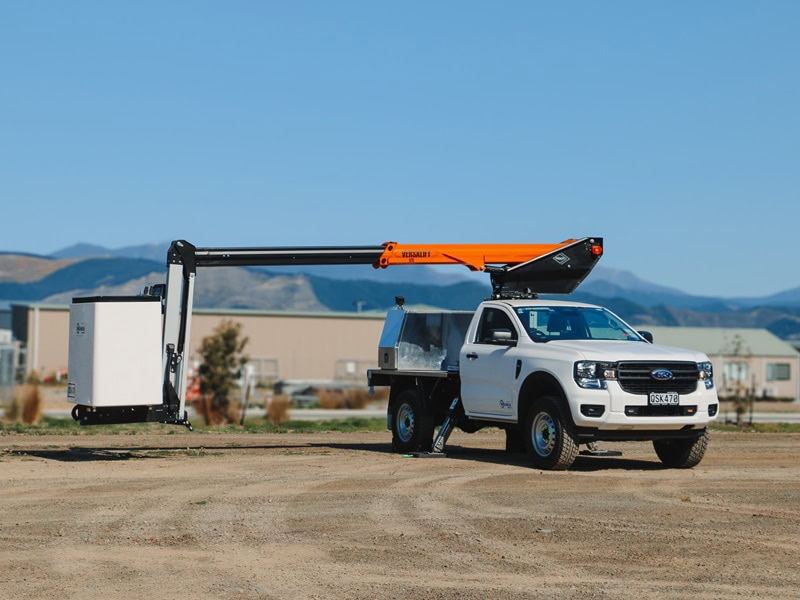

The Ford Ranger 4×4 is a very capable vehicle on the highway, city streets or off road. Fast to set up and safe to operate in tight urban environments, or out on the field on uneven ground. Keep yourself safe when working at height with this very stable and reliable EWP.
Compact ute mount offering 2 man bucket to 12m work height with LV rating and no tail swing. Ideal for faults and streetlighting.
Let’s Talk
Reach out today to Gareth our Specialist Vehicle Consultant for pricing and availability
Additional information

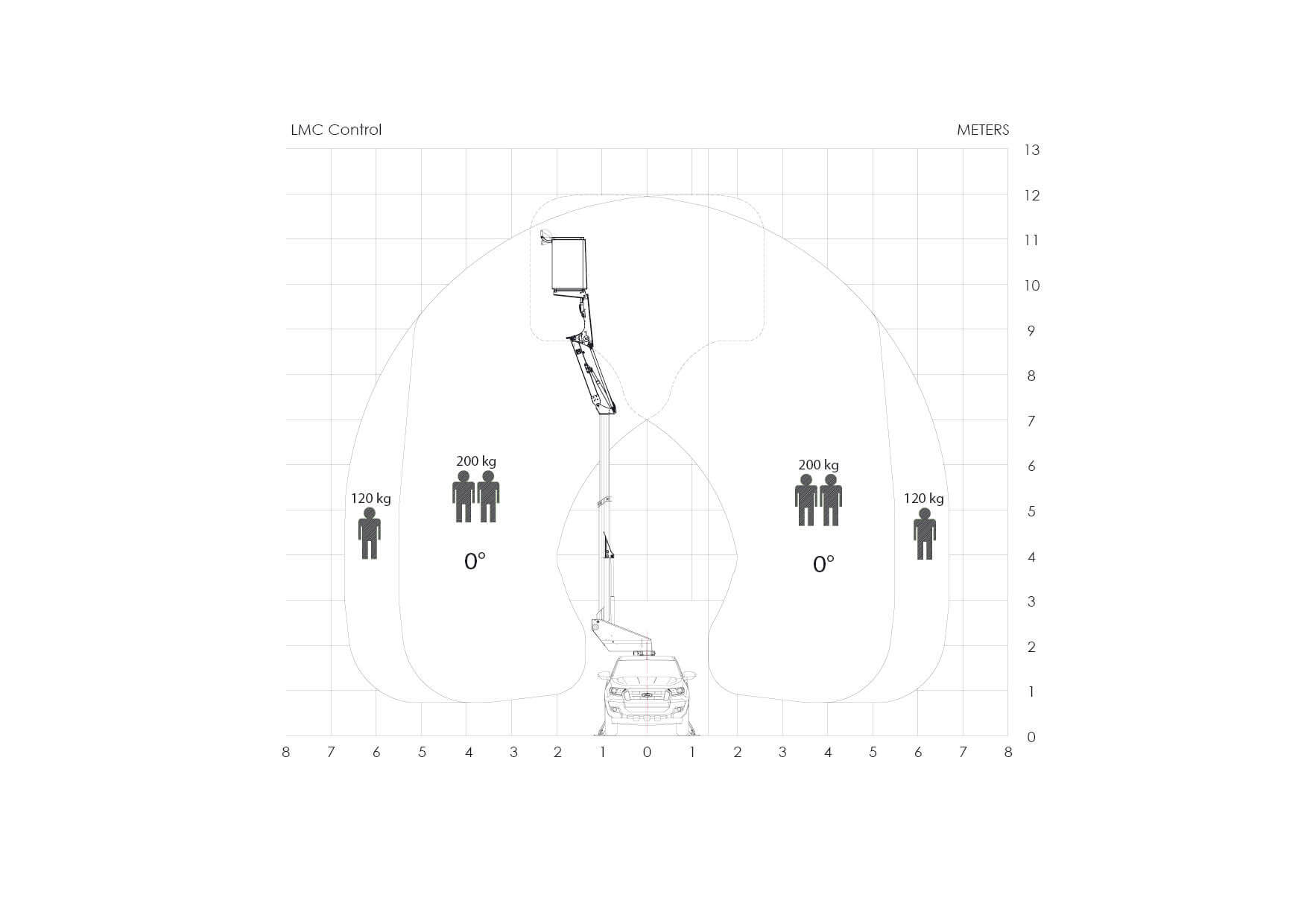

| Working Height | 12m |
|---|---|
| Height (ground to Bucket) | 10m |
| Working Radius | 7m |
| Insulation Rating | LV |
| Boom Style | Telescopic with Jib |
| Boom Slew Rotation | 360 |
| Bucket Rotation | No |
| Bucket Capacity SWL | 200kg |
| Bucket Dimensions (mm) | 610 (L) x 1070 (W) x 1070 (H) |
| Control Type | Proportional – Electric/hydraulic |
| Flyboom | 140 Deg. |
| PTO Flow (LPM) @ 900RPM | 12 |
| PTO Pressure (BAR) | 185 |
| Vehicle Manufacturer | Ford |
| Vehicle Model | Ranger |
| Specifications | 4×4 |
| HP | NA |
| Transmission | Auto |
| Difflocker/Traction Control | NA |
