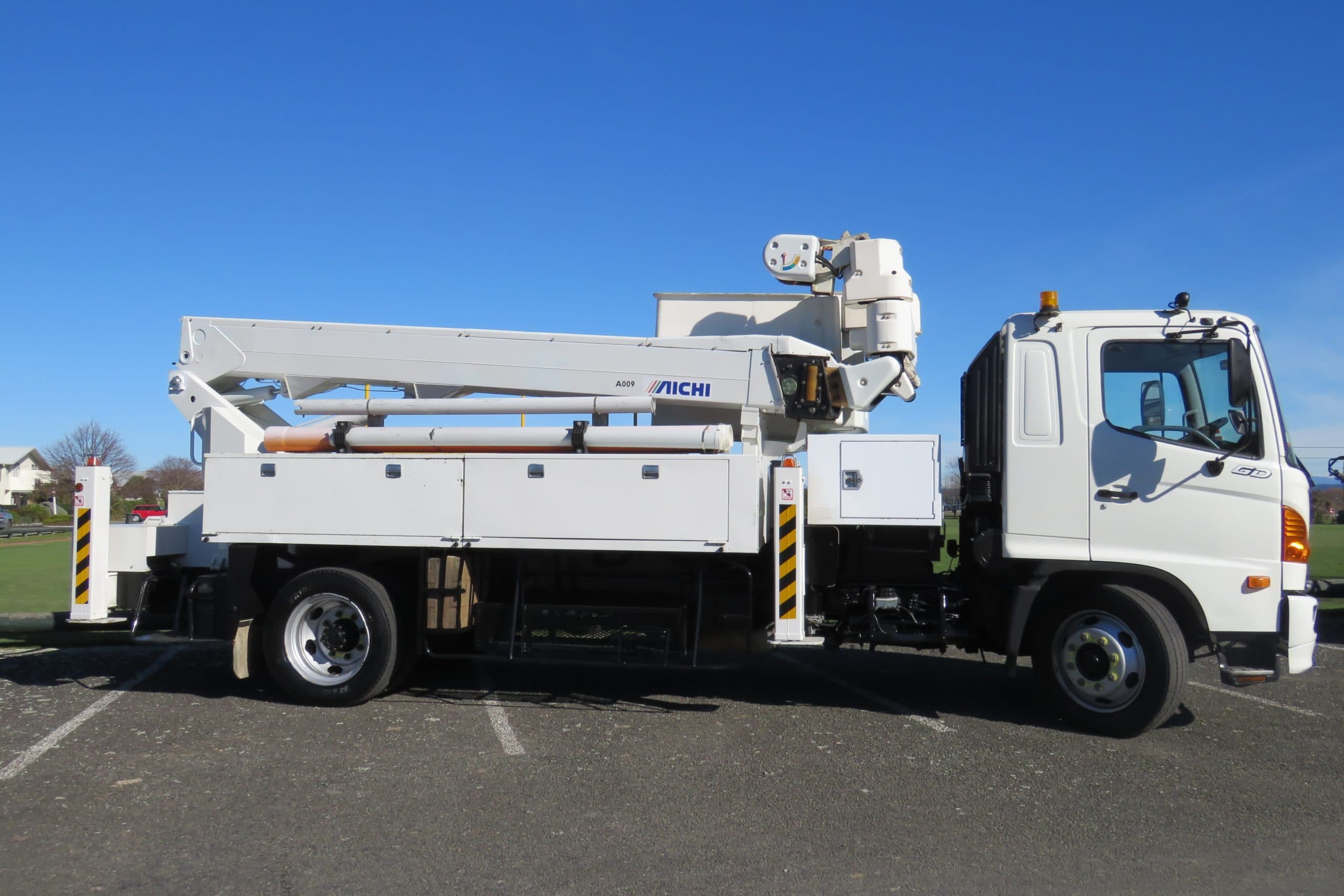

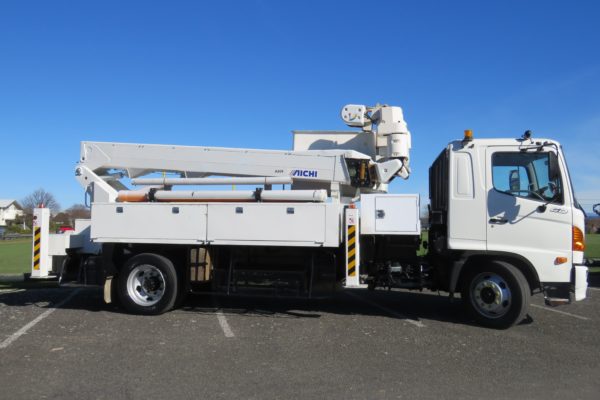

Aichi SN15A on Hino GD 500 4×2

Name: Aichi SN15A on Hino GD 500 4x2 | Waimea Group NZ Ltd
Brand: simple
SKU: 1095

This well-appointed 2007 low K’s Hino GD has recently had its major rebuild completed and has been fitted with a fully refurbished 2006 Aichi SN15A EWP with a 16.4m work height and 2-man bucket capacity.

Enquire Now

SKU: 1095 Categories: Bucket Trucks LV & HV, Rentals

Description
Specifications

Overview

This well-appointed 2007 low K’s Hino GD has recently had its major rebuild completed and has been fitted with a fully refurbished 2006 Aichi SN15A live-line EWP.

An excellent example of a well-built unit with certification on the boom until 2022.

EWP Details

These well-known booms have a certified insulation rating of 46 kV (Cat C) and the full wrap-around bucket makes it a popular choice for live line work and the preferred style of bucket for gloving.
Key features include 16.4m work height, bucket slide-up, 2 man/ 250kg bucket capacity, hydraulic auxiliaries in the bucket and at the ground, hydraulic winch and telescopic FRP boom.
The bucket features a wraparound arm system with bucket lift, offering exceptional manoeuvrability.
The joystick controls offer horizontal and vertical single lever function and it has an auto-stow function at both top and bottom stations.

Truck Details

This Hino truck has 5 large tool boxes, chock, outrigger pad holders and flashing lights. We have fitted safety rails for safe bucket access which start at the rear on the access steps. The bucket stows behind the cab keeping the overall travel height to 3.1m.
