Allvac® AV850 Hydro Excavator on Tandem Trailer

Hydro excavation technology is the new choice for easy digging near underground services. Hydro excavation – also known as hydro digging, vacuum trenching or vacuum excavation – allows for safe digging around sensitive services such as piping, cabling and foundations.

This unit uses a combination of high pressure water and an industrial vacuum unit to loosen and remove soil and debris, to to safely dig without cutting or impacting services hidden in the ground.

Non-destructive hydro excavation is extremely safe and productive for many uses including:

  • Underground utility services
  • Live gas pipe and power cable
  • Water and sewer pipe
  • Fibre optic cables
  • Pot-holing
  • Slot trenching
  • Street sign pole holes
  • … and much more

No damage to underground services. No mess. Safe and efficient.

Pot-holing and locating buried underground services has never been easier. Tow the Allvac® AV850 to site in the comfort of a 3.5-tonne ute on a heavy duty, low COG 3.5-tonne skeleton trailer and get into action, fast!

The Allvac® AV850 offers operators a very cost-effective hydro excavation option to locate and expose underground utilities with non-destructive digging. This unit comes mounted on one of our purpose built 3,500kg trailers which allows it to be towed with a ute that has 3,500kg towing capabilities.

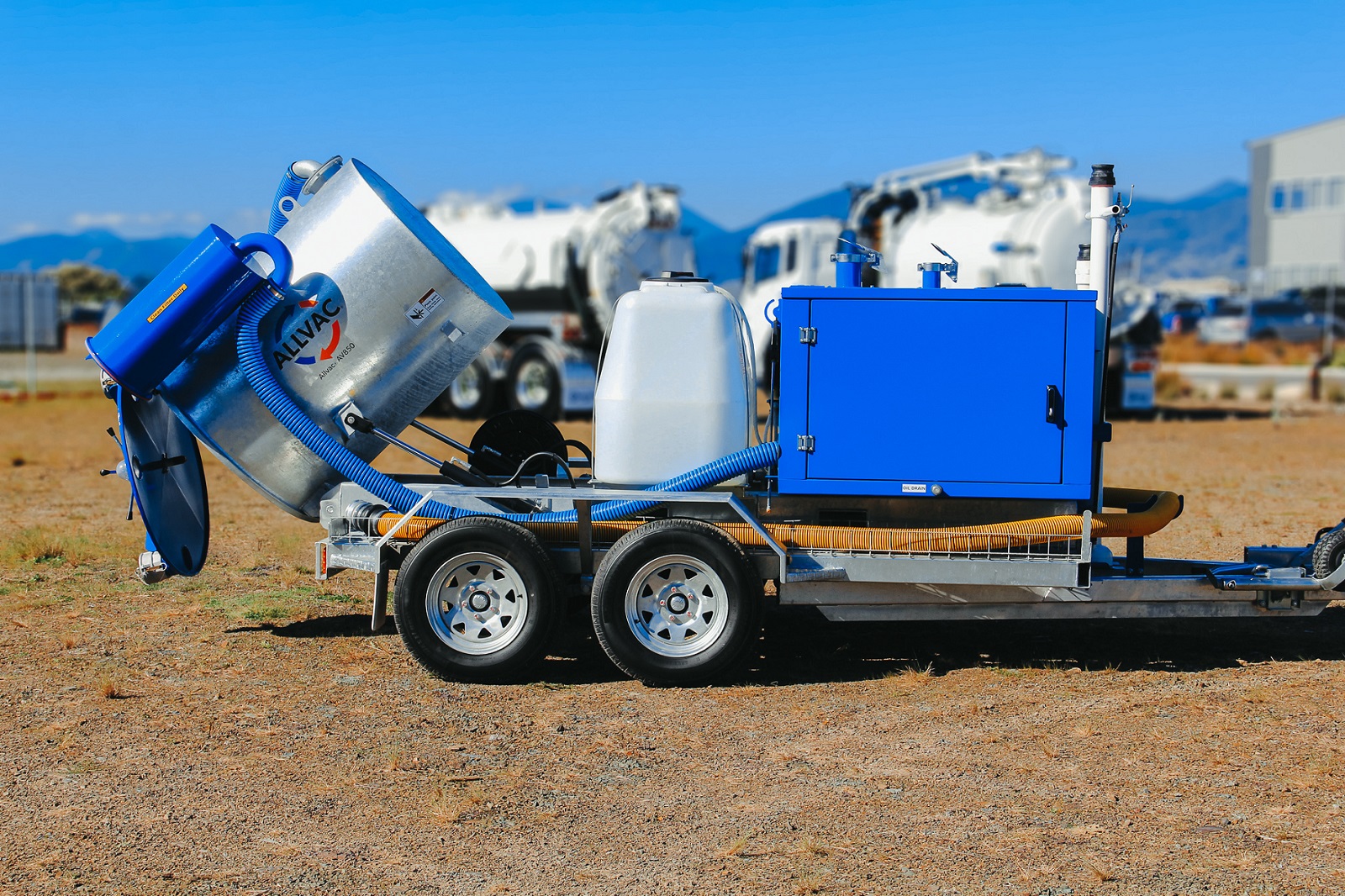

Also available as a skid mount, it can be lifted on and off a truck with its forklift slots. With the spoil tank mounted horizontally and tipping hydraulically, it gives the unit a very low centre of gravity when travelling loaded. This negates the significant hazard of loaded trailers tipping if they are designed with permanently tilting tanks.

Health and safety has been considered regarding opening the rear door whilst the tank is horizontal, by then moving away from the tipping area and activating the tank hoist with a corded controller.



Let’s Talk

Reach out today to Maska our Specialist Vehicle Consultant for pricing and availability

Additional information

Rear Tank Door

ManWay

Discharge

Tipping hoist w/ full opening rear door

Class

6,9

Operating pressure (PSI)

0

Hose standard

3" diameter hose (318mm Hg 15'Hg)

Manufacturer

Greatech

Vacuum Pump

G100V – Blower

Air flow: m3/hr

935

Air flow: L/min

15575

Air flow: cfm

550

Driveline

34.9 Hp Kohler KDW1404 Diesel Engine

Water capacity

500L

Water pump/pressure

3500psi @ 15Lpm

Retractable hose reel

15m

GVM

3,500kg

Trailer Only

700kg

Total combined ( Trailer & Unit)

1900kg

Total Fully Loaded w/water

3200kg approx.

Total Length

4,873mm

Tray RH

2,940L X 355W mm

Tray length LH

2,105L X 355W mm

Width

2,130mm

Tow Bar Height

506mm

Brakes

3500 kg EURO-BRAKES

Accessories

Jockey Stand

Specifications

Tandem
