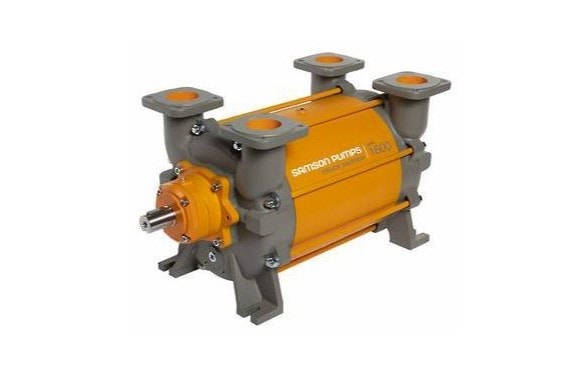

Truck Master 1600

A liquid ring pump made for commercial vacuum trucks, intended to handle medium to large wet waste management tasks in populated areas.

Samson's Truck Master 1600 is suitable for commercial and mid-range vacuum trucks, medium sewer jetting vehicles, and septic trucks.

It is a cost-efficient choice and has a max vacuum of 85%, max. pressure of 1,0 bar(g) and a max capacity of 1600 m3/h.

Key features

• Optimum HPR rotor, full welded, stainless steel, and specially designed by Samson for pumps mounted on vacuum trucks
• Easy to install on any type of vacuum truck
• Oil resistant gasket

Applications

• General wet waste management
• Cleaning pipes
• Collecting and transporting contaminated or hazardous substances

Specifications

• Bearing cover: Cast iron EN-GJL-250, EN 1561
• Radical shaft seal: Rubber, NBR, DIN 3760A
• Paper gasket: Paper
• Bearing housing: Cast iron EN-GJL-250, EN 1561
• Mechanical shaft seal: NBR / AISI 316 / Carbon
• Pump housing: Cast iron EN-GJL-250, EN 1561
• Flow plate: Cast iron EN-GJL-250, EN 1561
• Flow plate (ex model): Bronze CC480K, EN 1982
• Rubber gasket: Rubber, NBR
• Shell: Cast iron EN-GJL-250, EN 1561
• Stay bolt: Carbon steel W.Nr.1.1181
• Rotor: Stainless Steel

Vacuum

Pressure
